If you are trying to build a 5-inch racing drone under $300 today, you are in the sweet spot of FPV: big enough for real racing performance, still affordable for committed beginners and intermediate pilots. As a long‑time FPV pilot and as a team member at Zhongshan Yuhang Power Technology Co., Ltd., a Chinese manufacturer focused on FPV drone motors and brushless power systems, I'll walk you through a practical, field‑tested build that balances performance, reliability, and cost. [mepsking]
Among all FPV configurations, the 5‑inch racing drone has become the "standard" size for serious racing and freestyle. In my experience testing motors and power systems for customers around the world, this size hits a unique sweet spot. [oscarliang]
Key advantages of a 5‑inch racing quad:
- High thrust‑to‑weight ratio for explosive punch‑outs and sharp cornering.
- Common parts ecosystem, easy to find frames, motors, props, and spares globally. [fpvknowitall]
- Excellent tuning resources, because most FPV tutorials, PID presets, and race setups target 5‑inch.
- Budget‑friendly performance, a well‑chosen build can compete on the track while staying under $300. [mepsking]
For pilots moving up from tiny whoops or 3–3.5‑inch quads, a sub‑$300 5‑inch build is often the first "real" FPV racing machine. [reddit]

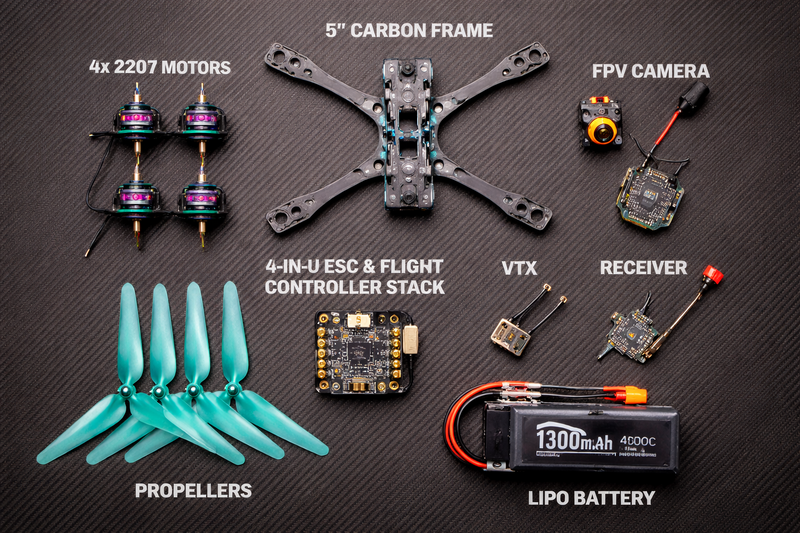

Below is a practical component list based on the existing MEPS budget build, refined from a motor manufacturer's point of view. Prices fluctuate, but this configuration is designed to stay around the $300 total. [mepsking]
| Component | Example Product (Reference) | Typical Price (USD) | Notes |
|---|---|---|---|
| Frame | 5" racing frame (e.g., GEPRC GEP Racer Frame) | ~$50 | Stiff carbon, easy maintenance. (mepsking) |
| FC & ESC Stack | F4/F7 30×30 stack (e.g., SpeedyBee F405 V4 60A) | ~$80 | All‑in‑one convenience, good current headroom. (mepsking) |
| Motors (x4) | 2207 2000–2100KV FPV motors | ~$40/set | Ideal for 5S–6S racing and freestyle. |
| FPV Camera | Nano/mini 1200TVL camera (e.g., Caddx Ant) | ~$16 | Lightweight, low latency. (mepsking) |
| VTX | 350mW class VTX (e.g., Zeus Nano 350mW) | ~$35 | Enough power for most local racing/freestyle. (mepsking) |
| Receiver | ELRS / Crossfire / other RX | ~$15–25 | Choose based on your radio system. |
| Props | 5" tri‑blade props (various brands) | ~$8–12 (3–4 sets) | Always buy extras. |
| Battery | 5S/6S 1200–1400mAh LiPo | ~$25–35 | Racing‑capable burst current. |
| Misc. | 3D prints, screws, wiring, pads | ~$15–20 | Often underestimated but essential. |
From the standpoint of a motor manufacturer, I can confidently say that motors define the character of your 5‑inch build. The motor is where electrical energy from the battery becomes mechanical thrust. Small differences in design can transform how your quad feels in the air. [ligpower]
Key motor factors that affect your racing drone:
- Stator size (e.g., 2207, 2306):
- 2207 tends to deliver stronger top‑end thrust and better sustained power for racing.
- 2306 often feels slightly smoother and more "floaty" for freestyle.
- KV rating (e.g., 1950KV, 2050KV):
- Lower KV with higher voltage (like 6S) gives cool‑running motors and precise throttle.
- Higher KV on 4S/5S feels more aggressive but can stress ESCs and batteries.
- Rotor design & materials:
- High‑quality magnets and tight air gaps improve efficiency and torque.
- Strong shafts and well‑balanced bells reduce vibration and improve tune.
At Zhongshan Yuhang Power Technology, we test motors on dynamometers and real racing frames to match actual thrust curves with pilot needs (race vs freestyle vs cinematic). This lab data plus field feedback is how we refine stator geometry, magnet choice, and winding schemes for FPV‑specific motors. [ligpower]
To keep your 5‑inch racing drone both fast and manageable, I recommend:
- Stator size: 2207 or 2208
- KV range:
- 1700–1900KV for 6S (ideal for racing and hard freestyle)
- 2000–2100KV for 5S
- Prop size: 5×3.6–5×4.3 tri‑blade
This combination gives:
- Strong mid‑throttle control for tight gates and technical tracks.
- Efficient cruising with reasonable flight times.
- Headroom for prop changes (more pitch for racing days, lower pitch for smooth freestyle).

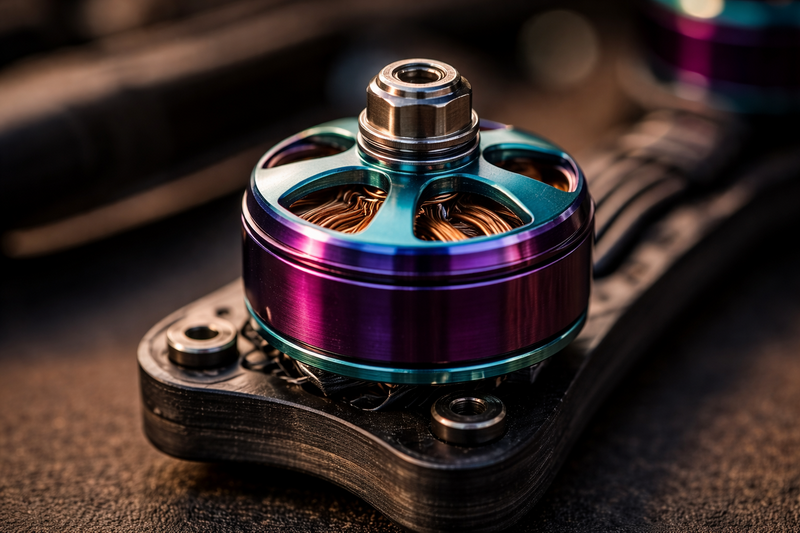

Image suggestion: Add a close‑up photo of a 2207 FPV motor next to a 5‑inch prop, with key specifications annotated (stator size, KV, bearing type).
When we analyze user comments and FPV community discussions about 5‑inch builds under $300, several recurring themes appear. As manufacturers, we pay close attention to this feedback because it reveals real‑world priorities. [youtube]
Most common pilot expectations:
- Reliability over pure spec numbers – pilots prefer a slightly heavier but durable setup to avoid DNFs in races.
- Predictable handling – a well‑tuned quad that tracks straight and responds linearly beats an unstable "rocket ship."
- Reasonable crash resistance – strong frames, solid solder joints, and well‑protected motors are critical.
- Cost‑aware upgrades – pilots want to start under $300 but still have a clear upgrade path (better VTX, HD system, higher‑end motors).
As someone who has spent many weekends at local race fields and bando spots, I've seen countless pilots give up on FPV not because the hobby is too expensive, but because their first build was too fragile or too hard to tune. A thoughtfully designed 5‑inch racing drone under $300 avoids that trap.
If you are building your first or second 5‑inch racing quad, here is a practical sequence that balances cost and success rate.
- For most new racers today, 6S is the better long‑term choice.
- It allows lower KV motors, cooler running, and smoother control.
- Lock in 2207 ~1800KV motors designed for 6S.
- Select 5‑inch tri‑blade props recommended for racing/freestyle (e.g., 51433, 51466 class).
By starting from the motor‑prop combo, you anchor the rest of the power system: ESC current, battery capacity, and frame choice.
- Pick a strong but not overly heavy 5‑inch frame with:
- 5mm arms, easy arm replacement, and good electronics protection.
- Pair it with a F4 or F7 flight controller + 45–60A ESC stack for enough current margin.
- Analog cameras and VTX units are still cheaper and lighter than most HD systems. [youtube]
- You can always upgrade to HD later once you are consistently flying and crashing less.
- Use pre‑crimped wire harnesses where possible.
- Keep ESC‑to‑motor wires cleanly routed to avoid prop strikes.
- Soft‑mount the stack if possible to reduce noise for the gyro.
Image suggestion: Insert a step‑by‑step wiring diagram (top‑down view) showing FC, ESC, motors, camera, VTX, receiver, and battery lead connections.
A good 5‑inch racing drone under $300 can feel terrible if it is not tuned correctly. Conversely, a well‑tuned budget build can fly like a much more expensive rig. [oscarliang]
Basic tuning checklist:
1. Flash current stable firmware for your FC and configure the correct target.
2. Apply trusted presets from popular tuning resources for your frame size and motor KV.
3. Enable RPM filtering if available to better handle motor noise.
4. Adjust rates to your comfort level:
- Beginners often prefer lower rates for smoother stick response.
- Racers usually run higher rates for snappier flips and rolls.
5. Log blackbox data if possible to fine‑tune filters and PIDs.
From a motor manufacturer's perspective, we design motors to work well with typical 5‑inch filter and PID presets, but every frame and prop combo is slightly different. A few battery packs of careful tuning can unlock 15–20% better feel in the air.
As Zhongshan Yuhang Power Technology Co., Ltd., we do more than just sell motors. We aim to provide complete power system solutions for: FPV drones, racing quads, RC cars, powerful cooling fans, gimbal cameras, fixed‑wing aircraft, cleaning and sweeping robots, underwater ROVs, and other professional applications.
When it comes to a 5‑inch racing drone under $300, we support pilots and B2B partners in several ways:
- Application‑specific motor recommendations (race / freestyle / cinematic / long‑range).
- OEM/ODM customization for KV, shaft type, cable length, waterproofing, or mounting pattern.
- System‑level matching of motors with ESCs, props, and batteries to hit target thrust, flight time, and thermal limits.
- Testing and validation under real FPV conditions (crash resistance, heat cycles, sustained full‑throttle runs).
If you are a team pilot, a small FPV brand, or a system integrator, this kind of engineering partnership can shorten your development time and improve reliability dramatically.
Based on community discussions and our customer support experience, here are the most frequent mistakes we see in sub‑$300 builds. [desygner]
- Chasing the cheapest components only – ultra‑low‑cost ESCs and motors may fail early, causing more long‑term expenses.
- Ignoring current ratings – pairing high‑KV motors with low‑rated ESCs or weak batteries leads to voltage sag and desyncs.
- Underestimating prop choice – overly aggressive props make a beginner build hard to control and stress the power system.
- Skipping basic tuning – flying default PIDs and filters on a custom build often results in oscillations and hot motors.
- Poor physical layout – tight, messy wiring can cause interference, broken solder joints, or prop cuts during crashes.
Avoiding these pitfalls is often more impactful than spending an extra $50 on top‑end parts.
Even if your first build target is a 5‑inch racing drone under $300, you should think ahead about upgrades. [youtube]
Smart ways to future‑proof your setup:
- Choose a frame that supports both analog and HD mounts, so you can upgrade video later.
- Use a 60A ESC rather than a minimal 35A one to handle future higher‑KV motors or more demanding props.
- Pick a universal 30×30 / 20×20 stack layout and standard motor screw pattern for easier component swaps.
- Keep your radio system modern (e.g., ExpressLRS) so you do not have to replace it when you upgrade the quad.
Planning these details from day one ensures your first investment remains useful as your skills and expectations grow.
From an engineering viewpoint, the real performance of a 5‑inch racing drone under $300 depends on how well your motors, props, and batteries are matched, not on any single component in isolation. [fpvknowitall]
1. Motor–Prop Synergy
- Higher‑KV motors with high‑pitch props produce huge thrust but draw lots of current.
- Lower‑KV motors with medium‑pitch props give smoother control and lower temperatures.
2. Battery C‑Rating Reality Check
- Do not trust only printed C‑ratings.
- Practical field tests (flight time, sag at full throttle, post‑flight temperature) show whether the pack truly supports your motor‑prop load.
3. Thermal Management
- After aggressive flights, touch your motors (carefully). They should be warm, not painfully hot.
- If they are too hot, reduce prop pitch, add filtering, or adjust PIDs.
By combining lab testing with pilot feedback, manufacturers like us can recommend motor‑prop‑battery combos that give you real‑world benefits rather than just impressive spec sheets.
A 5‑inch racing drone under $300 is not just a budget project; it can be the foundation of your long‑term FPV journey if you select the right components and understand how they work together. With our experience as a dedicated FPV motor and power system manufacturer, we are ready to help you design, customize, and optimize your setup.
If you are planning a new 5‑inch build, an OEM/ODM project, or a full FPV product line, reach out to Zhongshan Yuhang Power Technology Co., Ltd. to discuss:
- Motor recommendations tailored to your flying style or market segment.
- Complete power system solutions for drones, RC vehicles, robots, and more.
- Custom branding, KV tuning, and engineering support for your next product.
Take the next step now: finalize your parts list, define your voltage and motor specs, and contact our engineering team to turn your sub‑$300 idea into a reliable, professional‑grade racing machine.
1.Is a 5‑inch racing drone under $300 suitable for complete beginners?
Yes, as long as you already have basic line‑of‑sight control and simulator practice. For absolute newcomers, many pilots start with small whoops or beginner FPV kits, then move up to 5‑inch once they can fly confidently. [reddit]
2.Should I choose 4S, 5S, or 6S for my first 5‑inch build?
Most modern builds use 6S because it allows lower‑KV motors, less heat, and smoother throttle control, especially with current firmware and presets. However, if you already own a fleet of 4S batteries, a 4S build can still make sense. [oscarliang]
3.Can I build a digital (HD) 5‑inch racing drone under $300?
It is possible but more challenging because HD systems (video transmitter and camera) cost more than analog. Many pilots start with analog to stay under budget, then upgrade to HD later using the same frame and power system. [youtube]
4.How many spare parts should I buy for a budget 5‑inch racer?
Plan for at least 2–3 sets of props, one extra arm if your frame design allows single‑arm replacement, and spare screws and battery straps. Additional motors and a backup ESC become more important as you start flying more aggressive tracks.
5.How do I know if my motors are overloaded?
Signs include very hot motors after a short flight, excessive battery sag on punch‑outs, and visible oscillations at high throttle. Reducing prop pitch, improving tuning, or choosing a more appropriate KV often solves the problem. [ligpower]
