Key Parameters of FPV Drone Brushless Motors

Drone racing is an emerging tech sport in recent years. Together with esports and robot combat, it is known as one of the three "intelligent tech sports". Unlike common photography drones, racing drones can reach a maximum speed of 230 kilometers per hour, accelerating from 0 to 100 km/h in less than one second. Technically, it involves aerodynamics, software engineering, electronic engineering and other disciplines, and requires extremely high on‑site reaction and control skills from pilots. Due to its extreme speed, drone racing is also called “Air F1”. The FPV (First‑Person View) system allows pilots and viewers to watch the race in real time through the drone’s camera, giving the feeling of sitting inside the cockpit. After putting on a head-mounted display that streams video from the flying drone, some pilots describe the experience as “out‑of‑body”, with excitement comparable to Formula One racing. During intense races, “crashing” — the abnormal landing of the drone due to improper operation or mechanical failure — is quite common. Besides the high difficulty of completing races, drone viewing also presents challenges: drones are too small and look very similar, making it hard to track their movement or even tell who is winning. In professional competitions, drones are usually equipped with LED lights on the tail or arms to help the audience distinguish them.

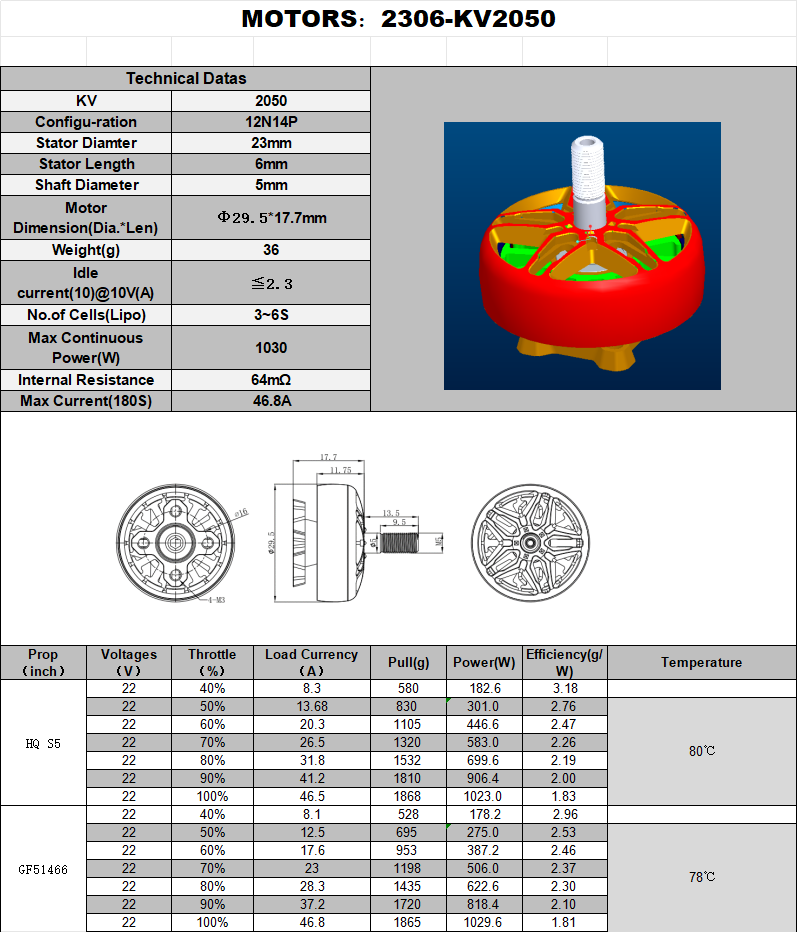

      Understanding FPV Drone Components: 1. Brushed Motors vs. Brushless Motors In simple terms, the rotating part of a brushed motor rubs against carbon brushes. Since the brushes must touch the rotor to power its coils, friction loss occurs easily at high speeds. Brushless motors, however, do not rely on friction between brushes and the rotor. The rotor and stator are connected by bearings, resulting in very low friction, high efficiency, and sensitive throttle response. They have far more advantages over brushed motors — this is why almost all FPV drones use brushless motors. Parameters of brushless motors: - Applicable voltage - KV value - Size and modelAmong the above parameters, the most important ones are KV value, size, and maximum current. **KV Value** Indicates how many revolutions per minute the motor increases for every 1 volt increase in voltage. **Size** For example, 2306: the first two digits represent the stator outer diameter (mm), and the last two represent the stator height (mm). Larger size means higher power but also heavier weight. Choose according to your needs. Be sure to check the base mounting dimensions, especially the diameter (commonly 9mm or 12mm), to match your frame and avoid installation issues. **Maximum Current** Such as 46A. This is the reference for choosing an ESC. A 46A ESC is usually sufficient, as most 46A ESCs can burst up to 50A for 10 seconds. Few pilots fly at full throttle continuously. **Voltage** The table below shows performance under corresponding voltages for different motor sizes. Key points to observe include thrust level, voltage rating, motor heat generation, and propeller size — these are all critical parameters.
