FS2204 Motor

5 0 Reviews

Features:
-220°high temperature resistant copper wire
-NMB imported bearings and N52SH magnets
-High-precision manufacturing and assembly process
-Strict dynamic balance and performance QC
Specification：
- Model: FS2204
- KV:2300KV
- Input Voltage: 4-6S Lipo
- Configuration: 12N14P
- Shaft diameter: 1.5mm
- Motor dimensions (Dia *Len): 26.8mm*14mm
- Weight: 21g(including wire)
- Mounting pattern: 16*16mm
Includes：
1x FS2204 Motor
1x Hardware Set

Price: $ 16.9

Quantity:
Availability:





Buy Now Add to Cart 12 7

Product Description

FS2204-2300KV FPV motor is designed for 3.5inch fpv who requiring big thrust, mounting with sport camera. Support your violent flight.

The overall use of high-quality materials and sturdy structural design, NMB bearings with N52SH heat resistant magnets, up to 220C high heat resistant copper wire ensures top level performance and a much longer lifespan.

If you've been looking for a high-quality and perfect looking motor, LN-MOTOR FS Series motor is definitely a good choice.

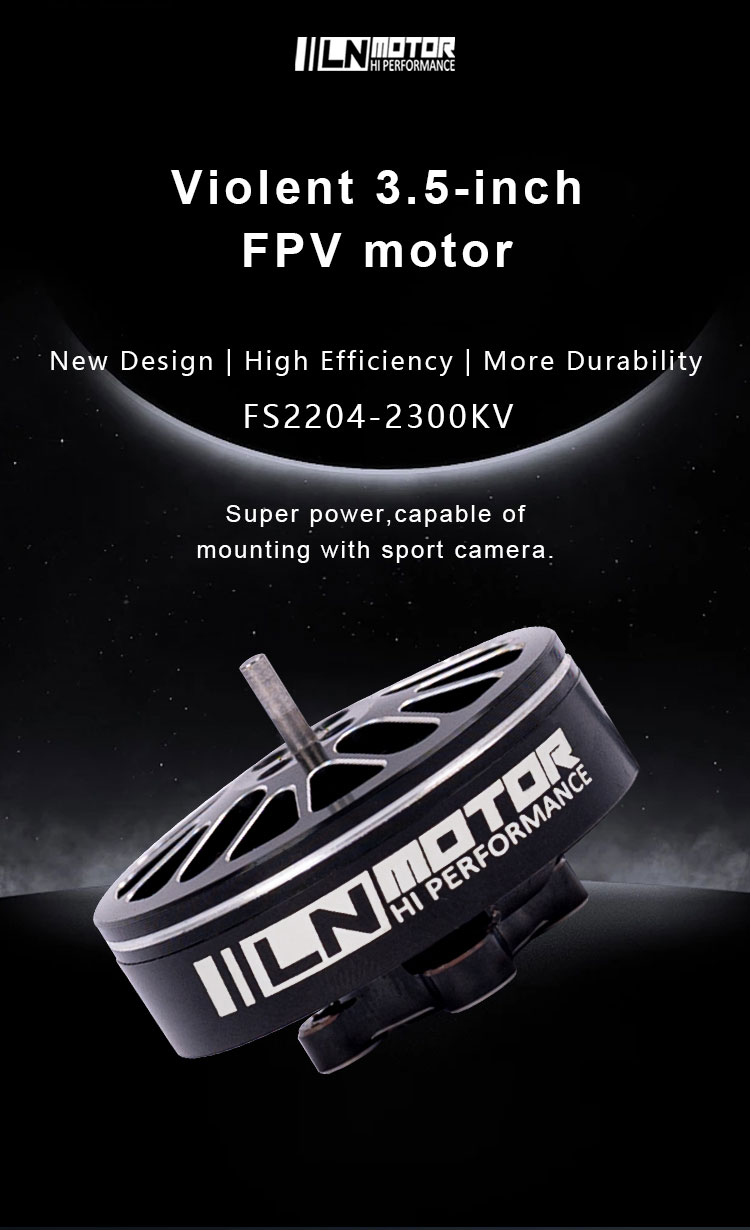

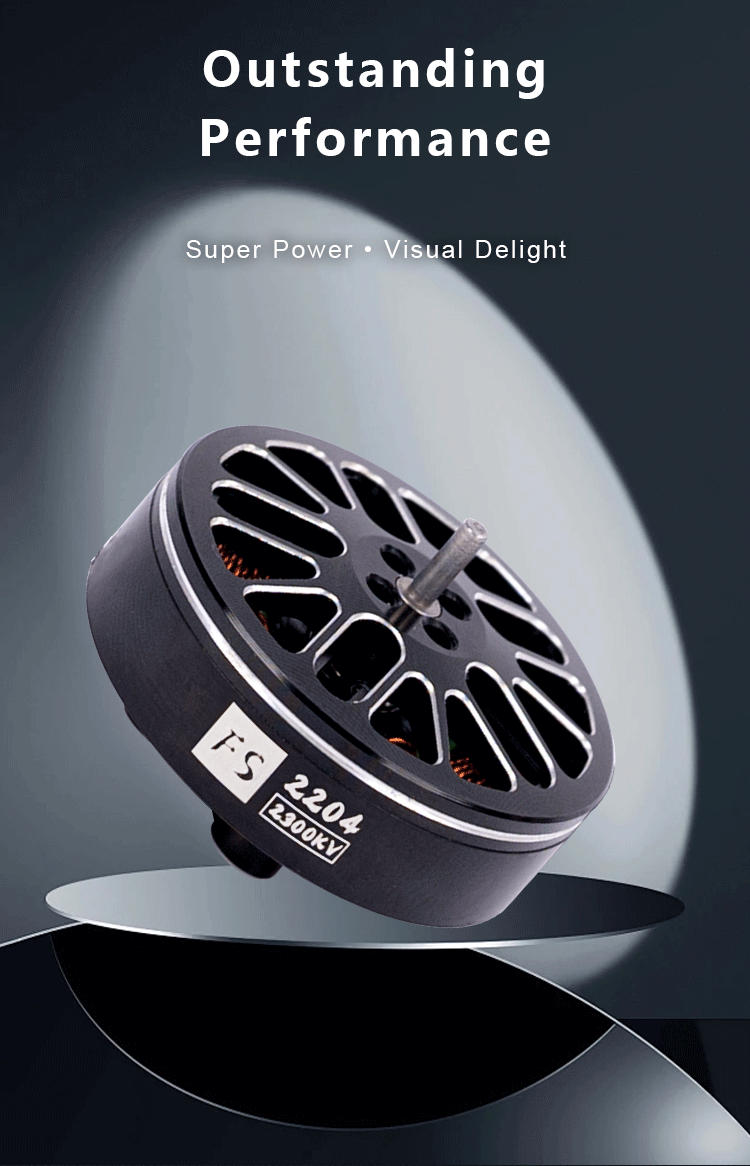

FS2204 Motor (1)

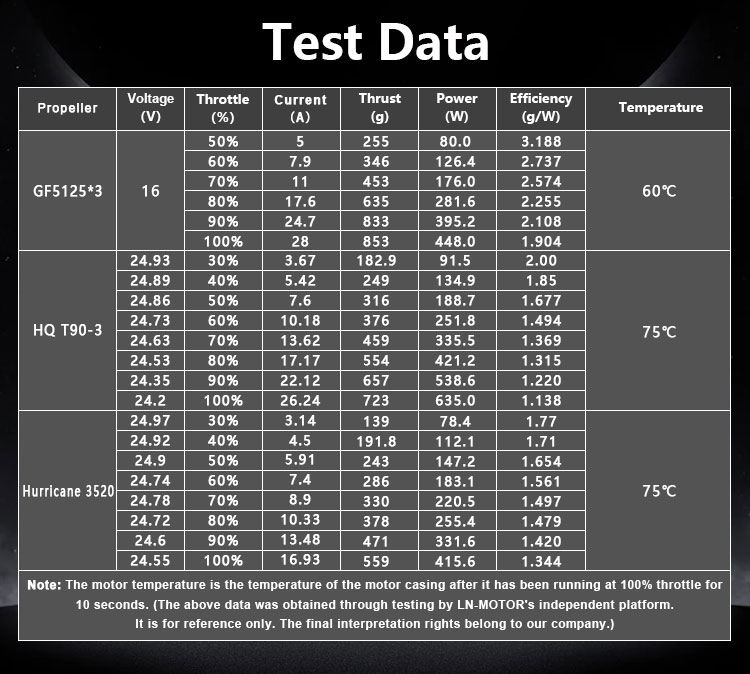

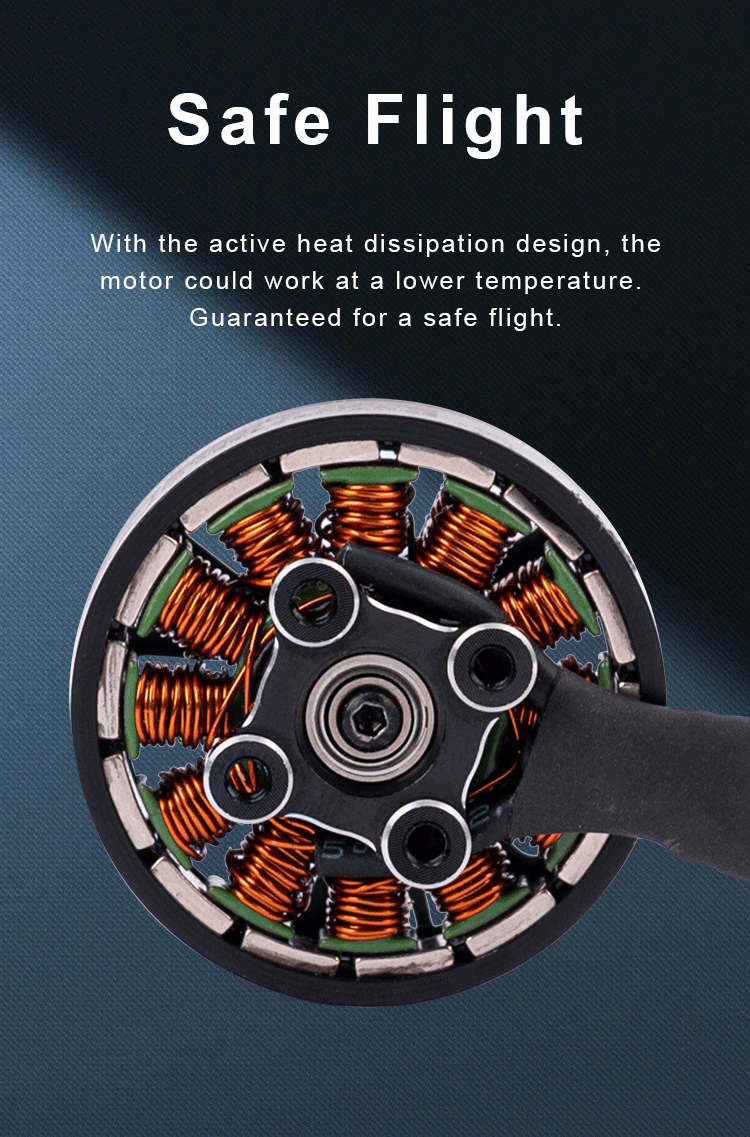

FS2204 Motor (2)

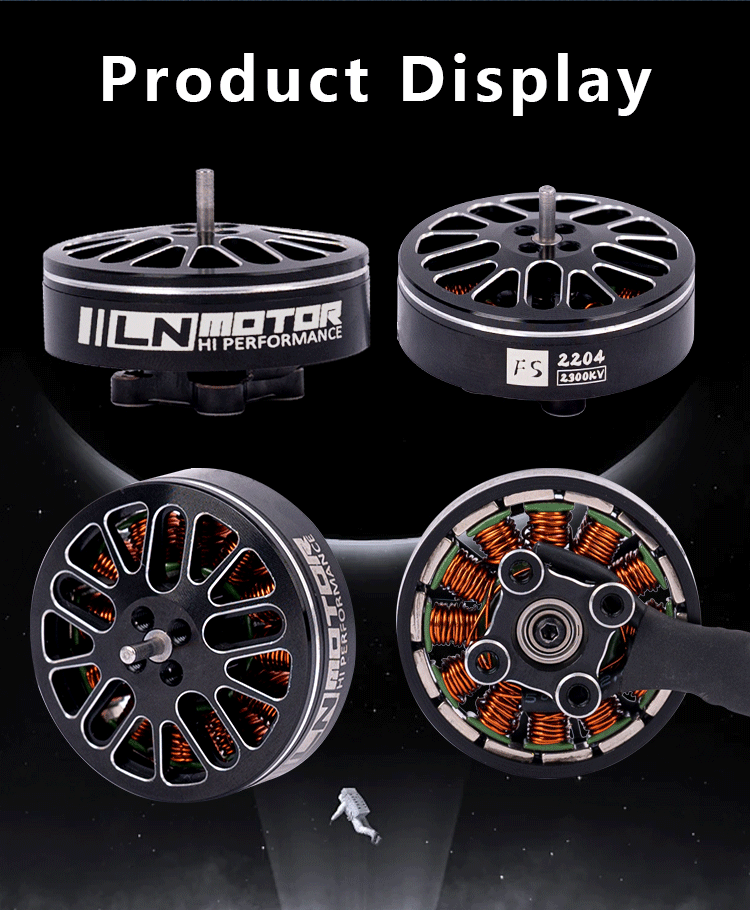

FS2204 Motor (3)

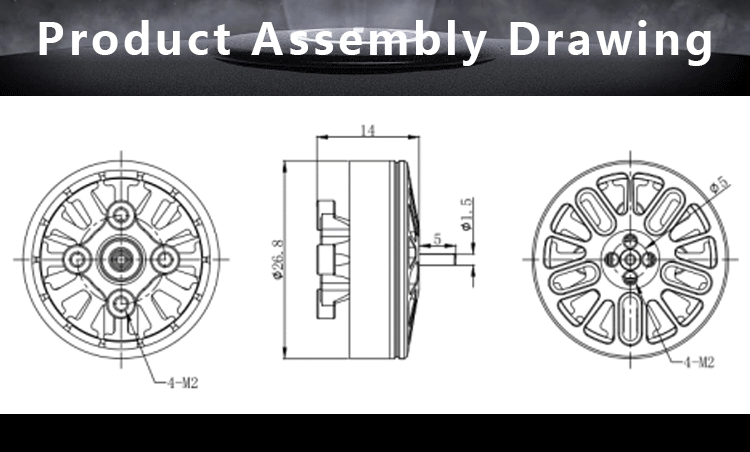

FS2204 Motor (4)

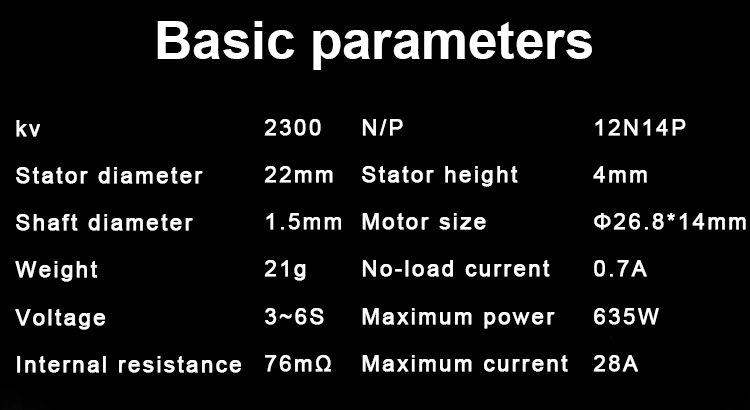

FS2204 Motor (5)

FS2204 Motor (2)
