Long-range FPV flying is one of the most rewarding—and unforgiving—parts of this hobby, and your success comes down to how well you design the power system, select accessories, and manage risk in the air. As a pilot and motor manufacturer working with FPV enthusiasts worldwide, I'll walk you through a practical, experience-based framework for building and flying a long-range FPV drone that is efficient, predictable, and safe. [mepsking]
For most FPV pilots in 2026, a "long-range FPV drone" is a 5–7 inch quad specifically optimized for efficiency, signal reliability, and flight time rather than freestyle agility. Instead of hard acro tricks, the goal is usually exploration, mountain surfing, or smooth cinematic lines over large distances. [oscarliang]
Key characteristics of a modern long-range FPV setup include:
- Low KV, high-efficiency motors matched to large, efficient props. [ligpower]
- High energy density Li-ion batteries for extended flight time. [getfpv]
- Robust GPS, OSD telemetry, and reliable radio links (ELRS or equivalent). [mepsking]
- Lightweight but stiff 7 inch frame capable of carrying bigger packs safely. [getfpv]
You don't need to chase record-breaking distances; even jumping from 4–5 minutes to 20+ minutes of stable flight dramatically changes what you can capture or explore in a single pack. [youtube]
To keep this guide helpful and search-friendly, I'll focus on these core keyword themes throughout: long range FPV drone, long range FPV motors, 7 inch long range FPV drone, FPV drone accessories for long range, and long range FPV flying tips. These are exactly the decisions that make or break your build in the real world. [ligpower]
From a practical pilot's perspective, range is never about one magic component; it's about stacking small efficiency gains and reducing every avoidable risk. [oscarliang]
Your long range FPV drone is useless if you can't see. Modern setups typically choose between: [mepsking]
- Digital HD systems (e.g. DJI, Walksnail) for clean image and 20–30 km potential in ideal conditions. [uavcoach]
- High-power analog with directional ground antennas for lower latency and simple redundancy. [getfpv]
Practical tips:
- Use high-gain directional antennas on your goggles or ground station for longer links. [oscarliang]
- Keep VTX and receiver antennas away from carbon, batteries, and noisy electronics. [mepsking]
- Always test video quality on short flights before pushing distance. [getfpv]
If your goal is maximum long range FPV drone flight time, Li-ion packs are currently the most realistic solution for DIY builds. Popular 18650 and 21700 cells deliver higher energy density than LiPo at the cost of lower discharge rates. [mepsking]
Best practices for Li-ion in long range FPV:
- Choose high-capacity packs with continuous discharge that matches your current draw. [mepsking]
- Wire packs correctly and ensure your ESC and motors are voltage-compatible. [ligpower]
- Use OSD to stay below about 80% usage of pack capacity to keep a safe return margin. [oscarliang]
LiPo still has its place for aggressive freestyle, but for a 7 inch long range FPV drone focused on endurance, Li-ion is usually the better call. [getfpv]

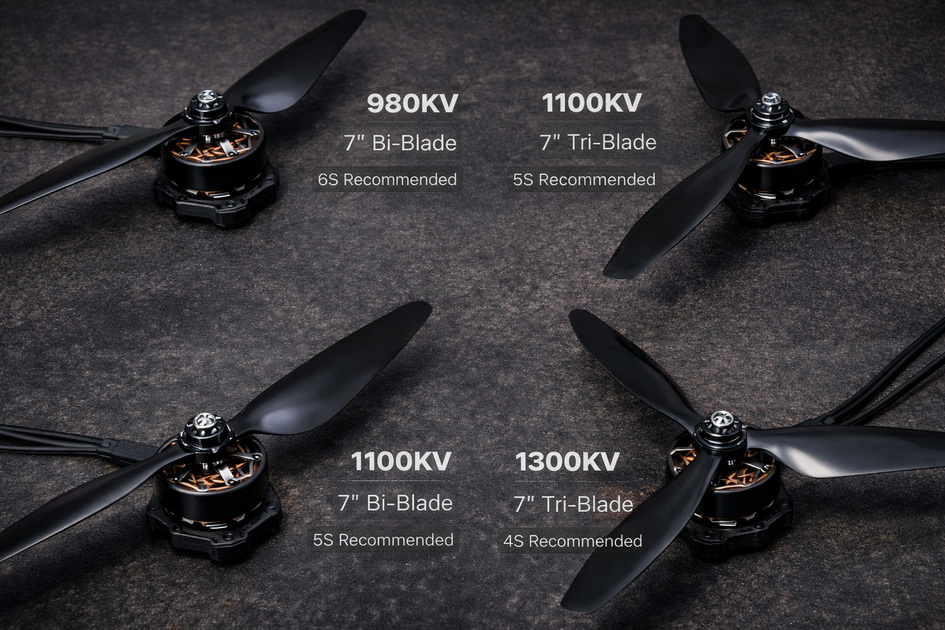

This is the part we see FPV pilots get wrong most often when they first move into long-range. The most efficient long range FPV drones use low KV motors with large propellers and conservative throttle. [ligpower]
Guidelines for long range FPV motors:
- Use low KV motors in the appropriate stator size (e.g. 2806.5 class for 7 inch builds) for cooler, more efficient operation. [ligpower]
- Pair them with two-blade, large-diameter props when you want maximum distance, or tri-blade props when you prioritize smooth cinematic control. [mepsking]
- Always cross-check motor thrust data and recommended prop range from the motor manufacturer before deciding. [ligpower]
For example, a pilot might choose a 2806.5 motor with a 7 inch bi-blade for 20+ minute cruising flights at modest amp draw, rather than using a high KV freestyle motor that drains LiPos in 4–5 minutes. [ligpower]
Every extra gram must earn its place on a long range FPV drone. Lighter builds consume less current to maintain altitude and therefore gain both range and flight time. [getfpv]
Simple ways to cut weight:
- Choose a light yet stiff frame, ideally around 7 inches for a good balance of efficiency and pack capacity. [getfpv]
- Avoid decorative or redundant accessories that don't actively improve performance or safety. [mepsking]
- Use lighter props and minimal but secure hardware (nylon stack screws where appropriate, shorter wires, etc.). [mepsking]
The art is trimming unnecessary mass while still leaving enough structure for durability and vibration control. [ligpower]
Long range FPV is ultimately limited by signal quality, not just battery capacity. Keeping your drone in reliable contact means thinking about both radio control and video links. [oscarliang]
For practical signal reliability:
- Use directional ground antennas (patch, helical, crosshair) for the long axis of your flights. [oscarliang]
- Maintain line of sight; avoid flying behind mountains, large buildings, or deep under tree lines. [oscarliang]
- Consider a static ground station so antenna orientation doesn't change with your head movement. [oscarliang]
Many pilots also move to modern long-range radio systems (such as ELRS) for robust control links at long distances when combined with proper antennas and well-planned flight paths. [oscarliang]

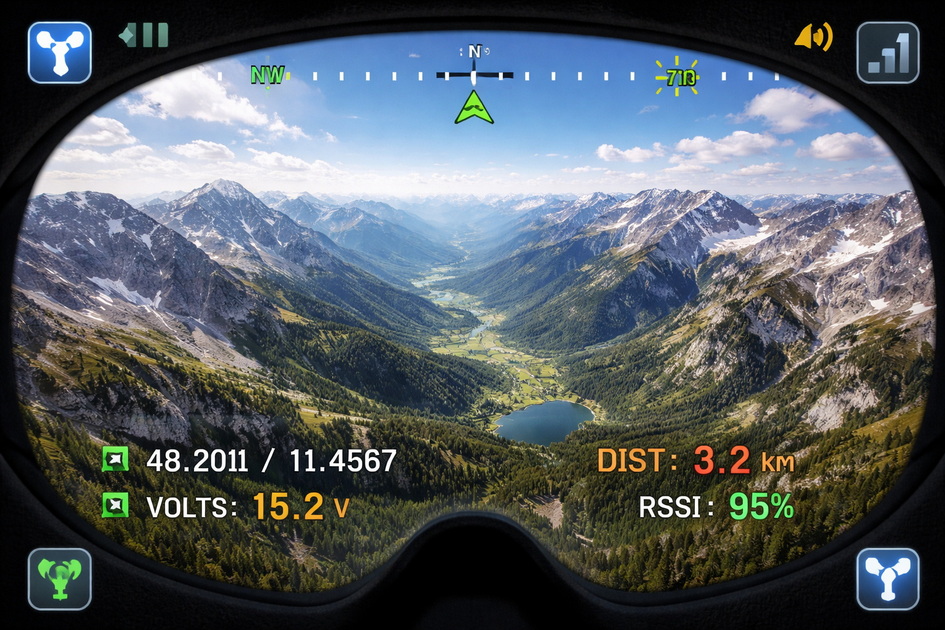

A serious long range FPV drone in 2026 should not fly without GPS and real-time telemetry. These systems protect your investment and reduce the stress of every mission. [mepsking]
Minimum telemetry data to monitor:
- Battery voltage and amp draw.
- Distance from home, altitude, and heading.
- GPS lock status and satellite count. [oscarliang]
Add-ons like a self-powered buzzer and robust GPS-based failsafe (Return-To-Home) significantly improve recoverability if video or RC link is lost. [reddit]
A 7 inch long range FPV drone remains the "sweet spot" for many pilots because it carries bigger Li-ion packs, stays efficient, and is relatively stable in wind. When choosing or spec'ing a kit, evaluate each subsystem as part of a single coherent power and signal chain. [getfpv]
For a 7 inch long range FPV drone:
- Look for a light but rigid frame that supports 7 inch props and securely holds Li-ion packs. [getfpv]
- Prefer designs that keep arms clean and minimize turbulence around the prop disc. [mepsking]
Propeller selection:
- Two-blade 7 inch props maximize efficiency and flight time. [getfpv]
- Tri-blades provide smoother throttle response for cinematic work at the cost of a bit more current draw. [mepsking]

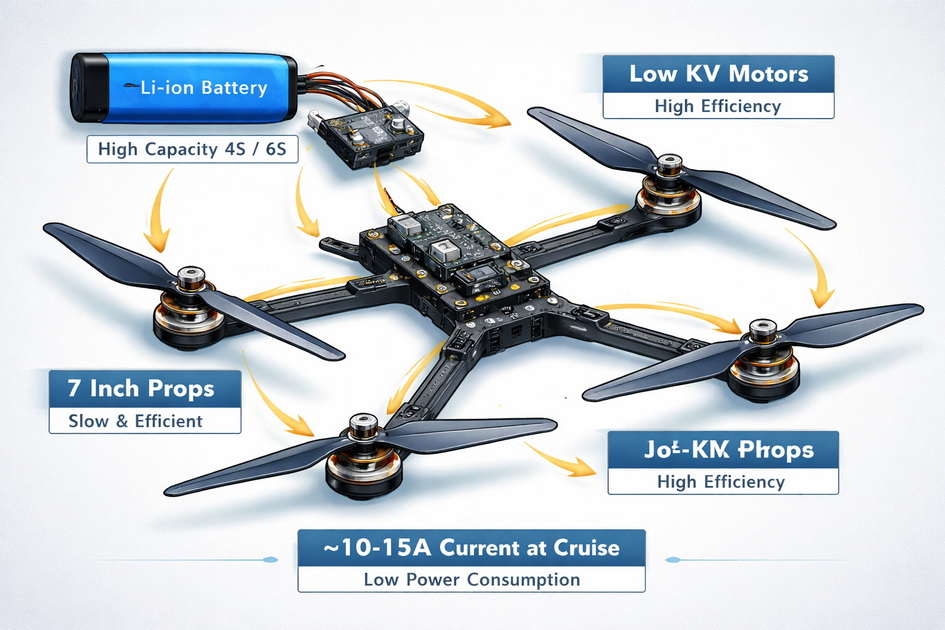

Motor and battery decisions must be made together; choosing them in isolation is one of the common mistakes. [ligpower]
For motors on a 7 inch long range FPV drone:
- Use low KV motors sized appropriately (e.g., 28xx class) to spin 7 inch props efficiently. [ligpower]
- Favor designs that stay cool at cruise throttle, as this is where you'll spend most of your flight time. [ligpower]
For batteries:
- Li-ion packs provide the longest potential coverage per gram and are the default choice for endurance builds. [getfpv]
- LiPo can still be used for shorter, more aggressive flights where burst current matters more than maximum duration. [mepsking]
When you pair motors and packs correctly, your drone will hover or cruise at relatively low throttle while maintaining manageable amp draw, giving you confidence to extend flights without stressing the system. [ligpower]
Below is a simplified example of how typical long range FPV combinations map together. [getfpv]
| Component Type | Long-Range-Oriented Choice | Why It Works for Long Range FPV |
|---|---|---|
| Frame | 7 inch lightweight carbon frame | Supports larger batteries, stable platform. (mepsking) |
| Motor | Low KV 28xx stator motor | High efficiency with 7 inch props. (mepsking) |
| Propeller | 7 inch bi-blade | Lower drag, better endurance. (mepsking) |
| Battery | 4–6S Li-ion pack | Higher energy density, extended flight. (mepsking) |
| Radio Link | Long-range system (e.g. ELRS) | Robust control at distance. (mepsking) |
| FPV System | Digital HD or high-power analog | Reliable video link for navigation. (mepsking) |
| Safety | GPS + self-powered buzzer | RTH and better recovery after fails. (mepsking) |
From a manufacturer perspective, we see more successful builds when pilots follow a simple, structured workflow rather than mixing parts randomly. [ligpower]
1. Define the mission
Decide whether your long range FPV drone is for cruising exploration, cinematic shots, or semi‑autonomous survey missions. Your choice affects frame size, motor KV, and pack type. [uavcoach]
2. Select frame and prop size
Choose a 7 inch frame for general-purpose long-range; lock in your prop diameter and preferred blade count early. [getfpv]
3. Choose motors and props together
Match motor KV and stator size to prop diameter and cell count, using thrust data and manufacturer recommendations as a baseline. [mepsking]
4. Pick the battery chemistry and capacity
For endurance, select Li-ion packs with enough current headroom; for more aggressive flying, use LiPo but accept shorter flights. [getfpv]
5. Install flight controller and ESC
Use a reliable FC with built-in OSD and an ESC with sufficient amp rating and good cooling for sustained loads. [youtube]
6. Integrate receiver and FPV system
Combine a long-range RC receiver with a digital or analog FPV system configured for low noise and adequate power within local regulations. [mepsking]
7. Add GPS, buzzer and safety layers
Configure GPS-based RTH and a loud, self-powered buzzer for recovery in case of a crash or failsafe. [reddit]
8. Test, log and refine
Start with short-range shakedown flights, log current draw, temperature, and video link quality, then gradually extend your mission radius. [getfpv]
This process not only aligns with best practices from experienced FPV pilots but also reflects how we design and test our own motor and power system solutions. [ligpower]
Building the quad is only half the challenge; the rest is your decision-making in the field. [oscarliang]
Long-range does not mean "blind range." Even with a digital HD feed, your link can fail if you fly behind mountains, large ridges, or dense urban structures. Maintain line of sight as much as possible, and visualize your flight path before arming. [uavcoach]
Practical habits:
- Stay above tree line and avoid dropping behind hills that block both RC and video. [oscarliang]
- Use landmarks as reference points and aim ground antennas toward them to keep the link strong. [oscarliang]
When you first transition to a long range FPV drone, you will be tempted to push far on the first pack. Experienced pilots consistently recommend incremental progress instead. [reddit]
Good progression:
- Begin with modest out-and-back flights close to home while watching amp draw and minimum voltage at landing. [getfpv]
- Gradually increase distance and time only once you understand how your specific setup behaves. [reddit]
This approach gives you time to catch issues like poorly placed antennas, loose solder joints, or unexpected voltage sag before they cost you a drone. [reddit]
Long-range FPV missions should be planned backward from the moment you need to turn around. Your battery's safe usable capacity, wind, and terrain all affect that decision. [reddit]
Key rules:
- Aim to use no more than ~80% of your pack's capacity per flight. [oscarliang]
- Account for headwinds on the way back; flying out with tailwind and returning into the wind can catch you off guard. [reddit]
- Test Return-To-Home behavior in safe conditions before trusting it on serious missions. [reddit]
As a Chinese manufacturer focused on FPV drone motors and related power system components, we see patterns across thousands of builds that individual pilots usually only encounter slowly over years. [ligpower]
From that experience:
- The most successful long range FPV drones are designed around the motor–prop–battery system first, and everything else second. [mepsking]
- OEM and ODM customers benefit from early collaboration on KV, stator dimensions, and propeller matching based on their target flight profile, payload, and regional regulations. [ligpower]
- Professional users—such as survey, inspection, or specialty cinematography teams—often prioritize long-term reliability and thermal performance over peak thrust numbers for marketing. [uavcoach]
For brands and advanced pilots, working directly with a motor and system supplier enables fine-tuned solutions, such as custom windings or specific thrust curves optimized for high-efficiency cruise rather than aggressive punch-outs. [ligpower]
To consolidate the most useful long range FPV accessories, here is a focused checklist drawn from pilot practice and community consensus. [reddit]
- GPS module with strong satellite acquisition and RTH support.
- Li-ion battery packs sized and tested for your chosen motors and props.
- Self-powered buzzer for locating the quad after a crash or emergency land. [reddit]
- Long-range FPV system, digital or analog, with appropriate antennas.
- 7 inch long range FPV frame built for Li-ion battery mounting and GPS placement.
- High-efficiency motors and matched propellers tuned to your cruising style. [mepsking]
- Quality charger and battery safety gear, especially when handling custom Li-ion packs. [mepsking]
If you treat each of these items as part of a complete system rather than standalone upgrades, you will see a dramatic improvement in reliability and range. [ligpower]
If you are serious about long range FPV in 2026, start by planning your power system—motors, props, and battery—and then select your frame and electronics to support that plan. Whether you are an individual pilot, a small FPV brand, or an integrator building specialized drones, consider partnering with a dedicated FPV motor manufacturer to design a customized, efficient drive system optimized for your mission profile. [mepsking]
A well-matched motor and prop combination, backed by real test data and OEM/ODM support, is one of the easiest ways to build a long range FPV drone that feels professional from the very first pack. [ligpower]
1: What is considered "long range" for an FPV drone today?
In practice, many pilots treat flights beyond several kilometers from the home point as long range, especially when using Li-ion packs, GPS, and long-range radio systems. [uavcoach]
2: Are Li-ion batteries safe for FPV drones?
Yes, when properly built or purchased from reputable sources and used within their specified current ratings, Li-ion batteries are a safe and effective choice for long-range FPV endurance flying. [getfpv]
3: Do I need GPS for long range FPV?
GPS is strongly recommended because it enables Return-To-Home, distance and position telemetry, and easier recovery after signal loss or disorientation. [reddit]
4: What's the best frame size for long range FPV?
A 7 inch long range FPV drone frame is a commonly recommended sweet spot that balances prop efficiency, battery capacity, and overall handling in wind. [getfpv]
5: How should I start if I'm coming from a DJI FPV or camera drone?
Begin with short-range FPV flights, learn your system's current draw and failsafe behavior, and then incrementally extend distance while adding GPS, Li-ion packs, and better antennas as you gain confidence. [youtube]
