When I built my first Tiny Whoop, wiring the stack took me longer than tuning Betaflight. Every ESC wire, every VTX cable was a chance to make a mistake. That changed the day I tried my first FPV AIO flight controller—one compact board with flight controller, ESC, OSD and often VTX all integrated. [oscarliang]
Now, working with FPV pilots and OEM customers at Zhongshan Yuhang Power Technology Co., Ltd., I see AIO boards completely reshape how beginners and B2B partners design Tiny Whoops, toothpicks and lightweight FPV platforms. In this guide, I'll explain what an FPV AIO flight controller is, how F4 and F7 AIO boards compare, and how to choose the right AIO for your next build in 2026. [mepsking]

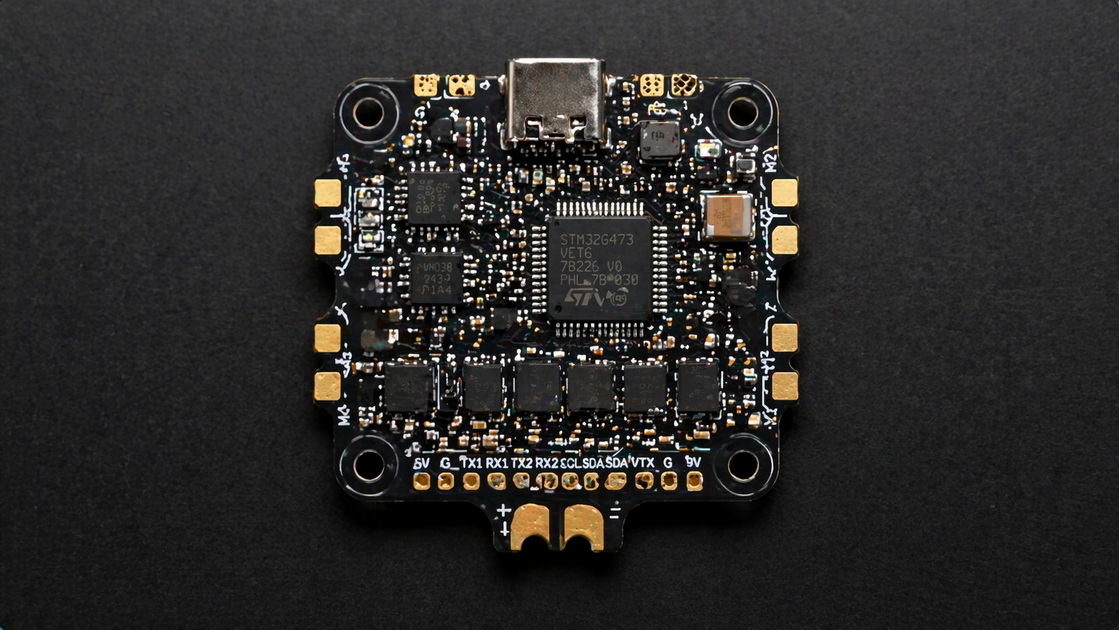

An FPV AIO (all‑in‑one) flight controller combines multiple components into a single PCB: [mepsking]
- Flight controller (FC)
- 4‑in‑1 ESC
- OSD (on‑screen display)
- Sometimes integrated VTX and even receiver
Compared with traditional "stack" builds, an AIO board offers:
- Simpler wiring – fewer cables and solder joints
- Lower total weight – crucial for Tiny Whoops and 1–3 inch builds
- Smaller footprint – easier to fit into tight frames
- Faster assembly and easier replacement for beginners

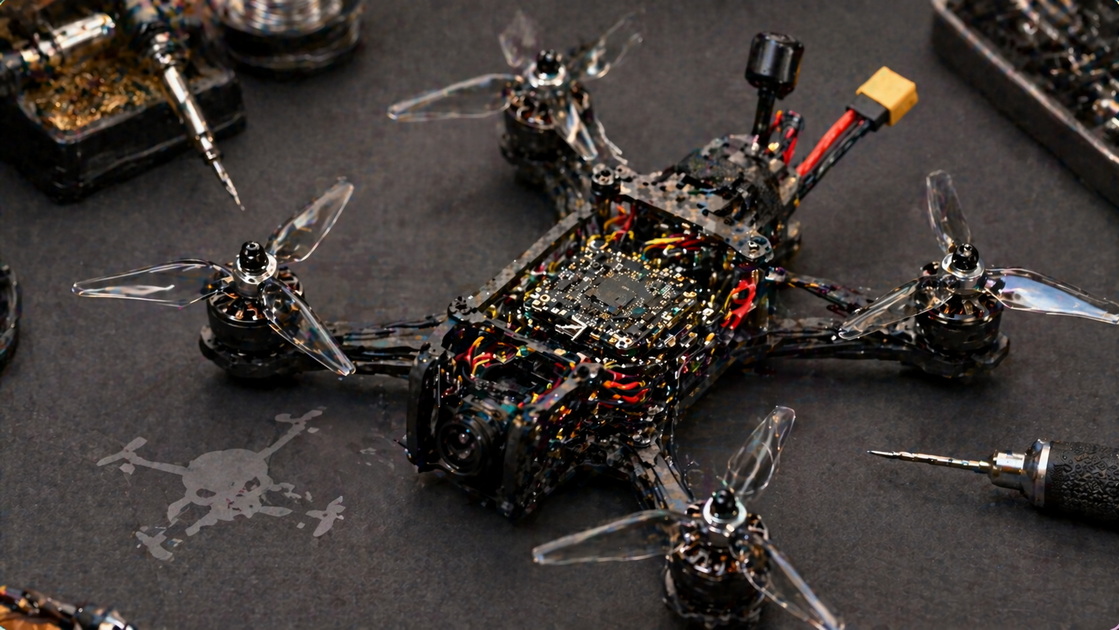

Where AIO shines:
- Tiny Whoops and 1S/2S micros
- Ultralight toothpicks
- Compact cinewhoops
- B2B projects where rapid assembly and field service are important [oscarliang]

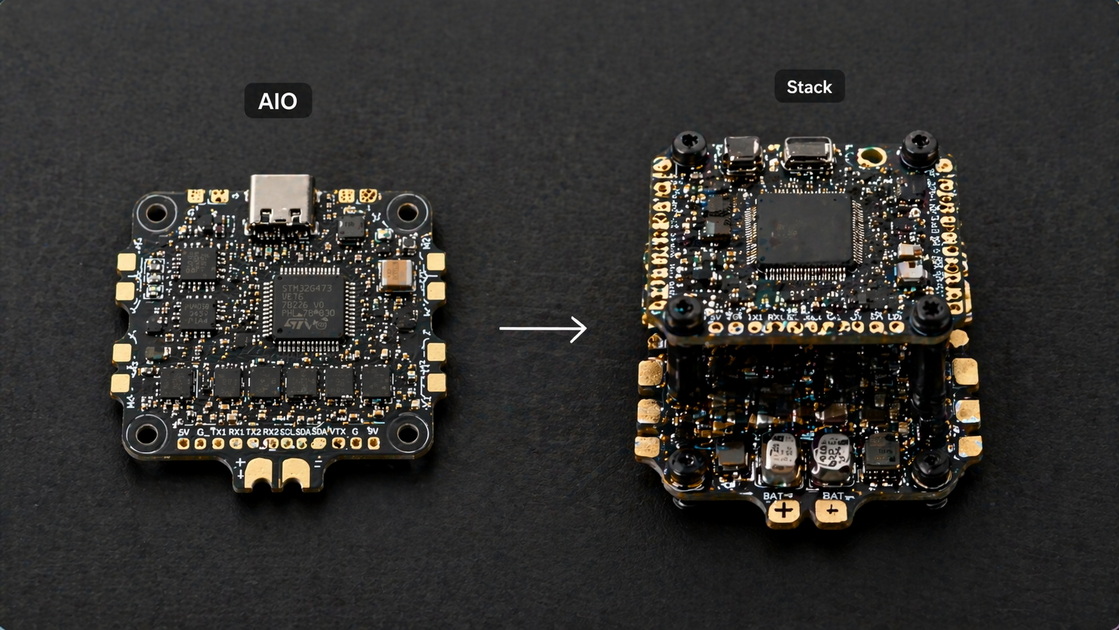

Both AIO and stack solutions are widely used, but they serve different purposes. [zbotic]
| Feature | AIO Flight Controller | Separate FC + ESC Stack |
|---|---|---|
| Board Count | Single board | Two or more boards |
| Wiring Complexity | Low | Medium to high |
| Weight | Very low | Higher |
| Frame Compatibility | Best for small frames (Whoops/2–3 inch) | Best for 5 inch and larger |
| Repair Flexibility | Replace entire AIO | Replace FC or ESC separately |
| Current Handling | Limited on many AIOs | Higher current, better for big 5–7 inch rigs |
| Typical Use | Tiny Whoop, toothpick, micro cinewhoop | 5 inch freestyle, long‑range, heavy cine rigs |
Expert view:
For 1S/2S builds and sub‑250 g drones, a good AIO FC is often the cleanest and most reliable choice. For high‑power 5‑inch freestyle or long‑range rigs, especially with 6S and high‑KV FPV motors, a stack with separate FC and ESC usually handles stress and heat better. [mepsking]

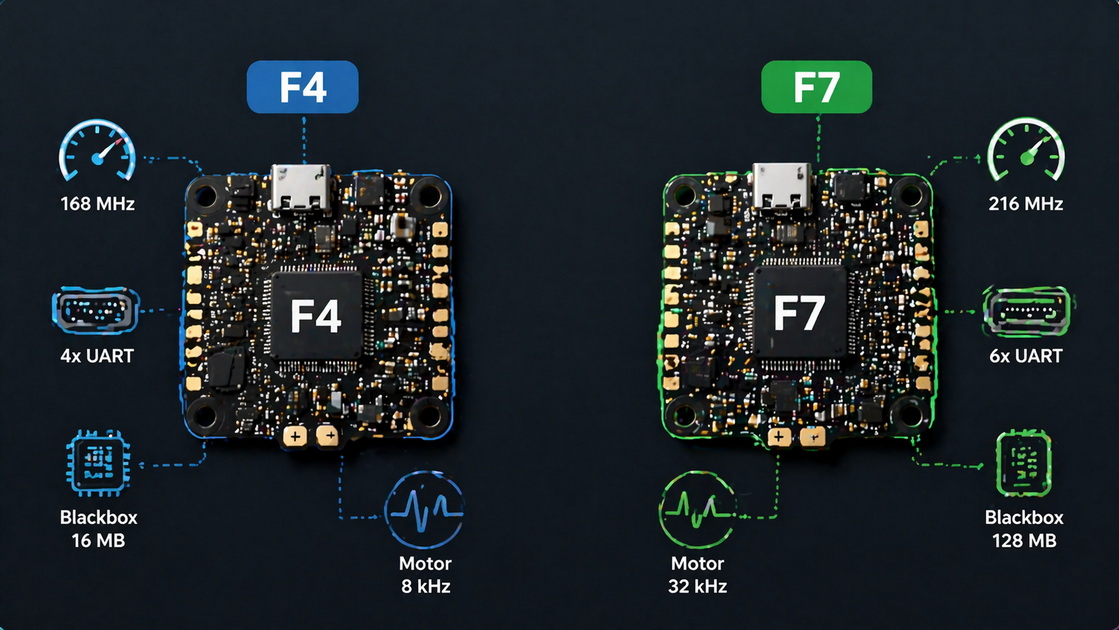

Many pilots ask: "Should I choose an F4 AIO or an F7 AIO flight controller?" The answer depends on use case, budget and future features. [mepsking]
F4 AIO Flight Controller [mepsking]
- MCU: STM32F4
- Clock speed: ~168 MHz
- Motor output frequency: up to 4 kHz
- OSD: basic OSD functionality
Good for:
- Basic Tiny Whoop builds
- 1S/2S micro quads
- Budget‑conscious builds where advanced features are not critical
F7 AIO Flight Controller [mepsking]
- MCU: STM32F7
- Clock speed: ~216 MHz
- Motor output frequency: up to 8 kHz
- OSD: advanced OSD functionality
- Supports more UARTs and complex configurations
Good for:
- High‑performance builds
- 3–4 inch cinewhoops and powerful toothpicks
- Pilots who want Blackbox logging and advanced features
F4 AIO Common Features [mepsking]
- Up to 4 kHz PID loop and motor update rate
- Basic Betaflight OSD overlays
- Enough processing power for Angle, Horizon, Acro and simple filters
- Typically fewer UARTs and slightly limited peripheral options
F7 AIO Common Features [mepsking]
- Up to 8 kHz motor output frequency
- Advanced OSD customization
- More UARTs for: GPS, DJI/HD, SmartPort, SmartAudio, LEDs
- More headroom for dynamic filters, RPM filtering, and Blackbox logging
- Lower cost – ideal for budget builds and beginners
- Sufficient performance for Tiny Whoops, 1S and simple 2S builds
- Power‑efficient, suitable for very small batteries [mepsking]
Drawbacks:
- Limited headroom for advanced filtering and logging
- Fewer UARTs for peripherals
- Less "future‑proof" if you plan to add HD, GPS, or more sensors
- Higher processing power for complex builds
- Better support for high motor frequencies and smooth response
- Advanced OSD, Blackbox, LED controls and more peripherals
- More suitable for 3–4 inch and performance‑oriented micros [mepsking]
Drawbacks:
- Higher price than F4
- Slightly higher power consumption
- Overkill for very simple Tiny Whoop setups
Practical rule of thumb:
- Choose F4 AIO if you are building a basic Tiny Whoop or budget backyard quad.
- Choose F7 AIO if you want smoother performance, more ports, and future expansion. [mepsking]
When I help customers spec an AIO board for FPV drones, cinewhoops or robotics, we always evaluate these parameters first: [zbotic]
1. Supported Cell Count (S Rating)
- 1S, 2S, 3S, 4S, sometimes 6S
- Match it with your battery choice and motor KV
2. ESC Current Rating
- Continuous and burst (e.g., 12 A, 20 A, 35 A)
- Ensure it can handle your FPV motor current draw with margin
3. Mounting Pattern
- 25.5 × 25.5 mm (Tiny Whoop)
- 20 × 20 mm or 30.5 × 30.5 mm (micro/cinewhoop)
4. Processor Type
- F4 vs F7 vs H7 – affects capability and cost [mepsking]
5. UART Count And I/O
- Enough for receiver, VTX, GPS, LEDs, HD system
6. Blackbox Logging
- Onboard flash or SD card slot for tuning and analysis
7. Integrated VTX Or Receiver
- Can simplify builds, but reduces modularity
8. Firmware Compatibility
- Betaflight / EmuFlight / INAV support and target availability
The original article used the iFlight SucceX‑E F4 20×20 AIO as a typical example of a beginner‑friendly board. It combines an F4 FC with a 4‑in‑1 ESC in a compact form factor. [mepsking]
Typical beginner AIO feature set: [mepsking]
- F4 processor, ~168 MHz
- 20×20 mm mounting pattern
- Integrated 4‑in‑1 ESC (often 20–35 A)
- Built‑in OSD
- Enough UARTs for receiver + VTX + basic peripherals
This class of AIO is ideal for:
- 2.5–3 inch micro quads
- Light 4 inch toothpicks with moderate‑KV motors
- Pilots who want to keep weight and cost under control
As your skills and expectations grow, moving to F7 AIO boards unlocks more advanced configuration and performance. [zbotic]
Because AIO boards integrate MCU + ESC + I/O in a compact footprint, they're increasingly used in other small electric platforms: [mepsking]
- Educational and hobby robotics platforms
- Compact gimbal and camera systems
- Indoor inspection drones and micro‑cinewhoops
- Light underwater ROV thruster controllers
At Zhongshan Yuhang Power Technology Co., Ltd., we often co‑design motor + AIO combinations for B2B customers, optimizing: [mepsking]
- Motor KV and stator size
- ESC current and switching frequency
- Overall efficiency and thermal behavior
AIO FCs run multiple high‑current and logic functions on one PCB, so layout and usage matter. [mepsking]
To improve reliability:
- Use appropriate prop and motor combinations – avoid over‑current on tiny ESCs
- Ensure good airflow, especially on 3–4 inch builds
- Avoid repeated hard frame flex that can crack the PCB
- Use proper soft mounts if the frame is very stiff
- Protect the board from moisture and conductive dust
For heavy 5‑inch or 6S builds, a separate ESC + FC stack still offers more robustness than most AIO boards in 2026. [zbotic]

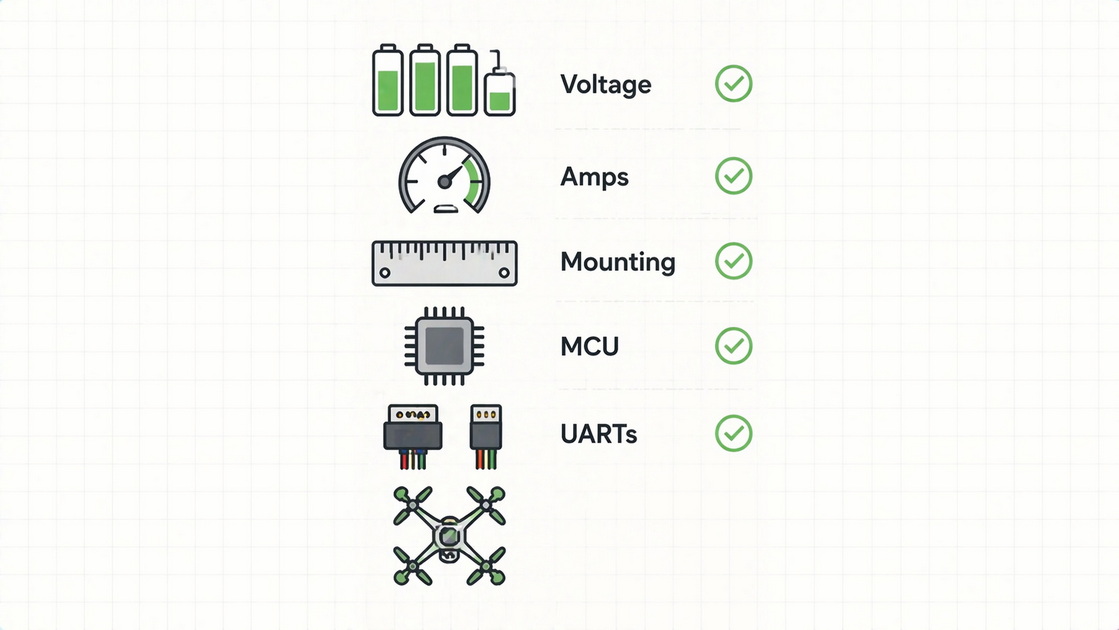

1. Define your frame and battery
- Tiny Whoop 1S, 2/3 inch 2S, 3 inch 4S, etc.
2. Estimate motor current draw
- Match ESC rating with at least 20–30% safety margin
3. Choose processor class
- F4 for basic builds and budget
- F7 or H7 for advanced features and future‑proofing [mepsking]
4. Check mounting pattern and size
- Confirm it fits your frame—especially Whoops and cinewhoops
5. List required peripherals
- Receiver, GPS, HD system, LEDs, buzzer; ensure enough UARTs
6. Decide on integrated vs external VTX/receiver
- Integrated simplifies wiring
- External gives more flexibility for upgrades
7. Plan your power system as a whole
- Choose FPV motors, AIO ESC and battery as a matched set
Choosing the right FPV AIO flight controller is not just about the processor label—it's about how the board, motors, ESCs and battery work together in your specific frame and use case. [mepsking]
As a specialist in FPV drone motors and brushless power systems, Zhongshan Yuhang Power Technology Co., Ltd. can help you:
- Match FPV motors, AIO FCs and propellers for Tiny Whoops and micro cinewhoops
- Design custom OEM/ODM power solutions for FPV drones, RC vehicles, gimbals, service robots and underwater platforms
- Optimize for efficiency, weight, durability and regulatory constraints
If you are planning a new micro FPV platform or AIO‑based power system, contact our team to co‑engineer a solution that balances performance, cost and reliability.
1. What is an FPV AIO flight controller?
An FPV AIO (all‑in‑one) flight controller integrates the flight controller, 4‑in‑1 ESC and often OSD, VTX or receiver on a single board, reducing weight and wiring for small FPV drones. [oscarliang]
2. Is an AIO board suitable for a 5‑inch freestyle quad?
Most AIO FCs are designed for Tiny Whoops and micro quads. While some high‑current AIOs can handle 5‑inch setups, a separate FC + ESC stack is usually more robust for 5‑inch 6S rigs. [zbotic]
3. Should beginners choose F4 or F7 AIO flight controllers?
Beginners on Tiny Whoops or simple 2–3 inch builds can safely start with an F4 AIO for lower cost. Pilots who plan to add GPS, HD systems or advanced tuning should consider an F7 AIO for more headroom. [mepsking]
4. Does a higher motor output frequency (like 8 kHz) really matter?
Higher output frequencies can provide smoother and more responsive control, especially on well‑tuned setups with quality motors and props, but for basic micros, 4 kHz on an F4 is often sufficient. [mepsking]
5. How do I avoid burning my AIO ESC?
Match the ESC current rating to your FPV motor specs and prop size, maintain good cooling, avoid aggressive over‑prop setups, and always perform short hover tests before full‑throttle flights. [zbotic]
