As a longtime FPV pilot and motor manufacturer working with serious racers and freestyle creators, I've learned that the best 5-inch FPV drone kit is not just about top-tier parts—it's about how well the whole power system works together for your flying style, skills, and budget. This guide walks you through exactly how I (and many pro pilots I work with) evaluate 5-inch racing and freestyle builds in 2026, then recommends specific kits and component combos you can trust. [fpvknowitall]
The 5-inch platform remains the "sweet spot" in FPV because it balances power, agility, flight time, and parts availability better than any other size. [oscarliang]
Key reasons pilots stick with 5-inch builds in 2026: [fpvknowitall]
- Wide choice of frames, motors, ESCs, and props
- Ideal match for 6S LiPo batteries and 5.0–5.1 inch tri-blade props
- Enough thrust for racing, freestyle, and light cinematic work
- Huge amount of community tuning knowledge and tutorials
If you want one primary quad that can cover gates, bandos, and cinematic lines, a well-tuned 5-inch is still the most future-proof choice. [oscarliang]
From a racing perspective, every gram and every millisecond matters, which means each component has to be chosen with speed, response, and durability in mind. [fpvknowitall]
When I evaluate a 5-inch racing kit, I look at:
- Weight: Sub‑100 g frames help reduce inertia and improve cornering. [fpvknowitall]
- Motor spec: 2207 / 2306 stator, 1900–2100 KV on 6S for high thrust and crisp throttle. [ligpower]
- Electronics: F7 flight controller + 45–65 A BLHeli_32 ESC for aggressive bursts. [fpvknowitall]
- Link: ExpressLRS 2.4 GHz for ultra-low latency and long range. [fpvknowitall]
A good example from the existing guide is the racing section that recommends 6S, 2207/2306 motors, and 45–65 A ESCs—those specs reflect what most serious racers are flying in 2026. [fpvknowitall]
- Frame: Five33-style lightweight race frame with 5–6 mm arms for rigidity and crash resistance. [fpvknowitall]
- FC: F7 with blackbox and barometer; USB‑C or Bluetooth is a bonus for field tuning. [fpvknowitall]
- ESC: 20×20 or 30×30 stack, BLHeli_32, 45–65 A rating, good MOSFETs and TVS protection. [fpvknowitall]
- VTX: Analog for minimum latency, or DJI/Walksnail if you prioritize clarity. [youtube]
- Receiver: ELRS 2.4 GHz nano for low latency and rock-solid link. [fpvknowitall]
One of the strongest racing-style configurations I recommend is the Power and Fast Response kit built around 2207 motors and ELRS 2.4G, as described in the original MEPSKING guide. [fpvknowitall]

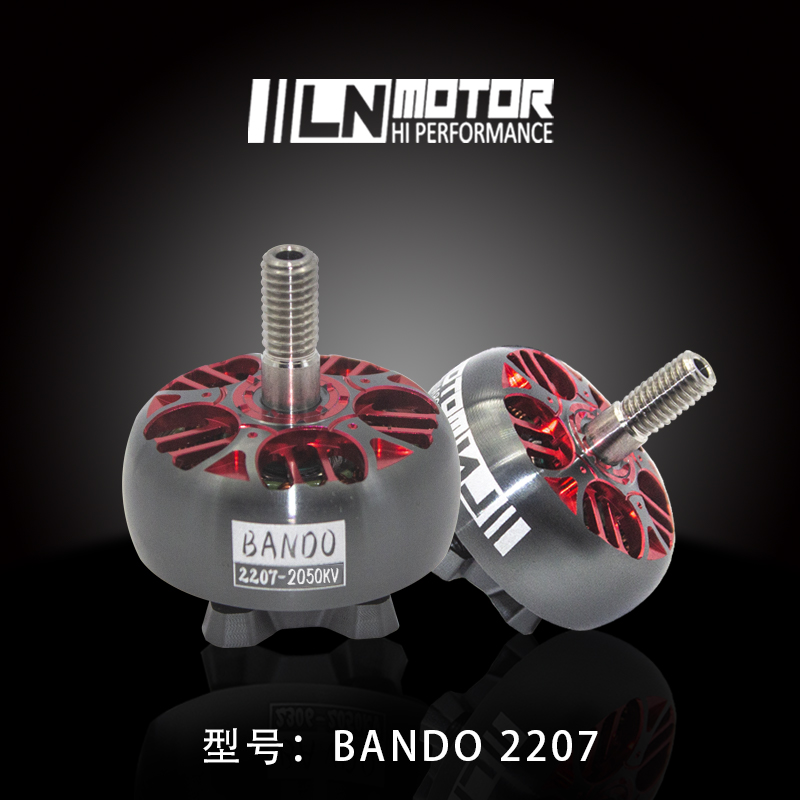

- SZ2207 Motors (6S): TC4 titanium shaft, N52H arc magnets, and a unibell design give you high torque and durability without excess weight. [ligpower]
- SZ5145 Props (5.1″, aggressive pitch): Designed for high thrust and accurate throttle feel on 6S, especially in the 20–30% throttle zone where motor efficiency peaks. [youtube]
- SZ 45A Mini ESC (BLHeli_32): Quality MOSFETs and clean power delivery reduce desync risk in hard corner exits and punch-outs. [fpvknowitall]
- SZ F7 HD Mini FC: STM32F722 chip, digital VTX plug port, and stable PID behavior at race filters. [fpvknowitall]
- GEP-Racer Frame (T700 carbon + 7075 CNC): Stiff, crash-resistant, and optimized for racing geometry. [fpvknowitall]
- HGLRC Zeus Nano VTX + RunCam Night Eagle 3: Ultra-light VTX and starlight camera provide reliable analog video, even at dusk or under poor lighting. [fpvknowitall]
- BETAFPV Nano ELRS 2.4G Receiver: Low latency, long range, and excellent link quality for gate-heavy tracks. [fpvknowitall]
From real racing use, this type of setup offers a very "locked-in" feel, with enough overhead to run higher D gains without overheating motors—as long as your tune is sensible and props are balanced. [youtube]
- Intermediate to advanced racers who want a custom-level stack without building from scratch
- Freestyle pilots who prefer a "race-tuned" feel for snappy tricks
- Anyone who wants a 6S, 2207-based platform that can grow with their skills
For pilots who want true pro performance without soldering, the Five33 LIGHTSWITCH RTF is one of the few quads I can recommend as a serious, race-ready out-of-the-box solution. [fpvknowitall]
- Built to Evan "Headsup" Turner's championship spec and actually test-flown before shipping. [fpvknowitall]
- Uses Five33 frames that dominate many race podiums in the 5″ class. [fpvknowitall]
- You can choose between:
- V2 LightSwitch Frame – heavier but more durable 6 mm arms
- LightSwitch Ultra Frame – sub‑50 g frame, optimized for minimum lap times [fpvknowitall]
From actual racer feedback, this RTF feels more like a "race team build" than a generic BNF: filters, rates, and power system are already aligned for competitive flying. [fpvknowitall]
- You have decent stick time in simulators and want to jump straight into racing
- You prioritize lap times over crash resistance (especially with the Ultra frame)
- You're comfortable maintaining but don't want to fully build a stack yet
Freestyle is where personality shows: for smooth lines, power loops, or bandos, you need a quad that feels predictable and forgiving, not just fast. [oscarliang]
- Motors: 2207 / 2306 / 2208 with 1700–2100 KV on 6S for a mix of torque and control. [oscarliang]
- Frame: True‑X or Wide‑X with 6 mm carbon arms for balanced handling and crash survival. [oscarliang]
- FC/ESC: F7 + 45–60 A BLHeli_32 ESC, with TVS and capacitor support for clean power. [fpvknowitall]
- Props: 5-inch tri-blades for consistent throttle and propwash handling. [fpvknowitall]
- Video: DJI O3/O4 or Walksnail for HD, or analog if you want lighter builds. [youtube]
Among current "component-based kits," one of the most balanced freestyle builds is the Power and Precision kit combining 2306 motors with a Nazgul XL5 / Nazgul V3 / Master 5 type frame. [fpvknowitall]
- SZ2306 / NEON 2306 Motors (1750, 1950, 2050 KV): These KV options let you fine-tune throttle feel for flowy lines or aggressive acro on 6S. [ligpower]
- SZ F7 FC + 60A BLHeli_32 ESC: Clean, responsive power delivery that tolerates fast reversals and prop changes without desync. [fpvknowitall]
- Phoenix 2 SE Camera: 1000 TVL analog camera with a wide voltage range, good dynamic range for mixed lighting. [fpvknowitall]
- ELRS Nano 2.4G Receiver: Low latency and strong link—critical when you're doing proximity freestyle. [fpvknowitall]
- Rush Tank SOLO VTX (800 mW): Robust analog VTX with 48 channels and built-in mic for sound. [fpvknowitall]
- Nazgul V3 / Master 5 V2 Frame: 226–245 mm wheelbases, tuned for freestyle geometry and durability. [oscarliang]
- SZ4942 / SZ5145 Props: Slightly different pitch and diameter options for balancing thrust, noise, and smoothness. [fpvknowitall]
This type of build gives a confident, floaty feel for big tricks, while still being nimble enough for technical proximity flying and park freestyle. [oscarliang]
If you want a budget BNF that doesn't feel compromised, the GEPRC Vapor X5 is one of the most frequently praised options in 2026, often compared directly against the iFlight Nazgul Eco. [reddit]
- Includes a built-in receiver, avoiding extra cost and installation effort. [fpvknowitall]
- Uses an F7 flight controller, which offers better processing and firmware headroom than F4 boards. [fpvknowitall]
- Open-frame layout simplifies repairs and wiring compared to enclosed-side-plate designs. [fpvknowitall]
- In many pilot reviews, the Vapor feels more "locked-in" and responsive than other budget BNFs in similar price brackets. [flyingmag]
This quad is especially suitable for progressing pilots who want a better-tuned platform than entry-level BNFs, but aren't ready to custom-build yet. [flyingmag]
For pilots invested in Walksnail, the Manta5 is a compelling 5-inch choice because it brings HD-readiness and modularity into a plug-and-play package. [fpvknowitall]
- Pre-installed Walksnail VTX option saves money and time versus retrofitting HD later. [youtube]
- Encased Argus FC & ESC improve durability and thermal stability. [fpvknowitall]
- Plug-in architecture allows compatible parts to be swapped with minimal soldering. [fpvknowitall]
- CNC aluminum center brace greatly increases rigidity and crash strength at the arm roots. [fpvknowitall]
- Built‑in GPS as standard, which is rare at this price point. [fpvknowitall]
This is a strong pick for HD-focused freestyle and mid-range flights where video quality, modularity, and quick repairs matter as much as raw toughness. [youtube]
| Use Case | Type | Key Strengths | Potential Trade-Offs |
|---|---|---|---|
| High-speed track racing | 2207 SZ racing kit (DIY) | Customizable, 6S power, tuned for responsiveness (fpvknowitall) | Requires build skills and tuning work (fpvknowitall) |
| Pro-level competition | Five33 LIGHTSWITCH RTF | Race-proven, test-flown, elite frame options (fpvknowitall) | Higher cost, optimized mostly for racing (fpvknowitall) |
| Versatile freestyle | 2306 Nazgul/Master 5 kit | Balanced for flow and big tricks, durable frames (fpvknowitall) | Analog-focused unless you swap to HD (fpvknowitall) |
| Budget freestyle | GEPRC Vapor X5 BNF | Great value, F7 FC, excellent feel for price (fpvknowitall) | Not as “premium” as full custom builds (fpvknowitall) |
| HD plug-and-play | Axisflying Manta5 Walksnail | HD-ready, modular design, built-in GPS (fpvknowitall) | Best suited to Walksnail ecosystem users (fpvknowitall) |
As a motor manufacturer, I spend a lot of time looking at test benches and real flight logs, and there are a few practical rules of thumb worth highlighting for 5-inch FPV motors in 2026. [ligpower]
Data across multiple brands and independent thrust tests shows: [rimychina]
- 5-inch 6S freestyle: 1700–1900 KV for smooth throttle and lower temps.
- 5-inch 6S racing: 1900–2100 KV for more punch and higher top speed.
- Efficiency peaks in roughly the 20–30% throttle range, where copper and iron losses are more balanced. [youtube]
For example, tests with 22–23 mm class motors on 6S and 5.1″ props consistently show best efficiency and controllability in mid-throttle, which is where experienced pilots try to fly most of their lines. [youtube]
- 2306 / 2306.5: "Golden" freestyle stator—smooth, controllable, and forgiving. [ligpower]

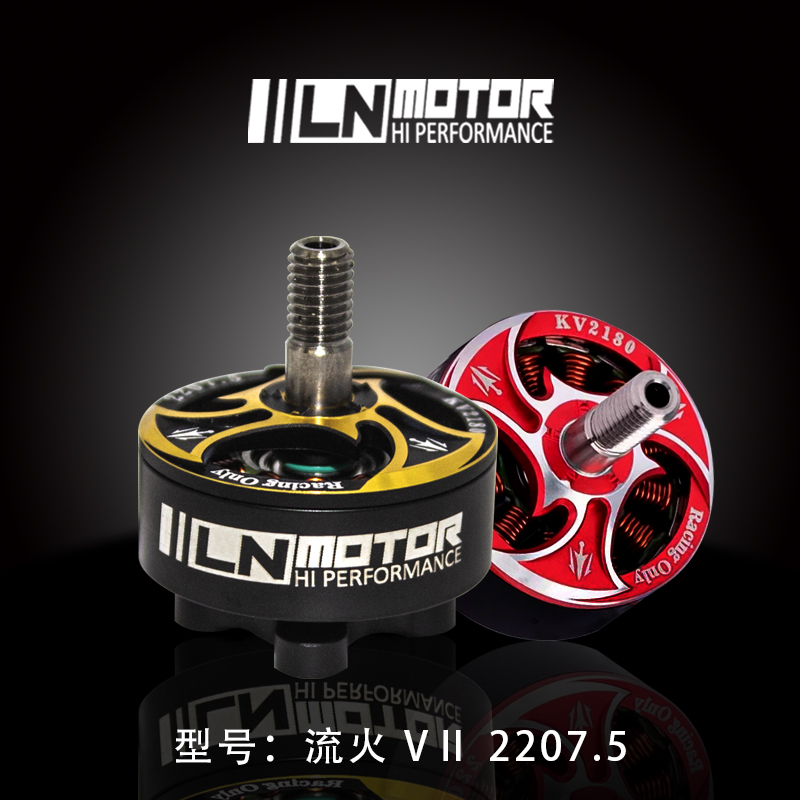

- 2207 / 2207.5: More punchy and responsive; favored by racers and aggressive acro pilots. [ligpower]
- Larger stators (24xx, 28xx): Used for long-range or heavier builds; overkill for most 5-inch racers. [rimychina]
When we design FPV motors for 5-inch platforms, we focus heavily on materials (N52H magnets, high-temp windings) and cooling, because real racers regularly sustain high current bursts near the motor's rated power. [ligpower]
Choosing the best 5-inch kit is easier when you map it directly to how and where you fly.
- Prioritize low weight, 2207/2306 motors, 1900–2100 KV on 6S, and ExpressLRS. [oscarliang]
- Consider the SZ2207 racing kit or Five33 LIGHTSWITCH RTF for turn-in speed and lap times. [fpvknowitall]
- Choose durable frames, 2306 motors, and tri-blade props with moderate pitch. [oscarliang]
- A Nazgul/Master 5-based kit or GEPRC Vapor X5 is ideal for this style. [flyingmag]
- Look for DJI O3/O4 or Walksnail integration, plus GPS and clean antenna mounting. [youtube]
- Axisflying Manta5 with Walksnail is a strong plug-and-play choice. [fpvknowitall]
Over years of supporting OEM/ODM customers and end pilots, there are a few practical build tips I always pass on.
Running a too-high KV on 6S will skyrocket heat and reduce reliability without giving you meaningful extra usable power. Instead, pair KV with prop pitch and weight: higher pitch props allow lower KV while preserving punch. [oscarliang]
Adding a TVS diode and low-ESR capacitor to your 6S builds can significantly reduce ESC stress and noise in the gyro traces, improving tune stability and component lifespan. [oscarliang]
Since motor efficiency peaks around 20–30% throttle, you want a tune and rates that keep your "normal" flying comfortably in that zone, leaving headroom for emergency punch-outs. [youtube]
If you're ready to step up your 5-inch build, the most important decision is choosing a motor and power system partner that understands both racing and freestyle demands, from stator design to OEM/ODM customization. [instagram]
As a Chinese manufacturer focusing on FPV drone motors and complete power solutions, we support:
- Custom KV, stator size, color, and cable length for FPV, RC cars, gimbals, fans, and robots
- Full power system matching (motor + ESC + prop + recommendations)
- Pilot and brand co-development for signature racing or freestyle series [instagram]
Next step: Define your primary flying style (racing, freestyle, HD cinematic, or mixed) and reach out with your target voltage, frame size, and weight goal so we can propose a matched 5-inch power system kit that actually fits your needs instead of forcing you into generic specs. [rimychina]
1: Is a 5-inch FPV drone good for beginners?
Yes—if you pick a moderate KV setup and a stable tune. Many 5-inch freestyle kits with 1700–1900 KV motors and F7 flight controllers are beginner-friendly and easy to grow into. [oscarliang]
2: Can I start with analog and upgrade to HD later?
In most modern frames, yes. As long as you choose a frame with enough space and proper mounting patterns, you can start with analog and later swap to DJI or Walksnail HD VTX systems. [youtube]
3: What flight time should I expect from a 5-inch 6S quad?
Typical freestyle or racing flights last 3–7 minutes depending on battery capacity, motor KV, prop efficiency, and how aggressively you fly. [flyingmag]
4: How many spare parts should I buy with my first kit?
At minimum, get 2–4 sets of props, 1–2 spare arms, and at least one extra camera mount and antenna. Racers often keep a spare ESC and motor set as well. [oscarliang]
5: Do I need to register my 5-inch FPV drone?
In many countries, any drone above 250 g must be registered and flown under specific rules, especially in urban areas. Always check your local regulations before flying. [flyingmag]
