Flying FPV with the right GoPro (or similar action camera) is what turns fast, technical flights into stable, cinematic footage that clients and audiences are willing to pay for. As an FPV pilot working with the engineering team at Zhongshan Yuhang Power Technology Co., Ltd., where we design FPV drone motors and complete power‑system solutions, I've learned that choosing the best GoPro for FPV is not just about resolution – it's about weight, stabilization, workflow and how well the camera matches the drone's power system. [thedronegirl]
Action cameras like GoPro are designed for extreme conditions: high G‑forces, shocks, water, dust and temperature swings that are common in FPV flying. Compared with traditional mirrorless or compact cameras, GoPros are compact, rugged, and easy to mount on 3–7 inch FPV quads, wings and even RC cars without overloading the motors. [mepsking]
From a motor manufacturer's perspective, this matters because a lighter, impact‑resistant camera lets you run smaller motors and batteries for the same flight time and agility, lowering total system cost and stress on the powertrain. [frameworkfilms]
Modern GoPro models (Hero 11, 12, 13) and competing action cameras deliver 4K‑plus resolution, high bitrates, and advanced color profiles that stand up to professional grading. Features like 10‑bit color and flat profiles mean you can pull back highlights in clouds, keep detail in shadows, and match FPV footage with ground cameras in post. [oscarliang]
For social media, the near‑square 8:7 sensors in recent GoPro Hero cameras let you record once and crop later for vertical, horizontal or square formats without remounting the camera. [youtube]
FPV flying demands quick direction changes and tight gaps; a bulky camera kills that agility. GoPros and similar action cameras stay relatively small, with plenty of third‑party 3D printed mounts for popular frames and naked conversions, so you can mount them rigidly without damaging the frame or blocking ducts on cinewhoops. [fpvknowitall]
Built‑in recording, flexible frame rates, and features such as Time Lapse, HyperSmooth, and horizon leveling make them almost "plug‑and‑forget" on the pilot side, so you can focus on flying instead of babysitting recording gear. [oscarliang]
For FPV drones, image quality is not just resolution; it is a combination of sensor size, bitrate, color depth and lens behavior. [oscarliang]
Look for:
- At least 2.7K or 4K recording for safe cropping and downsampling. [fpvknowitall]
- Support for 10‑bit color and flat or log‑style profiles if you grade footage. [oscarliang]
- High bitrate modes (e.g., "High" or "Max") for more detailed textures and less macro‑blocking in fast scenes. [oscarliang]
Cinematic pilots flying heavy 6–7 inch builds or cinelifters usually favor high‑end GoPros (Hero 11/12/13) for maximum grading flexibility, while lightweight cinewhoops often pair better with small 2.7K–4K cameras that keep total all‑up weight under control. [thedronegirl]
Smooth footage is where GoPro shines for FPV. [fpvknowitall]
There are three main stabilization approaches:
- In‑camera EIS such as HyperSmooth or RockSteady: convenient, but crops the image. [mepsking]
- Post‑processing with ReelSteady or GyroFlow using gyro data: more control, but needs unstabilized source and extra workflow. [oscarliang]
- Hybrid workflows (light in‑camera stabilization + mild post) for specific jobs. [fpvknowitall]
Many experienced pilots capture unstabilized 4:3 footage with gyro data, then stabilize later using ReelSteady or GyroFlow to fine‑tune crop, horizon, and motion feel. This keeps options open for clients who may want different aspect ratios or motion intensity. [oscarliang]
> Expert tip: for aggressive freestyle, a shorter shutter angle (around 90°) often works better with heavy stabilization than the classic 180° shutter, because it reduces motion blur artifacts in stabilized frames. [oscarliang]
Frame rate changes how FPV footage feels. [fpvknowitall]
- 24–25 FPS: Cinematic look but can feel choppy with fast FPV moves. [oscarliang]
- 30 FPS: Acceptable for slower flights or talking‑head segments. [fpvknowitall]
- 50–60 FPS: Widely used for freestyle and cinematic FPV on YouTube and Instagram; smooth playback with enough samples for stabilization. [oscarliang]
- 120–240 FPS: For slow‑motion shots like dives, transitions, and proximity passes (may require lower resolution). [fpvknowitall]
When we tune FPV power systems for clients, we often match propeller and motor choices to the expected flight style: ultra‑smooth 60 FPS cinematic cruising vs. high‑energy freestyle that may use 60–120 FPS and quick throttle changes. [youtube]

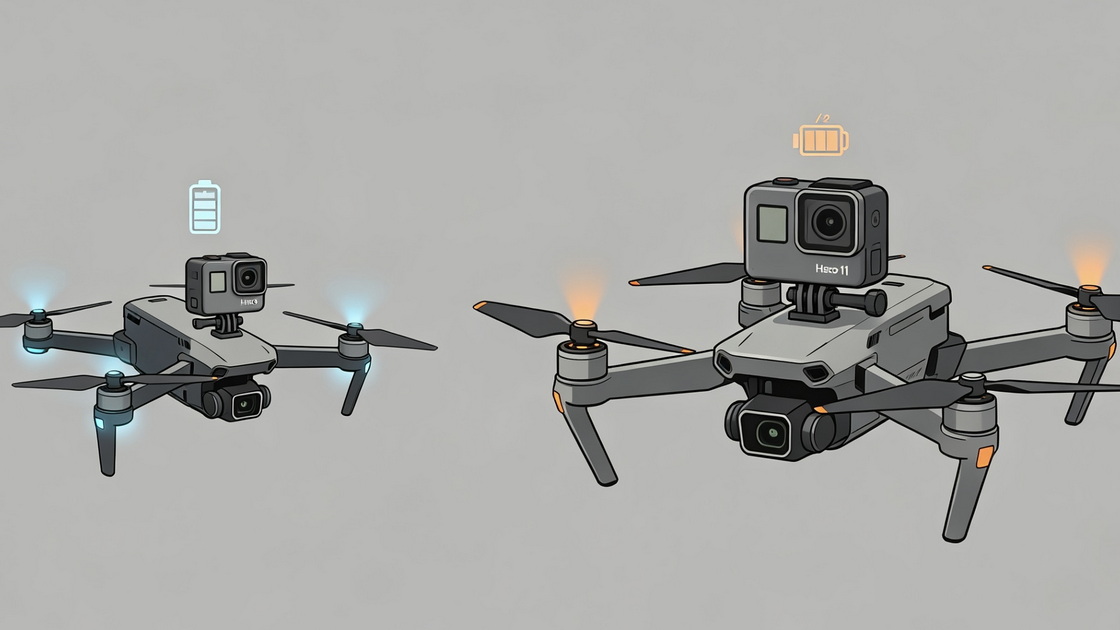

For FPV, grams matter. Extra camera weight: [thedronegirl]
- Reduces flight time on the same battery.
- Increases required thrust, heating motors and ESCs.
- Makes the quad feel heavier on axis transitions and braking.
That's why cinewhoops and small long‑range rigs use naked GoPros, Thumb‑class cameras, or ultra‑light options like Caddx Peanut and RunCam Thumb Pro. The goal is to keep AUW low enough that your chosen FPV motors still operate in their efficient band instead of constantly at high throttle. [mepsking]
Camera power strategy must align with your flight profile:
- Internal battery: Simple and self‑contained, but adds weight and may die mid‑flight. [mepsking]
- Powered from the drone: Reduced camera weight, but requires correct voltage and wiring discipline. [fpvknowitall]
For commercial work, we often recommend powering the camera from the drone for predictable runtimes, with careful voltage regulation and EMI management near the FPV system and motors. [oscarliang]
GoPro‑style cameras usually offer multiple FOV modes (wide, linear, narrow) and support ND and polarizing filters. [oscarliang]
- Wide/Ultra‑wide: Maximum immersion; ideal for freestyle and bando flying but can distort the horizon.
- Linear: Cleaner lines for architectural and commercial content.
- ND filters: Keep shutter speed near 1/(2×FPS) for natural motion blur, especially in bright daylight. [oscarliang]
- Polarizers: Reduce glare from water, glass and metal surfaces. [fpvknowitall]
For heavy‑lift builds or close‑range industrial inspections, we sometimes recommend linear FOV with ND filters to help clients clearly see structures with minimal distortion while still benefiting from FPV agility. [oscarliang]
The GoPro Hero 11 Black remains a benchmark for FPV pilots thanks to its nearly square 8:7 sensor, 5.3K60 recording and strong HyperSmooth stabilization. The 8:7 format lets you reframe for vertical Reels, horizontal YouTube, or square posts from a single master clip. [mepsking]
Key strengths for FPV:
- 5.3K60 and 2.7K240 for detailed slow motion. [oscarliang]
- 10‑bit color and flat profile for grading. [oscarliang]
- Mature accessory ecosystem (ND filters, cages, mounts). [digitalcameraworld]
If you are building a 5–7 inch cinematic rig with powerful FPV motors and do paid work, Hero 11 is still an excellent balance of cost and capability. [digitalcameraworld]
The Hero 12 and Hero 13 refine what the Hero 11 started:
- 4K and 5.3K up to 60 FPS with improved power efficiency. [wired]
- Enhanced horizon lock and updated HyperSmooth versions. [youtube]
- Strong 10‑bit and log‑style capture for advanced post‑production. [wired]
If you deliver for TV, streaming platforms, or high‑end commercials, these cameras offer the greatest grading latitude and integration with professional workflows. On heavier drones and cinelifters, the extra grams are offset by the value of more robust footage. [youtube]
The Insta360 GO 3 is extremely light (around 35 g) yet records crisp 2.7K footage with built‑in FlowState stabilization and horizon leveling. It is particularly attractive for 2.5–3 inch cinewhoops and sub‑250 g builds that cannot carry a full GoPro without sacrificing flight time or motor longevity. [frameworkfilms]
Its small form factor and 9:16 social‑media‑friendly output make it perfect for indoor tours, tight spaces and flights where you can't risk a heavy camera hitting people or objects. [reddit]
The DJI Osmo Action 4 brings a 1/1.3 inch sensor, strong low‑light performance, 4K120 capabilities and RockSteady stabilization. It also features a front touchscreen, excellent audio and deep water resistance, making it attractive to hybrid vloggers who use the same camera on a helmet, selfie stick and FPV drone. [digitalcameraworld]
For pilots already rooted in the DJI ecosystem (O3/O4 FPV systems, Avata‑type drones), Osmo Action 4 is a natural alternative to GoPro with comparable stabilization and dynamic range. [mepsking]
The Caddx Peanut weighs around 27 g and is specifically tuned for FPV, capturing up to 2.5K50 with reliable stabilization in a tiny body that suits 2.5–3.5 inch quads. The RunCam Thumb Pro 4K offers 4K30 and built‑in gyro data in an ultra‑light 16 g form factor, making it ideal for small cinewhoops and budget long‑range rigs. [thedronegirl]
These cameras shine when your priority is flight performance and keeping motor and battery stress low, while still obtaining usable HD footage. [frameworkfilms]
| Use Case | Recommended Camera Type | Why It Works Well For FPV |
|---|---|---|
| 5–7 inch cinematic quad | GoPro Hero 11/12/13 | Best overall image quality and grading flexibility (fpvknowitall) |
| Sub‑250 g cinewhoop | Insta360 GO 3 / Caddx Peanut | Extremely light, good stabilization, social media friendly (fpvknowitall) |
| Budget 3–4 inch build | RunCam Thumb Pro 4K | Very light, 4K with gyro data for GyroFlow (fpvknowitall) |
| Indoor one‑take tours | GO 3 / light GoPro on ducts | Low weight, wide FOV, stable at low speeds (fpvknowitall) |
| Heavy cinelifter | Hero 12/13 with ND set | Maximum control for high‑end color grading (fpvknowitall) |

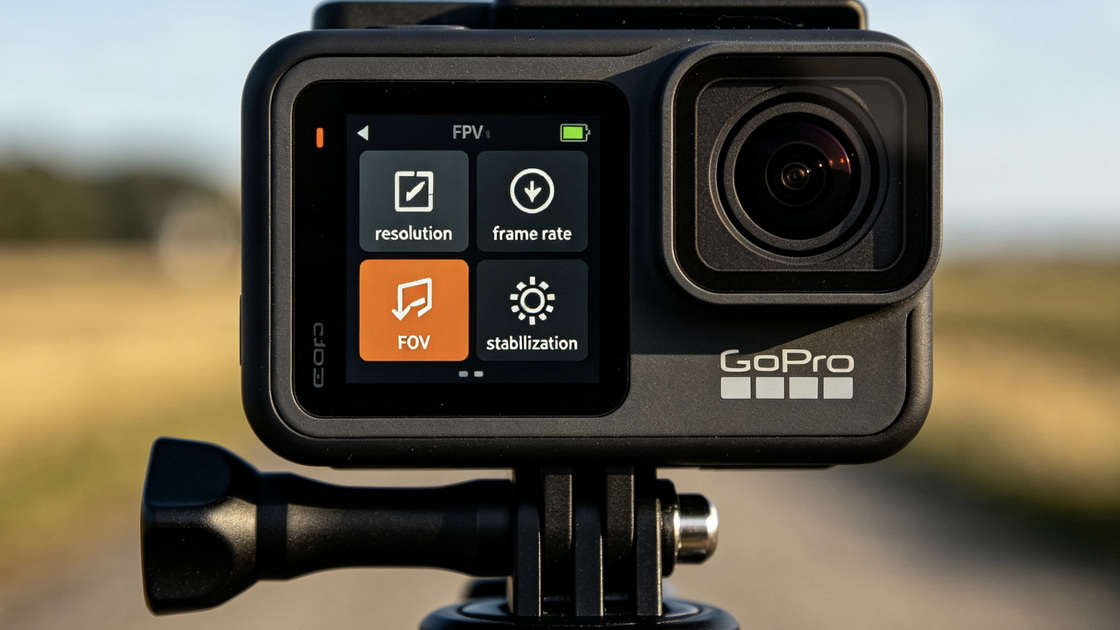

Based on field experience and commonly recommended expert settings, a solid starting point for FPV looks like this: [oscarliang]
- Resolution: 2.7K 4:3 50 FPS or 4K 4:3 25 FPS
- FOV: Wide or similar, then de‑fisheye in post
- In‑camera stabilization: Off (if using ReelSteady/GyroFlow)
- ISO min and max: the same, as low as possible (often 100–400)
- White balance: around 5500 K outdoors, auto indoors
- Sharpness: Low or Medium, then adjust in post
- Color: Flat / Log‑like for grading, or Normal for quick turnarounds
- High bitrate: Enabled
Neutral‑density filters (e.g., ND8 or ND16) help maintain a 180° shutter angle on bright days without overexposing the image, giving more natural motion blur. [oscarliang]
For cinematic flights with minimal post‑stabilization, a 180° shutter (shutter ≈ 1/(2×FPS)) gives a natural motion blur similar to cinema. However, when using aggressive off‑camera stabilization like ReelSteady, a 90° shutter (faster shutter speed) can reduce blur‑based artifacts. [fpvknowitall]
As you gain experience and smoother stick discipline, you can gradually move back toward 180° to maximize motion realism while keeping stabilization artifacts under control. [oscarliang]
While most FPV pilots now record HD onboard and use separate FPV cameras, some workflows still pipe GoPro output into a video transmitter. [oscarliang]
You will need: [mepsking]
- A GoPro or similar action camera
- An FPV video transmitter (VTX) with power wire and antenna
- Appropriate video cable from GoPro to VTX
- Goggles or screen with matching receiver
Basic steps:
1. Mount and connect the antenna to the VTX before powering it to avoid damage. [mepsking]
2. Plug the GoPro video wire and power cable into the VTX. [fpvknowitall]
3. Connect the other end of the video cable to the GoPro's port near the SD card slot. [fpvknowitall]
4. Power the VTX and GoPro via battery; confirm LEDs on both devices. [fpvknowitall]
5. Turn on goggles or monitor and scan channels until you see the GoPro image. [fpvknowitall]
You will not want to risk destroying a brand‑new Hero or GO 3 during early practice. A simple GoPro dummy gives you the same weight and aerodynamics without the cost. [fpvknowitall]
- 3D‑print a TPU dummy shell for your camera. [fpvknowitall]
- Fill it with wheel balance weights, coins or similar until it matches real camera weight. [fpvknowitall]
- Mount the dummy in the same location you'll use for the real camera. [fpvknowitall]
This helps you tune PIDs, test new motors, and practice tight lines while protecting your production camera for paying jobs and important shoots. [frameworkfilms]
If your GoPro battery consistently stops charging around 70–90%, the issue often lies with high‑power fast chargers or power delivery negotiation. Switching to a simpler 5 V / 2 A charger or even a computer USB port usually restores full 100% charge capability. [community.gopro]
For FPV sessions, many pilots bring multiple smaller batteries or use external charging solutions rather than depending on a single internal battery for multiple long flights. [oscarliang]

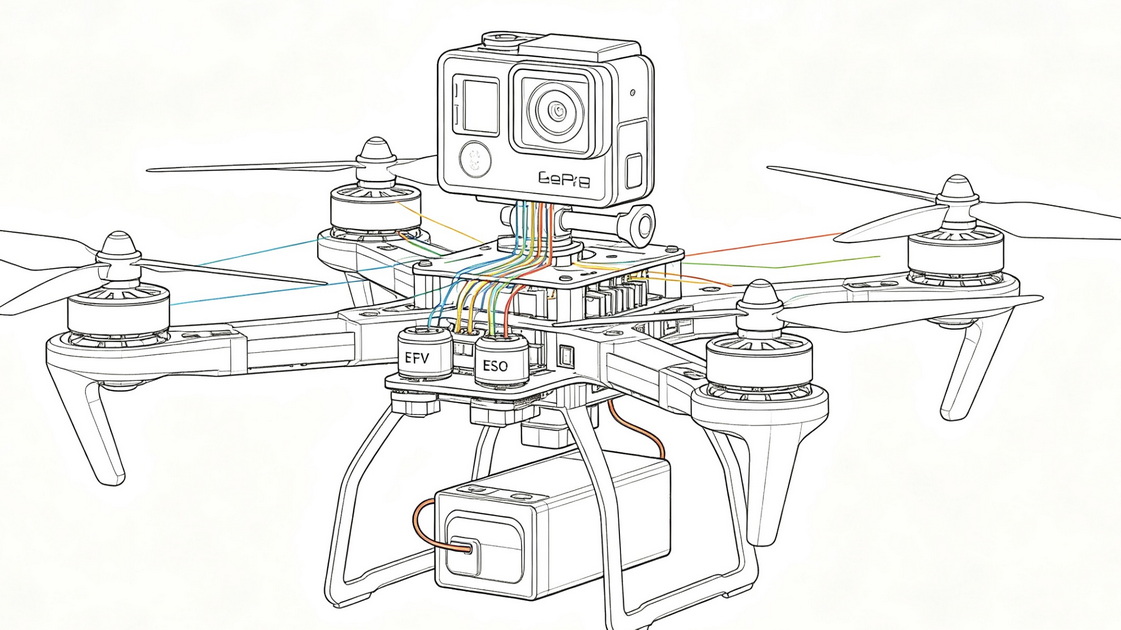

From our vantage point as a brushless motor and FPV power‑system manufacturer, the camera is part of the engineering equation. [thedronegirl]
- A heavier GoPro demands higher thrust and current, which can push motors toward higher temperatures and shorten flight time. [thedronegirl]
- An ultra‑light camera lets you run smaller motors and packs, or gain more minutes of flight on the same setup. [digitalcameraworld]
- Vibration from poorly balanced props or mismatched motors shows up very clearly in stabilized footage, regardless of camera brand. [mepsking]
When you share frame size, battery voltage, and target camera (for example, Hero 12 vs GO 3) with us, we can recommend matching KV, stator size and propeller combinations that deliver stable, efficient thrust for that payload. [frameworkfilms]
If you are planning your next FPV build or upgrading your camera, choose the GoPro or action camera that matches your flying style and then design the power system around it. Our team at Zhongshan Yuhang Power Technology Co., Ltd. can help you pair the right FPV motors, ESCs and power solutions with your chosen GoPro or ultra‑light action camera, whether you are building cinewhoops, long‑range rigs, RC cars or professional inspection drones. [frameworkfilms]
Share your frame, target all‑up weight and primary camera choice with us, and we will recommend a complete motor and power‑system configuration that balances flight time, responsiveness and image stability for your specific application. [digitalcameraworld]
1: Which GoPro is best for a 5‑inch freestyle FPV drone in 2026?
For a typical 5‑inch freestyle quad, GoPro Hero 11 or 12 offers an excellent mix of image quality, frame rates and accessory support without being as heavy or expensive as the latest flagship for most hobby users. [mepsking]
2: What is the best camera for a sub‑250 g cinewhoop?
Ultra‑light options like Insta360 GO 3, Caddx Peanut or RunCam Thumb Pro are better suited for sub‑250 g cinewhoops because they keep weight low enough for good flight times and stable handling. [thedronegirl]
3: Should I use in‑camera stabilization or ReelSteady/GyroFlow?
If you want the simplest workflow, use in‑camera stabilization (HyperSmooth or equivalent); if you need maximum control and client flexibility, record unstabilized 4:3 footage with gyro data and stabilize later in ReelSteady or GyroFlow. [oscarliang]
4: Do I need ND filters for FPV GoPro footage?
ND filters are strongly recommended for bright conditions because they help keep shutter speed near 1/(2×FPS), producing more natural motion blur and reducing jello and sharp, harsh‑looking footage. [oscarliang]
5: How does camera weight affect my motor choice?
Heavier cameras require more thrust, which may push you toward larger stators, higher KV and bigger batteries, while lighter cameras allow smaller, more efficient motors and longer flights on the same pack. [frameworkfilms]
1. Mepsking – "How to Choose the Best GoPro for FPV Drone" (base content and connection steps). [Link] [fpvknowitall]
2. Oscar Liang – "Choosing the Best HD Action Cameras for FPV Drones" (camera options, sensors, dynamic range). [Link] [oscarliang]
3. Oscar Liang – "How To Use GoPro on FPV Drones – Best Settings, Accessories" (shutter angle, ND filters, FPS choices). [Link] [oscarliang]
4. Digital Camera World – "The Best GoPro Cameras in 2026" (Hero line‑up and use cases). [Link] [digitalcameraworld]
5. Mepsking – "Caddx vs DJI vs Runcam: Best FPV Camera Comparison 2026" (FPV system characteristics, latency). [Link] [mepsking]
6. Framework Films – "Parts List – Build a Cinema FPV Drone to Carry GoPro" (cinema‑grade FPV build context). [Link] [frameworkfilms]
7. DroneGirl / other FPV resources on small cinewhoop and sub‑250 g indoor drones. [Link] [thedronegirl]
