Views: 222 Author: Yuhang Power Publish Time: 2026-05-05 Origin: Site
As an FPV pilot who works closely with motor and power system engineering teams at Zhongshan Yuhang Power Technology Co., Ltd., I've learned that choosing the right radio controller is just as critical as choosing the right FPV drone motor or flight controller. A good radio does not just "send signals" — it shapes your flying habits, your safety margin, and even how far you can grow in the hobby. [oscarliang]
When new pilots ask me why they should invest in a quality radio instead of a cheaper toy‑grade transmitter, I usually explain it like this: your radio is the primary interface between your brain and the motors we build. Every tiny stick movement is converted into digital packets, transmitted over a specific protocol, decoded by the receiver, and then transformed into motor commands by the flight controller. [fpvknowitall]

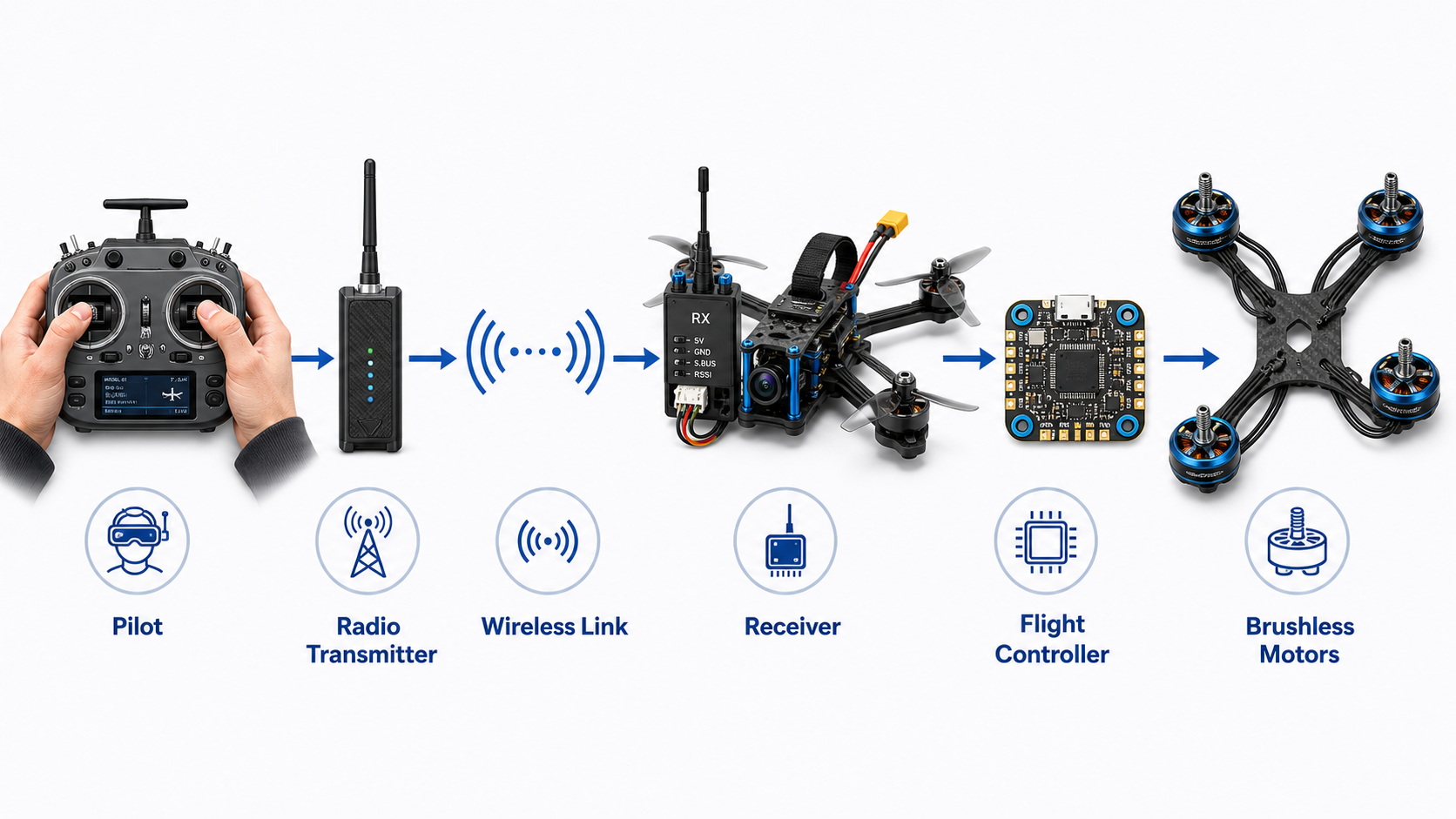

If any part of this chain is unreliable — protocol, radio, receiver, or configuration — you'll feel it immediately as random failsafes, delayed response, or unstable flight, no matter how good your motors and ESCs are. For pilots flying racing quads, cinematic rigs, or industrial drones using high‑performance brushless motors, a stable and low‑latency control link is non‑negotiable. [mepsking]
An FPV radio protocol is the digital language your transmitter (TX) and receiver (RX) use to communicate. It determines your range, latency, receiver cost, and what hardware you can use in future builds. [oscarliang]

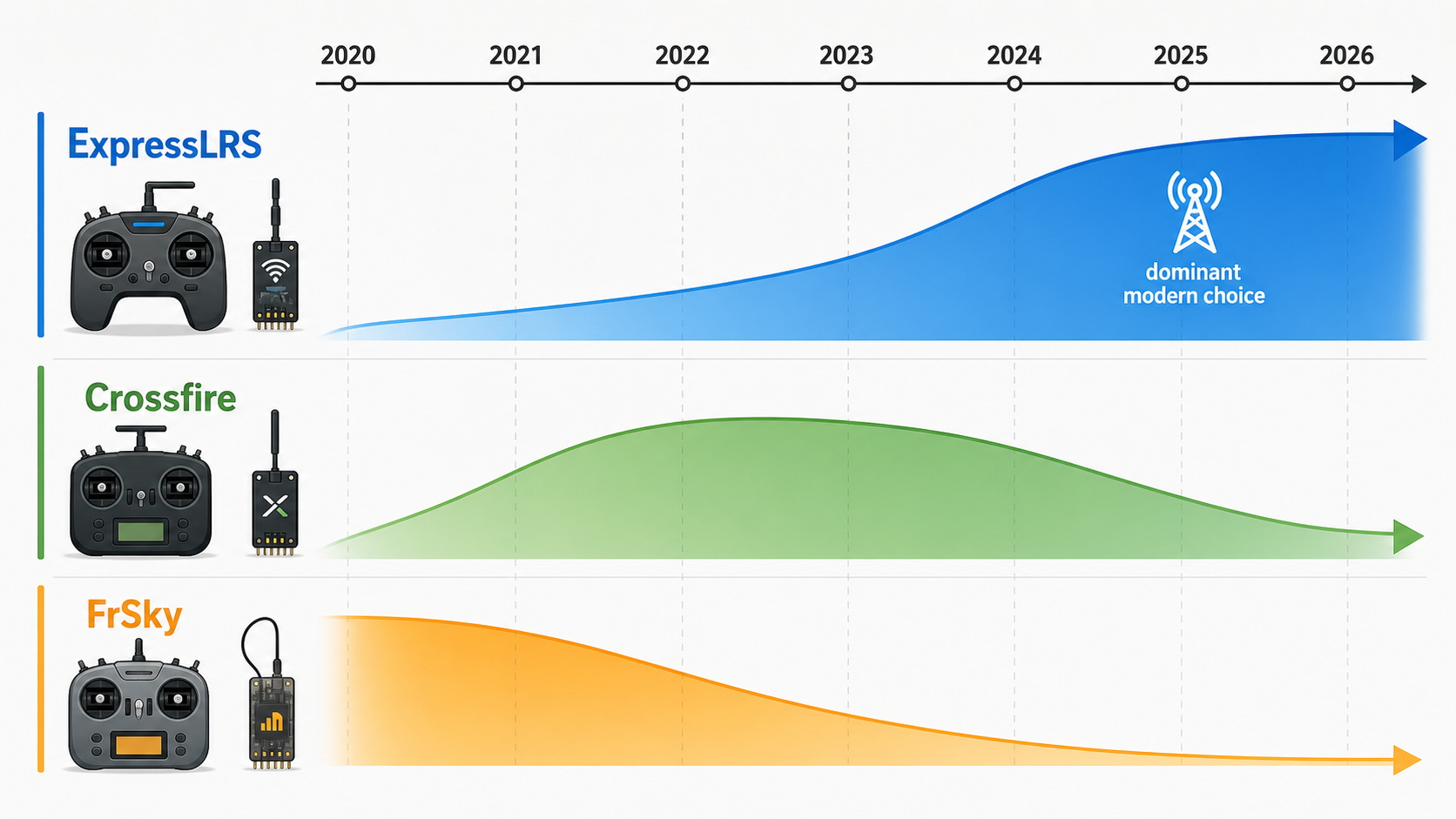

Modern FPV protocol landscape in 2026: [fpvknowitall]
| Protocol | Major Strength | Main Weakness | Best For |
|---|---|---|---|
| ExpressLRS (ELRS) | Very low latency, excellent range, open‑source | Needs initial firmware setup | Most modern FPV pilots |
| TBS Crossfire | Extremely reliable long‑range link | Higher receiver cost | Long‑range & mountain flying |
| FrSky (ACCST/ACCESS) | Legacy ecosystem with many old radios | Fragmented, declining support | Maintaining older fleets |
| DJI FPV (integrated) | Plug‑and‑play with DJI systems | Closed ecosystem, limited radios | DJI digital FPV users |
In our own test rigs for FPV motors and powertrains, ELRS has become the default because it gives us predictable behavior across freestyle, racing, and long‑range test platforms without constantly switching systems. [mepsking]
- Choose ELRS if you're a new pilot or building modern FPV quads and cinewhoops. [oscarliang]
- Choose Crossfire only if long‑range reliability is your primary goal and you accept higher hardware cost. [fpvknowitall]
- Use FrSky only if you already own compatible receivers and want to keep older airframes alive. [fpvknowitall]
- Choose DJI controllers only if you are committed to DJI digital FPV drones and comfortable with a closed ecosystem. [youtube]
Most modern FPV control links run on 2.4 GHz or sub‑GHz bands like 868/915 MHz, while 5.8 GHz is typically used for video, not control. [oscarliang]
- 2.4 GHz (ELRS, many multi‑protocol radios): Good balance of range, latency, and antenna size, ideal for freestyle and racing. [oscarliang]
- 900 MHz (Crossfire, some ELRS): Better penetration through trees and obstacles, preferred for long‑range and low‑altitude terrain following. [youtube]
If you fly in dense urban environments with heavy Wi‑Fi congestion, 900 MHz can give a more robust link, especially when pushing the limits of your video system and motors in low‑altitude flights. For most beginners, however, a 2.4 GHz ELRS radio is the most practical choice. [fpvknowitall]

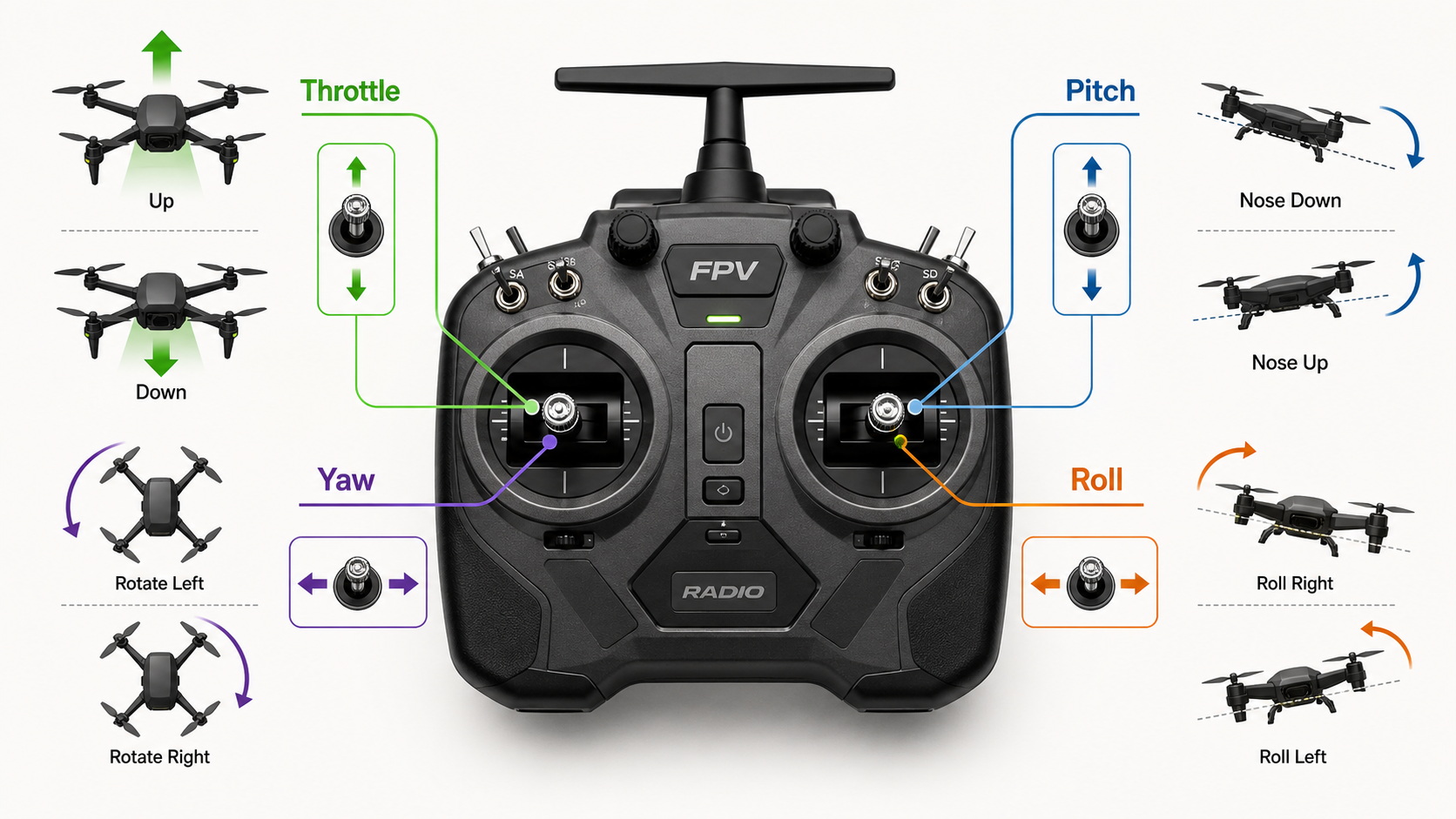

A channel is simply one control signal from your radio to the drone. The four mandatory flight channels are: [fpvknowitall]
- Throttle – overall motor speed
- Yaw – rotation left/right
- Pitch – tilt forward/back
- Roll – tilt left/right
Without these four channels, a quadcopter cannot fly. Modern radios add extra channels for arming, flight modes, buzzer, GPS functions, and auxiliary equipment like gimbals or lighting. [oscarliang]
From both a pilot training and system‑integration perspective, I recommend: [fpvknowitall]
- Minimum 8 channels for any FPV build
- 8–12 channels for pilots who may later add GPS, long‑range, or camera controls
More channels do not make you a better pilot, but too few will force compromise or constant hardware upgrades as your skills and drones evolve. [fpvknowitall]
In our lab, we regularly see the difference between cheap plastic radios and robust, well‑built transmitters when testing high‑performance motors at high throttle. [oscarliang]
Look for:
- Solid gimbal feel: Smooth centering, no scratching or dead zones
- Hall‑effect gimbals rather than potentiometers for precision and long‑term durability
- Comfortable grip for your hand size (pinch vs thumb grip)
- Balanced weight that reduces fatigue during long flights
- Clear and bright screen for field configuration
Radios like the RadioMaster TX16S MKII are known for high‑quality gimbals, a large color screen, and multi‑protocol support, which makes them popular among both hobbyists and professional operators. When we tune power systems for FPV and industrial drones, a precise radio immediately exposes tiny differences in PID tuning and motor performance. [mepsking]
High‑end FPV radios now run advanced open firmware such as EdgeTX or OpenTX. These systems allow you to: [oscarliang]
- Create custom model profiles for each drone
- Map switches and sliders to specific functions
- Use voice alerts, telemetry monitoring, and logical switches
- Fine‑tune stick curves and expo to match your flying style
From an engineering standpoint, this programmability is crucial when you are testing different propeller and motor combinations or tuning drones for specific missions such as inspection, mapping, or racing. However, it can feel overwhelming to beginners, so consider starting with a good preset profile and then making small adjustments as you gain experience. [mepsking]
Choosing a reputable brand means better firmware updates, documentation, and long‑term support. It also reduces the risk of being locked into a dead ecosystem. [oscarliang]
When selecting a radio, confirm:
- Protocol support (ELRS, Crossfire, multi‑protocol, DJI, etc.)
- Receiver availability and cost in your region
- Community support — tutorials, forums, and example configurations
- Compatibility with your existing drones and receivers
In our work designing brushless motor systems for FPV quads, RC cars, gimbals, and robots, we recommend pilots pick a widely adopted ecosystem (such as ELRS) to ensure long‑term compatibility with new frames and power systems. [mepsking]
For most pilots entering FPV in 2026, ELRS is the protocol I personally recommend first. [thedroningcompany]
What ELRS does best: [fpvknowitall]
- Very low latency you can feel when making fast stick corrections
- Excellent range even on modest output power
- Small, affordable receivers for everything from micro drones to 5‑inch quads
- Strong open‑source community with frequent updates
Main trade‑off: you must learn basic firmware flashing and configuration once — but after that, the system is extremely flexible. [fpvknowitall]
From a manufacturer's perspective, ELRS has become the dominant FPV control link we see on new builds and OEM platforms, thanks to its cost‑performance balance and active development. [mepsking]
Crossfire remains a trusted choice for pilots whose primary focus is long‑range mountain flights, mid‑range cruising, or professional work where link reliability is more important than hardware cost. [youtube]
Strengths:
- Excellent penetration through obstacles and terrain
- Proven reliability from years of use in long‑range scenarios
- Mature ecosystem with stable firmware
Downsides:
- Higher receiver cost
- Limited reason to choose it if you are not flying far from home point
If your main builds are long‑range rigs running high‑efficiency motors and large batteries, Crossfire still has a place. Otherwise, ELRS is usually more practical. [youtube]
FrSky played a major role in early FPV growth, but its ecosystem has become fragmented, with multiple incompatible firmware versions and declining community focus. [oscarliang]
- Good choice only if you already own several FrSky receivers and want to keep older quads flying. [fpvknowitall]
- Not recommended as a starting point in 2026 for new pilots. [fpvknowitall]
For our newer OEM platforms and test rigs, we rarely specify FrSky anymore, preferring ELRS‑based solutions for future‑proofing. [mepsking]
Drawing both from my own flying experience and from what we see in customer builds across drones, RC cars, and robots, here is a practical progression path. [mepsking]
When you are just starting, the priority is stick time, not range. A lightweight entry‑level radio that works with popular FPV simulators is more than enough. [intofpv]
- Look for a compact radio recognized as a USB game controller on PC. [fpvknowitall]
- Check that it supports the protocol you plan to use later (ideally ELRS or a 4‑in‑1 multi‑protocol module). [thedroningcompany]
Using a simulator with the same style of radio you'll fly in the field helps you build muscle memory that translates directly to real flights and protects your motors and frames from early crashes. [youtube]
Once you go beyond the simulator and basic line‑of‑sight flights, a compact ELRS radio becomes a smart investment. [oscarliang]
What to look for:
- Built‑in ELRS module (at least 100–250 mW output)
- EdgeTX or OpenTX firmware
- Good ergonomics for your grip style
- USB‑C connectivity for simulators and firmware updates
These radios are ideal for micro quads, whoops, and 5‑inch freestyle builds using lightweight high‑KV motors. They keep your setup simple while giving you enough range and responsiveness to grow. [mepsking]
If your budget allows, a mid‑range compact radio with better gimbals, color screen, and more switches is a great long‑term platform. [oscarliang]
Typical advantages:
- Stronger build quality and more precise gimbals
- Larger battery, better field usability
- More model memory and safer configuration management
We see many experienced pilots using this level of radio for diverse platforms — racing drones, cinewhoops, RC cars, and even gimbal‑mounted camera systems powered by our brushless motors. [mattyfleisch]
For professional operators, content creators, or pilots managing multiple drones, a full‑size multi‑protocol radio like the TX16S‑class transmitters is often the best choice. [fpvknowitall]
Typical features include:
- Support for multiple radio protocols (FrSky, Spektrum, DSMX, ELRS via external module, etc.) [fpvknowitall]
- Large color screen for telemetry, scripts, and configuration
- Hall‑effect gimbals for maximum precision and durability
- Extensive switch, slider, and knob layout for complex payloads
In our own engineering tests on gimbal systems, inspection drones, and industrial robots, these radios give the flexibility to integrate advanced features (camera tilt, zoom, lighting, winches) without hitting channel limits. [mepsking]
Baseline recommendation:
- 4 channels – mandatory flight control
- 2 channels – arming and flight mode
- 2–4 channels – buzzer, GPS features, gimbal, or custom functions
This gives a comfortable 8–12 channel requirement for most FPV drones. Knobs and extra buttons are nice to have if you fly fixed‑wing, cinematic rigs, or industrial platforms, but they're not essential for freestyle and racing. [oscarliang]
Most pilots today use Mode 2 ("American style") stick layout, which is also the default in many simulators and tutorials, making it the safest option for new pilots. [oscarliang]
Binding is simply the process of pairing your transmitter with the receiver on your drone so they recognize each other. In our experience, most "radio problems" new pilots face come from skipped binding steps or protocol mismatches. [fpvknowitall]
Step‑by‑step binding process: [fpvknowitall]
1. Confirm the protocol
- ELRS radio must bind to ELRS receiver, Crossfire to Crossfire, etc.
2. Power the receiver correctly
- Via USB (if supported) or flight controller + battery.
3. Put the receiver into bind mode
- Hold the bind button while powering on, or use ELRS auto‑bind.
4. Put the radio into bind mode
- In the model settings, select the correct RF protocol and start Bind.
5. Verify binding
- Solid LED on the receiver and signal/telemetry shown on the radio.
Always remove propellers before testing stick inputs in Betaflight or any configuration software. This simple habit protects your fingers and your motors. [youtube]
Common binding issues and likely causes: [fpvknowitall]
| Symptom | Likely Cause |
|---|---|
| Will not bind at all | Protocol mismatch |
| Binds but no stick response | Wrong channel mapping |
| Random disconnects | Firmware mismatch or antenna issue |
| No LED changes | Receiver not properly powered |
Most modern radios include USB ports that allow them to appear as HID game controllers on your computer for simulators or configuration. Some radios have multiple USB ports — one for charging, another for data/emulator use — so check your manual. [intofpv]
If your radio is not recognized or the sticks do not respond in a simulator: [fpvknowitall]
- Confirm that the USB port supports data, not just charging.
- Check if the operating system has installed a compatible driver.
- In some Windows 10 setups, you may need to adjust or downgrade the driver for joystick compatibility.
Investing a few hours in simulator practice with the same radio you fly in real life massively reduces crashes, protects your brushless motors and frames, and accelerates your progress. [intofpv]
As a motor and power‑system manufacturer, we see an interesting pattern: pilots with good radios and good motors reach stable, confident flying much faster than those who compromise on either side. [mepsking]
A modern FPV setup is an integrated system:
- The radio and protocol determine how precisely you can command the drone. [oscarliang]
- The flight controller and firmware decide how those commands are interpreted. [mepsking]
- The motors, ESCs and props convert those commands into thrust and maneuverability. [mepsking]
When you pair a low‑latency ELRS radio with well‑matched FPV motors and a properly tuned flight controller, the result feels almost "connected to your fingers" — a key requirement for both racing and smooth cinematic shots. [mepsking]
For OEM or industrial clients using our brushless motors in drones, ground vehicles, or robots, we typically recommend choosing a stable, well‑supported radio ecosystem early in the design phase to minimize integration risk later. [mepsking]
If you are planning your next FPV build or upgrading your fleet, choose a modern ELRS radio that matches your flying style, then pair it with reliable motors and power systems designed for FPV performance. Our team at Zhongshan Yuhang Power Technology Co., Ltd. can help you match high‑efficiency brushless motors, ESCs, and power solutions with your chosen radio ecosystem, whether you fly racing drones, cinewhoops, RC cars, or industrial platforms. [mepsking]
You can reach out to us with your frame size, battery voltage, and intended application, and we will recommend a complete power‑system configuration optimized for your control link and use case. [mepsking]
1: I'm a complete beginner. Which radio protocol should I choose in 2026?
For most beginners, ELRS offers the best mix of low latency, strong range, affordable receivers, and active community support, making it the safest "default" choice. [thedroningcompany]
2: How many channels does my FPV radio really need?
You need 4 channels for basic flight plus at least 2–4 extra channels for arming, flight modes, and simple auxiliary functions, so an 8‑channel radio is a sensible minimum. [fpvknowitall]
3: Is a full‑size professional radio worth it if I only fly freestyle?
If you primarily fly freestyle and own just one or two quads, a mid‑range compact ELRS radio is often enough; a full‑size multi‑protocol radio makes more sense once you manage multiple platforms or professional work. [oscarliang]
4: Do I need a special radio for long‑range flights?
For dedicated long‑range flying, protocols like Crossfire or 900 MHz ELRS with appropriate antennas and careful setup provide better penetration and reliability than standard 2.4 GHz alone. [youtube]
5: How does my radio choice affect motor and power‑system performance?
Your radio does not change raw motor power, but it directly affects how smoothly and precisely you can command that power, which influences control feel, safety margins, and how far you can push your drone. [mepsking]
