A Brushless DC (BLDC) motor is an electric motor that runs on direct current but uses electronic commutation instead of mechanical brushes to control the flow of current in the windings. In a typical BLDC design, the rotor carries permanent magnets, while the stator houses fixed copper windings arranged to generate a rotating magnetic field. Electronic control circuitry synchronizes this field with the rotor position, producing continuous torque and smooth rotation.
Compared with traditional brushed motors, BLDC motors offer more consistent performance, reduced mechanical wear, and better suitability for applications that require precise speed and torque control. In fields such as FPV drone propulsion, robotics, and automated machinery, these characteristics have turned BLDC motors into a foundational technology for reliable motion systems.
At a high level, a BLDC motor converts electrical energy into mechanical rotation through the interaction of magnetic fields. The process can be broken down into several stages:
1. Stator excitation
The controller energizes specific stator windings in sequence to create a rotating magnetic field.
2. Rotor alignment
Permanent magnets on the rotor try to align with this rotating field, generating torque and causing the rotor to spin.
3. Rotor position detection
Sensors (such as Hall effect sensors) or sensorless algorithms determine the rotor's position so the controller can time the current pulses correctly.
4. Electronic commutation
Based on the sensed rotor position, the controller switches current between different windings, maintaining continuous rotation and torque.
By shifting commutation from a mechanical assembly to an electronic controller, BLDC motors enable far more flexible control schemes. Engineers can tune acceleration behavior, braking response, and torque curves simply by adjusting controller parameters rather than changing hardware. This is particularly important in FPV drones and mobile robots, where system dynamics are complex and operating conditions change rapidly.

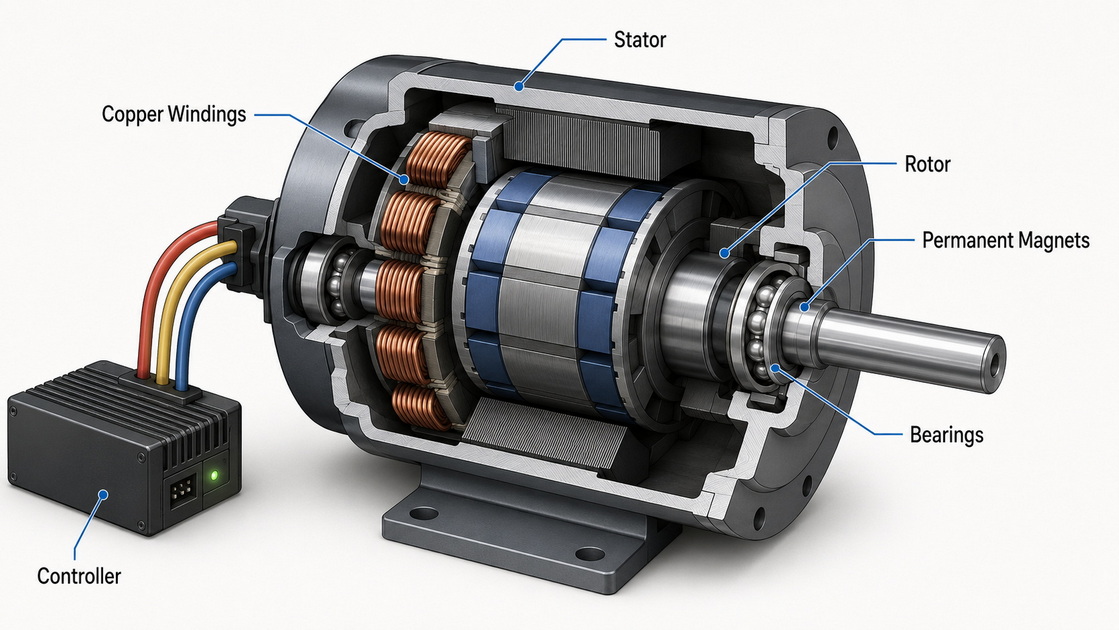

Although specific designs vary, a typical BLDC motor consists of the following elements:
1.Stator
The stationary part containing laminated steel and copper windings. The arrangement of slots, poles, and windings defines torque characteristics and efficiency.
2.Rotor
The rotating part that carries permanent magnets. Magnet material, pole count, and rotor geometry directly influence torque density, inertia, and responsiveness.
3.Bearings and housing
Precision bearings and a robust shell keep mechanical components aligned, minimize vibration, and protect internal parts from contamination.
4.Position sensing
Hall effect sensors or other feedback mechanisms provide rotor position information for accurate electronic commutation. In sensorless designs, the controller infers position from back EMF.
5.Controller or driver
An external or integrated electronic controller manages current, voltage, and timing. In applications such as FPV drones, this is typically an ESC (electronic speed controller) matched to the motor's electrical characteristics.
Thoughtful integration of these elements allows BLDC motors to deliver stable operation with high power‑to‑weight ratios. For manufacturers, careful attention to stator design, magnet selection, and bearing quality directly affects lifetime and performance under continuous load.

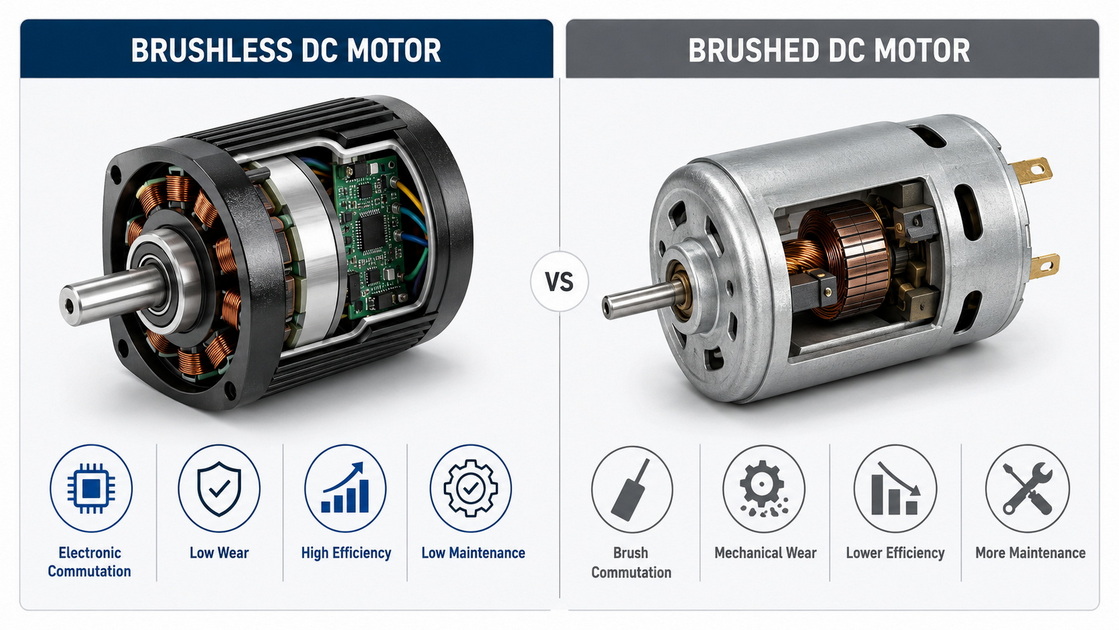

Understanding the differences between BLDC and brushed DC motors helps engineers and buyers choose the right technology for each project. The most important distinction lies in the commutation method.
Brushed DC motors rely on mechanical brushes and a commutator to switch current between rotor windings. During operation, brushes slide against the commutator, causing friction, sparks, and gradual wear. Over time, this leads to performance decline and the need for maintenance or replacement.
In contrast, BLDC motors use electronic circuits to switch current, so there are no brushes and no commutator. This eliminates a major source of mechanical wear and significantly extends the motor's service life. As a result, BLDC motors are suited to continuous‑duty applications, high‑speed operation, and environments where maintenance opportunities are limited.
Mechanical friction and sparking in brushed motors reduce efficiency and generate heat. BLDC motors, with their permanent magnet rotors and electronically controlled stators, typically achieve:
- Higher conversion efficiency from electrical input to mechanical output
- Reduced losses and improved thermal behavior
- More stable performance at high rotational speeds
These advantages are particularly valuable in battery‑powered systems. For FPV drones, robots, and mobile platforms, higher efficiency translates directly into longer operating time and better overall system performance without increasing battery capacity.
Another key difference is control precision. Brushed motors respond fairly well to simple voltage changes, but their behavior becomes less predictable at high speeds and under dynamic load. BLDC motors, by contrast, are designed to work hand in hand with advanced controllers that manage current and timing at millisecond resolutions.
This combination delivers:
- Fine‑grained speed control
- Precise torque management
- Smooth position control for applications such as gimbals and robotic joints
In demanding scenarios such as FPV racing, robotic manipulation, and high‑end stabilization platforms, the ability to shape motor behavior through firmware and control algorithms is a major competitive advantage.
By pairing permanent magnets in the rotor with optimized windings and steel laminations in the stator, BLDC motors achieve impressive torque output for their size and weight. This high torque density allows designers to:
- Build lighter vehicles and devices
- Allocate more weight to payloads or batteries
- Reduce the number of motors required in multi‑axis systems
Higher efficiency also means lower operating temperatures, which further contributes to longer component lifetime and improved reliability.
The absence of brushes dramatically reduces mechanical wear. With proper bearing selection, good cooling, and appropriate electrical loading, BLDC motors can run for thousands of hours with minimal performance degradation. This long service life is vital for:
- Industrial equipment that must operate for extended periods
- Service robots and autonomous vehicles expected to run daily
- FPV drone fleets used in professional and commercial missions
Lower maintenance requirements reduce total ownership costs and make BLDC motors attractive for systems deployed in remote or difficult‑to‑access locations.
Because BLDC motors eliminate brush‑related sparking, they produce less electrical noise and fewer electromagnetic disturbances. At the same time, carefully designed torque curves and control algorithms minimize cogging and vibration. This combination is especially valuable for:
- Camera gimbals and stabilization platforms
- Precision positioning systems in medical or laboratory equipment
- Sensing and measurement devices that require low vibration
Smooth operation improves user experience and allows sensors or imaging equipment to perform at their best.
Robotic joints, collaborative arms, and autonomous guided vehicles rely heavily on BLDC motors for motion. These systems demand:
- Consistent torque over the full operating range
- Precise speed and position control
- Compact, lightweight actuators
High‑performance actuators designed for robots and exoskeletons typically use BLDC motors with integrated drivers, encoders, and optimized torque‑to‑inertia ratios. In industrial automation, frameless torque motors and compact inrunners deliver direct‑drive motion for conveyors, indexing tables, and robot axes.
In FPV drones, BLDC motors have become standard propulsion units. Engineers and pilots select motors based on:
- KV rating and torque characteristics
- Propeller size and pitch
- Battery voltage and current capability
- Flight style (racing, freestyle, long‑range, or cinematic)
Well‑matched BLDC motors provide punchy throttle response, precise control during acrobatic maneuvers, and efficient cruising. Similar considerations apply to RC cars and other remote‑controlled platforms, where motor choice affects acceleration, top speed, and thermal performance.
Gimbal systems for cameras, LiDAR, and other sensors use BLDC motors designed for low cogging and smooth rotation. Here, key requirements include:
- High resolution position control
- Minimal vibration and noise
- Fast response to control inputs
Specialized gimbal motors, often configured as outrunners with high pole counts, provide smooth, stable motion that preserves image quality and data integrity.
Medical robots, rehabilitation exoskeletons, and assistive devices often rely on BLDC motors to deliver safe, repeatable motion. Important factors are:
- Quiet operation
- Gentle, controllable torque profiles
- High reliability and predictable behavior
In these applications, the combination of precise electronic control and low maintenance supports both patient comfort and system uptime.
Beyond industrial and medical sectors, BLDC motors appear in vacuum cleaners, underwater robots, smart fans, and other advanced consumer products. Their efficiency and durability improve user experience and reduce the likelihood of failures under daily use.

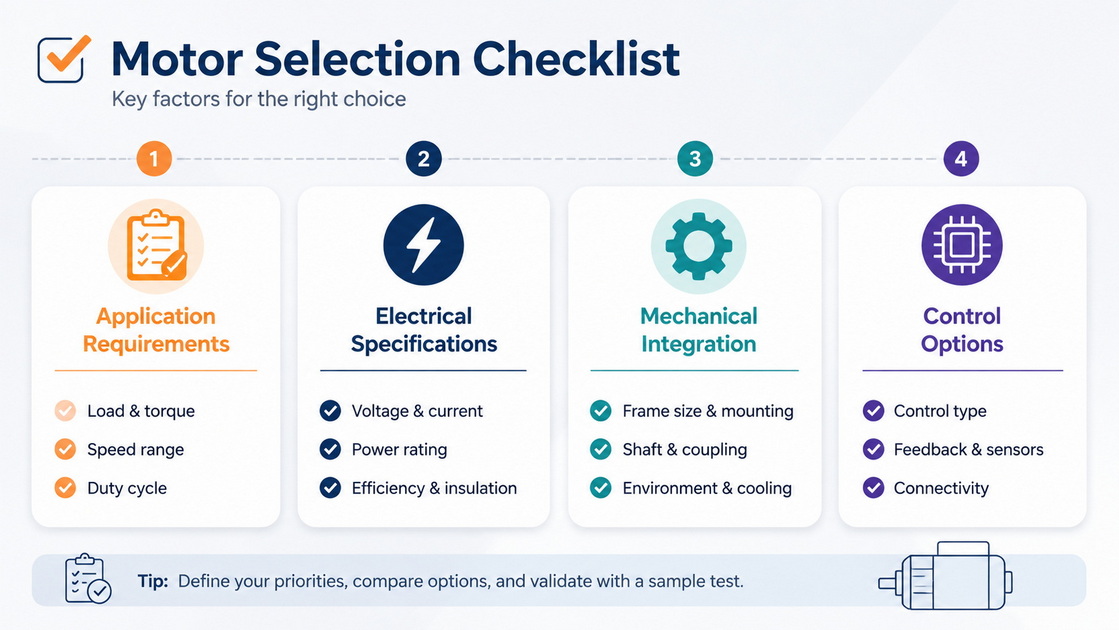

Choosing the right BLDC motor for a specific project requires balancing electrical, mechanical, and control requirements. A structured approach helps decision‑makers quickly narrow options.
Begin by clearly defining:
- Desired speed range and acceleration behavior
- Required continuous and peak torque
- Duty cycle and expected operating hours
- Environmental conditions (temperature, humidity, dust, water exposure)
For FPV drones, this includes flight style, propeller selection, and typical payload weight. For robots, this involves joint torque, cycle time, and positional accuracy.
Next, align motor specifications with the power and control system:
- Voltage range and current limits
- KV rating and back EMF characteristics
- Compatibility with existing controllers and drivers
- Thermal handling under typical loading conditions
Ensuring electrical compatibility prevents issues such as overheating, insufficient torque, or unstable control.
Mechanical factors are often overlooked but are critical for reliable operation:
- Motor dimensions and weight
- Shaft diameter and mounting interface
- Bearing type and load capability
- Cooling pathways and airflow or liquid cooling options
A well‑integrated motor simplifies assembly, reduces vibration, and improves serviceability.
Finally, consider how the motor will be controlled:
- Sensorless vs. sensored designs
- Availability of position feedback (encoders, Hall sensors)
- Support for advanced control modes (field‑oriented control, torque control, position control)
These choices influence system behavior, from a simple speed‑controlled fan to a complex multi‑axis robot with coordinated motion.
Brushless DC motors have moved from niche components to central building blocks in drones, robotics, industrial machinery, and modern consumer devices. Their combination of high efficiency, long service life, precise control, and smooth operation makes them an excellent choice wherever reliable motion is essential.
As applications grow more demanding—with higher payloads, tighter positioning tolerances, and longer operating hours—the importance of well‑designed BLDC motors will only increase. Manufacturers capable of delivering complete power system solutions, including custom motor designs, controllers, and integration support, are well positioned to serve the evolving needs of engineers, integrators, and global buyers in these sectors.
1: What makes BLDC motors suitable for long term use in industrial and robotic systems?
BLDC motors use electronic commutation instead of mechanical brushes, which removes a major wear component and reduces friction. As a result, they generate less heat, require minimal maintenance, and deliver consistent performance over thousands of operating hours, making them ideal for continuous duty industrial machines and robotic joints.
2: Why are BLDC motors the preferred choice for FPV drones and RC vehicles?
FPV drones and RC platforms demand high power‑to‑weight ratios, fast throttle response, and precise control under rapidly changing loads. BLDC motors provide compact, lightweight torque, smooth acceleration, and fine speed control through dedicated controllers, allowing pilots and engineers to tune performance for racing, freestyle, cinematic, or long‑range flight profiles.
3: How do BLDC motors improve the performance of gimbals and camera stabilization systems?
In gimbals, BLDC motors offer low cogging, smooth rotation, and accurate position control, all of which are essential for stable footage and precise sensor alignment. Their reduced vibration and electrical noise help cameras and measurement devices capture clearer images and data, even when the platform is moving or subject to external disturbances.
4: What should engineers consider when selecting a BLDC motor for a new project?
Engineers need to balance application requirements, electrical specifications, mechanical integration, and control features. This includes defining torque and speed needs, checking voltage and current compatibility with existing drivers, ensuring the motor's size and mounting match the design, and choosing appropriate feedback options such as sensors or encoders for the desired control strategy.
5: In what ways do BLDC motors outperform traditional brushed motors in modern applications?
BLDC motors outperform brushed motors by delivering higher efficiency, longer service life, and more precise control. Their electronic commutation reduces mechanical wear and sparking, improves thermal behavior, and supports advanced control algorithms, making them better suited to today's demanding applications in drones, robotics, industrial automation, medical devices, and advanced consumer equipment.
