The fastest way I ever lost money in FPV wasn't crashing a quad—it was killing three LiPo packs in one month by storing them fully charged on a hot shelf. As a pilot and as part of Zhongshan Yuhang Power Technology Co., Ltd., where we design FPV drone motors and brushless power systems for drones, RC vehicles and robots, I've seen the same pattern with customers: great quads, great motors, but poor FPV LiPo battery maintenance. [thedroningcompany]
In this guide, I'll share the LiPo battery care practices we recommend to FPV pilots and OEM clients in 2026—so you can fly harder, safer, and longer without burning through packs or taking unnecessary risks. [thedroneflight]
An FPV drone is only as reliable as the LiPo batteries powering its motors. [mepsking]
Good LiPo maintenance gives you:
- More flight cycles per pack (often 200+ with careful use)
- Consistent performance, especially under high throttle with powerful FPV motors
Poor LiPo care leads to:
- Premature capacity loss and high internal resistance (IR)
- Voltage sag that ruins the flight feel and causes failsafes
- Swollen, dangerous packs that you can't trust near people or property [chinahobbyline]
Before talking about maintenance, let's clarify a few key terms you'll see on every FPV LiPo. [thedroneflight]
- S (Cell count) – 4S, 6S, etc. More "S" = higher voltage.
- mAh (Capacity) – 1300 mAh, 1500 mAh, etc. Higher capacity = longer flights, more weight.
- C‑rating – Indicates theoretical maximum charge/discharge rate. Often optimistic in marketing, but still a useful relative guide.
- Internal Resistance (IR) – How much the battery resists current flow. Lower IR = better performance and less sag.
For FPV drones:
- 4S and 6S packs dominate 5‑inch racing and freestyle
- 3S and 4S are common on cinewhoops and micros
- 6S+ and Li‑ion packs appear in long‑range and endurance builds [chinahobbyline]

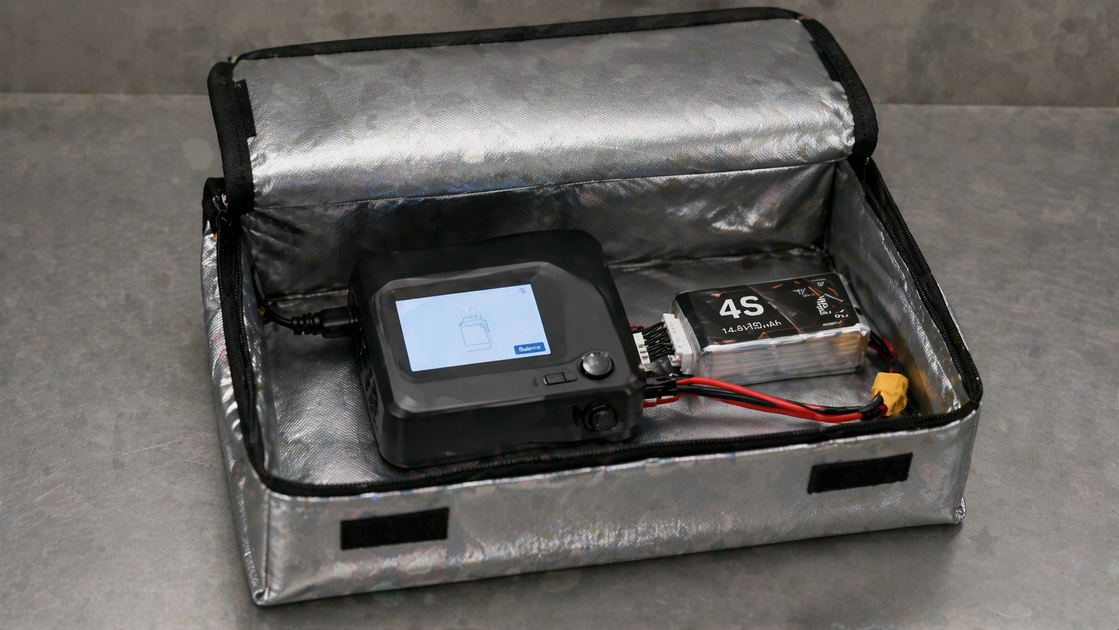

Charging is where most LiPo accidents happen. Proper charging is the foundation of LiPo care. [thedronegirl]
According to leading FPV and drone safety resources: [thedronegirl]
- Never leave LiPos charging unattended
- Never exceed 4.2 V per cell
- Use a quality LiPo balance charger
- Charge at 1C (or lower) unless you clearly understand the risks
- Do not charge hot, damaged or puffy packs
- Charge on a non‑flammable surface and preferably in a LiPo‑safe bag or fireproof container
1. Inspect the battery
- Check for swelling, damage, or leaking
- If you see any, do not charge or fly that pack [thedroneflight]
2. Set cell count and charge current
- Confirm the charger correctly detects S count
- Set current to 1C (e.g., 1.3 A for 1300 mAh)
3. Use balance charge mode
- Ensures each cell reaches the same voltage and increases longevity [chinahobbyline]
4. Monitor the charge
- Stay nearby; never leave the house with LiPos charging
- Stop charging if you hear abnormal noises, smell anything unusual, or see swelling [thedronegirl]
5. Let the pack rest
- After charging or flying, allow 15–20 minutes for packs to cool before the next charge. [thedroningcompany]
Proper voltage management is the single most effective way to extend LiPo life. [vtcbatt]
| Use Case | Recommended Voltage (Per Cell) |
|---|---|
| Fully charged | 4.20 V |
| Ideal storage voltage | 3.75–3.85 V (≈40–60% SoC) |
| Typical landing voltage | 3.6–3.7 V under load |
| Absolute minimum in flight | ≈3.5 V under load (land immediately) |
| Critical damage threshold | <3.3 V (risk of long‑term damage) |
Most FPV pilots land when OSD voltage reaches about 3.6–3.7 V per cell under load, which usually corresponds to 20–30% remaining capacity once the pack rests. [mepsking]
Avoid:
- Letting resting voltage fall below ~3.5 V per cell
- Fully draining a LiPo to 0%—this can permanently damage the pack [thedroningcompany]
LiPos hate being left fully charged or fully empty. [lipobatteries]
Most manufacturers and battery experts recommend storage at around 3.75–3.85 V per cell, roughly 40–60% state of charge. [lipobatteries]
- For FPV, setting packs to 3.8 V per cell is a practical standard.
- Many smart chargers have a "Storage" mode that will automatically charge or discharge packs to this range. [mepsking]

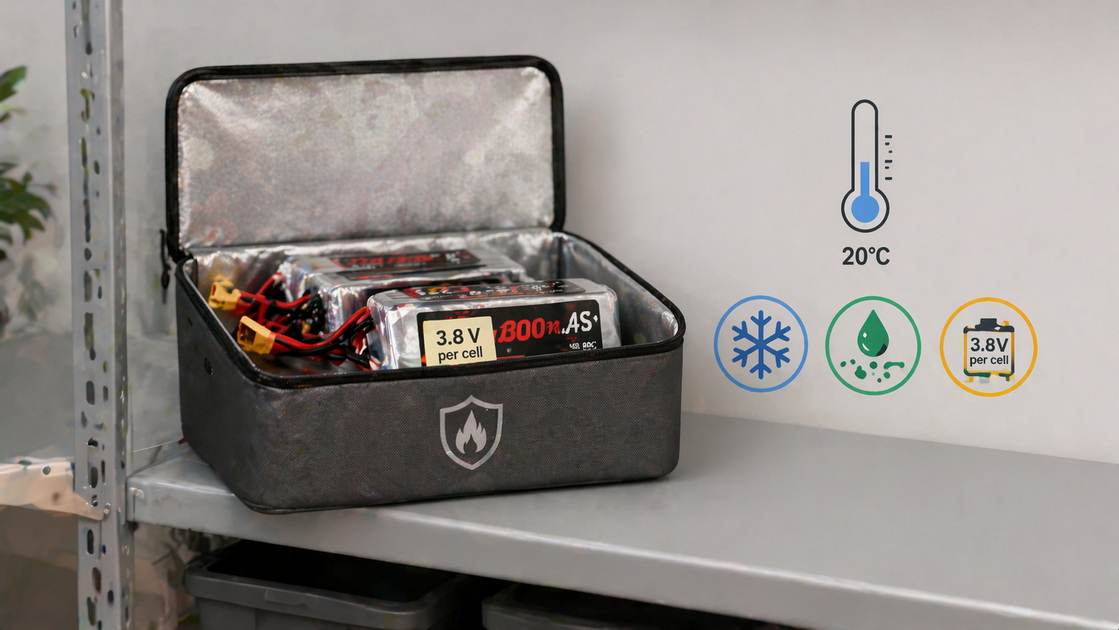

Best practice guidelines suggest: [vtcbatt]
- Store in a cool, dry place around 15–25 °C (59–77 °F)
- Avoid direct sunlight, car trunks, radiators, and other heat sources
- Keep packs in a LiPo‑safe bag or fireproof box, away from flammable materials
For long‑term storage in facilities, standards such as IFC 2024, NFPA 855, and OSHA 29 CFR 1910.1200 specify requirements for Li‑Po inventory, ventilation and spacing. [nps]
- Short‑term (within 24–48 hours):
- It's okay to keep packs near full charge if you know you'll fly soon.
- Long‑term (7+ days):
- Always discharge or charge to storage voltage (~3.8 V per cell).
- Recheck voltage every 1–2 months to ensure no excessive self‑discharge. [lipobatteries]
LiPos are energy‑dense and must be handled with respect. [vtcbatt]
Do:
- Store in fireproof bags or boxes
- Keep away from metal tools, sharp objects, and water
- Separate fully charged packs from damaged or end‑of‑life packs
- Transport in non‑conductive containers, with terminals protected [nps]
Don't:
- Leave packs on dashboards, in hot cars, or in direct sun
- Stack heavy objects on top of LiPos
- Transport swollen or visibly damaged batteries
Facility‑level guidelines emphasize:
- Pressure‑free racking (no compression on packs)
- Adequate ventilation and spacing
- Clear labeling and regular visual inspections [vtcbatt]
You don't need lab equipment to understand if a LiPo is healthy—but a bit of measurement helps. [reddit]

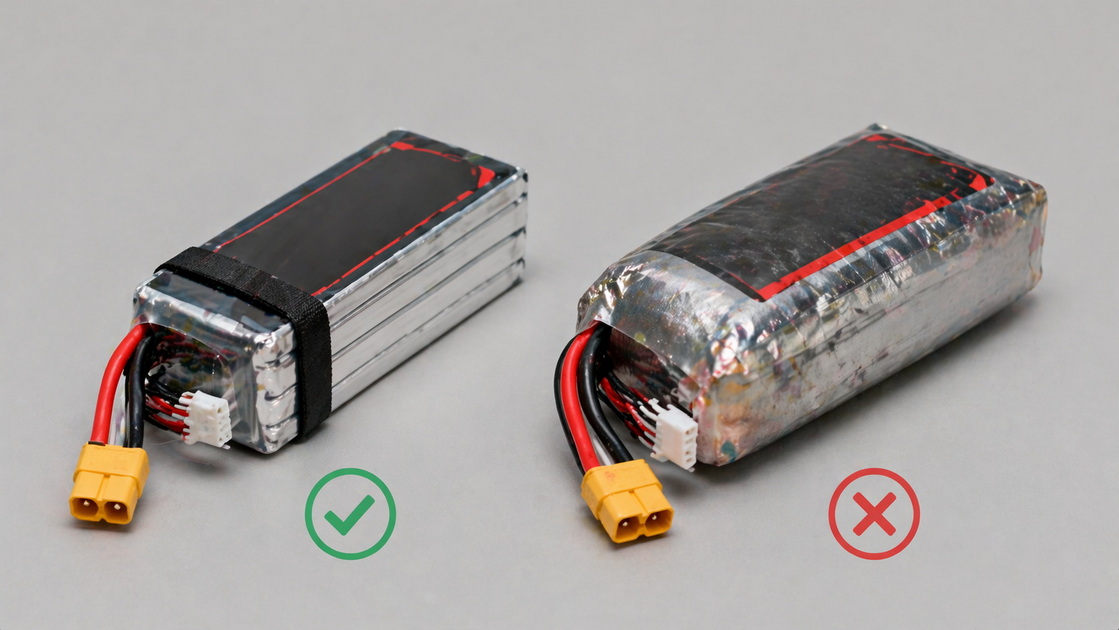

Look for:
- Swelling / puffing of the LiPo pouch
- Cracked or torn shrink wrap
- Damaged wires, connectors, or solder joints
- Any signs of leaks, discoloration, or unusual smell
If you see these symptoms, retire the pack from flight use. [thedroneflight]
Use a multimeter or LiPo checker to:
- Confirm each cell is close to the others (no large imbalance)
- Avoid packs that self‑discharge rapidly or sit at very low voltages [chinahobbyline]
Many modern LiPo chargers show IR per cell. [reddit]
- Rising IR over time is normal as a pack ages
- A sudden spike in one cell's IR indicates that cell is failing
- Packs with significantly higher IR will show more sag and heat under load
Regular IR checks help you decide when to relegate a pack to lower‑demand use or retire it fully. [reddit]
Parallel charging is popular in FPV because it saves time—but it must be done correctly. [reddit]
Safe parallel charging rules:
- Only charge packs of the same cell count (e.g., all 4S)
- Voltage difference between packs should be tiny (within ~0.1 V per cell) before connecting
- Match packs of similar capacity and age when possible
- Use a quality parallel board with fuses or protection
- Still charge at a combined 1C rate (e.g., five 1300 mAh packs in parallel → 6.5 A at 4S) [thedroneflight]
Never:
- Mix different S counts on the same parallel board
- Parallel charge damaged or swollen packs
- Leave parallel charging unattended
When packs become swollen, heavily imbalanced or show very high IR, it's time to retire them from flight. [mepsking]
1. Discharge the battery
- Use a discharger, resistive load or charger discharge mode to bring the pack close to 0% safely, or to a low, non‑usable voltage.
- Some pilots submerge discharged packs in salt water for additional neutralization, but industrial guidelines more often favor controlled discharge and recycling. [vtcbatt]
2. Insulate the connectors
- Tape or cap the XT60/XT30 connectors to prevent short circuits.
3. Use proper recycling channels
- Take retired packs to battery recycling centers or hazardous waste facilities.
- Many electronics stores and recycling programs accept Li‑ion/LiPo batteries. [nps]
Never throw LiPos into regular trash—this is both unsafe and often non‑compliant with local regulations. [nps]
Based on current best practices: [lipobatteries]
| Do | Don’t |
|---|---|
| Store at 3.8 V per cell when not flying | Don’t store fully charged or fully drained for long periods |
| Keep packs in a cool, dry, fireproof container | Don’t store near heaters, windows, or hot cars |
| Use a quality balance charger at 1C | Don’t exceed 4.2 V per cell or charge at very high C rates |
| Let LiPos cool before charging again | Don’t charge batteries that are still hot or puffy |
| Land around 3.6–3.7 V per cell under load | Don’t fly until the quad falls out of the sky |
| Inspect packs for swelling, damage, and IR changes | Don’t continue using visibly damaged LiPos |
| Use parallel charging boards with matching packs | Don’t parallel charge different S counts or damaged packs |
| Recycle LiPos through proper channels | Don’t throw LiPos into household trash |
From our power‑system engineering work, we've seen that good LiPo maintenance directly reduces motor and ESC failures. [chinahobbyline]
- Maintaining healthy packs reduces voltage sag, so ESCs avoid repeated brownouts.
- Proper voltage and current management reduce excessive heat in motors, protecting magnets and bearings.
- Balanced, consistent packs make tuning more predictable, especially for high‑KV FPV motors and aggressive props. [mepsking]
In short: healthy LiPos mean healthier motors, ESCs, and flight controllers.
Your FPV drone's performance and safety depend on three pillars: motors, ESCs, and LiPo batteries. A powerful FPV motor is only as good as the battery feeding it and the care you take between flights.
As Zhongshan Yuhang Power Technology Co., Ltd., we design and manufacture:
- FPV drone motors for freestyle, racing, cinewhoop and long‑range
- Brushless power systems for RC cars, high‑thrust fans, gimbals, service robots and underwater robots
- OEM/ODM power solutions matched to your voltage, current and runtime requirements [mepsking]
If you're planning a new FPV or robotics platform and need help matching motors, ESCs and LiPo batteries for both performance and safety, our engineering team can support you from concept to mass production.
1. What voltage should I land my FPV drone at?
Most FPV pilots land when voltage drops to around 3.6–3.7 V per cell under load, which usually rests around 3.7–3.8 V after landing, avoiding deep discharge. [mepsking]
2. How should I store FPV LiPo batteries between flying sessions?
Store LiPos at 3.75–3.85 V per cell in a cool, dry, fireproof container, ideally between 15–25 °C, away from sunlight and heat sources. [lipobatteries]
3. Is it safe to leave LiPo batteries charging overnight?
No. Experts consistently warn never to leave LiPos charging unattended, especially overnight. Always supervise charging and use a LiPo‑safe bag or fireproof surface. [thedronegirl]
4. How can I make my FPV LiPo batteries last longer?
Avoid full discharges, store at storage voltage, charge at 1C or lower, keep packs cool, and balance charge regularly. With good care, many packs can last 200+ cycles. [thedroningcompany]
5. What should I do with swollen or damaged LiPo batteries?
Immediately stop flying or charging them, discharge safely, insulate the connectors, and dispose of them through an appropriate battery recycling or hazardous waste facility. [nps]
