From Factory to Flight Field: The Complete Manufacturing Process of an FPV Drone Motor

From Factory to Flight Field: The Complete Manufacturing Process of an FPV Drone Motor

          In the eyes of FPV drone pilots, the motor is the "heart" of the entire aircraft. Push the throttle to the max, and the motor instantly bursts into thousands of revolutions per minute, carrying the frame through wind resistance and performing various extreme maneuvers. Many pilots use motors every day, yet few understand the complete birth process from scratch. A high-performance FPV drone motor is not a simple assembly of parts, but a precise project involving materials, craftsmanship, and quality control. Today, we will fully disassemble the entire manufacturing process of an FPV drone motor, from the factory workshop to the racing field.

I. Core Material Selection: The Foundation of Performance

          FPV drone motors have extremely high requirements for power density, heat resistance, and response speed, and material selection directly determines the final performance. Before production, the factory conducts strict screening of key materials:

- Stator cores are made of high-grade silicon steel sheets to reduce iron loss and improve efficiency;

- Rotors use high-remanence neodymium-iron-boron strong magnets to ensure explosive power and high-speed stability;

- Enameled wires are special wires with higher temperature resistance to cope with long-term aggressive flying;

- Hardware such as bearings, shafts, and screws are all treated for rust and wear resistance.

          Only when the materials meet the standards can they enter the next automated production process.

II. Stator Winding: The Core Process of Motor Power

          The stator is the "source of power" of the motor, and the winding process directly affects internal resistance, efficiency, and heat generation. Modern factories mostly use fully automatic winding machines:

- Precisely control the number of turns and tension to ensure consistent parameters for each motor;

- The windings are neat and tight, reducing internal resistance and space waste;

- Automatically complete wire end arrangement and insulation treatment to avoid short-circuit risks.

Manual winding is difficult to ensure consistency, while high-end FPV drone motors basically achieve fully automated winding, ensuring no obvious differences in power output among products of the same batch.

III. Magnet Assembly and Rotor Dynamic Balancing

          The rotor is responsible for rotating and outputting power, and its balance is directly related to vibration, noise, and flight quality.

- Magnets are precisely pressed into the rotor using special tooling to ensure uniform magnetic fields;

- After assembly, the rotor must undergo dynamic balance testing and correction;

- Rotors with excessive unbalance will be directly rejected to avoid the risk of wobble and propeller ejection after installation.

For racing-grade motors, dynamic balance is even a key indicator, directly affecting high-speed flight stability.

IV. Precision Machining and Assembly of Components

          Structural parts such as motor casings, end caps, nuts, and gaskets are all precision-machined by CNC to ensure minimal tolerances. The assembly process is also standardized:

- Bearing press-fitting uses a press to avoid damage from knocking;

- Precise positioning for the combination of stator and casing;

- Unified screw torque to prevent over-tightening or loosening;

- Wire welding uses a constant-temperature soldering station to ensure full and reliable solder joints.

Each step has process specifications to eliminate hidden dangers caused by random manual assembly.

V. Insulation, Potting and Heat Resistance Treatment

          FPV drone motors operate at high loads for a long time, and the temperature rises extremely fast, so insulation and heat dissipation protection are essential.

- The coils are subjected to insulation dipping or epoxy potting;

- Improve high temperature resistance, vibration resistance, and oil pollution resistance;

- Reduce the problem of loose coils caused by vibration during flight.

Motors treated with potting have significantly improved service life and stability, making them more suitable for high-intensity freestyle and racing.

VI. Full-Parameter Detection and Quality Control Testing

          Before leaving the factory, each motor undergoes strict testing:

- Internal resistance testing to screen out unqualified coils;

- No-load operation testing to check for abnormal noise and jamming;

- Current, speed, and efficiency curve detection;

- Thrust and temperature rise testing to simulate real flight conditions;

- Re-inspection of appearance, screws, and wire integrity.

Any unqualified item cannot enter the qualified product warehouse.

VII. Packaging, Warehousing and Shipping to Global Flight Fields

          After passing all tests, the motors enter the packaging process:

- Protection with anti-static bags;

- Equipped with instruction manuals, spare screws, and nuts;

- Warehoused in full boxes and shipped to distributors, pilots, and teams.

From the automated production line to rigorous quality inspection, then through logistics, they finally reach the flight field.

VIII. Install on the Frame and Rush to Every Passionate Flight

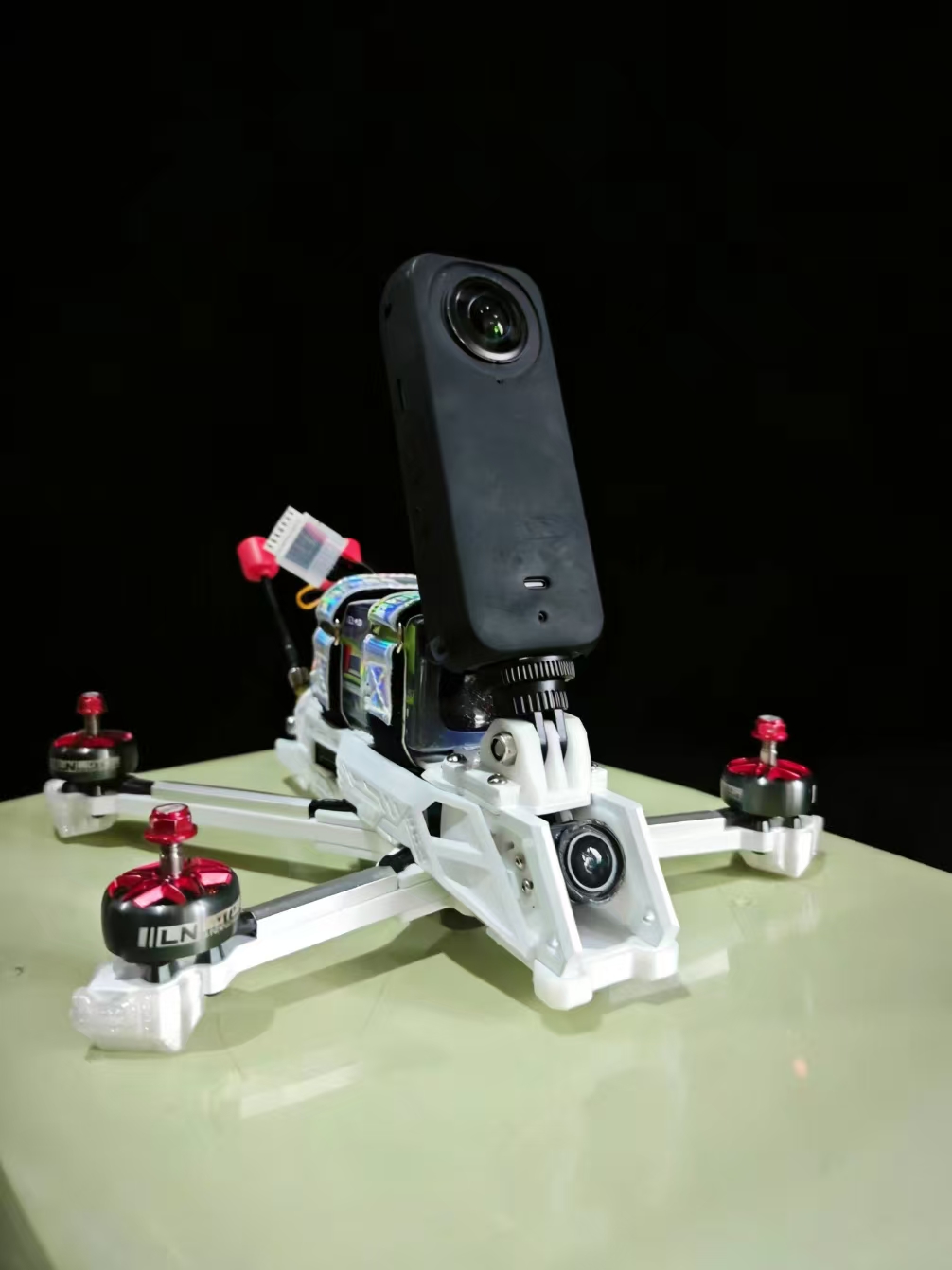

          When the pilot installs the motor on the frame, calibrates the ESC, debugs the direction, and matches the propeller, the mission of a motor truly begins. It has to withstand repeated crashes, high-speed rotation, and drastic temperature differences, sprinting on the track, shuttling through flowers, and flying freely in the blue sky.

          A seemingly small FPV drone motor is backed by dozens of processes, strict standards, and industrial precision. From the factory to the flight field, it is not only a physical distance but also a perfect connection from precision manufacturing to extreme sports.
