If you ask experienced FPV pilots which quad size taught them the most about building and tuning, almost all of them will mention the 5‑inch FPV racing drone. As a manufacturer of FPV drone motors and brushless power systems, I see 5‑inch builds on our test benches every week—from budget beginner quads to elite race rigs tuned to the edge of physics. [fpvknowitall]
In this guide, I'll walk you through how to build a 5‑inch FPV racing drone step by step, but from a slightly different angle: the perspective of an engineer who designs the motors that keep your quad in the air. We'll cover parts selection, assembly, setup, and tuning, and I'll highlight where motor choice and power system design make the biggest difference.
Among FPV pilots, 5‑inch is still the "standard" racing and freestyle size in 2025–2026. A well‑built 5‑inch racing drone offers: [grepow]
- High speed – 80–100 mph (130–160 km/h) potential on the right setup. [grepow]
- Excellent agility – ideal for tight race tracks and aggressive proximity flying. [fpvknowitall]
- Strong parts ecosystem – frames, motors, props, electronics, and 3D printed accessories are widely available and well tested. [instructables]
From a motor manufacturer's viewpoint, 5‑inch is also the "sweet spot" because:
- The power‑to‑weight ratio is fantastic with modern 2207/2208‑class motors. [mepsking]
- There is enough headroom to test different KV options (4S vs 6S) and see real differences in performance. [mepsking]
- It gives new builders a solid foundation before moving into more specialized platforms like long‑range or cine‑lifters. [frameworkfilms]

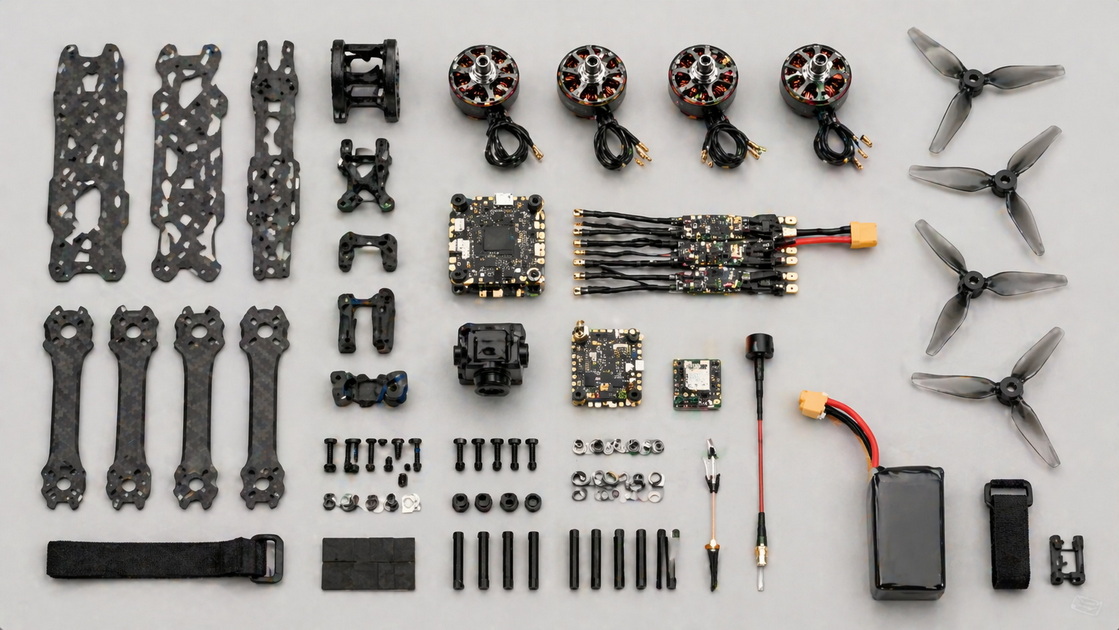

Before you build, you need a coherent parts list. Most 5‑inch FPV racing drones share the same core components. [mepsking]
- 5‑inch FPV frame (usually 210–225 mm wheelbase)
- 4 FPV brushless motors (typically 2205–2207, 2300–2700 KV for 4S; 1600–1950 KV for 6S) [oscarliang]
- 4‑in‑1 ESC (35–55 A rated, with sufficient burst current) [frameworkfilms]
- Flight controller (FC) (F4 or F7; Betaflight and ELRS‑ready in 2026 is standard) [mepsking]
- FPV camera (analog or HD; racing pilots often prefer low‑latency cameras) [fpvknowitall]
- Video transmitter (VTX) (analog 25–800 mW or digital HD system) [youtube]
- Radio receiver (usually ExpressLRS or other modern low‑latency protocol) [youtube]
- 5‑inch propellers (tri‑blade race props are still the norm) [mepsking]
- LiPo battery (4S 1300–1500 mAh or 6S 1000–1300 mAh for racing) [grepow]
- Miscellaneous: XT60 pigtail, capacitor, antenna, buzzer, 3D printed mounts, battery straps, screws. [mepsking]
Based on current industry best practices and motor selection guides: [oscarliang]
| Frame Size | Prop Size | Motor Size | KV Range (Racing Focus) |
|---|---|---|---|
| 210–225mm | 5 inch | 2205–2207/2208 | 2300KV–2700KV on 4S (mepsking) |
| 210–225mm | 5 inch | 2207–2306 | 1800KV–2100KV on 6S (mepsking) |
- As a motor manufacturer, we see 4S + 2300–2700 KV remain popular for pure racing, while 6S + ~1900 KV is favored by pilots seeking smoother power delivery and better efficiency. [youtube]
Building an FPV racing drone is as much about good tools and workflow as it is about choosing the right components. [youtube]
- Quality hex driver set (1.5 / 2.0 / 2.5 mm) [youtube]
- Soldering iron with fine tip and temperature control [youtube]
- Lead‑free solder with flux or rosin core solder [youtube]
- Side cutters and wire strippers
- Tweezers and helping hands or PCB holder [youtube]
- Multimeter for continuity checks and basic voltage checks [youtube]
- Work in a well‑ventilated area and use eye protection.
- Always check continuity before plugging in a LiPo for the first time. [youtube]
- Use a smoke stopper on first power‑up to prevent major damage from shorts. [youtube]
Most 5‑inch frames use a bottom plate, arms, standoffs, and top plate. [instructables]
1. Lay out the carbon parts on a flat surface. [instructables]
2. Assemble the base plate and arms with M3 screws and lock nuts. [mepsking]
3. Check that the frame sits perfectly flat on the table; uneven frames cause vibrations and tuning issues. [mepsking]
4. Apply a drop of thread locker (Loctite) to critical screws to resist vibration and crashes. [instructables]
- From an engineering standpoint, a stiff, square frame gives your motors and PID controller the best possible foundation to work from.
Now mount your four brushless FPV motors to the frame arms.
1. Use the correct screw length so you do not touch the stator windings. [oscarliang]
2. Tighten screws evenly; avoid overtightening to prevent stripping carbon or deforming the base. [mepsking]
3. Route motor wires toward the center where the 4‑in‑1 ESC will sit.
From a motor manufacturer's perspective, this step is crucial:
- A twisted, clean wiring path reduces electrical noise and improves reliability.
- Proper strain relief avoids wire fatigue where the motor leads enter the stator housing.

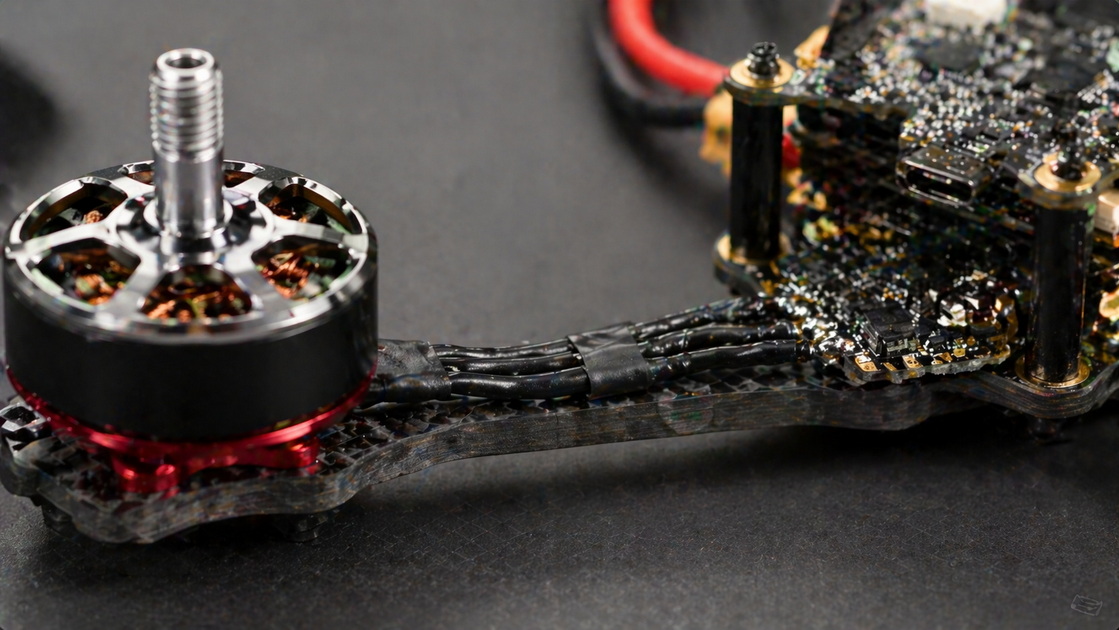

The ESC and FC stack is the electronic heart of your racing drone. [instructables]
1. Install soft mounting gummies on the frame's stack mounting holes. [youtube]
2. Mount the 4‑in‑1 ESC first, ensuring capacitor and XT60 pigtail can be placed without strain. [instructables]
3. Solder motor wires to the ESC pads—keep lengths consistent and joints shiny and solid. [youtube]
4. Stack the flight controller (FC) on top, ensuring clearance from the ESC and frame. [youtube]
Many modern stacks come with plug‑and‑play harnesses between ESC and FC, making this step more straightforward. [fpvknowitall]
Before you connect anything to the FC's sensitive logic circuits:
1. Solder the XT60 power leads and capacitor to the ESC power pads. [mepsking]
2. Double‑check polarity and solder quality.
3. Use a multimeter to confirm no short between + and – pads. [youtube]
4. Perform a smoke‑stopper test with a LiPo to ensure the stack powers on without drawing excessive current. [youtube]
This step is where good motor and ESC design pays off: quality MOSFETs, proper PCB layout, and correct current ratings dramatically reduce early failures. [mepsking]
The FPV system gives you the racer's view. [mepsking]
- Mount your FPV camera firmly in the front TPU or carbon camera plates. [mepsking]
- Connect video, 5 V, and ground to the correct FC pads (CAM/VTX) as per the wiring diagram. [fpvknowitall]
- Mount the VTX where it gets some airflow and is not too close to the receiver to avoid interference. [youtube]
- Install and secure your FPV antenna; use TPU mounts or zip ties to keep it clear of props during crashes. [fpvknowitall]
For racing, most pilots start with 30–45° camera tilt; beginners may prefer 25–30° before progressing to more aggressive angles. [mepsking]
Modern racing builds often use ExpressLRS or similar low‑latency protocols. [fpvknowitall]
1. Mount the receiver away from the VTX to reduce RF noise. [fpvknowitall]
2. Connect 5 V, GND, and UART pads according to your FC pinout. [fpvknowitall]
3. Update firmware and bind the receiver to your radio. [fpvknowitall]
4. In your FC configurator (e.g., Betaflight), verify that stick movements respond correctly in the Receiver tab. [youtube]

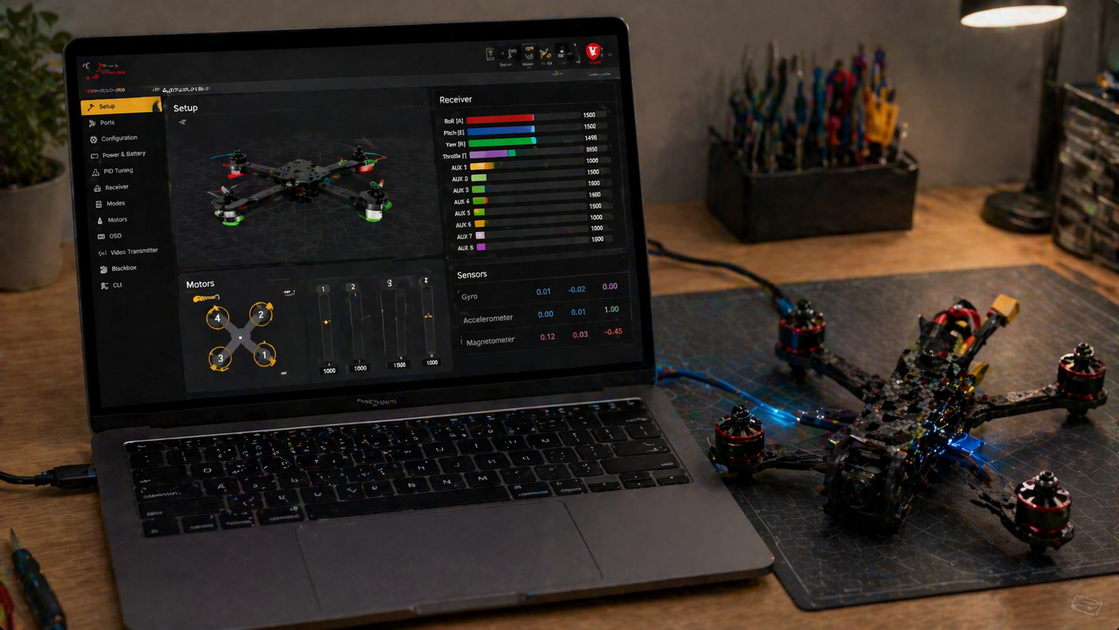

Tools like Betaflight still dominate FPV racing in 2026. [oscarliang]
- Flash the recommended firmware version for your FC. [mepsking]
- Configure ports (UARTs for receiver and VTX), mixer, and receiver protocol. [youtube]
- Calibrate accelerometer if needed; set up flight modes (ARM, angle, acro, beeper, turtle mode). [youtube]
- Check motor directions in the Motors tab and reverse as required via BLHeli or your ESC configurator. [oscarliang]
- Many pilots also apply motor output limiting or throttle caps to balance speed and efficiency on 5‑inch racing builds. [youtube]
Before your maiden flight:
1. Confirm all screws are tightened and no wires contact props. [youtube]
2. Install two battery straps and a battery pad on the top or bottom plate. [frameworkfilms]
3. Attach 5‑inch props in the correct orientation (check your configuration: "props in" vs "props out"). [youtube]
4. Perform a final failsafe and arming test without props, then outdoors with props installed. [youtube]
As a brushless motor manufacturer, this is where we can offer the most targeted guidance.
According to up‑to‑date motor selection guides: [mepsking]
- 4S + 2300–2700 KV is the classic 5‑inch racing setup, providing explosive throttle response and high top speed. [mepsking]
- 6S + 1600–1950 KV trades a bit of raw punch for cooler motors and improved efficiency, especially when throttled sensibly. [youtube]
For pure racing, pilots still tend to prioritize high KV motors (e.g., 2207 2450–2750 KV on 4S) for aggressive acceleration and tight gate transitions. [mepsking]
For freestyle / racing hybrid builds, slightly lower KV can offer smoother control and better battery life. [oscarliang]
Motor choice is always tied to:
- All‑up weight (AUW) of the quad. [mepsking]
- Prop size and pitch – aggressive props require more torque and current. [oscarliang]
- A well‑matched motor‑prop‑battery combination can significantly improve throttle feel, efficiency, and thermal performance, while a mismatch can cause overheated motors and saggy batteries. [oscarliang]
Modern flight controllers ship with very good default tunes, but you should still: [oscarliang]
- Verify PID profiles and filters recommended for your frame and prop size. [oscarliang]
- Test hover and line‑of‑sight flights before going full FPV. [mepsking]
- Listen and watch for oscillations or hot motors; if necessary, reduce P/D or adjust filters. [oscarliang]
FPV racing drones take a lot of abuse. To keep performance consistent:
- Inspect motor bearings for roughness or grinding after crashes. [oscarliang]
- Check arm alignment and frame integrity—bent arms impact handling and tuning. [instructables]
- Regularly re‑tighten motor and frame screws; carbon compresses slightly after crashes. [mepsking]
- Replace damaged props promptly; a single chipped prop can introduce significant vibration. [fpvknowitall]
To make your Shopify or brand blog more engaging and scannable:
- At the start of the article: a hero image of a completed 5‑inch FPV racing drone.
- Near "Core Parts List": a simple diagram labeling each component (frame, motors, FC, ESC, camera, VTX, receiver).
- In "Step‑By‑Step Build":
- Frame assembly photo under Step 1.
- Motor and ESC wiring close‑up under Step 2/3.
- Betaflight or firmware configuration screenshot in Step 7.
- In "Expert Insights – Choosing The Right FPV Racing Motor": a branded motor close‑up or comparison of different KV variants.
Embedding a short build or maiden flight video near the end of the step‑by‑step section also increases time on page and helps users visualize the final goal. [youtube]
A well‑built 5‑inch FPV racing drone is the perfect platform to learn, improve, and compete—but your experience will be defined by the quality of your power system.
If you're planning a new 5‑inch build and want:
- Consistent race‑grade power across multiple batteries,
- Motors that are optimized for your AUW, prop choice, and voltage,
- And the option to scale into custom OEM / ODM solutions for larger batches or special applications,
then it's time to work directly with a motor manufacturer. Share your frame, target AUW, battery type, and flying style, and our engineering team can recommend or customize a brushless FPV motor setup tailored to your track, league, or product roadmap.
Build smarter, not just faster—start your next 5‑inch FPV racing project with a power system designed from the motor up.
1. How fast can a 5‑inch FPV racing drone fly?
A well‑tuned 5‑inch FPV racing drone can typically reach 80–100 mph (130–160 km/h), depending on motor KV, prop choice, and battery configuration. [grepow]
2. What is the best motor KV for a 5‑inch racing build?
For classic 4S racing quads, 2300–2700 KV is common, while 6S racing builds usually run around 1800–2100 KV for a balance of speed and efficiency. [mepsking]
3. Should I start with analog or digital FPV for my first 5‑inch build?
Analog remains cheaper and widely available, while modern digital systems offer clearer image quality at a higher cost and sometimes higher weight. Both are used successfully in 5‑inch racing builds. [youtube]
4. How heavy should a 5‑inch FPV racing drone be?
Many competitive 5‑inch racing drones aim for a dry weight in the ~300–400 g range, with AUW around 500–700 g depending on battery and components. [grepow]
5. Is a 5‑inch racing drone suitable for carrying cameras like GoPro?
A pure 5‑inch racing build is optimized for speed and agility rather than payload; while it can carry an action camera, most pilots use dedicated cinema or freestyle builds for stable HD recording. [frameworkfilms]
