If you fly FPV long enough, you will eventually land in wet grass, snow, fog or straight into a puddle—usually with your favorite quad. As a pilot and a brushless motor manufacturer working with FPV brands, I have seen both sides of this story: drones that keep flying after dozens of wet sessions, and drones that die after one unlucky crash because their electronics were unprotected. [oscarliang]
In this guide, I will walk you through how to waterproof FPV drone electronics using conformal coating, what to protect, what to avoid, and how to recover a quad after a water crash, based on field experience and best practices widely used in the FPV community. We will also clarify a frequent misconception: your FPV motors do not need conformal coating—and why a well‑designed motor can already survive water exposure. [reddit]
FPV quads operate very close to the ground, in unpredictable weather, and often over water or wet vegetation. Even if you never plan to "surf" rivers or fly in heavy rain, you are constantly exposing your flight controller, ESC and VTX to: [mepsking]
- Wet grass on takeoff or landing
- Humidity and condensation
- Mist, fog, snow and light rain
Moisture does two main things to your electronics:
- It bridges exposed solder joints and pins, creating short circuits. [oscarliang]
- It accelerates corrosion, especially in salty or dirty environments, leading to intermittent failures over time. [thecavepearlproject]
Conformal coating does not make your quad a submarine, but it dramatically improves water resistance and long‑term reliability, especially if you fly in humid climates or like low‑level freestyle near rivers and lakes. [mepsking]
Conformal coating is a thin protective film applied over PCBs that "conforms" to the shape of components and solder joints. Once cured, it creates an insulating barrier that: [oscarliang]
- Prevents water and contaminants from shorting adjacent pads
- Reduces corrosion caused by moisture and residues
- Provides some protection against dust and fine debris
For FPV drones, two coating families dominate. [mepsking]
Acrylic conformal coating
- Pros: Very easy to remove; a soldering iron can burn through it quickly. [oscarliang]
- Cons: Lower heat resistance and durability; some high‑power components (e.g. VTX, ESC MOSFETs) can soften or damage acrylic over time. [mepsking]
- Best for: Temporary protection, light use cases, testing or indoor quads. [mepsking]
Silicone conformal coating
- Pros: Handles higher temperatures, stays flexible, and offers long‑term protection against moisture and corrosion. [oscarliang]
- Cons: Harder to remove, so repairs require more effort and proper cleaning. [oscarliang]
- Best for: Freestyle, long‑range, cinematic and outdoor FPV where weather and terrain are unpredictable. [mepsking]
In practice, silicone coatings with a UV tracer have become the de‑facto standard in the FPV community: you can inspect coverage with a UV flashlight and spot missed areas instantly. [oscarliang]

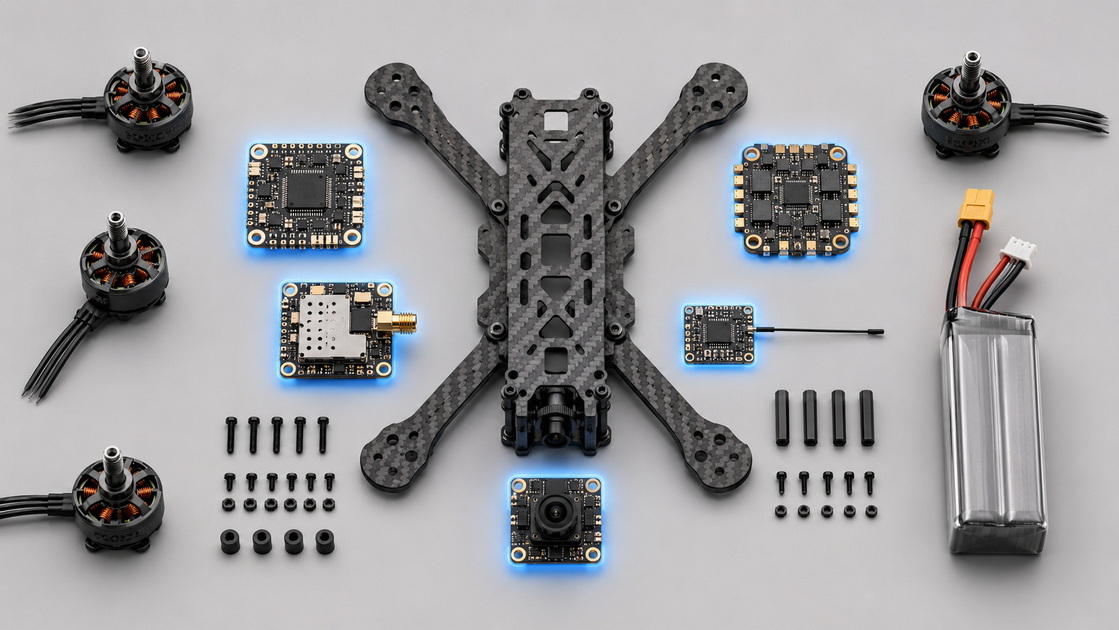

One of the most common mistakes I see in user builds is coating everything indiscriminately. Effective waterproofing is selective. [mepsking]
- Flight controller (FC) – especially exposed microcontroller pins, IMU area (except barometer), and solder pads. [oscarliang]
- 4‑in‑1 ESC or separate ESC boards – MOSFET area, logic side, and all solder joints for battery and motor wires. [mepsking]
- VTX (video transmitter) – PCB area previously hidden under heat shrink; avoid buttons and RF connectors. [oscarliang]
- Receiver (RX) – PCB and exposed solder joints, avoiding the bind button and antenna connectors. [mepsking]
- FPV camera board – internal PCB once the shell is opened, but never the image sensor or lens. [mepsking]
- Barometer on your FC – sealing it breaks altitude and air‑pressure readings. [oscarliang]
- USB port, SD slot, boot buttons and bind buttons – coating can block mechanical function and electrical contacts. [oscarliang]
- Antennas and RF connectors – coating can detune antennas and degrade signal quality. [oscarliang]
- High‑power chips that rely on direct airflow – thick coating can trap heat and cause failures. [sealingdevices]
Properly designed brushless FPV motors are usually safe to run wet: the copper wire already uses enamel insulation, and the stator and bell have no exposed logic components. Community testing—from submerged rescue boats to float‑plane recovery rigs—confirms that motors can operate underwater as long as bearings are good and you dry them afterward. [reddit]
Coating motors can:
- Trap dirt and sand
- Interfere with rotor–stator gap
- Make bearing lubrication and maintenance harder
For this reason, most experienced pilots and technicians do not coat FPV motors, focusing instead on robust mechanical design, bearing quality and post‑flight drying. As a motor manufacturer, we design FPV motors and underwater thrusters with these conditions in mind, so that the rotor, stator and enamelled windings can tolerate occasional water exposure when used correctly. [grepow]
Below is a streamlined, field‑tested workflow adapted from widely respected community tutorials and our own engineering practice. [mepsking]
You will need: [mepsking]
- Silicone conformal coating suitable for PCBs (preferably with UV indicator)
- UV flashlight for coverage inspection
- Isopropyl alcohol and paper towels / cotton swabs for cleaning and corrections
- Masking tape or liquid mask to protect sensitive areas
- Small brush (often built‑in to the bottle cap)
- Well‑ventilated workspace, nitrile gloves and safety glasses
It is far easier to repair and adjust a quad before you coat it. [oscarliang]
1. Assemble your FPV drone completely.
2. Perform a test flight to confirm that FC, ESC, VTX, camera, RX and OSD all work.
3. Remove heat‑shrink and tape from PCBs so you have direct access. [mepsking]
4. Clean boards with isopropyl alcohol and a soft brush to remove dirt and flux. [oscarliang]
If you later re‑solder anything, remember to reapply coating on the touched area. [mepsking]
Use masking tape or small pieces of putty to protect: [oscarliang]
- FC: boot button, barometer, USB port, SD slot
- VTX: channel button and RF connector
- RX: bind button and antenna connectors
- FPV camera: lens and image sensor
Take your time here; good masking is the difference between a reliable quad and a dead FC.

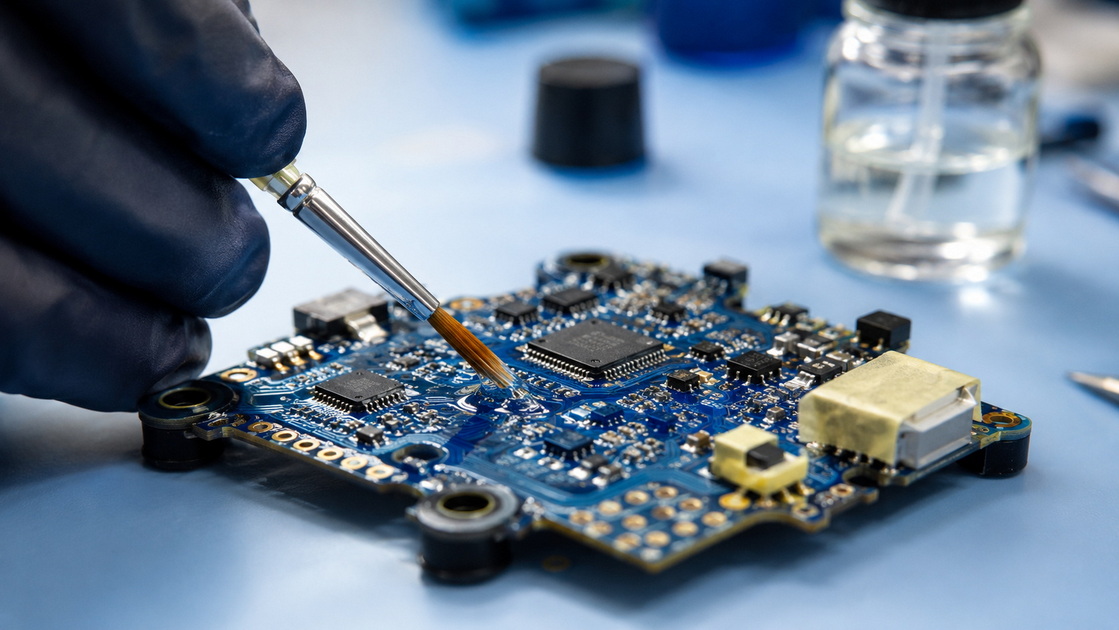

Treat conformal coating like nail polish: thin, even layers only. [mepsking]
- Focus on exposed metal: microchip pins, solder joints, pads and tight component gaps.
- Avoid blobs; move the brush to spread excess coating along traces.
- Do not flood connectors or mechanical switches—these rely on clean contact surfaces. [oscarliang]
Coat components in this order for efficiency: [mepsking]
1. FPV camera PCB (with sensor carefully avoided)
2. ESC board
3. Flight controller
4. VTX
5. Receiver

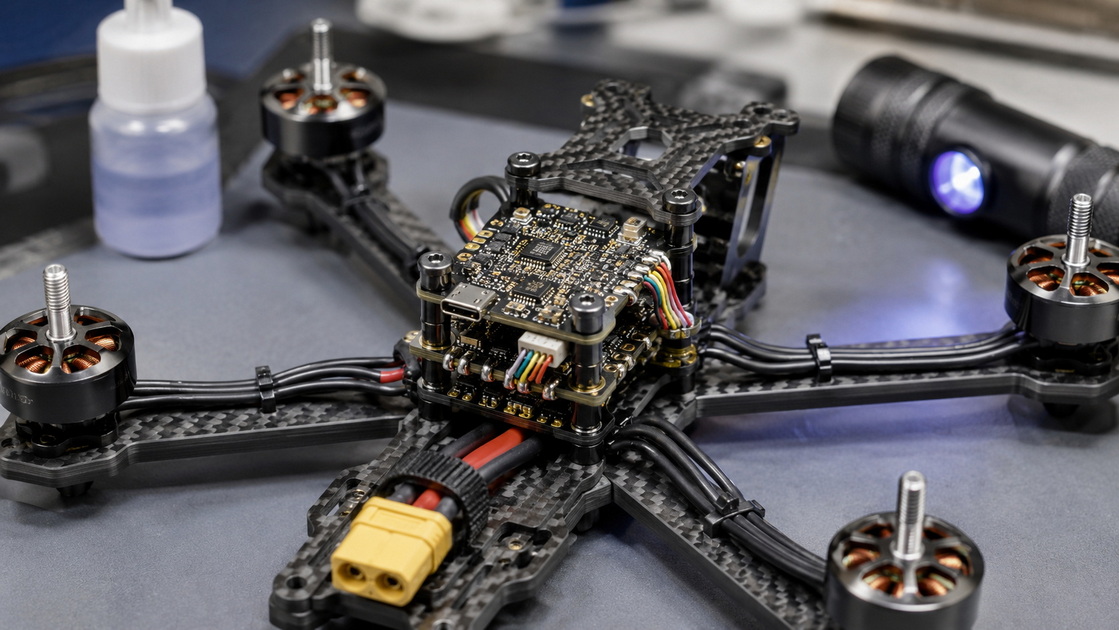

Most silicone coatings for FPV contain a UV tracer. Under a UV flashlight, coated zones glow, while missed areas appear dull. [oscarliang]
- Check both sides of each PCB.
- Pay particular attention to ESC corners, FC solder pads and cramped VTX areas.
- Touch up any dark spots with a small additional stroke of coating.
Uniform, continuous glow under UV is a strong indication of consistent coverage. [oscarliang]
For a typical FPV build: [mepsking]
- Wait at least 30 minutes before handling.
- For best reliability, let boards cure overnight in a dust‑free place.
- If you want extra margin, apply a second thin coat and repeat the curing step.
Resist the temptation to reassemble early; partially cured coating can smear into connectors.
Once cured: [mepsking]
1. Remove all masking materials carefully.
2. Reassemble the drone.
3. Power up without propellers first.
4. Check: RX link, OSD, VTX channel, gyro readings and stick response.
Only when everything looks normal should you install props and proceed with a controlled test flight in a safe area.
Beyond the basic steps, experienced pilots and engineers follow a few extra safety rules. [oscarliang]
- Work safely: Conformal coatings can contain solvents; always use good ventilation, gloves and eye protection.
- Apply multiple thin coats: Thick, uneven layers are more likely to trap heat and crack.
- Check compatibility: If in doubt, test the coating on a spare board or non‑critical area first.
- Maintain over time: Inspect your electronics periodically; re‑coat exposed or scratched zones. [mepsking]
There are several ways to protect FPV electronics; each involves trade‑offs. [thecavepearlproject]
- Very light weight – negligible impact on AUW and flight dynamics. [mepsking]
- Covers complex PCBs – reaches between dense components where enclosures cannot. [oscarliang]
- Thermally tolerant – silicone versions handle typical ESC and VTX temperatures. [oscarliang]
- Cost‑effective – one small bottle often protects dozens of quads. [oscarliang]
For most FPV pilots, conformal coating is the highest ROI waterproofing upgrade you can make.
- Waterproof enclosures provide mechanical protection and keep splashes out but add weight and can block airflow, which is critical for high‑current FPV rigs. [sealingdevices]
- Battery bags or shrink‑wrap can help keep packs dry but do nothing for FC/ESC/VTX. [mepsking]
- Full potting or epoxy is common in industrial marine electronics but is heavy, hard to repair and rarely appropriate for user‑serviceable FPV builds. [thecavepearlproject]
For FPV drones, a hybrid approach sometimes makes sense: conformal coat the electronics, then use targeted foam, tape or light covers on connectors and battery leads.
Even with waterproofing, how you respond to a water crash strongly affects survival chances. [mepsking]
1. Kill power immediately
- Disarm and unplug the battery before you start fishing the quad out if possible. [oscarliang]
2. Rinse contaminants away
- If the water was dirty or salty, rinse electronics (not the battery) with distilled water or isopropyl alcohol to remove residues that cause corrosion. [thecavepearlproject]
3. Dry thoroughly
- Use a fan or gentle airflow; let the quad dry at least 24 hours. Do not rely on rice; air movement works far better. [oscarliang]
4. Inspect and test step‑by‑step
- Once dry, reconnect the battery with props off and check each subsystem (FC, RX, VTX) before returning to full‑throttle flights. [oscarliang]
With well‑applied conformal coating and proper post‑crash steps, many water‑crashed quads return to full service. [mepsking]
As a manufacturer of FPV drone motors and brushless power systems, we design our motors, underwater thrusters and gimbal units with humidity and splash resistance in mind: enamelled copper, carefully finished laminations and robust bearings. In practice this means: [grepow]
- FPV motors can operate briefly in rain, snow or shallow water as long as they are dried and maintained. [vsdmotor]
- For underwater robots or long‑term immersion, we use specialized sealing, bearing arrangements and coatings at the factory level—this is beyond what conformal coating on a finished quad can provide. [grepow]
For most FPV pilots, the right strategy is: conformal coat the electronics, maintain the motors, and accept that no freestyle quad is truly "dive certified."
1. Should I conformal coat my FPV motors?
No in most cases. Brushless FPV motors already use enamel‑coated windings and have no logic components, so they can run wet if you dry them afterwards. Coating them can trap dirt and affect bearings. [reddit]
2. Does conformal coating cause overheating or affect performance?
When applied in thin, even layers and kept off large power chips that rely on direct airflow, conformal coating does not significantly affect temperatures or flight performance. Overheating issues usually come from excessively thick layers or blocked heatsinks. [mepsking]
3. Can I still repair my quad after coating it?
Yes. You can burn through silicone coating with a soldering iron, and remove it locally using isopropyl alcohol and a brush or cotton swab. Just remember to re‑coat the repaired area. [mepsking]
4. Is it safe to fly in rain once I have coated my electronics?
Conformal coating greatly improves resistance to light rain, wet grass, fog and snow, but it is not a guarantee against failure in heavy rain or full submersion. You should still fly conservatively, stay close, and dry the quad thoroughly after each wet session. [oscarliang]
5. Does waterproofing affect warranty on components?
Many manufacturers and resellers consider conformal coating a modification and may reject warranty claims on coated boards. In practice, most FPV pilots accept this trade‑off because water damage without coating typically voids warranty anyway. [oscarliang]
