If you want the best 5‑inch FPV racing drone kit, you have to look beyond flashy specs and really understand how the frame, motors, ESC, flight controller, battery, and propellers work together as a system. As a manufacturer of FPV drone motors and brushless power systems, and as a pilot who has tuned and crashed more 5‑inch quads than I can count, I'll walk you through how to choose a kit that is fast, durable, and genuinely fun to fly, not just impressive on paper. [mepsking]
A 5‑inch FPV racing drone usually refers to a quad with a frame that fits 5‑inch props and has a motor‑to‑motor wheelbase around 210–225 mm, weighing roughly 250–400 g dry depending on components. These quads are the standard for FPV racing because they offer the best balance of speed, agility, and durability. [ligpower]
From an engineering and pilot perspective, a truly good 5‑inch racing kit should deliver:
- Explosive throttle response for rapid gates and split‑Ses. [intofpv]
- Predictable handling with a well‑centered CG and stiff frame. [ligpower]
- Reliable power system (motors + ESC + batteries) that can sustain high current without overheating or desyncs. [mepsking]
- Modern flight controller (F7 or better) for low latency, solid filtering, and clean OSD/HD video integration. [news.quadpartpicker]
- Serviceability: easy to repair after inevitable crashes, with standard mounting patterns and accessible spare parts. [news.quadpartpicker]
For a 5‑inch racing drone, frame geometry and construction directly affect aerodynamics, strength, and tuneability. Most serious racing builds use some variant of X‑frame, often with a compact, stiff layout to improve cornering and reduce arm flex. [ligpower]
When I've helped competitive pilots build race quads, we consistently prioritize:
- Stiff 5 mm carbon arms to reduce oscillations at high throttle. [ligpower]
- Low and centered stack for better roll/pitch authority.
- Arm replacement ease (separate arms vs unibody) depending on how often you crash. [news.quadpartpicker]
- iFlight Nazgul Evoque F5 V2 6S HD – This frame is known for excellent protection against mud and grass ingress, with side panels and TPU parts that keep electronics cleaner and cooler in real racing environments. It's a smart choice if you often fly in damp or dirty fields.
- GEP‑MK5D O3 DeadCat Frame – Designed for freestyle but often repurposed by pilots who want cleaner HD footage, it uses a squashed/X deadcat geometry with an emphasis on vibration management and camera protection. For pure gate racing, an ultra‑compact true X is still usually preferred, but this frame works well for mixed racing/freestyle use. [mattyfleisch]
A flight controller (FC) is the brain of your quad; it reads gyro data and translates your stick inputs into motor commands in milliseconds. For a 5‑inch racing drone in 2026, an F7‑based FC is the practical baseline: [news.quadpartpicker]
- More UARTs for peripherals like GPS, LEDs, and HD video units. [news.quadpartpicker]
- Better processing headroom for high PID loop rates and advanced filtering. [news.quadpartpicker]
From a manufacturer's standpoint, we designed the MEPS F7 Flight Controller series specifically for high‑performance 5‑inch builds:
- MEPS F7 Flight Controller (Analog) – Uses an STM32F7 MCU + MPU6000 gyro for low latency and stable gyro performance, with good thermal management and a VTX switch to reduce heat build‑up. This is ideal if you are sticking to analog video.
- MEPS F7 HD Flight Controller – Adds plug‑and‑play support for DJI O3 and HD units, plus built‑in HD OSD and multiple BEC outputs (5 V / 10 V) for GPS, LEDs, buzzer, etc. For many pilots moving into HD racing, this FC is a straightforward choice because you avoid messy soldering and compatibility issues. [mattyfleisch]
Racing quads are often flown near their current limits, especially in tight tracks where you're constantly on and off the throttle. A quality 4‑in‑1 ESC will: [intofpv]
- Handle high burst currents without desyncs or burnt MOSFETs. [ligpower]
- Provide clean power to motors and FC to reduce noise and mid‑throttle oscillations. [ligpower]
For 5‑inch racing, a 35–60 A 4‑in‑1 ESC on 4S or 6S is standard, with BLHeli_32 or similar firmware for smooth motor control and telemetry. [intofpv]
The MEPS 60A 6S 4‑IN‑1 ESC is over‑specced on purpose for 5‑inch racing:
- Up to 60 A continuous per channel gives plenty of headroom for aggressive props, high KV motors, and hard punch‑outs.
- Upgraded heatsink + industrial‑grade PCB improve heat dissipation and reliability in high‑current situations, which is especially critical in hot summer races.
From our internal testing and pilot feedback, this ESC configuration dramatically reduces failures caused by repeated full‑throttle pulls and hot laps. [ligpower]
For a modern 5‑inch racing quad, 2207 stator size has become a de‑facto standard because it balances torque, weight, and efficiency for 5‑inch props. [mepsking]
- Stator size 2207: enough torque to spin aggressive 5‑inch bi‑ or tri‑blade props without bogging. [intofpv]
- Pair with 4S 2300–2700 KV or 6S 1700–1950 KV depending on your voltage and racing style. [mepsking]

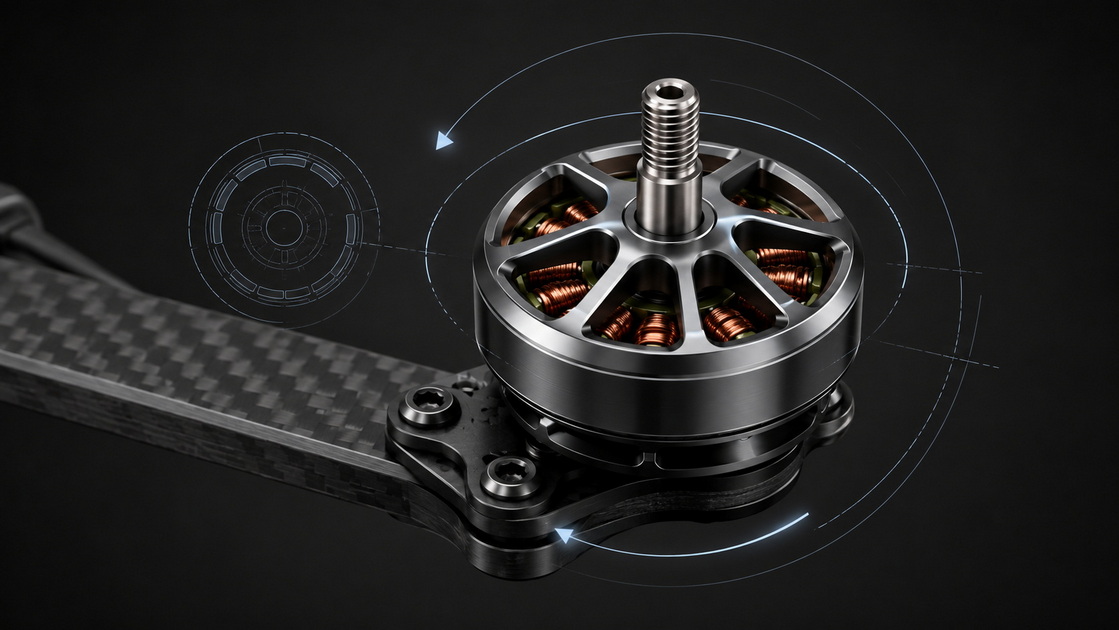

As a motor manufacturer, we designed the MEPS SZ2207 FPV Racing Drone Motor specifically for harsh race environments:
- Light and quick response – Uses 6082 aluminum alloy bell and a CT4 reinforced titanium shaft, reducing rotational mass and enabling faster RPM changes.
- Durable under repeated crashes – N52SH arc magnets plus 12.9‑grade hex screws improve impact resistance and magnet retention at high temperatures. [ligpower]
When matched correctly to prop and battery, a 5‑inch racing quad should have total max thrust ≥ 2× all‑up weight, so a typical 650–750 g race build should reach at least 1.5 kg of total thrust at full throttle. This ensures strong acceleration out of gates and enough overhead to catch dives. [mepsking]

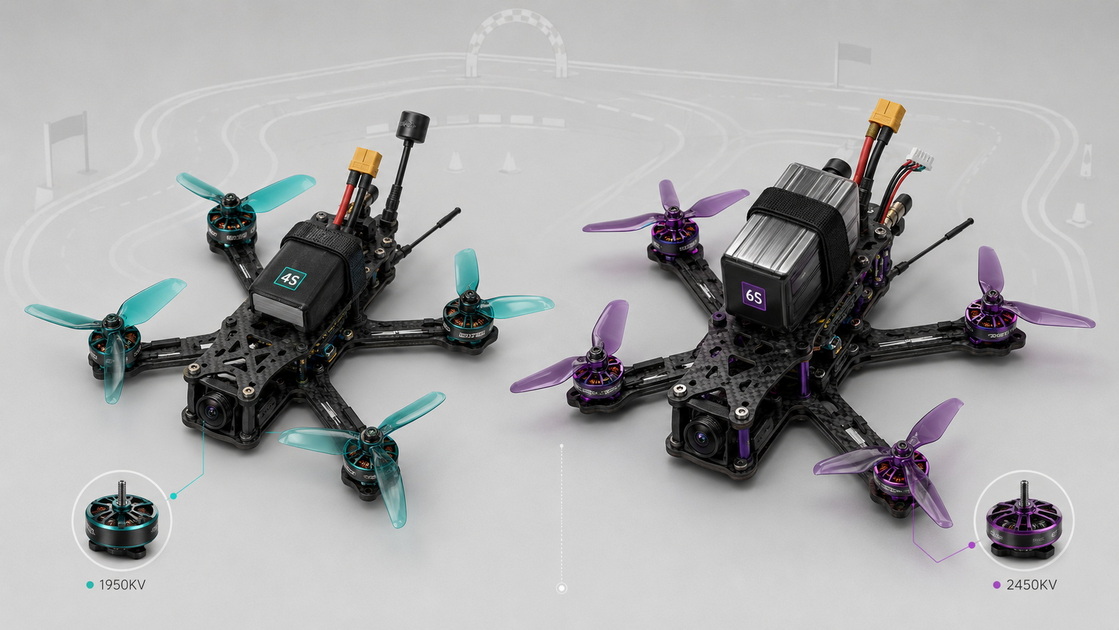

Both 4S and 6S are still used in 5‑inch racing, but 6S is increasingly popular for its cooler running and smoother throttle resolution. However, many newer pilots still start on 4S because packs are cheaper and crashes are less catastrophic. [mattyfleisch]
General guidance:
- 4S + 2300–2700 KV– Traditional 5‑inch race setup; lively throttle, widely compatible. [intofpv]
- 6S + 1700–1950 KV– More efficient and cooler motors; better for longer heats and consistent lap times. [mepsking]
- GNB Packs – A long‑time budget favorite for FPV racing, often re‑branded by other companies, offering solid performance at a reasonable price. These are excellent for practice, learning, and backup packs. [mattyfleisch]
- Tattu R‑Line – Premium packs widely used by advanced racers for their high discharge capability and punch, though some pilots report they may degrade faster over many cycles. If you want maximum performance for race day, they are still a top option. [mattyfleisch]
Propellers dramatically change how your 5‑inch racing kit feels in the air. For racing, you generally want lighter props with optimized weight distribution for fast RPM changes and crisp cornering. [ligpower]
The MEPS SZ4942 racing propeller is designed for this exact use case:
- Higher thrust special blade design to get strong top‑end speed without feeling sluggish.
- Lightweight profile aimed at rapid throttle response, which pairs especially well with high‑KV 2207 motors. [ligpower]
For most pilots, it makes sense to start with a recommended prop from the motor manufacturer, then fine‑tune pitch and blade count based on your track type and flying style. [mepsking]

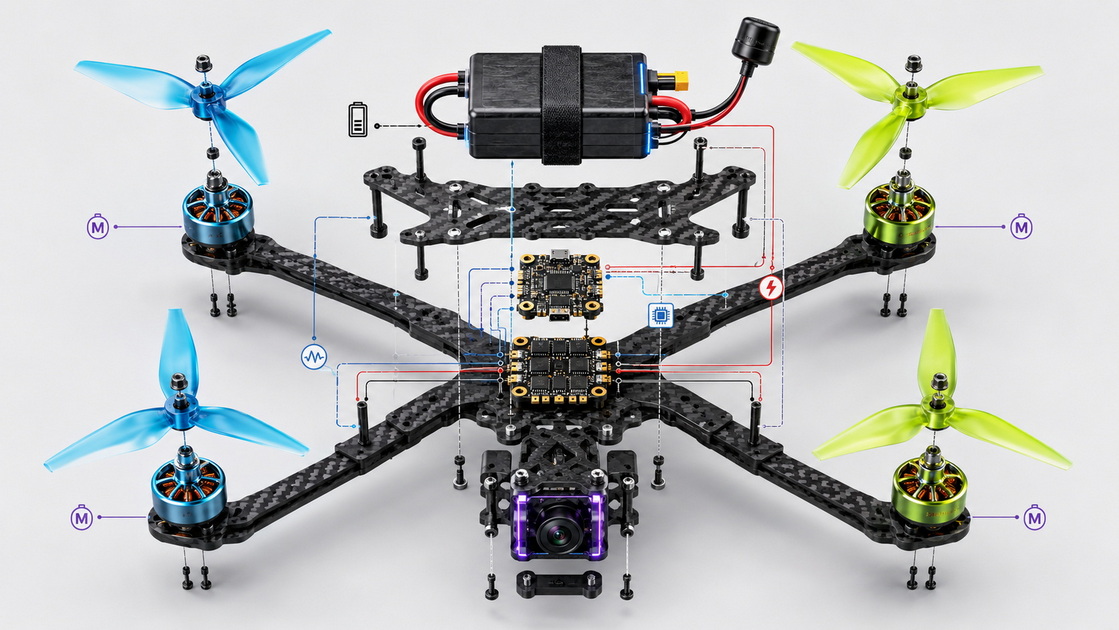

Below is a practical configuration that many pilots use as a baseline when building a competitive 5‑inch racing drone with MEPS components. [mepsking]
Component | Recommended Option | Key Notes |
Frame | 5″ X‑frame (e.g., Nazgul Evoque F5 V2) | Stiff arms, good protection, easy maintenance |
Flight Controller | MEPS F7 or MEPS F7 HD | F7 processor, low latency, HD ready, multiple BECs |
ESC | MEPS 60A 6S 4‑IN‑1 ESC | High current capacity, strong thermals for racing |
Motors | MEPS SZ2207 FPV Racing Motors | High torque, lightweight, crash‑resistant |
Propellers | MEPS SZ4942 Racing Props | High thrust, quick response |
Battery | 4S/6S GNB (practice) / 6S Tattu R‑Line (race) | Balance of cost and top‑end performance |
Video System | Analog VTX or DJI O3 (with F7 HD) (mattyfleisch) | Choose based on budget and video quality needs |
This combination hits the sweet spot of performance, reliability, and upgrade potential for 5‑inch FPV racing. [mepsking]
One of the biggest information gaps in many FPV kit guides is how to match motors, propellers, and battery voltage systematically instead of guessing. [news.quadpartpicker]
A practical, expert‑level approach:
1. Define your flying style.
- Pure racing → prioritize KV and throttle response over efficiency. [mepsking]
- Mixed racing/freestyle → choose slightly lower KV for more control and cooler temps. [mepsking]
2. Pick a motor size for 5″.
- 2207 is a solid default. [intofpv]
3. Set battery voltage and KV range.
- 4S: 2300–2700 KV for aggressive racing. [intofpv]
- 6S: 1700–1950 KV for more efficient, smoother throttle. [ligpower]
4. Check thrust data.
- Aim for ≥ 2× all‑up weight at full throttle. [mepsking]
- Stay near maximum efficiency around 40–70% throttle where you spend most race time. [ligpower]
5. Test and tune.
- If motors run hot after a full pack, drop prop pitch or go slightly lower KV. [ligpower]
This structured method helps you avoid common pitfalls like over‑propping your motors (leading to heat and desyncs) or under‑utilizing a powerful motor with a too‑light prop. [ligpower]
From both customer feedback and our own support experience, new pilots often struggle not with soldering, but with wrong component choices. Here are key mistakes to avoid: [news.quadpartpicker]
- Chasing the highest KV available.
Very high KV motors on 6S with aggressive props can overheat quickly and kill ESCs. [mepsking]
- Ignoring ESC headroom.
A 30 A ESC may look fine on paper, but hard racing with modern 2207 motors can push it beyond safe limits. [ligpower]
- Skipping basic tuning.
Even with good hardware, leaving default PIDs and filters on a very stiff frame can result in oscillations and motor heat. [news.quadpartpicker]
- Mixing random parts without system thinking.
Motors, props, ESC, and batteries must be selected as a coherent system, not just "popular parts" thrown together. [mepsking]
By selecting a well‑matched kit or following a proven build list, you dramatically increase your chances of a smooth first‑flight experience. [news.quadpartpicker]
As a Chinese manufacturer specializing in FPV drone motors and brushless power systems, we see a growing demand from brands and integrators who need customized 5‑inch racing kits for clubs, events, and training programs. [ligpower]
Working directly with a motor and power‑system supplier offers unique advantages:
- Tailored KV and stator options based on your track design, climate, and target pilots (beginner vs pro). [ligpower]
- Optimized system integration (FC + ESC + motors + props) using internal testing data rather than trial‑and‑error in the field. [ligpower]
- Consistent quality and spare parts for long‑term fleet maintenance. [ligpower]
For OEM/ODM partners, we can provide complete power solutions for 5‑inch racers, FPV drones, RC cars, gimbal systems, and even robots, ensuring consistent performance across your product line. [ligpower]
Beyond raw specs, good user experience comes from clear setup, maintainability, and confidence in the air. To improve your overall experience: [mattyfleisch]
- Use short, well‑labeled wiring and avoid unnecessary connectors that can fail in crashes. [news.quadpartpicker]
- Keep a consistent stack layout (FC on top of ESC, soft‑mounted where needed) to simplify repairs. [news.quadpartpicker]
- Start with conservative rates and expo; gradually increase roll and pitch rates as your skills progress. [mattyfleisch]
- Fly practice packs on budget batteries and save your best packs for race runs. [mattyfleisch]
These small decisions add up, reducing frustration and ensuring your 5‑inch racing drone feels like a tool you trust, not a lottery ticket every time you arm it. [mattyfleisch]
If you're ready to move from generic bundles to a purpose‑built 5‑inch FPV racing drone kit, focus on a matched power system: MEPS SZ2207 motors, MEPS 60A 6S 4‑in‑1 ESC, MEPS F7 or F7 HD FC, and SZ4942 racing props. This combination has been tested and refined for aggressive racing, reliable performance, and easy tuning. [mepsking]
Whether you are an individual pilot, a race organizer, or a brand looking for OEM/ODM solutions, you can reach out to our engineering team to optimize a complete 5‑inch racing kit tailored to your flying style, budget, and market. [ligpower]
1. Is a 5‑inch FPV racing drone suitable for beginners?
Yes, many beginners start on 5‑inch quads because they are the most documented and have the widest spare‑part support, but you should use softer rates and less aggressive props at first. [mattyfleisch]
2. Should I choose 4S or 6S for my first 5‑inch racing kit?
If budget is tight and you're new, 4S is more forgiving and cheaper; if you already have some experience and want smoother throttle and cooler motors, 6S is worth considering. [mattyfleisch]
3. What motor KV is best for a 5‑inch FPV racing drone?
Typical ranges are 2300–2700 KV on 4S and 1700–1950 KV on 6S; within that range, racers often pick the higher KV for tight, fast tracks and slightly lower KV for longer, technical circuits. [intofpv]
4. How important is ESC current rating in racing?
Very important: choose at least a 45–60 A ESC for modern 5‑inch race builds to handle peak currents, especially with high‑KV 2207 motors and aggressive props. [ligpower]
5. Can I use the same 5‑inch racing build for freestyle?
Yes, but you may want slightly lower KV motors and more durable props for freestyle to improve smoothness and reduce battery sag, even if the frame and electronics stay the same. [mattyfleisch]
