From years of helping FPV pilots, industrial UAV teams, and robotics engineers match motors, ESCs, and batteries, I've learned that there is no single "best drone ESC"—there is only the best ESC for a specific power system and mission profile. In this guide, I'll walk you through how modern multicopter builders should choose and configure an ESC, combining practical field experience from Zhongshan Yuhang Power Technology Co., Ltd. with current industry best practices and user feedback from the FPV community. [reddit]

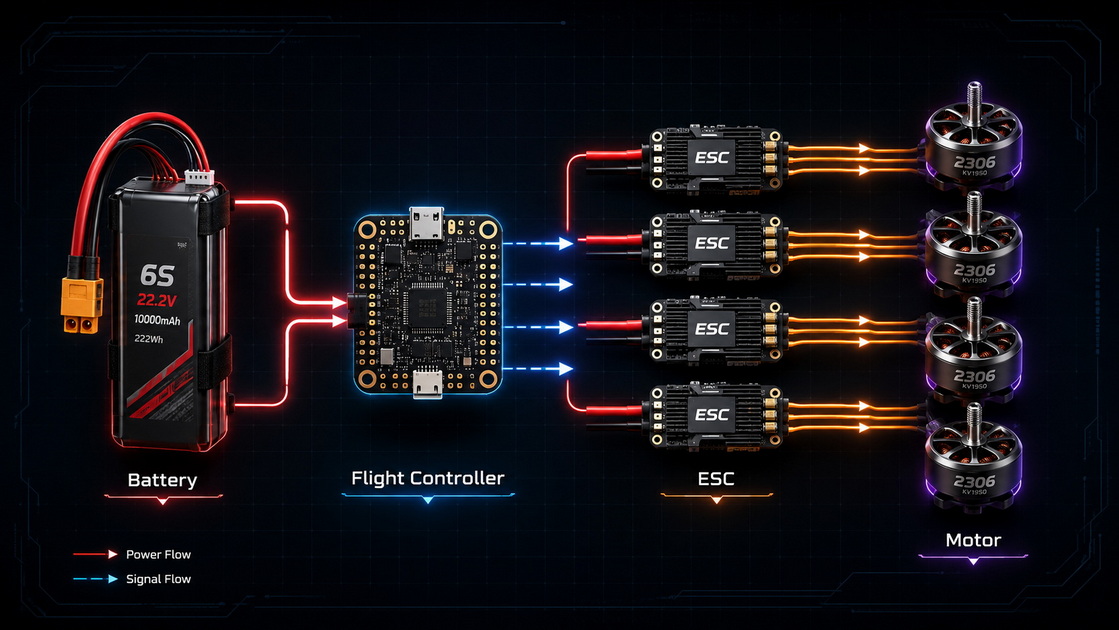

An ESC (Electronic Speed Controller) is the digital bridge between your flight controller, battery, and brushless motors. It reads throttle and control signals, converts them into three‑phase power, and precisely adjusts motor speed to execute every maneuver—from micro‑corrections in a hover to full‑throttle punch‑outs. [youtube]
At a minimum, a modern FPV or industrial drone ESC must:
- Control motor speed with high‑resolution PWM or motor‑timing algorithms. [youtube]
- Manage current and voltage to each motor to avoid over‑current, brownouts, or desync. [robocraze]
- Interpret flight controller signals (DShot, PWM, etc.) and translate them into stable motor output. [oscarliang]
Each brushless motor on a multicopter needs its own ESC, which is why a typical quadcopter uses four ESC channels and an octocopter uses eight. When your ESC choice is wrong—amp rating too low, firmware outdated, or thermal design poor—the weak link will show up as mid‑throttle oscillations, random shutdowns, or catastrophic failure under load. [youtube]
For SEO and UX, we center this article around these primary and secondary keywords:
- Primary keyword: best drone ESC for multicopter. [ligpower]
- Secondary keywords: FPV drone ESC, ESC for quadcopters, ESC amp rating, ESC firmware, FPV drone motors and ESC matching. [ligpower]
Users searching for the "best drone ESC for multicopter" are usually trying to solve one of three problems:
- Avoid burning ESCs or motors on a new FPV build. [robocraze]
- Improve reliability on an existing quad or industrial UAV platform. [unmannedsystemstechnology]
- Understand how to match ESCs with motors, propellers, and batteries for future projects. [vsdmotor]
This guide is structured to map directly to those intents, making it easier for both Google and real users to follow the decision‑making path.
Most ESC failures originate from mismatched current ratings. The basic rule is: [ligpower]
- Continuous current rating of the ESC must exceed the motor's peak current by 20–50%. [ligpower]
For example, if your FPV motor pulls 30A at full throttle with your chosen prop and battery, you should select at least a 40A ESC to maintain a safety margin under aggressive flying or high ambient temperatures. [ligpower]
Current rating considerations:
- Racing / freestyle FPV builds: favor higher amp ESCs (35–60A) to handle repeated bursts and crashes. [blog.uavmodel]
- Long‑range and aerial platforms: prioritize efficiency and thermal headroom rather than absolute amp numbers. [oscarliang]

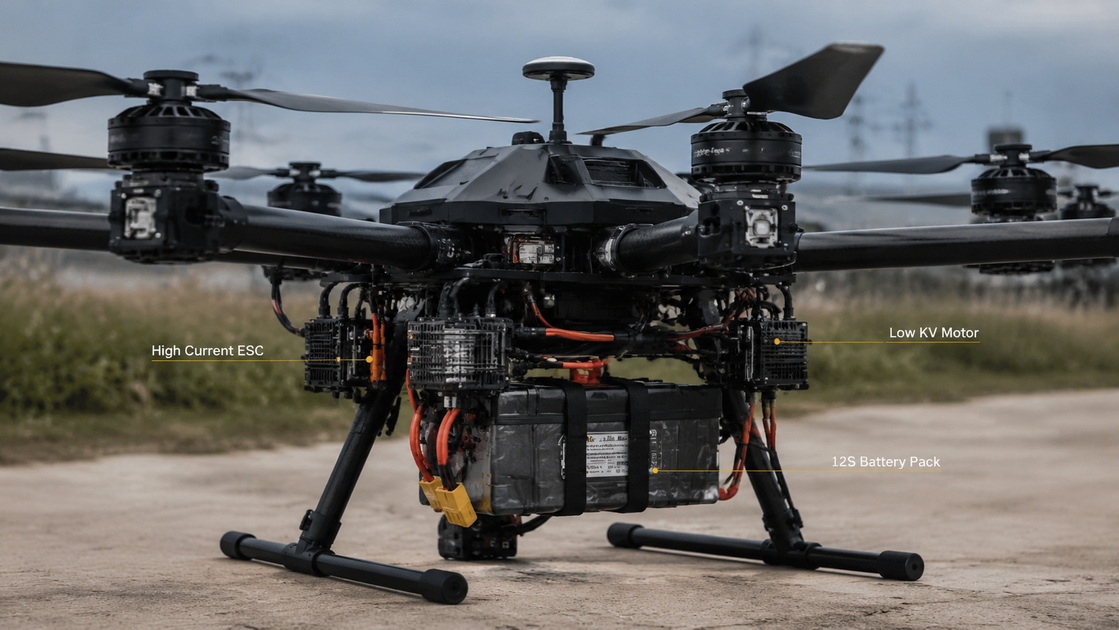

- Heavy‑lift industrial drones: multi‑kilowatt motors can pair with 80A–160A ESCs or even higher, often in 12S configurations. [ozrobotics]
From our experience supplying motors and ESCs for FPV quads, fixed‑wing platforms, gimbal systems, and robotics, most support requests related to ESC damage involve builds where the safety margin was less than 15%. [instagram]
ESC voltage ratings must match your battery and motor system:
- Typical FPV builds: 4S–6S LiPo/Li‑ion, with ESCs rated for that voltage plus some overhead. [oscarliang]
- Professional or industrial UAVs: 6S–12S packs, with ESCs rated accordingly and often with additional surge protection. [store.tmotor]
Using a battery with voltage higher than the ESC and motor ratings can cause immediate failure or dangerously shortened lifespan. When we design power systems for robots or underwater drones, we start with the target voltage ecosystem (e.g., 6S vs. 12S) and ensure every component—motor, ESC, wiring harness, and connectors—is aligned. [instagram]
The ESC does not exist in isolation: it must be tuned to a specific motor, propeller, and flight style. Key matching principles include: [vsdmotor]
- Small props → high‑KV motors → fast response, but higher current spikes. [oscarliang]
- Large props → low‑KV motors → higher torque and smoother power delivery. [vsdmotor]
- ESC current rating and thermal design must handle the motor's peak draw at full throttle with your chosen prop. [robocraze]
An efficient system keeps the motor operating around mid‑throttle for cruise, where efficiency is highest and heat is manageable. That's what we aim for when configuring complete propulsion kits for customers building FPV drones, gimbal platforms, or high‑load industrial UAVs. [ligpower]
In early multicopter days, firmware was an afterthought; today, it's one of the key differentiators between average and truly reliable ESCs. Features you should look for include: [youtube]
- Regenerative braking for faster motor deceleration and better control during aggressive maneuvers. [oscarliang]
- High‑resolution drive and throttle frequency for smoother response and finer control. [youtube]
- Temperature‑controlled synchronous rectification to improve efficiency and maintain ESC health. [oscarliang]
Leading FPV ESC firmware families such as BLHeli_S and BLHeli_32, combined with fast processors (often F4‑class), provide advanced functions like RPM‑filtered motor control and variable PWM frequency for noise reduction and better flight performance. [youtube]
Compatibility with your flight controller and preferred protocol is critical:
- DShot (e.g., DShot300/600) offers robust, digital communication and easier setup than analog PWM. [youtube]
- Advanced firmware can synchronize ESC signals with gyro data, helping modern flight controllers apply better filtering and dynamic tuning. [oscarliang]
For FPV pilots pushing high‑performance 5‑inch or 7‑inch quads, we recommend ESCs that support modern digital protocols and up‑to‑date firmware releases so that you can leverage the latest tuning presets and community‑tested settings. [reddit]
Community feedback is a powerful reality check on spec sheets. Experienced pilots often reference long‑term reliability from brands such as T‑Motor and SpeedyBee, pointing out which ESCs survive repeated crashes and high‑amp torture testing. [instructables]
From FPV and industrial case studies, several patterns emerge:
- ESCs with robust thermal design, quality MOSFETs, and conservative amp ratings survive much longer in real‑world abuse. [youtube]
- Under‑rated ESCs paired with "hot" motors are the most common cause of mid‑air failures. [ligpower]
- In industrial applications (e.g., agricultural drones or inspection platforms), conservative design often favors heavier, higher‑capacity ESCs for long‑term stability. [miat.en.alibaba]
As a brushless motor manufacturer, we've found that offering matched motor‑ESC kits for specific use cases—FPV racing, cinematic aerial work, "brutal" high‑speed fans, or robotics—reduces integration problems and support tickets drastically, because customers plug in components built to work together. [ligpower]

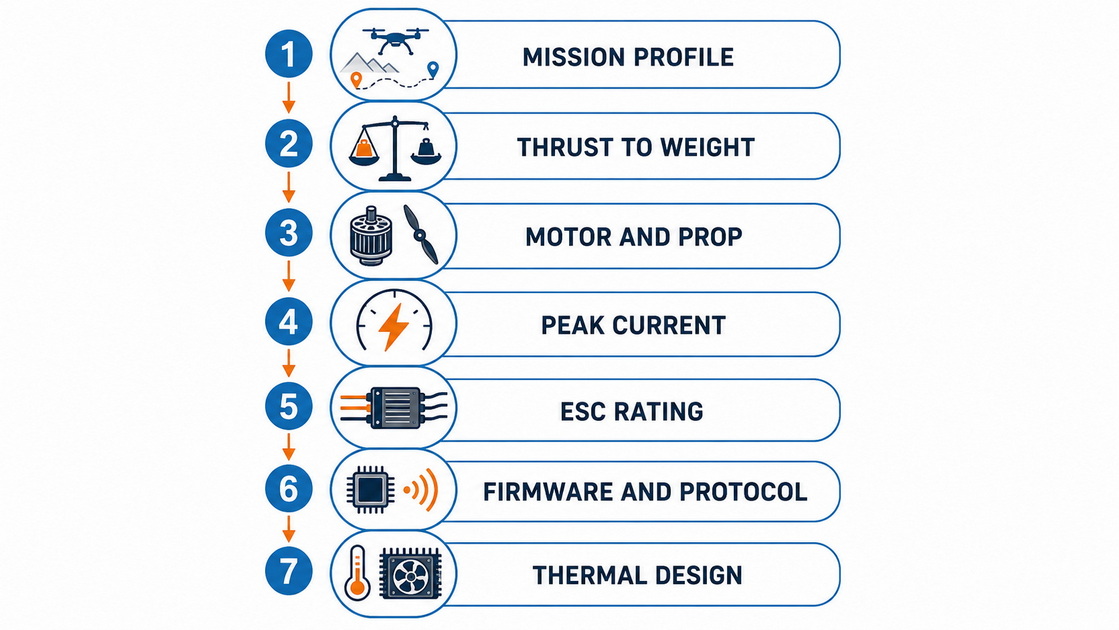

To help you systematically choose the best ESC for your multicopter, here is a simple workflow we use in internal engineering reviews and OEM/ODM projects.
1. Define the mission and frame size.
Racing, freestyle, cinematic aerial, long‑range, industrial heavy‑lift, or robotics all impose different constraints on the power system. [vsdmotor]
2. Estimate all‑up weight and target thrust‑to‑weight ratio.
- Racing: ≥ 8:1.
- Freestyle: ≈ 6:1.
- Aerial photography: 3–4:1. [ligpower]
3. Select motor KV, size, and propeller based on mission.
Use published motor test data and consider battery voltage to ensure that KV and prop size are compatible. [oscarliang]
4. Calculate peak current per motor.
Look at manufacturer test charts or field measurements for your prop and voltage combination. [oscarliang]
5. Choose ESC current and voltage ratings with safety margin.
ESC continuous current ≥ motor peak current × 1.2–1.5, and ESC voltage rating must match or exceed battery voltage. [robocraze]
6. Confirm firmware, protocol, and processor capabilities.
Ensure compatibility with your flight controller and that the ESC supports the firmware features you intend to use. [youtube]
7. Validate thermal and mechanical integration.
Check airflow, mounting, cable routing, and connector quality, especially for high‑amp or industrial systems. [unmannedsystemstechnology]
Following this workflow turns ESC selection from guesswork into a repeatable engineering process that scales from DIY FPV builds to OEM drone platforms.
Zhongshan Yuhang Power Technology Co., Ltd. specializes in FPV drone motors, fixed‑wing motors, ducted fan motors, gimbal motors, and other brushless solutions, providing complete power system engineering for drones, RC cars, high‑speed fans, camera gimbals, aircraft, cleaning robots, and underwater robots. Our OEM and ODM customers often come to us with a single request—"we need a reliable propulsion system"—not a list of part numbers. [electronics.alibaba]
In practice, that means:
- Co‑designing motor and ESC specifications to match target thrust, efficiency, and duty cycle.
- Selecting proper wire gauges, connectors, and mounting patterns for harsh environments.
- Running long‑duration tests to ensure motors and ESCs stay within safe temperatures under realistic workloads. [youtube]
By starting with the system rather than isolated components, we help customers avoid typical integration pitfalls and deliver a plug‑and‑play power train optimized for their flight profile and payload.
| Drone type | Typical battery | Motor KV range | Suggested ESC rating | Notes |
|---|---|---|---|---|
| FPV racing quad (5″) | 4S–6S LiPo | 1800–2800KV (vsdmotor) | 35–45A per motor (robocraze) | Prioritize fast response and high current margin. |
| Freestyle quad (5–6″) | 4S–6S LiPo | 1600–2300KV (vsdmotor) | 40–55A per motor (robocraze) | Balance punch with reliability for frequent crashes. |
| Long‑range quad (7″+) | 4S–6S Li‑ion | 900–1500KV (vsdmotor) | 30–40A per motor (robocraze) | Focus on efficiency and low heat over long flights. |
| Aerial filming multicopter | 6S–12S LiPo | Low‑KV, high‑torque (oscarliang) | 60–120A per motor (unmannedsystemstechnology) | Heavy props and gimbals demand robust ESCs. |
| Industrial/agricultural UAV | 6S–12S LiPo | Application‑specific (unmannedsystemstechnology) | 80–160A per motor (unmannedsystemstechnology) | Design for continuous high load and harsh environments. |
This kind of table helps readers quickly map their project to a recommended ESC ballpark, while search engines benefit from structured, descriptive headings and clear numerical data.
Use this quick checklist to validate your next ESC purchase:
- Is the ESC's continuous current rating ≥ motor peak current × 1.2–1.5? [ligpower]
- Does the ESC voltage rating match or exceed your battery configuration (4S, 6S, 12S)? [robocraze]
- Is the firmware current and compatible with your flight controller and protocol (e.g., DShot)? [youtube]
- Does the ESC have positive reliability feedback from pilots/users with a similar build? [instructables]
- Is there adequate airflow and robust mounting in your frame to avoid thermal stress? [youtube]
If you can confidently answer "yes" to all five questions, you're far less likely to experience ESC‑related failures in the field.
If you're planning a new FPV quad, industrial UAV, robotics platform, or custom multicopter, it's more efficient to design the propulsion system as a whole than to pick ESCs and motors separately. As a dedicated FPV drone motor and brushless power system manufacturer, Zhongshan Yuhang Power Technology Co., Ltd. can help you: [electronics.alibaba]
- Select and match motors, ESCs, and propellers for your mission profile.
- Optimize for thrust‑to‑weight, efficiency, and reliability.
- Develop OEM/ODM custom solutions for drones, RC vehicles, gimbals, fans, and robots. [instagram]
Reach out with your target frame, payload, and flight profile, and our engineering team will propose a complete, tested power solution rather than a random set of parts.
1. Do I really need one ESC per motor on my multicopter?
Yes. Each brushless motor requires its own ESC channel to receive individual throttle and control signals, which is why quadcopters use four ESCs and octocopters use eight. [robocraze]
2. How do I avoid burning my ESC on an FPV quad?
Make sure the ESC's continuous current rating exceeds your motor's peak draw by at least 20–30%, match voltage correctly, and provide proper cooling; under‑rated ESCs are the most common failure point on aggressive FPV builds. [ligpower]
3. Is BLHeli_32 better than BLHeli_S for FPV drones?
BLHeli_32 typically offers more advanced features, higher PWM frequency options, and better integration with modern flight controllers, but BLHeli_S remains adequate for many budget or mid‑range builds. [fpvfrenzy]
4. What's the biggest difference between FPV ESCs and industrial drone ESCs?
Industrial drone ESCs often support higher voltages and currents, have more conservative thermal designs, and undergo longer durability testing to handle continuous high‑load operation. [store.tmotor]
5. Can a "too strong" ESC hurt my motors?
In practice, overspecifying an ESC by current capacity is generally safe; the danger comes from mismatched voltage, poor firmware, or incorrect settings rather than having extra amp headroom. [ligpower]
