FPV Drone Motors: The Power Heart of Sky Racing

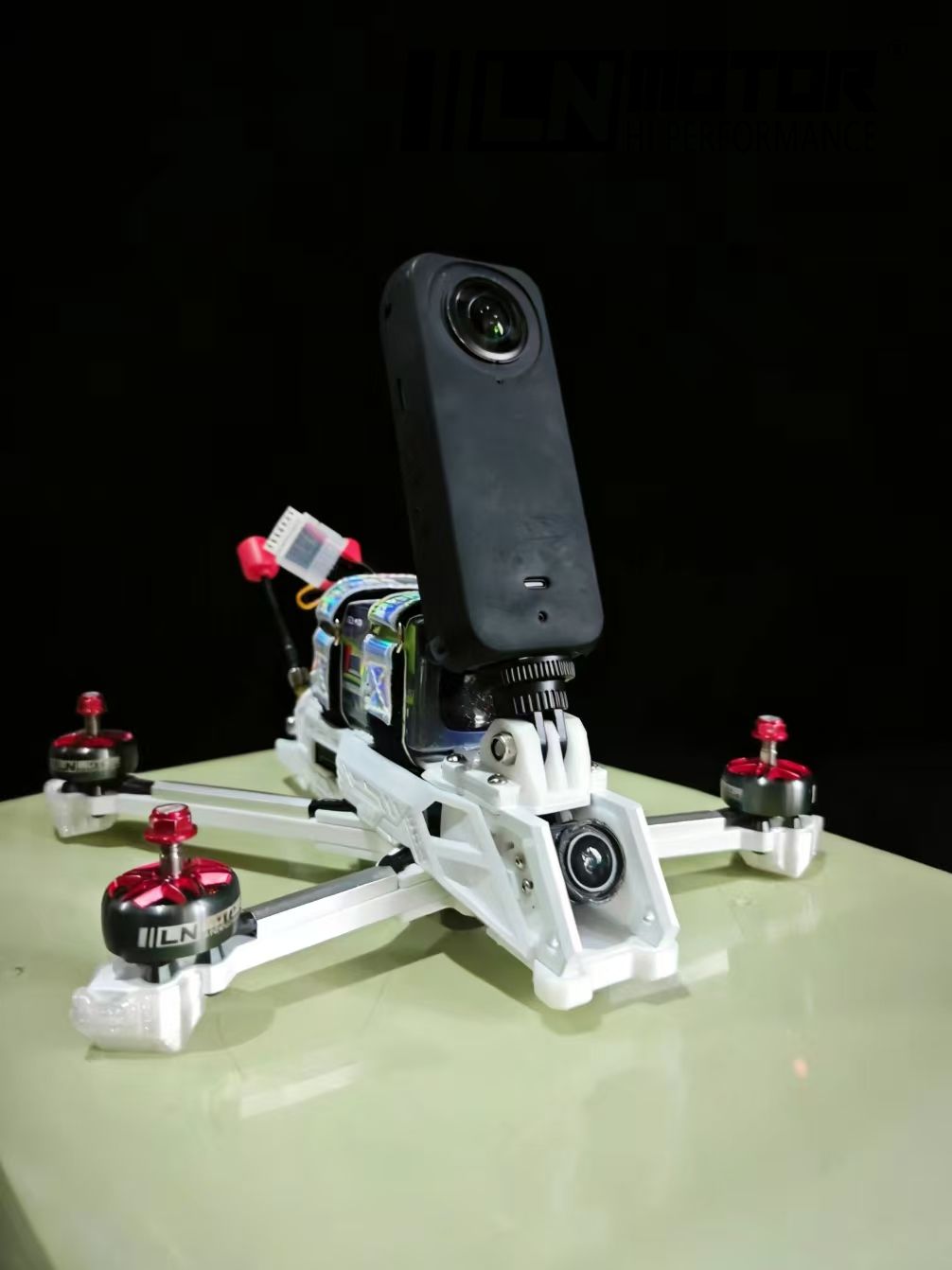

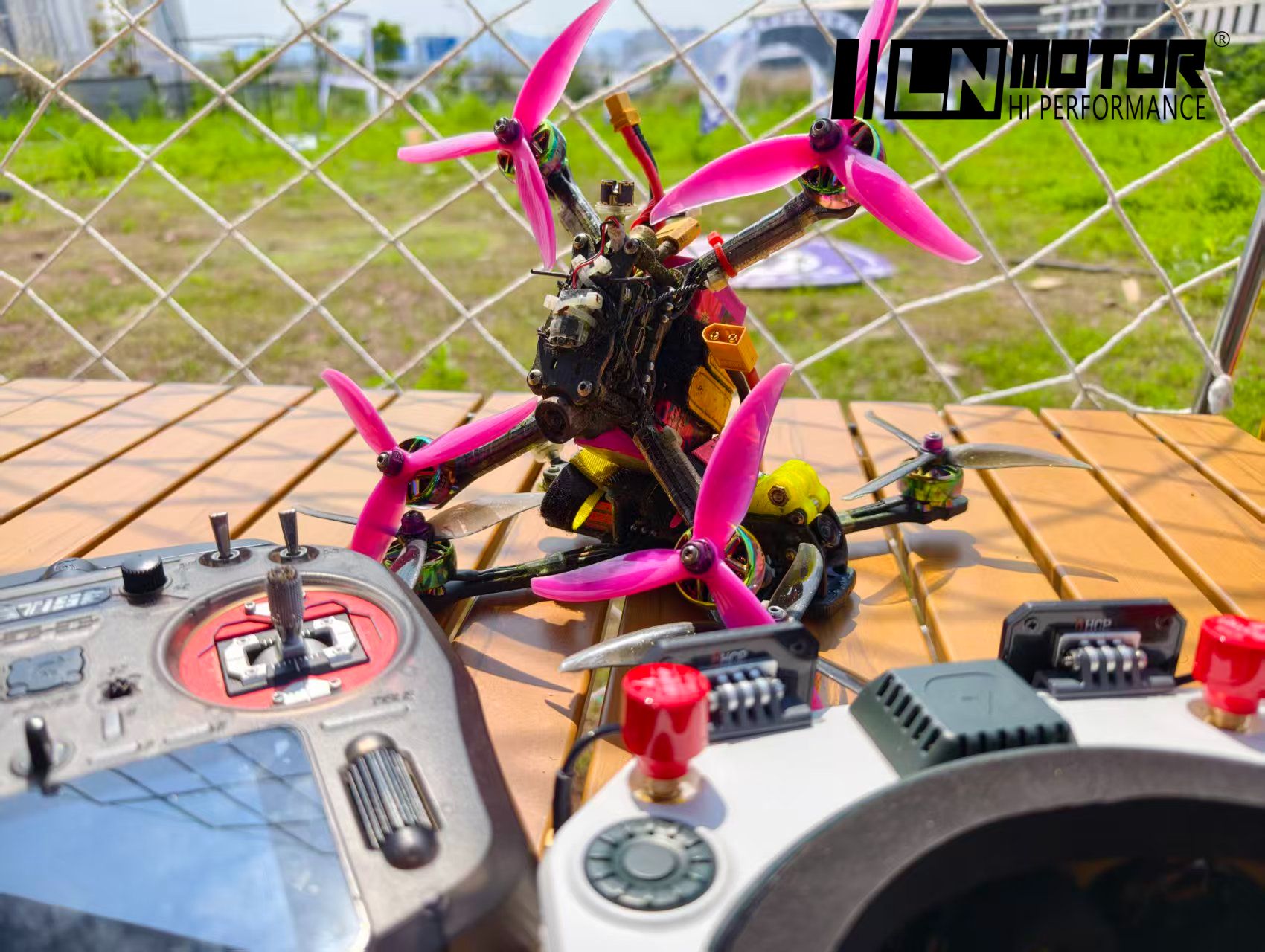

When an FPV drone weaves through race tracks at speeds exceeding 200 kilometers per hour, performing 360-degree rolls and sharp turns, the core that delivers such aggressive performance lies in the four compact yet powerful outrunner brushless motors at the four corners of the frame. As the soul of the FPV power system, unlike the stability-oriented motors of ordinary aerial drones, FPV drone motors pursue ultimate goals of high power density, ultra-fast response, and extreme burst force, making them worthy of being called F1 engines in the sky. FPV Drone Brushless Motors 1. Structure: Outrunner Design Built for Aggressive Flight FPV drones exclusively adopt three-phase outrunner brushless motors, whose structure is completely opposite to traditional inrunner motors. The fixed inner part is the stator wound with copper wires, while the rotating outer part is the shell with permanent magnets. Stator: Laminated from silicon steel sheets and wound with high-density enameled copper wire, it is the core of magnetic field generation. The stator size directly determines the "strength" of the motor. Rotor: High-grade neodymium-iron-boron rare-earth magnets are embedded in the shell, with magnetic energy density 3 to 5 times that of ordinary motors, creating an ultra-strong magnetic field in a minimal volume. Bearings: Equipped with two high-precision high-speed bearings to withstand extreme rotation and crash impacts, which is key to motor durability. This design provides greater rotational inertia and larger heat dissipation area, maintaining stability even at high rotational speeds, perfectly matching the "fast, precise, and aggressive" flight demands of FPV drones.2. Core Parameters: Read the Numbers to Choose the Right Power The numbers printed on the motor shell are direct codes of performance, focusing on two major indicators: size and KV value. 1) Stator Size: The Foundation of Torque Model numbers such as 2207, 2306, and 2408 use the first two digits to represent stator diameter (mm) and the last two for stator height (mm). Diameter: A larger diameter means stronger torque, capable of driving larger propellers for more powerful flight. Height: Greater height provides more space for coil winding, raising the upper limit of power and rotational speed. Mainstream Matching: 2.5–3 inch small drones: 1404, 1504 (light and agile, for indoor freestyle) 5-inch standard drones (most popular): 2205, 2306 (balanced and versatile for racing and freestyle) 5-inch 6S high-power drones: 2307, 2408 (aggressive racing for extreme speed)2) KV Value: The Trade-off Between Speed and Torque KV value refers to the increase in no-load revolutions per minute for each 1V rise in voltage. For example, a 2500KV motor reaches a theoretical no-load speed of approximately 37,000 RPM with a 4S (14.8V) battery. High KV (2200–2800): High speed, ultra-fast response, low torque, matched with small propellers, ideal for racing with maximum straight-line speed and burst force. Medium & Low KV (1700–1950): Low speed, high torque, more energy-efficient, matched with large propellers, suitable for freestyle with delicate control, longer endurance, and better crash resistance. Mainstream Configuration: 5-inch drones use 2400–2600KV for 4S batteries and 1700–1900KV for 6S batteries, balancing performance and efficiency. 3. Performance Characteristics: Different Orientations for Racing and Freestyle The performance of FPV drone motors is fully differentiated based on flight scenarios: Racing Motors: Pursue extreme power and response, with high KV and high rotational speed, 0.01-second throttle response, supporting sustained high-load full-throttle operation. Straight-line acceleration can instantly achieve a thrust-to-weight ratio above 8:1 for extreme sprints. Freestyle Motors: Focus on stability and durability, with medium-low KV and high torque, offering responsive control, strong crash resistance, and lower heat generation during long flights, perfect for continuous complex maneuvers such as rolls, inverted flight, and sharp turns. 4. Materials and Craftsmanship: The Key to Performance Limits The gap between high-end and entry-level motors lies in the details: Magnets: Top motors use high-grade neodymium-iron-boron with rare-earth elements such as dysprosium and terbium, offering high temperature resistance, strong magnetic field, and sufficient power. Stator: Wound with high-purity oxygen-free copper with uniform wire diameter and precise turns, delivering low resistance, high efficiency, and low heat. Rotor: Integrated CNC shell with excellent dynamic balance and minimal high-speed vibration. Low-cost motors mostly use split welding, resulting in poor balance and easy damage in crashes. Bearings: Imported high-speed bearings supporting long-term operation above 30,000 RPM, with service life several times that of ordinary bearings.5. Common Misconceptions and Purchase Recommendations Misconception: Higher KV is always better → Correct view: KV must match the battery and propeller. High KV with large propellers causes a surge in current and overheating burnout; low KV with small propellers leads to insufficient power. Misconception: Higher price means more aggressiveness → Correct view: Aggressiveness is determined by size, KV, and voltage. High-priced motors excel in efficiency, heat dissipation, dynamic balance, and durability, providing smoother flight feel and longer service life. Recommendation for Beginners: 5-inch drones are best equipped with 2306/2500KV (4S) or 2306/1900KV (6S), offering balanced adaptation to racing and freestyle with high fault tolerance. 6. Conclusion FPV drone motors represent the ultimate combination of materials science, electromagnetism, and craftsmanship. With a tiny volume, they generate thrust dozens of times their own weight, allowing pilots to experience the purest speed and control pleasure in the sky. From cost-effective entry-level options to top flagship models for professional racing, every motor provides steady power for the flight dream of "faster, more stable, and more aggressive". They are not just components, but the source of strength for every pilot to break limits and conquer the sky.
