The first time I tried to build an FPV drone, I didn't fail because my soldering was bad—I failed because my parts didn't match. Motors were too "hot" for the props and battery, the ESC pinout didn't match the flight controller, and my video system didn't work with my goggles. If you want a dependable FPV build, you must understand how each part fits into the overall system: flight, power and video. [news.quadpartpicker]
In this guide, I'll break down all the essential FPV drone components, share lessons from real builds, and explain how to choose compatible parts without burning money—or ESCs. I'll also show where a professional Chinese OEM like Zhongshan Yuhang Power Technology Co., Ltd. fits into the ecosystem, especially if you're sourcing brushless motors or complete power systems at scale. [oscarliang]

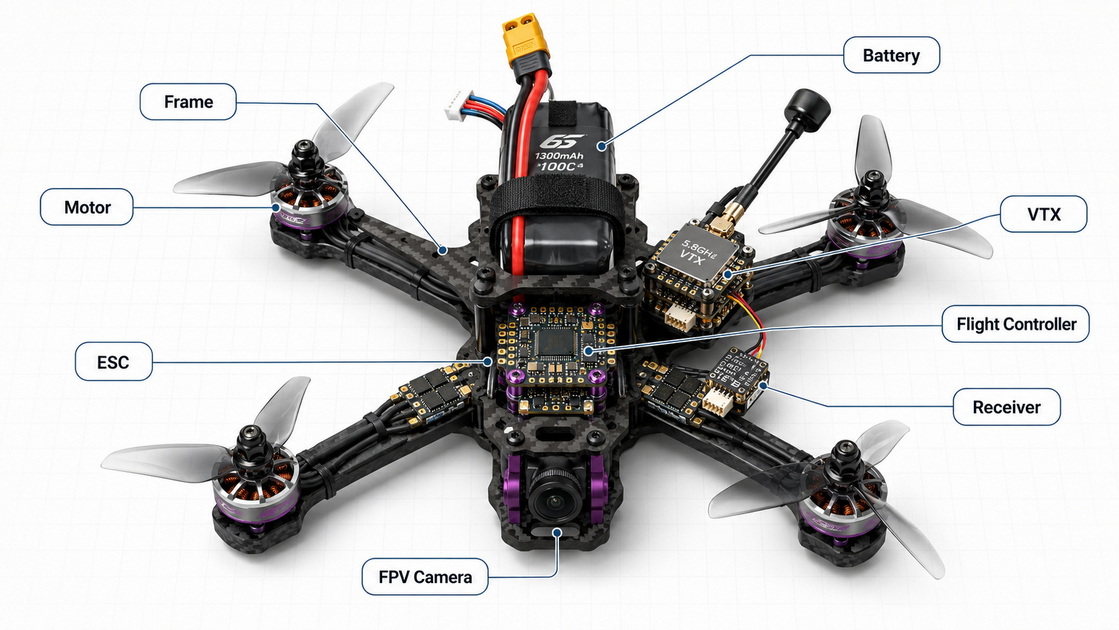

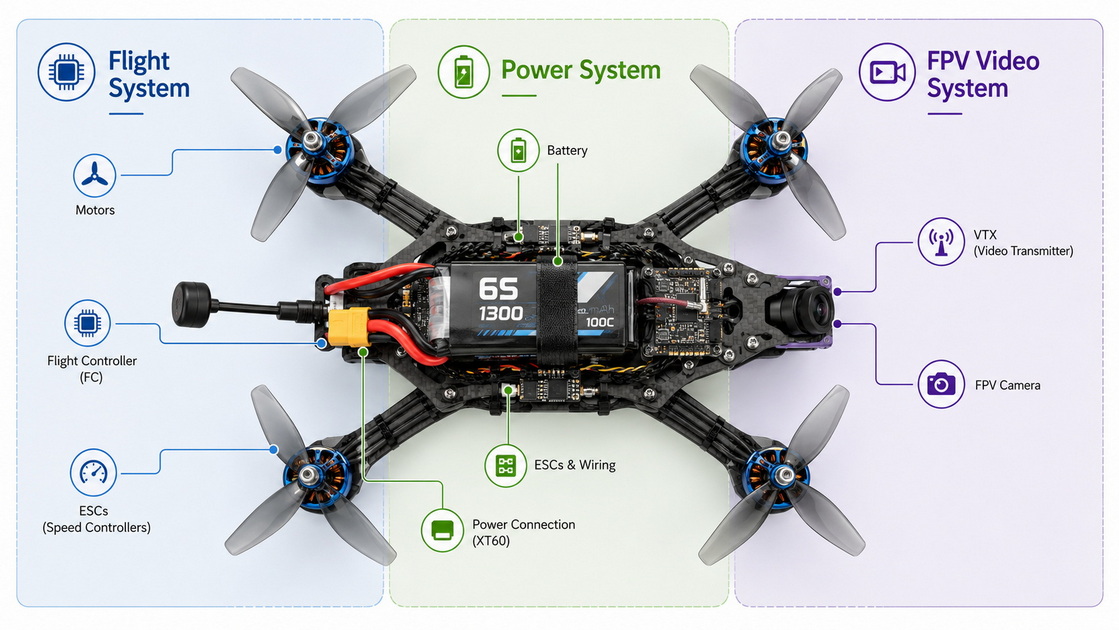

From a practical engineering perspective, every FPV quad can be viewed as three cooperating systems. [insidefpv]
- Flight system – motors, propellers, ESCs, flight controller, receiver. [news.quadpartpicker]
- Power system – battery, power distribution, capacitors, wiring. [insidefpv]
- FPV video system – FPV camera, VTX or digital air unit, antennas, goggles. [news.quadpartpicker]
When these systems are balanced, the quad flies predictably, tunes easily, and survives crashes without constant troubleshooting. When they are mismatched, you see desyncs, video noise, hot motors, and short flight times. [oscarliang]
The frame defines prop size, wheelbase and available space for electronics. Most modern FPV frames use carbon fiber for stiffness and durability, with typical sizes from tiny whoop (65–85 mm) up to 7‑inch long‑range platforms. [insidefpv]
Key frame considerations:
- Wheelbase and prop size (e.g., 5‑inch freestyle, 7‑inch long‑range). [news.quadpartpicker]
- Arm thickness and repairability (replaceable arms matter if you crash often). [insidefpv]
- Mounting patterns for stacks (30.5×30.5 mm, 20×20 mm) and cameras. [news.quadpartpicker]
As a builder, I value repairability over saving 10 g of weight. A frame that cracks on every hard landing is a poor long‑term investment. [insidefpv]
Brushless motors are the only moving part that directly creates thrust. Their size and KV rating determine how your drone feels in the air: snappy, efficient, cinematic or long‑range. [getfpv]
Common choices for a 5‑inch freestyle quad:
- 2207 or 2306 stator size.
- 6S battery with ~1700–1950 KV motors, or 4S with ~2300–2700 KV. [oscarliang]
From a sourcing perspective, Chinese manufacturers now dominate the FPV motor space, offering a full range from racing to cinematic builds. Companies like Zhongshan Yuhang Power Technology Co., Ltd. focus on FPV drone motors and integrated power systems, providing OEM/ODM services for brands that need tailored KV, shaft interfaces and mounting solutions rather than generic catalogue parts. [made-in-china]
Expert tips:
- Use the shortest safe motor screws—too long and they damage windings.
- Check motor temperatures after initial hovers; one hot motor signals a mechanical or tuning problem. [oscarliang]
The ESC translates flight‑controller commands into actual motor speed. Most modern builds use 4‑in‑1 ESCs with typical ratings: [news.quadpartpicker]
| Frame Size | Typical ESC Continuous Rating | Notes |
|---|---|---|
| 3 inch | 20–30 A | Lightweight builds. (insidefpv) |
| 5 inch | 40–60 A | Freestyle/racing standard. (insidefpv) |
| 7 inch | 50 A+ | Long‑range and heavy payloads. (insidefpv) |
Industry guides recommend planning headroom: use an ESC rated above your expected peak current to avoid thermal stress and desyncs. For OEM buyers, pay attention not only to current ratings but also MOSFET quality, firmware (BLHeli_32, AM32, etc.) and PCB layout, which all affect reliability at scale. [oscarliang]
The flight controller (FC) is the brain of the quad, running firmware such as Betaflight, iNav or ArduPilot. It reads gyro data, mixes pilot inputs, and tells ESCs how to react. Receivers provide the control link via protocols like ExpressLRS, Crossfire or FrSky. [insidefpv]
Practical FC criteria:
- Adequate UART count for receiver, VTX control, GPS, peripherals. [news.quadpartpicker]
- Blackbox logging for tuning and diagnostics. [oscarliang]
- Robust pad layout and mounting to withstand repeated repairs. [insidefpv]
For the receiver, matching protocol and frequency band (2.4 GHz vs 868/915 MHz) to your radio is non‑negotiable. Many "mysterious failsafes" come down to poor antenna placement near carbon or high‑current wiring. [youtube]
Propellers convert motor torque into lift and control. A typical FPV notation like 5×4.3×3 means 5‑inch diameter, 4.3‑inch pitch, tri‑blade. [news.quadpartpicker]
Role‑based selection:
- Freestyle: 5‑inch tri‑blade props, moderate pitch for control and grip. [insidefpv]
- Racing: lighter, more aggressive props for quick response and higher current draw. [oscarliang]
- Long‑range: efficient bi‑blade or low‑pitch tri‑blade for extended flight times. [insidefpv]
Safety note from experience: always remove props before bench testing, firmware updates, or motor direction checks—this is a habit that prevents injuries. [youtube]
Most FPV pilots use LiPo packs for high current delivery, with Li‑ion appearing in long‑range builds. A typical 5‑inch freestyle setup uses a 6S 1050–1500 mAh LiPo, balancing power with 3–5 minutes of active flight. [oscarliang]
Professionally, it's essential to respect voltage limits and storage practices: land before cells are severely discharged, use storage charge for long idle periods, and charge in safe environments. For fleet operators and OEM buyers, battery specification and quality control become part of the overall reliability equation, not an afterthought. [reddit]
Modern stacks integrate power distribution into the 4‑in‑1 ESC or FC. However, the unglamorous parts—XT60/XT30 leads, low‑ESR capacitors and BECs—have outsized impact on noise and component lifespan. [news.quadpartpicker]
From experience, a good capacitor across the main battery pads is cheap insurance against voltage spikes and electrical noise that can cause random reboots or video breakup. Consistent wiring standards, strain relief and clear labeling are also critical when you operate or support many drones, not just one personal quad. [reddit]
Analog VTX systems remain popular for low cost and very low latency, while digital solutions (DJI, Walksnail, HDZero) provide higher image quality. [youtube]
Typical trade‑offs:
- Analog: inexpensive, light, responsive, but with noisier picture and less detail. [news.quadpartpicker]
- DJI‑type digital: excellent image and recording, higher cost and ecosystem lock‑in. [youtube]
- HDZero: ultra‑low latency digital, tuned for race/freestyle performance. [youtube]
When you scale up from a hobbyist to a product line, standardizing one video ecosystem simplifies documentation, customer support and inventory management. [fpvknowitall]
The FPV camera is chosen for latency and dynamic range, not cinematic resolution. Beginners often underestimate how much dynamic range matters when flying under trees or facing bright horizons; poor cameras can hide obstacles in shadow. [youtube]
Goggles or monitors must match the video system, have suitable field of view and comfortable ergonomics. In professional use—inspection, mapping or training—goggle choice directly influences pilot fatigue and situational awareness. [fpvknowitall]
As FPV and UAV move from hobby to professional use, more brands look for integrated power system suppliers rather than buying motors and ESCs separately. Chinese manufacturers like Zhongshan Yuhang Power Technology Co., Ltd. specialize in brushless motors for FPV drones, RC cars, gimbals, aircraft, cleaning robots and underwater robots, often delivering matched motor–prop–ESC sets. [evcraft.en.made-in-china]
For B2B buyers, the advantage of working with integrated system providers is that thrust, efficiency and thermal behavior are validated at the system level, not just per component. This reduces tuning effort and field‑failure risk, and allows brands to focus on frames, software and UX rather than reinventing propulsion. [ligpower]
Despite many guides, the most common beginner failure mode is still incompatibility. Here is a practical engineer's checklist I use when reviewing builds or client BOMs: [insidefpv]
1. Frame ↔ Prop ↔ Motor
Confirm that the frame physically supports the target prop size and that motor KV and stator volume are appropriate for both prop and battery voltage. [oscarliang]
2. Battery ↔ Motor ↔ ESC
Estimate maximum current draw from motor‑prop combos, then select ESC continuous/burst ratings with headroom. [oscarliang]
3. ESC ↔ Flight Controller
Check mounting pattern, connector pinout and voltage support. Never assume two brands share the same harness mapping. [news.quadpartpicker]
4. Receiver ↔ Radio ↔ Antennas
Match protocol and band, then plan antenna placement to avoid carbon structures and high‑current wiring shadows. [youtube]
5. Video System ↔ Goggles
Decide analog vs digital first, then guarantee full compatibility via vendor documentation and field tests. [youtube]
Following this checklist before purchasing dramatically reduces project cost and time to first smooth flight. [ligpower]
1. How do I know if my motor and prop choice will overload the ESC?
Estimate current draw using manufacturer data or published motor–prop tables, then choose an ESC with continuous and burst ratings above that figure and test early with a wattmeter or logged current data. [oscarliang]
2. Can I mix analog video on the drone with digital‑only goggles?
Not directly. You need compatible hardware (e.g., external analog receiver module feeding the goggles via HDMI or AV) and correct wiring; otherwise the systems will not talk to each other. [youtube]
3. What matters more for range, receiver protocol or antenna placement?
Both are important, but many pilots lose range due to poor antenna placement—antennas pressed against carbon, tucked under batteries or pointed the wrong way—even when using strong protocols like ExpressLRS. [news.quadpartpicker]
4. When does it make sense to use Li‑ion instead of LiPo?
Li‑ion is useful for long‑range cruising with moderate current draw; if your build spends most of its time at high throttle or sharp bursts, LiPo usually remains the better choice for voltage sag and peak current. [insidefpv]
5. As a small FPV brand, should I buy retail motors or work with an OEM supplier?
Retail motors are fine for small batches, but once you need specific KV, branding, QC and long‑term availability, partnering with an OEM/ODM motor supplier in China—such as Zhongshan Yuhang for brushless propulsion systems—gives you more control over performance and cost. [evcraft.en.made-in-china]
