When KDE Direct announced its 8218XF‑120 heavy lift brushless motor for commercial drones, it set a clear benchmark for what industrial‑grade drone propulsion should look like: high thrust, long life, and extremely smooth operation under continuous heavy load. As an engineer working with FPV drone motors and heavy‑duty brushless power systems for drones, gimbals, robots and underwater vehicles at Zhongshan Yuhang Power, I see this motor not only as a product but as a reference point for how to design reliable heavy lift drone motors today. [kdedirect]

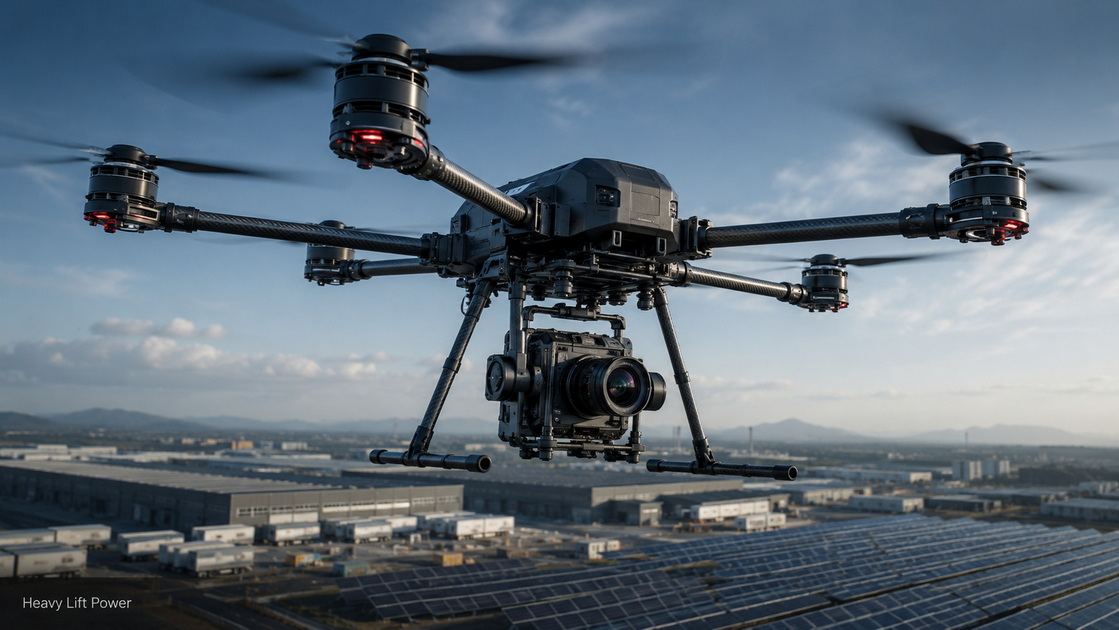

In 2026, heavy lift multirotor drones are used for cinema, logistics, inspection, agriculture and emergency response, all of which rely on stable, efficient brushless motors. Compared with brushed motors, brushless drone motors deliver higher efficiency, better power density and far longer service life, with typical lifetimes in the tens of thousands of hours when properly engineered and cooled. [brushless]
For B2B buyers, the motor is not just another component. It is the core of the powertrain, directly influencing payload capacity, flight time, noise, vibration and overall system safety. Choosing the right heavy lift brushless motor – or working with an OEM/ODM partner to develop one – has a direct impact on operating cost and mission success. [ligpower]
KDE's 8218XF‑120 (HE) motor is a large multi‑rotor brushless motor specifically designed for heavy lift commercial and industrial drones. It can drive propellers up to 32 inches and is built around a 120 Kv winding that targets high torque at relatively low RPM, ideal for lifting significant payloads with large props. [thedroneflight]
Key technical highlights:
- Advanced bearing layout – KDE uses a patent‑pending combination of angular‑contact and radial‑contact bearings to achieve low vibration, high smoothness and extended service life. [thedroneflight]
- Industrial‑grade materials – the motor uses Neodymium N45UH magnets, chosen for high temperature resistance and excellent magnetic performance in heavy duty environments. [brushless]
- Flexible mounting options – multiple mounting patterns (M5 × 40 mm, M5 × 55 mm, M6 × 55 mm) make it easy to integrate the motor into a wide range of multi‑rotor and UAS frames. [thedroneflight]
- Premium finish and machining – clear anodized, mirror‑polish CNC endbells and a black plated central flux ring showcase the high‑precision CNC workflow behind the design. [kdedirect]
From an engineering perspective, this combination of high‑quality magnets, robust bearings and versatile mounting is exactly what separates true heavy lift motors from generic large‑diameter units. [ligpower]
For commercial drone integrators, a heavy lift motor kit must deliver not only the motor itself but a consistent, mechanically robust installation package. KDE's kit for the 8218XF‑120 includes: [thedroneflight]
- Right‑hand and left‑hand M10 propeller adapter assemblies
- An M10 propeller bracket assembly (black edition)
- 24K bullet connectors for power wiring
- A full set of high‑strength Class 12.9 screws in multiple sizes for mounting and propeller fixation [thedroneflight]
This "ready‑to‑integrate" philosophy is a best practice we also apply when designing custom power system packages at Zhongshan Yuhang Power: motors, adapters, connectors and mounting hardware must be fully aligned to avoid field‑assembly issues. [futuremarketinsights]
From the perspective of a brushless motor manufacturer, the KDE design emphasizes several principles we also consider essential when developing heavy lift drone motors and FPV drone motors for our OEM clients. [yrdrone]

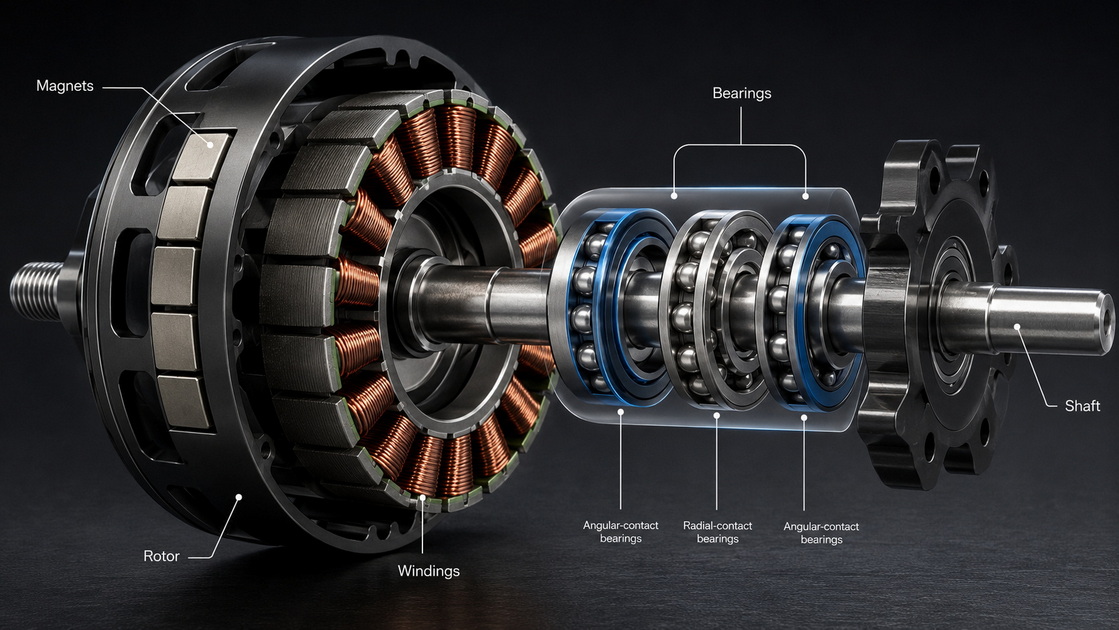

KDE's mixed angular‑contact + radial‑contact bearing layout reduces axial play and distributes load more effectively during takeoff, braking and aggressive maneuvering. For heavy lift drones that run long missions with high payloads, this directly impacts vibration, IMU noise and gimbal stability. [kdedirect]
In our own designs, we often:
- Use oversized bearings with high dynamic load ratings. [futuremarketinsights]
- Optimize the bearing span (distance between bearings) to minimize shaft flex in large‑diameter motors. [ligpower]
- Apply proper grease and sealing strategies for dusty or humid environments. [brushless]
The N45UH magnets used in the 8218XF‑120 are rated for higher temperatures, reducing the risk of demagnetization under sustained current. In heavy lift operations, motors run near continuous current limits, especially in hot climates or high altitude conditions. [futuremarketinsights]
For OEM/ODM work, we combine:
- Finite element analysis (FEA) to predict magnetic and thermal behavior. [futuremarketinsights]
- Optimized stator and rotor ventilation paths to improve cooling without sacrificing structural integrity. [ligpower]
- Magnet grades selected according to the specific mission profile and expected ambient temperature range. [brushless]
KDE positions the 8218XF‑120 as part of a broader heavy lift motor series and provides software and firmware updates tailored to these motors. Similarly, at Zhongshan Yuhang Power we focus on complete power system solutions, matching motors, ESCs, propellers and even wiring harnesses to ensure efficiency and reliability. [kdedirect]
The lesson for B2B buyers: treat the motor as part of a powertrain system, not an isolated spec sheet. [reddit]
Below is a simplified view of how heavy lift brushless motors differ from FPV racing motors in design emphasis. [yrdrone]
| Motor type | Primary goal | Typical KV range | Key priorities |
|---|---|---|---|
| Heavy lift drone motor | High thrust with efficiency | 80–200 Kv | Torque, cooling, long life, smoothness (thedroneflight) |
| FPV racing / freestyle motor | Instant response and power | 1600–2800 Kv | Throttle response, peak power, impact resistance (yrdrone) |
This distinction is crucial: choosing a motor designed for racing on a heavy lift platform leads to overheating, poor endurance and increased failure risk, while using a heavy lift motor for FPV racing makes the quad feel sluggish and heavy. [reddit]

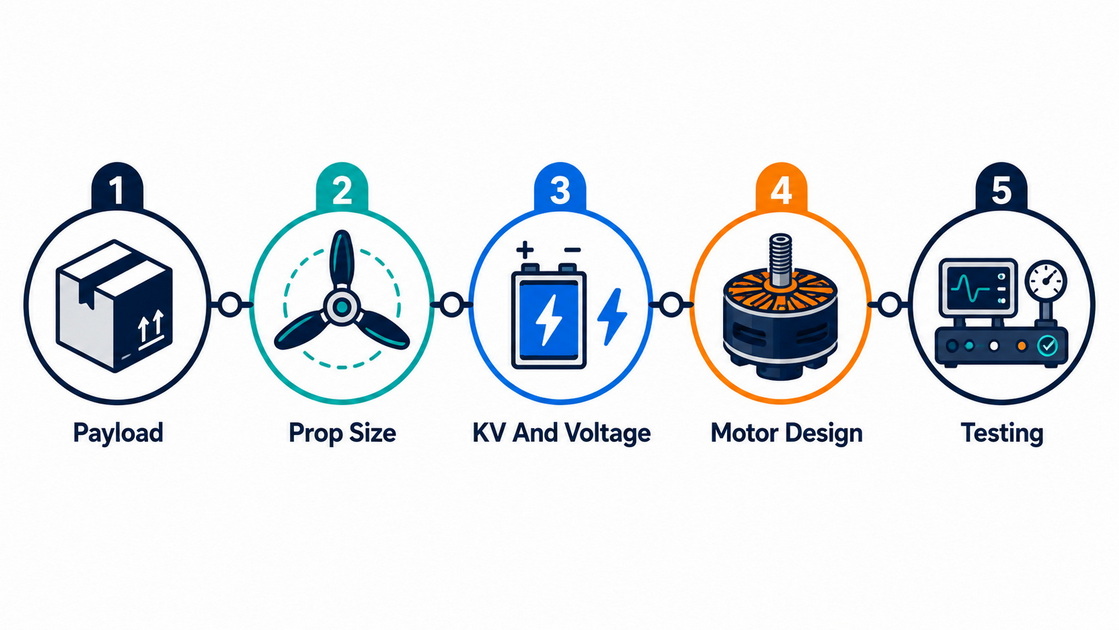

For engineering teams and B2B buyers, here is a high‑level framework we use when defining a new heavy lift brushless motor project. [ligpower]
1. Define payload and mission profile
Payload weight, typical flight time, environment (temperature, altitude, dust, moisture), and maneuvering style (hover, slow cruise, dynamic). [futuremarketinsights]
2. Select propeller size and target thrust
Choose target prop dimensions (e.g. 28–32 inches like the KDE 8218XF‑120 can handle), then derive required thrust per motor with adequate safety margin. [brushless]
3. Determine KV and voltage
Decide battery voltage (e.g. 6S–12S or higher) and compute the KV that delivers required RPM and thrust at acceptable efficiency and current. [reddit]
4. Engineer stator, rotor and bearing design
Choose stator dimensions, magnetic materials, winding scheme and bearing layout to support torque needs, cooling and lifetime targets. [ligpower]
5. Validate with lab and field testing
Use dynamometer tests, thermal cycling and real‑world flights to confirm thrust curves, temperature behavior and vibration levels. [kdedirect]
Following this process ensures the final motor is not only powerful on paper but robust in real service conditions. [futuremarketinsights]

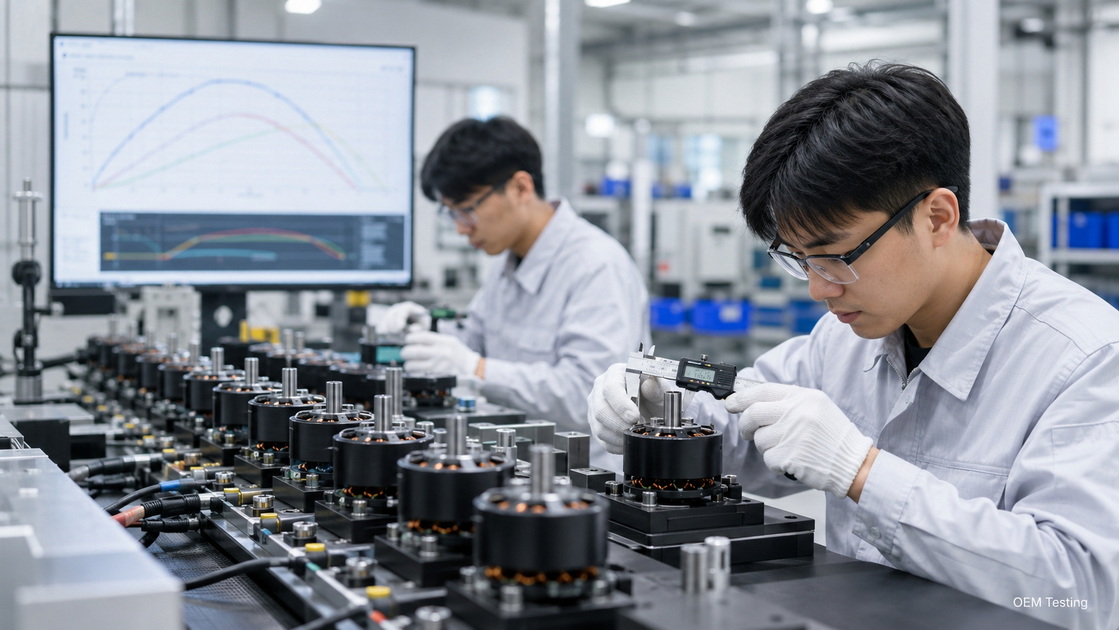

As a Chinese brushless motor manufacturer specializing in FPV drone motors and other power system solutions, Zhongshan Yuhang Power Technology Co., Ltd. works across multiple application domains: FPV drones, fixed‑wing aircraft, RC cars, high‑pressure "violent" fans, gimbals, cleaning robots and underwater robots. Our role is often to serve as the OEM/ODM partner behind the visible brand, delivering motors and integrated drivetrains tailored to specific B2B requirements. [instagram]
Our core capabilities include:
- FPV Drone Motor Design – high‑thrust, high‑response motors for racing and freestyle quads. [yrdrone]
- Heavy Lift Drone Motor Solutions – enlarged stators, low‑KV windings and custom bearing layouts for large props and high payloads, inspired by reference designs like the KDE 8218XF‑120. [brushless]
- Gimbal, Robot and Underwater Motors – low cogging torque, high sealing performance, and corrosion‑resistant materials for harsh environments. [instagram]
For brands and system integrators, working with us means being able to co‑design motors and ESCs to match exact mechanical constraints, safety requirements and certification goals, rather than adapting off‑the‑shelf products. [yrdrone]
To illustrate how an OEM/ODM collaboration works in practice, consider a hypothetical industrial client upgrading from generic large motors to a custom heavy lift solution. [reddit]
- Initial problem: flight times under 15 minutes at target payload, motors running hot, gimbal footage affected by vibration. [reddit]
- Engineering analysis: thrust benchmarks revealed that the existing motors operated near continuous current limits with inadequate cooling and bearing span. [brushless]
- OEM/ODM response: we proposed a lower KV motor with larger stator, improved ventilation, and an angular‑contact bearing stack similar in concept to high‑end designs like KDE's 8218XF‑120. [thedroneflight]
- Result: flight time improved by more than 20%, motor temperatures dropped significantly, and gimbal vibration levels fell within the client's camera manufacturer tolerance. [futuremarketinsights]
While each project is unique, this pattern – diagnose, model, redesign, validate – is typical for serious B2B heavy lift and industrial clients. [kdedirect]
If you are planning a new heavy lift drone, robot or gimbal platform and need a custom brushless power system, contact Zhongshan Yuhang Power to discuss OEM and ODM motor solutions, from FPV drones to industrial and underwater applications. [instagram]
1. What makes a brushless motor suitable for heavy lift drones?
A heavy lift drone motor needs high torque at low RPM, robust bearings, efficient cooling and materials that tolerate elevated temperatures, plus mounting options for large props (often up to 28–32 inches). [thedroneflight]
2. How is a heavy lift drone motor different from an FPV racing motor?
Heavy lift motors prioritize efficiency, smoothness and longevity at lower KV, while FPV racing motors focus on high KV, instant response and crash resilience, often sacrificing endurance. [yrdrone]
3. Why is bearing design so important in heavy lift brushless motors?
Advanced bearing layouts, like the angular‑contact plus radial‑contact system used by KDE, reduce vibration, support higher axial loads and extend service life, which is essential for long commercial missions. [kdedirect]
4. When should I consider a custom OEM/ODM motor instead of off‑the‑shelf units?
If your platform carries valuable payloads, operates in harsh environments, or will be produced in volume, a custom OEM/ODM motor and powertrain can improve efficiency, reliability and total cost of ownership. [yrdrone]
5. What information should I provide to a motor manufacturer for a heavy lift project?
Prepare details on payload, desired flight time, battery voltage, environment (temperature, altitude, dust, humidity), and regulatory constraints so the motor manufacturer can design or recommend the appropriate brushless solution. [reddit]
1. KDE Direct – "KDE Announces Powerful New Brushless Motor for Heavy Lift Drones" (8218XF‑120 specifications and description). [thedroneflight]
2. KDE Direct – "Drones" product overview (brushless motors for drones and UAVs, heavy lift focus). [kdedirect]
3. KDE Direct – News releases on heavy lift motor series and software features. [kdedirect]
4. Brushless.com – "130KV Brushless Heavy Lift Drone Motor" (general heavy lift motor characteristics and brushless vs brushed lifetime). [brushless]
5. Yahree and other FPV motor suppliers – FPV brushless motor performance notes and racing/freestyle optimization. [yrdrone]
6. Future Market Insights – Drone motor market growth, demand drivers and application trends through 2035. [ligpower]
7. Community and engineering discussions on heavy lift motor sizing, KV selection and thrust calculations. [reddit]
8. Zhongshan Yuhang Power promotional and technical materials – FPV drone motor and industrial brushless motor portfolios. [instagram]
