When customers ask me, "How long do brushless drone motors last?", they usually expect a simple number like "500 hours" or "5 years". In reality, after years of working with FPV drone motors, industrial UAVs, RC cars, gimbals, and even underwater robots, I've learned that motor lifespan is not a fixed spec – it's the result of how you design, fly, and maintain your system. [vsdmotor]
In this guide, I'll explain real‑world lifespans for brushless drone motors, why FPV motors often die long before the "theoretical" numbers, and how a specialized manufacturer like Zhongshan Yuhang Power Technology Co., Ltd. approaches durability for different applications. [yrdrone]
Under ideal lab‑style conditions, high‑quality brushless motors can reach 10,000–20,000 hours of operation in general industrial use. In more demanding applications or cheaper designs, the range drops significantly. [x-teamrc]
Real‑world estimates from industry sources and field experience look like this: [mepsking]
Application Scenario | Typical Lifespan Range |
General Industrial Use | 10,000–20,000 hours |
Consumer Brushless Motors | ~5,000–10,000 hours |
FPV Freestyle / Racing | ~500–2,000 flight hours |
FPV Long‑Range / Cruising | ~1,500–3,000 flight hours (with care) |
High‑end Industrial / Robotics | 20,000–50,000+ hours (optimized design) |
Why do FPV drone motors appear on the lower end? Because hard crashes, constant full‑throttle bursts, and dusty spots are far tougher than many factory or indoor environments. [reddit]
From my own FPV and B2B experience, it's common to replace motors due to damage long before they hit a true "wear‑out" limit – especially on aggressive freestyle or racing rigs. [reddit]

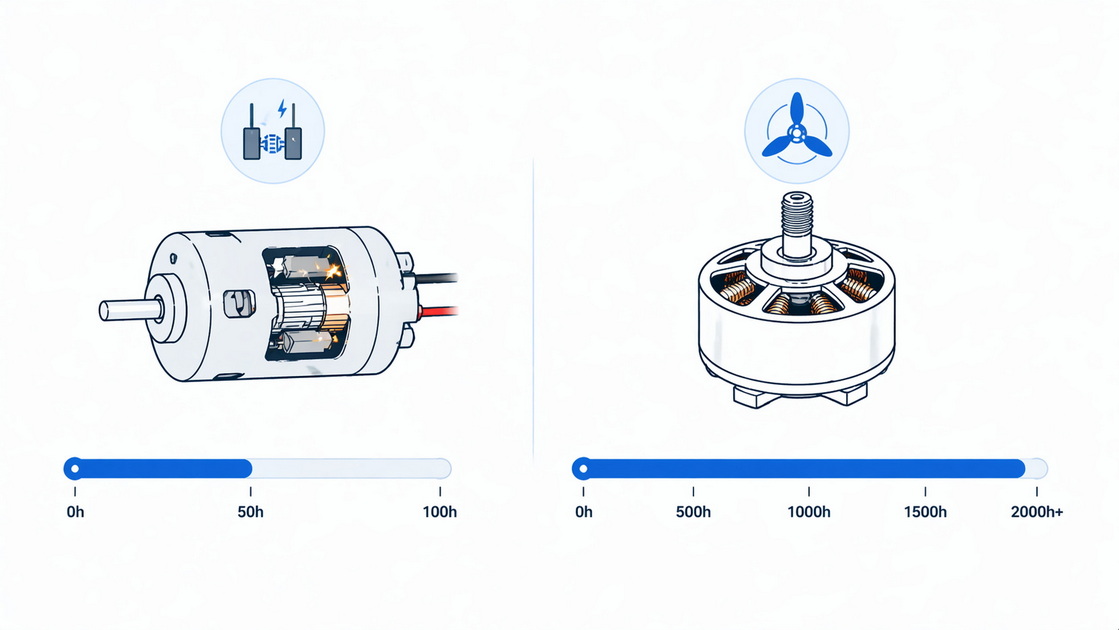

To understand lifespan, you must first understand why brushless motors outlive brushed motors.
- Brushed motors rely on carbon brushes and a commutator that physically switch current. [autelpilot]
- Brushes wear out
- Arcing generates heat and electrical noise
- Typical lifespan is tens to hundreds of hours, especially under load [vsdmotor]
- Brushless motors (BLDC) use electronic commutation, with no brushes inside. [hoverair]
- Much less internal friction
- Higher efficiency and power density
- Significantly longer service life – often 7–10 years in typical use when cooled and protected correctly [topbandmotor.com]
For drones, this means brushless motors can easily last the entire life of the airframe if not abused, crashed, overheated, or contaminated. [mepsking]
From a manufacturer's point of view, lifespan starts with design choices: [yrdrone]
- Bearing quality and size (steel or ceramic, load rating)
- Magnet grade and temperature rating
- Copper windings & insulation class (e.g., high‑temperature varnish)
- Precision of rotor balancing
- Cooling design (vented housings, material choice)
Motors built with premium bearings, strong magnets, and high‑temperature windings consistently survive longer in demanding missions. That's why reputable brands and serious OEMs invest heavily in materials and QC. [x-teamrc]
As a Chinese manufacturer specializing in FPV drone motors and custom brushless solutions, we've seen that small differences in bearing spec or magnet grade can add thousands of hours for industrial customers – or dozens of hard FPV packs for pilots. [ligpower]

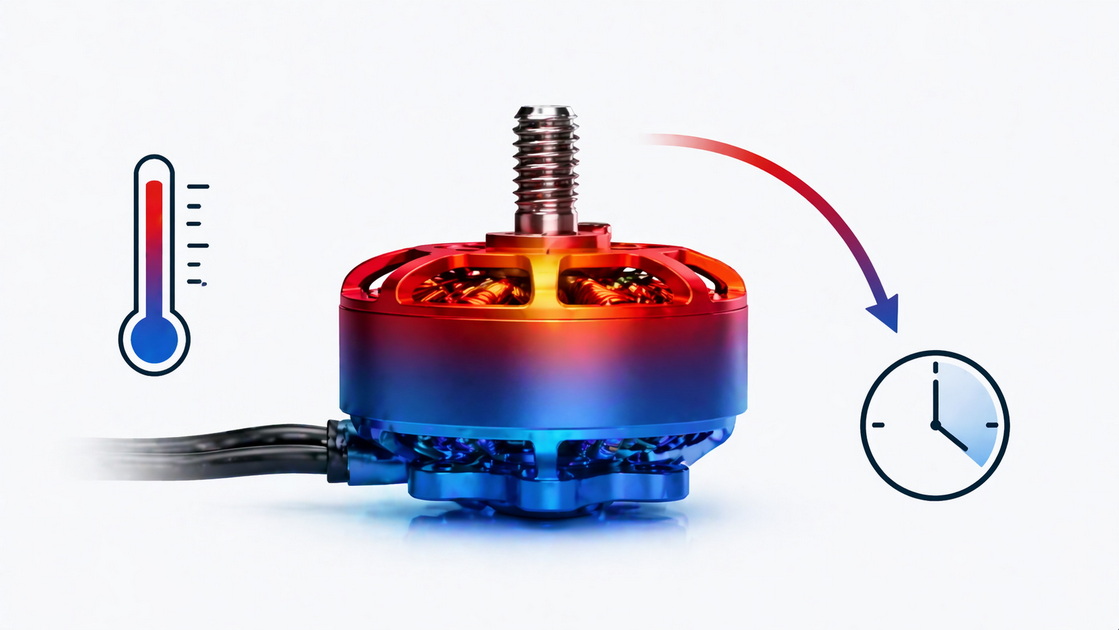

Overheating is one of the fastest ways to kill a brushless motor. [mepsking]
High temperatures:
- Degrade insulation on windings
- Weaken magnets (partial demagnetization)
- Accelerate bearing lubricant breakdown
Practical tips to keep temperatures under control: [mepsking]
- Don't over‑prop: too large or too aggressive props push current and heat up
- Avoid long, unnecessary full‑throttle holds
- Choose motors that are efficient at your expected amp draw, not just at peak numbers
In my test benches, just switching to a more appropriate propeller for a given KV often reduces operating temperature by 10–20°C, which significantly extends the bearing and magnet life.
Where you fly or operate matters almost as much as how you fly. [ligpower]
High‑risk environments include:
- Dusty fields, sand, or construction sites – particles enter bearings and stator gap
- High humidity, rain, or saltwater – corrosion and short circuits
- Chemical exposure – agriculture, industrial spraying
Recommended protection strategies: [vsdmotor]
- Clean motors with compressed air or a soft brush after dirty flights
- Avoid flying in rain or near saltwater when motors are not rated for it
- For B2B projects, consider IP‑rated, sealed, or coated motor versions
For agricultural and industrial customers, we often design special seals, coatings, and drainage paths to prevent dust and moisture from accumulating in critical areas. [grepow]
Two pilots can buy the same motors and get completely different lifespans. [mepsking]
- Freestyle / Racing FPV
- Rapid throttle changes, high peak current, and frequent crashes
- Bearings and bells endure extreme shock loads
- Typical real‑world lifespan: hundreds to low thousands of flight hours, often limited by crash damage [reddit]
- Long‑range / Cruising FPV
- Smoother, more consistent throttle
- Lower average current and heat
- Lifespan can increase to 1,500–3,000 flight hours with proper care [mepsking]
In B2B scenarios, such as mapping or inspection drones, smooth automated missions with conservative throttle and good cooling tend to get closer to the "long‑range" numbers rather than freestyle‑type life.
Even the best‑designed brushless motor can fail early if ignored. [yrdrone]

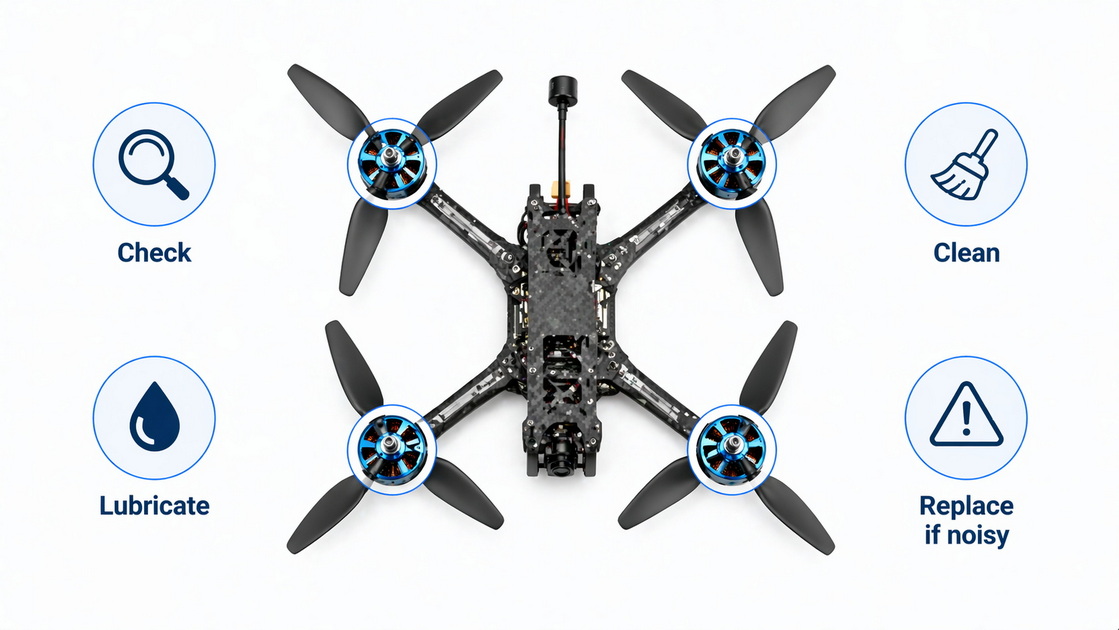

Basic maintenance checklist: [mepsking]
- Check shaft play
- Wobble = bearing wear or housing damage
- Listen for unusual noise
- Grinding, squeaking, or rattling often signal bearing issues
- Inspect bells and magnets
- Look for cracks, chips, or excessive rust
- Clean regularly
- Remove dust, sand, and grass with a soft brush or air
Some FPV and industrial motors are serviceable, allowing bearing replacement instead of full motor replacement. This is especially important for high‑value platforms, where replacing bearings can save significant cost over time. [vsdmotor]
Based on the Mepsking guide and broader industry data, we can summarize realistic FPV expectations as: [reddit]
FPV Style | Lifespan Range (Approx.) | Main Limiting Factors |
Freestyle / Bando | 500–2,000 flight hours | Crashes, vibration, heat |
Racing | 300–1,000 flight hours | Overheating, impacts, high amps |
Long‑Range / Cruising | 1,500–3,000 flight hours (with care) | Heat, dust, occasional crashes |
Note: many pilots break motors before they truly "wear out" – particularly in proximity flying, bandos, or racing tracks. [reddit]
Real pilots rarely measure hours precisely, so it's crucial to recognize symptoms instead. [mepsking]
Common warning signs:
- Excessive heat during normal flight → may indicate internal wear or over‑prop
- Unusual noise (grinding, harsh buzzing) → often bearing failure
- Loss of power or inconsistent thrust → potential demagnetization or winding damage
- Noticeable vibration or bell wobble → bent shaft, imbalance, or bearing play
- Visible damage (cracks, chips, severe rust) → crash‑related structural issues
The Mepsking article also summarizes typical symptoms and causes in a table (heat vs over‑prop, noise vs bearings, etc.), which aligns closely with what we see across FPV fleets. [mepsking]
For industrial drones, robots, and gimbals, the conversation shifts from "how many packs?" to "how many operating hours per year?". [x-teamrc]
Key characteristics in this segment:
- Motors often use higher‑grade bearings and insulation
- Duty cycles can be continuous or near‑continuous
- Design focuses on efficiency and thermal stability
Well‑designed industrial brushless motors can reach 20,000–50,000+ hours, especially in controlled environments or with robust cooling and proper loading. [yrdrone]
As a manufacturer serving drones, gimbals, robots, violent fans, and underwater platforms, we usually:
- Oversize the motor slightly relative to typical load
- Use high‑temperature windings and bearings
- Validate in customer‑specific environmental tests (dust, humidity, spray, etc.)
This system‑level approach is what allows B2B clients to treat motors as long‑term assets rather than consumables.
Based on the Mepsking guide and broader engineering best practices, here is a practical checklist: [vsdmotor]
1. Use the correct prop size and pitch
- Match props to motor KV and battery voltage; avoid over‑propping.
2. Balance your props
- Unbalanced props create vibration that punishes bearings and frames.
3. Avoid continuous max‑throttle runs
- Short bursts are fine; extended full power adds a lot of heat and stress.
4. Keep motors clean
- After dusty or sandy flights, clean with air or a soft brush; ensure everything is dry before the next flight.
5. Monitor heat
- After landing, touch the motor (carefully). Extremely hot to the touch is a warning sign.
6. Replace bearings or motors when symptoms appear
- Don't wait until the motor fails mid‑air; early replacement reduces collateral damage.
7. Log usage on critical B2B platforms
- Industrial users should track flight hours and maintenance intervals similar to aviation practice.
In many cases, yes – but it depends on motor size and cost. [x-teamrc]
- Small FPV motors
- Technically repairable (bearing or bell replacement), but often cheaper and more reliable to replace the entire unit. [mepsking]
- Larger industrial motors
- Bearing replacement, re‑balancing, and even rewinding are economically viable, especially on high‑value drones or robots. [x-teamrc]
From an OEM/ODM perspective, we design many of our B2B motors with serviceability in mind, especially for industrial customers who plan multi‑year deployments.
As a Chinese manufacturer specializing in FPV drone motors and brushless drive systems for drones, RC cars, gimbals, fans, aircraft, cleaning robots, and underwater robots, we focus on lifespan at the system level, not just on paper specs. [grepow]

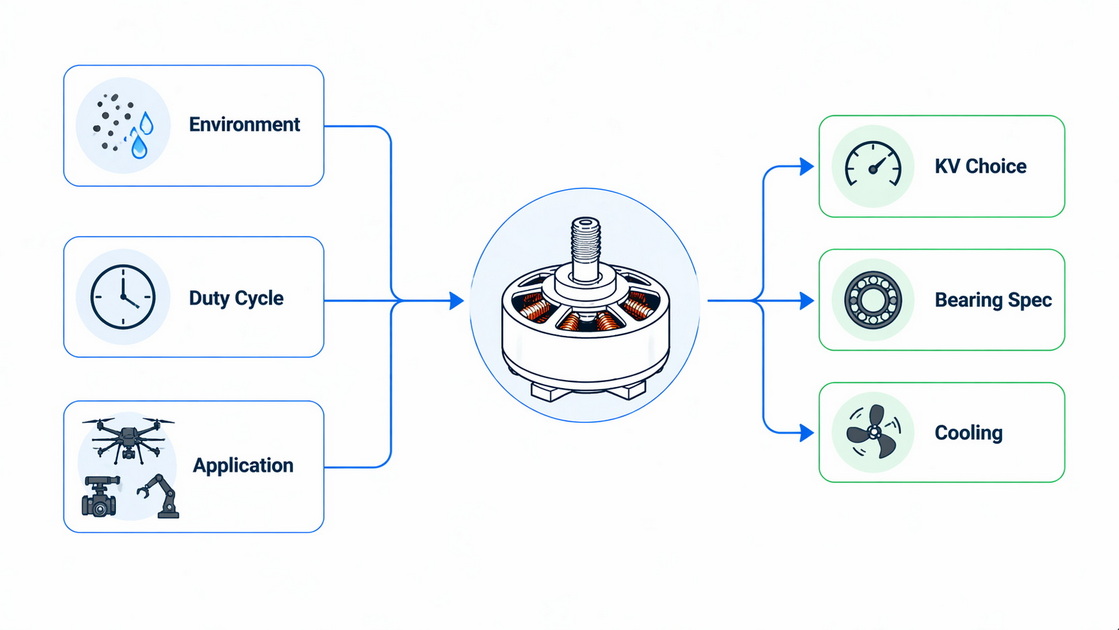

For OEM and ODM partners, we typically:
- Customize KV, winding, and magnet specs according to duty cycle and environment
- Offer bearing and sealing options tailored to dust, moisture, and expected impacts
- Co‑design motor + ESC + prop combinations to keep motors in a safe operating window
- Provide testing guidance (thermal tests, thrust bench, endurance runs) to validate lifespan before volume deployment
By aligning design, usage environment, and maintenance strategy, B2B customers can reach the upper end of the lifespan ranges listed earlier – whether they're building FPV products or industrial UAVs.
Brushless drone motors are capable of thousands of hours of reliable work, but only if they're properly specified, cooled, and maintained. [mepsking]
If you're designing or upgrading a platform, you can:
- Use the lifespan table above to set realistic expectations
- Review your environment and duty cycle and choose components accordingly
- Work with a specialized motor manufacturer like Zhongshan Yuhang Power Technology Co., Ltd. to tailor KV, bearings, and protection for your specific application
Instead of asking, "How long will this motor last?", start asking, "What do I need to change so that this motor can reach its full lifespan?"
1. Can brushless drone motors really last 10 years?
Yes, in moderate environments with good cooling, many brushless motors can operate for 7–10 years or more, especially in non‑crash‑prone applications. FPV rigs with frequent impacts usually reach mechanical failure first. [topbandmotor.com]
2. Why do my FPV motors feel rough after a few months?
Freestyle and racing generate bearing wear, bent shafts, and magnet damage much faster than gentle flying. Once you feel roughness or hear grinding, it's time for bearing or motor replacement. [mepsking]
3. How often should I replace bearings in brushless motors?
There's no fixed interval; instead, monitor noise, vibration, and shaft play. For high‑use FPV or industrial drones, schedule inspections every few dozen hours and replace bearings proactively when symptoms appear. [vsdmotor]
4. Do sealed or waterproof motors last longer?
In harsh, wet, or dusty environments, sealed and IP‑rated motors can dramatically extend life by keeping contaminants out. However, they must still be correctly sized and cooled. [ligpower]
5. Are cheap brushless motors always a bad idea?
Not always, but lower‑cost motors often cut corners on bearings, magnets, or QA, which directly affects lifespan. For professional or B2B use, the total cost of downtime and failures usually justifies higher‑quality motors. [yrdrone]
