How much weight can a drone carry? The answer depends on the drone's propulsion system, maximum takeoff weight, propeller size, battery voltage, frame structure, flight environment, and safety margin. A small consumer drone may only carry a light accessory, while a purpose-built industrial drone can lift tens of kilograms.
For pilots, engineers, drone brands, and equipment developers, payload capacity is not one number printed on a specification sheet. It is the result of the entire aircraft system working together. Motors must create enough thrust. Propellers must produce lift efficiently. Batteries must provide stable power. The frame must remain rigid. The flight controller must maintain stable handling after the payload is installed.
Zhongshan Yuhang Power Technology Co., Ltd. develops and manufactures FPV drone motors, brushless motors, and customized propulsion solutions for drones, FPV aircraft, RC vehicles, high-speed fans, camera gimbals, aircraft, cleaning robots, underwater robots, and other professional equipment. This guide explains drone payload capacity from a practical propulsion-system perspective.
Before estimating how much payload a drone can carry, it is important to distinguish between two common terms.
Maximum Takeoff Weight is the maximum permitted weight of the complete aircraft at takeoff. It includes the frame, motors, propellers, battery, ESCs, flight controller, landing gear, camera, cargo, and installed accessories.
Payload Capacity is the useful weight that remains available after the drone's essential components are included.
For example, a drone with a 10 kg maximum takeoff weight cannot carry a 10 kg package. If the airframe, propulsion system, battery, electronics, and landing gear already weigh 6 kg, the theoretical remaining weight is 4 kg.
However, even 4 kg may not be a safe operating payload. The aircraft needs enough power reserve for stable takeoff, wind correction, emergency maneuvering, and controlled landing.
Payload capacity is not the same as maximum lift. A drone may leave the ground with an excessive load, but it may not have sufficient stability, endurance, thermal margin, or emergency power reserve for practical operation.
Drone payload capability varies significantly by aircraft size, propulsion design, and intended application.
| Drone Category | Typical Application | Approximate Practical Payload Range |
|---|---|---|
| Mini and micro drones | Recreation, inspection, lightweight accessories | 20 g to 150 g |
| Consumer camera drones | Compact cameras, small lights, accessory systems | 100 g to 500 g |
| FPV camera drones | Action cameras, lightweight camera systems | 150 g to 2 kg |
| Professional cinema drones | Cinema cameras, gimbals, production lenses | 2 kg to 15 kg |
| Heavy-lift multirotors | Survey sensors, industrial cameras, specialist equipment | 10 kg to 30 kg |
| Agricultural and logistics drones | Spraying tanks, spreading systems, cargo transport | 30 kg to 50 kg or more |
These ranges should be used only as planning references. Actual payload limits must be verified through validated aircraft specifications, propulsion-system data, thermal testing, and real flight testing.
Heavy-lift agricultural and cargo drones use larger motors, larger propellers, reinforced airframes, high-capacity batteries, and professional control systems. Their lifting performance is the result of purpose-built engineering rather than a simple motor upgrade.
The motor is the foundation of drone lifting performance.
A drone motor does more than rotate a propeller. It must accelerate the propeller, maintain RPM under load, respond to flight-controller commands, resist aerodynamic changes, and stay within a safe operating temperature.
For payload-carrying aircraft, a suitable brushless drone motor should provide:
- High torque for larger propellers
- Stable output during sustained load
- Efficient power conversion
- Reliable bearing and shaft construction
- Effective heat dissipation
- A KV rating matched to battery voltage and propeller load
- Consistent production quality
Larger stator volume usually supports greater torque potential. This is why heavy-lift drones commonly use larger, lower-KV brushless motors instead of small, high-KV motors designed for racing or lightweight FPV aircraft.
Motor selection should never depend on KV alone. The correct motor must be selected together with the propeller diameter, blade count, pitch, battery voltage, aircraft weight, and expected working cycle.
Propellers generate lift by accelerating air downward.
For many heavy-payload applications, larger propellers can move a greater volume of air at lower rotational speeds. This can improve lifting efficiency when the motor and battery system are correctly matched.
Key propeller factors include:
- Diameter: Larger propellers generally move more air per revolution
- Pitch: Higher pitch can increase loading and forward drive, but may require more current
- Blade Count: More blades can improve grip and lift, while also adding drag
- Material: Carbon fiber and reinforced composites can provide stiffness and durability
- Balance: A balanced propeller helps reduce vibration and protects bearings
A larger propeller is not automatically the correct choice. The frame must allow enough clearance. The motor must provide sufficient torque. The ESC and battery must support the load safely.
Battery performance becomes more important as payload increases.
A high-voltage battery system can deliver a given power level with lower current. Lower current can reduce resistive loss through wires, connectors, ESCs, and power-distribution components.
For this reason, larger drones often use higher-voltage propulsion systems, including 6S, 12S, and other voltage configurations based on their engineering requirements.
However, a voltage increase requires complete system compatibility.
The motor needs the correct KV rating. The ESC must support the voltage. The battery connectors, wiring, capacitors, and power-distribution system must be rated for the application.
A stronger battery alone cannot transform a lightweight drone into a heavy-lift platform. The motor, propeller, frame, ESC, wiring, and flight-control system must all be designed for the required load.
Every gram in the aircraft structure affects payload capacity.
A heavy frame may be durable, but it requires more power simply to hover. A lightweight frame can improve available payload capacity, but it must still resist arm flex, vibration, landing impact, and torsional force.
Professional payload drones often use carbon fiber because it provides a strong strength-to-weight balance. Still, material choice is only one part of the design.
A payload-capable frame should support:
- Rigid motor mounting
- Safe propeller clearance
- Reliable battery and payload retention
- Center-of-gravity adjustment
- Stable landing structure
- Vibration isolation
- Protected wire routing

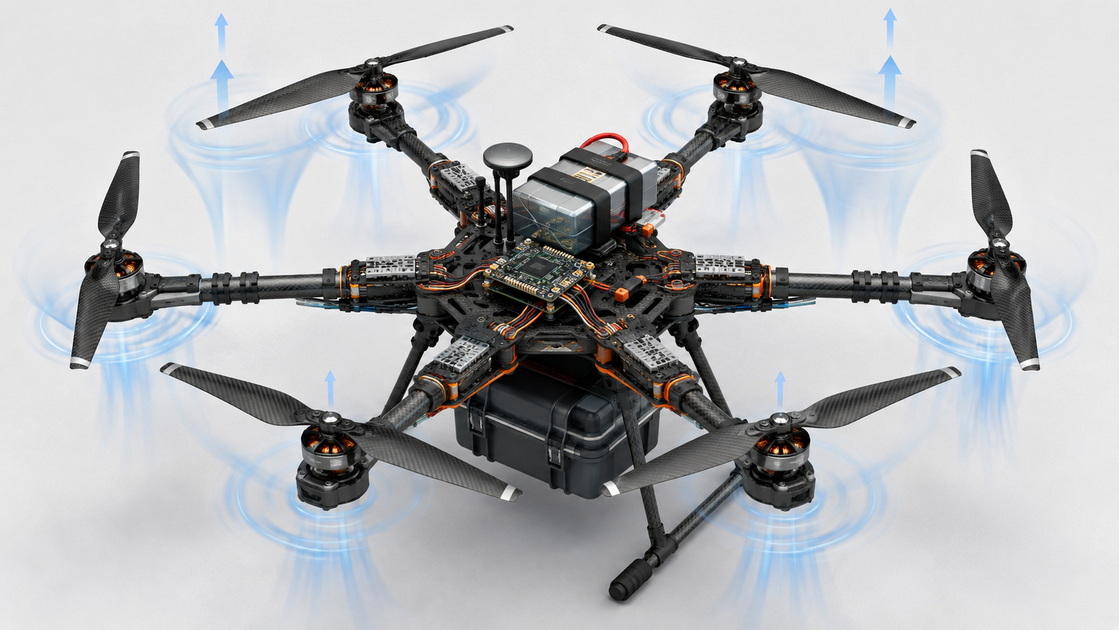

A practical payload calculation begins with total available thrust and the ready-to-fly weight of the aircraft.
Use this formula:
For a multirotor drone, total maximum thrust can be estimated as:
Total Maximum Thrust=Maximum Thrust Per Motor×Number of Motors
A 2:1 thrust-to-weight ratio is often considered a basic starting point for stable multirotor flight. This helps the drone hover without operating close to full throttle.
Payload aircraft generally need a larger power reserve.
| Flight Requirement | Suggested Planning Ratio |
|---|---|
| Basic stable hovering | At least 2:1 |
| Outdoor operation with a light payload | Around 2.5:1 |
| Payload flight in moderate wind | Around 3:1 |
| FPV camera lifting and active maneuvering | Around 4:1 or higher |
| Fast-response professional operation | Around 5:1 or higher |
These ratios are useful planning tools, not guaranteed operating limits. Battery voltage sag, temperature, altitude, wind, propeller condition, flight-control tuning, and pilot experience can all influence real-world performance.
Assume a hexacopter uses six motors. Each motor produces a tested maximum thrust of 4 kg with the selected battery and propeller.
6×4 kg=24 kg total maximum thrust
If the drone without payload weighs 6 kg, and the design target is a 3:1 thrust-to-weight ratio:
Target Total Takeoff Weight=24 kg/3=8 kg
Estimated Payload Capacity=8 kg−6 kg=2 kg
The practical estimated payload is 2 kg.
This result is only a starting point. It should be confirmed through bench testing, loaded hover testing, thermal evaluation, battery-sag review, wind testing, and repeated real-flight validation.

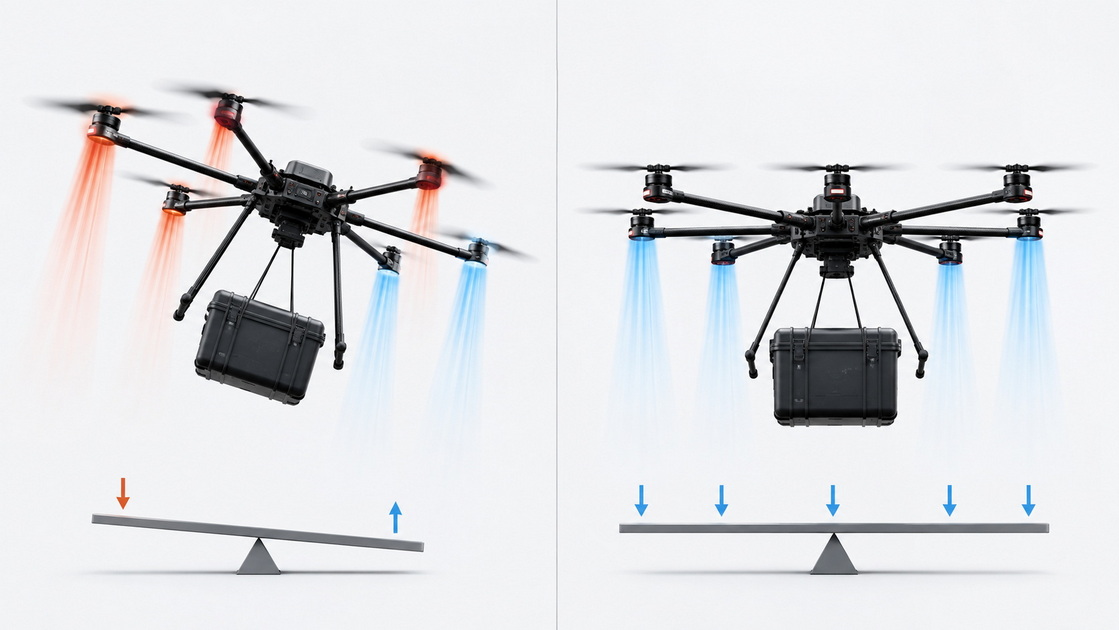

A drone can have enough total thrust and still fly poorly if the payload is installed in the wrong location.
The center of gravity is the balance point of the complete aircraft. For stable operation, it should remain close to the center of the propulsion layout and near the intended flight-controller reference point.
An off-center payload can cause:
- Uneven motor loading
- Higher electrical consumption
- Poor hover stability
- Continuous flight-controller correction
- Reduced wind resistance
- Higher motor and ESC temperatures
- Unexpected pitch, roll, or yaw behavior
This is particularly important for camera drones, delivery systems, agricultural drones, sensor platforms, and specialized industrial equipment.
Before flight, confirm the following points:
1. The payload is securely attached
2. The payload cannot swing into a propeller
3. The payload does not block sensors, antennas, or cooling airflow
4. The center of gravity remains near the aircraft centerline
5. The landing gear provides sufficient ground clearance
6. Cables and connectors cannot touch moving parts
7. The aircraft can hover stably before mission operation
A payload should never reduce the aircraft's control quality or create a risk of mechanical detachment during flight.
Payload capacity and flight time always involve a trade-off.
As total aircraft weight increases, motors need more power to maintain hover. More power creates higher current draw. Higher current drains the battery faster and increases heat in the motors, ESCs, connectors, and wiring.
A drone carrying a heavy payload may experience:
- Shorter flight time
- Higher hover throttle
- More battery voltage sag
- Higher motor temperature
- Higher ESC temperature
- Reduced wind margin
- Reduced emergency landing reserve
For professional operations, flight planning should include a realistic reserve for return and landing.
Do not design a mission around the battery's maximum advertised endurance. Consider flight route, wind direction, ambient temperature, altitude, battery condition, payload weight, and emergency landing options.
Increasing drone payload capacity requires system-level optimization.
A larger, torque-focused motor can support a larger propeller. This combination may improve usable lift and lifting efficiency.
However, it must be validated with the intended battery, ESC, wiring, and frame. A high-thrust motor should also maintain stable performance during sustained load, not only during a brief maximum-throttle test.
Weight reduction can be as valuable as adding more motor power.
Review components such as:
- Oversized landing gear
- Unnecessary protective covers
- Excessively long wiring
- Heavy mounting hardware
- Overbuilt payload brackets
- Duplicate accessories
Do not remove components that protect structural integrity, electrical safety, or payload retention.
A well-matched propeller can generate more lift per watt than an unsuitable propeller.
Compare propeller options under real operating conditions. Review thrust, current draw, efficiency, vibration, temperature, and practical flight behavior.
Higher voltage can support efficient power delivery when every component is correctly matched.
A voltage upgrade must include compatible motors, ESCs, batteries, wiring, connectors, capacitors, and safety procedures. It should be treated as a complete propulsion-system redesign rather than a simple battery replacement.
Heavy payloads create sustained electrical load.
Ensure that motors receive sufficient airflow. Mount ESCs where heat can dissipate effectively. Inspect motors, ESCs, connectors, and wires after controlled loaded flights.
If components become excessively hot, review the propeller choice, motor size, payload weight, cooling path, power system, and flight profile.
Maximum thrust is a tested limit under specified conditions. It is not the same as a recommended operating payload.
Always keep enough thrust reserve for takeoff, wind correction, obstacle avoidance, descent recovery, and controlled landing.
A battery can appear strong at takeoff but lose voltage under sustained load. This reduces motor RPM and can limit available thrust during demanding moments.
A camera, cargo box, lighting system, sensor, or delivery mechanism can shift the center of gravity. Even a small imbalance can increase motor workload and reduce handling quality.
An overloaded power system may fly normally for a short time but become unsafe after several minutes. Thermal testing is essential, especially during repeated flights and high-temperature conditions.
Consumer drones are usually optimized for compact design, easy operation, and integrated cameras. They may not have the structural strength, propulsion capacity, battery performance, redundancy, or control features required for industrial payload missions.
A dependable payload drone is engineered as a complete system.
For custom drone projects, a structured development process should include:
1. Define the payload type and target weight
2. Set flight-time and operating-environment requirements
3. Calculate the required thrust margin
4. Select the motor size, winding, and KV range
5. Match the propeller diameter, pitch, and material
6. Choose the battery voltage and capacity
7. Verify ESC current and voltage ratings
8. Design the frame for stiffness and center-of-gravity control
9. Complete thrust, efficiency, vibration, and thermal tests
10. Validate loaded flight performance before production
Zhongshan Yuhang Power Technology Co., Ltd. provides brushless motor manufacturing, FPV drone motor development, propulsion matching, and customized OEM and ODM solutions. Share your aircraft platform, propeller size, battery voltage, payload target, required flight time, and operating conditions to develop a power system that supports your product requirements.
Many mini drones are designed around their built-in camera systems and have very limited useful external payload capacity. A lightweight accessory may be possible, but unapproved additional weight can reduce stability, flight time, and safe control.
Yes. Many FPV drones can carry a naked action camera, compact action camera, or specialized cinema camera. The motor, propeller, frame, battery, and power reserve must be selected around the camera's installed weight.
A 2:1 thrust-to-weight ratio is often used as a basic minimum for stable multirotor flight. A practical payload drone commonly benefits from approximately 2.5:1 to 3:1 or higher, depending on wind, mission risk, required control margin, and expected maneuverability.
Often, but not by themselves. Larger motors can generate more torque and support larger propellers. The frame, propellers, ESCs, battery, wiring, and aircraft structure must also be matched. Larger motors also add weight.
It can improve power delivery when the motors, ESCs, wiring, and propellers are designed for the voltage. It is not a stand-alone upgrade. A mismatched higher-voltage battery can damage electronic components or create unsafe operating conditions.
