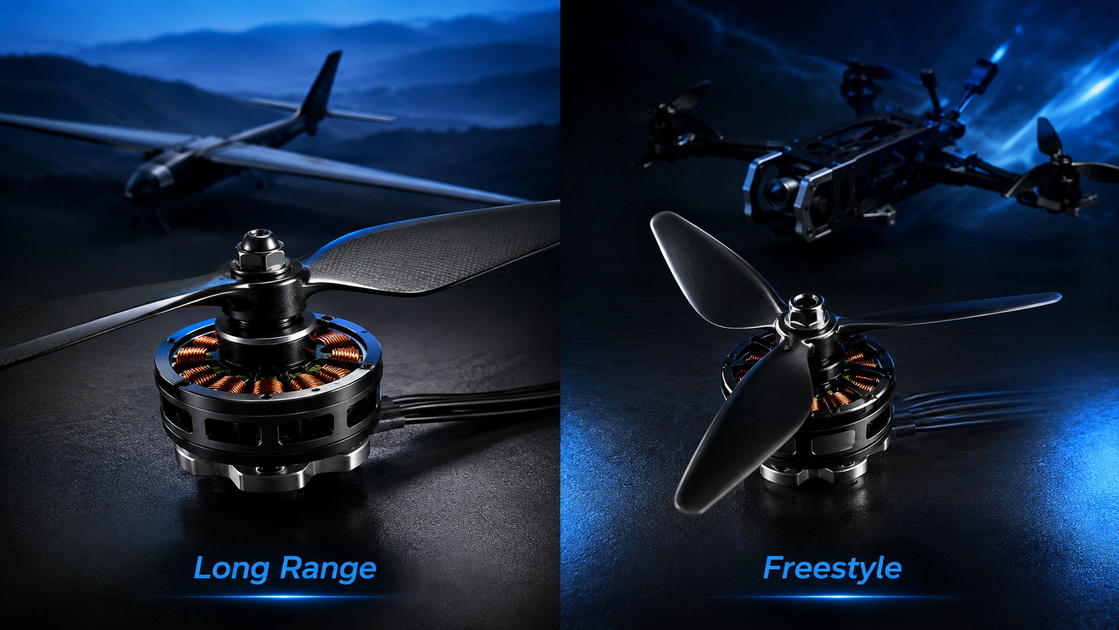

A long range FPV motor and a freestyle FPV motor are designed for very different flying priorities. Long-range motors focus on efficient cruising, stable thrust, and extended flight time. Freestyle motors focus on rapid throttle response, strong burst power, and precise control during fast maneuvers.
Neither motor type is universally better. The right choice depends on your propeller size, battery voltage, drone weight, payload, flight style, and performance target.
| Feature | Long Range FPV Motor | Freestyle FPV Motor |
|---|---|---|
| Main purpose | Efficient long-distance flight | Aggressive acrobatic flight |
| Typical drone size | 6-inch to 10-inch | Usually 3-inch to 6-inch |
| Common propeller setup | Larger diameter, lower pitch | Smaller diameter, medium or high pitch |
| Typical KV range on 6S | 900KV to 1,600KV | 1,700KV to 1,950KV |
| Common stator sizes | 2506, 2507, 2806.5, 2807 | 2207, 2306, 2307 |
| Throttle feel | Smooth and controlled | Fast and sharp |
| Main advantage | Better cruising efficiency | Better burst thrust and agility |
| Best applications | Exploration, inspection, cinematic, payload flight | Freestyle, diving, flips, proximity flying |
| Battery demand | More controlled during cruise | Higher during repeated punch-outs |
| Heat generation | Usually lower with proper matching | Often higher during aggressive flying |
A long range FPV motor is a brushless motor developed for efficient flight over extended distances. It is commonly used on FPV drones with 6-inch, 7-inch, 8-inch, or larger propellers.
The goal is not simply to create maximum peak thrust. A long-range setup must generate stable and efficient thrust at normal cruising throttle. This allows the aircraft to travel farther while reducing unnecessary battery consumption.
Long-range FPV motors are often selected for:
- Long-distance FPV exploration
- GPS-assisted flight platforms
- Cinematic FPV drones
- Inspection drones
- Mapping and monitoring UAVs
- Lightweight payload drones
- Professional multirotor platforms
- Custom industrial drone systems
A typical long-range motor uses a relatively larger stator and a lower KV rating. This helps it produce sufficient torque for a larger propeller without requiring excessively high RPM.
For example, many 7-inch long-range FPV builds use motors around 2506, 2507, 2806.5, or 2807. On a 6S battery system, KV ratings often fall between 1,200KV and 1,600KV. The final specification should always match the propeller load, aircraft weight, target cruise speed, battery type, and environmental conditions.
A freestyle FPV motor is designed for pilots who need fast and powerful response. These motors are commonly used on 5-inch FPV drones, although smaller and larger freestyle platforms also exist.
Freestyle flying puts repeated stress on a propulsion system. The motor must accelerate the propeller quickly, recover from sudden throttle changes, and maintain reliable control during flips, rolls, dives, power loops, and high-speed directional changes.
A freestyle motor is usually selected for:
- FPV acrobatic drones
- High-speed proximity flying
- Freestyle video production
- Urban and terrain flying
- Power loops and split-S maneuvers
- Fast diving and recovery
- Dynamic cinematic FPV footage
Common freestyle motor sizes include 2207, 2306, and 2307. A 5-inch freestyle drone running a 6S battery often uses motors between 1,700KV and 1,950KV.
The actual performance of a freestyle setup is influenced by more than motor KV. Propeller pitch, blade count, battery discharge capability, ESC settings, frame stiffness, PID tuning, and aircraft weight all affect how the drone feels in the air.
A long-range drone spends much of its flight time at low or medium throttle. Its motor should therefore perform efficiently in this range rather than only at full throttle.
A well-matched motor and propeller combination can reduce power consumption during cruising. This helps increase practical flight time and gives the pilot more margin for return-to-home or unexpected wind conditions.
Long-range FPV motors are usually paired with larger propellers. A larger propeller can move more air at lower RPM, helping the drone generate stable thrust without continuously demanding maximum motor speed.
Low-pitch propellers are common in endurance-oriented setups because they reduce load and can support smoother cruising behavior.
Many long-range platforms carry additional equipment, including GPS modules, cameras, antennas, action cameras, digital video systems, sensors, or lightweight inspection payloads.
The motor must deliver predictable output under changing aircraft weight and wind conditions. Smooth throttle response is especially valuable for cinematic footage and professional inspection work.
When the motor, propeller, battery, and ESC are correctly matched, a long-range setup can operate with lower average current demand than an aggressive freestyle configuration.
This can help reduce heat, voltage sag, and component stress during normal cruise flight.
Freestyle pilots need immediate control when entering or exiting a maneuver. A motor must rapidly change propeller speed when the throttle position changes.
This fast response helps the pilot maintain control during flips, rolls, dives, and sharp directional movements.
Freestyle flying often includes short bursts of high power. The drone may need to recover quickly after a dive, climb away from an obstacle, or gain altitude immediately after a low-level maneuver.
A freestyle FPV motor is built to provide strong short-duration thrust when the pilot demands it.
Higher-pitch propellers and multi-blade propellers can give a freestyle drone more grip in the air. This improves braking, cornering, and rapid directional control.
The trade-off is higher current draw. A system that delivers more aggressive response can consume battery power more quickly.
Freestyle motors often experience harder landings, prop strikes, crashes, vibration, and repeated high-throttle operation. Strong bells, reliable bearings, quality magnets, secure shafts, and durable mounting structures are important for long-term performance.
KV represents the theoretical no-load motor speed in revolutions per minute per volt.
For example, a 1,900KV motor supplied with 10V has a theoretical no-load speed of 19,000 RPM. In actual flight, the propeller creates load, so the real RPM is lower.
KV must be considered together with battery voltage and propeller size.
| Motor Characteristic | Lower KV Motor | Higher KV Motor |
|---|---|---|
| Best propeller range | Larger propellers | Smaller propellers |
| Typical flight use | Endurance and payload flight | Freestyle and high-response flight |
| RPM potential | Lower | Higher |
| Torque requirement | Higher for larger prop loads | Lower for smaller prop loads |
| Current risk with large propellers | Lower when correctly matched | Higher if over-propped |
| Typical battery pairing | Higher-voltage endurance systems | Standard high-performance FPV systems |
A lower-KV motor is often more suitable for a larger long-range propeller. A higher-KV motor is often more suitable for a smaller freestyle propeller.
However, selecting a motor based only on KV can lead to poor results. The same KV can behave very differently when stator size, winding design, magnetic structure, propeller load, voltage, and cooling conditions change.

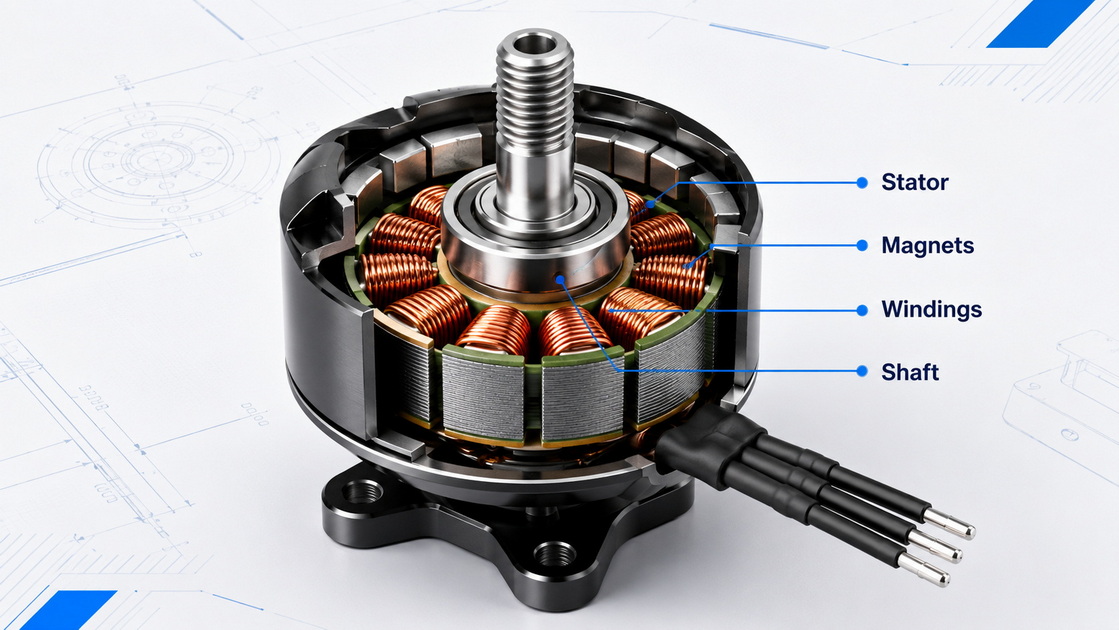

Motor size is often shown with a four-digit number such as 2207, 2306, or 2807.
The first two digits usually indicate stator diameter. The final two digits indicate stator height.
For example:
- A 2207 motor has a 22 mm stator diameter and 7 mm stator height.
- A 2306 motor has a 23 mm stator diameter and 6 mm stator height.
- A 2807 motor has a 28 mm stator diameter and 7 mm stator height.
A larger stator can provide more torque potential. This can be valuable for turning larger propellers, carrying heavier batteries, or supporting payload equipment.
However, larger is not always better.
A larger motor also increases drone weight. If the motor is oversized for the airframe, the extra weight can reduce overall efficiency and make the drone less responsive.
The correct stator size should balance:
- Propeller diameter
- Propeller pitch
- Battery voltage
- Drone all-up weight
- Required thrust
- Desired flight time
- Desired throttle response
- Payload requirement
- Frame size and cooling airflow

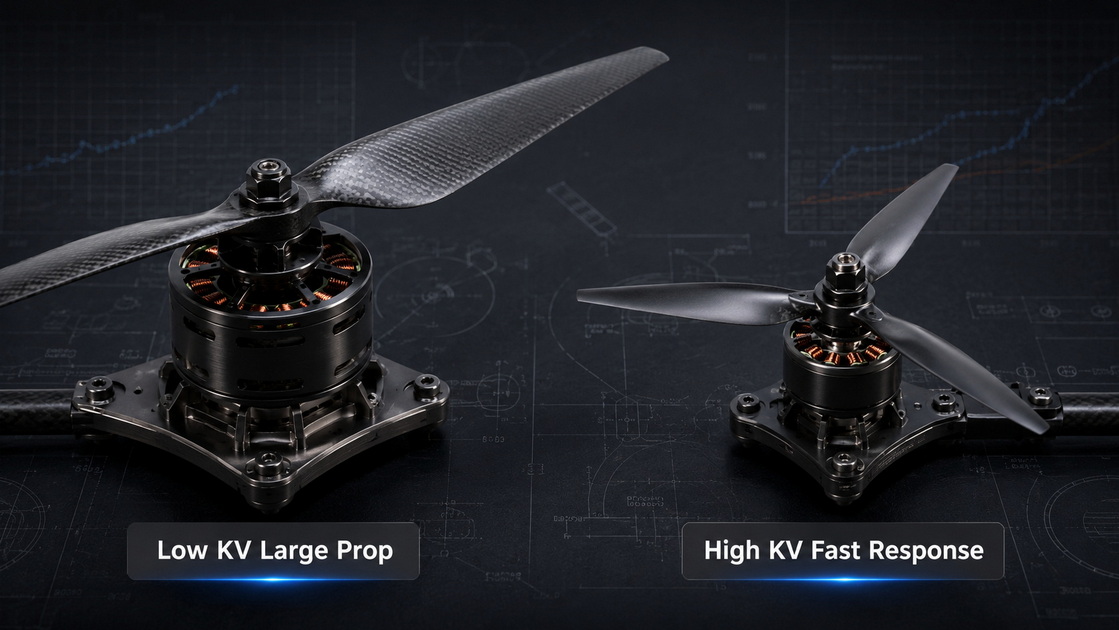

A motor cannot be evaluated separately from its propeller. Propeller diameter, pitch, blade count, material stiffness, and weight all affect motor load.
A motor that performs well with a light 7-inch two-blade propeller may become inefficient or run hot with a heavy 7-inch three-blade propeller.
Long-range builds often use larger and lower-pitch propellers because they are suited to smooth, efficient cruising.
Freestyle builds often use medium- or high-pitch propellers, frequently with three blades. These propellers can provide stronger grip, faster response, and more braking authority.
| Propeller Feature | Long-Range Preference | Freestyle Preference |
|---|---|---|
| Diameter | Larger | Smaller to medium |
| Pitch | Lower to medium | Medium to high |
| Blade count | Often two or three blades | Commonly three blades |
| Main benefit | Efficiency and stable cruising | Grip and fast response |
| Main trade-off | Less aggressive handling | Higher current draw |
Before finalizing a motor for production, test the exact propeller model intended for the final drone configuration.
For long-distance cruising, a long range FPV motor is generally the better option. It is designed to produce useful thrust efficiently during normal flight.
Motor efficiency can be evaluated through thrust, current draw, power consumption, and grams of thrust per watt.
Efficiency=Thrust (g)/Power (W)
A higher grams-per-watt value means the propulsion system produces more thrust from the same electrical power input.
For endurance-oriented drones, it is important to compare performance at realistic cruising throttle levels. Full-throttle figures can be useful, but they do not show the complete picture for a drone that will spend most of its mission flying at moderate throttle.
Freestyle motors may be less efficient during aggressive flight. This is not necessarily a disadvantage. Their purpose is to provide fast response and reserve thrust when the pilot needs immediate control.
The flight feel of a drone is shaped by the entire propulsion system.
A long-range motor usually feels smoother and more controlled. It supports stable cruise flight, gradual acceleration, and predictable behavior with larger propellers.
A freestyle motor usually feels more direct and energetic. It provides sharper acceleration, faster recovery, and stronger response to throttle input.
| Flight Characteristic | Long Range FPV Motor | Freestyle FPV Motor |
|---|---|---|
| Cruise stability | Excellent | Good |
| Long flight potential | Excellent | Moderate |
| Punch-out power | Moderate to strong | Strong to very strong |
| Flip and roll response | Moderate | Excellent |
| Dive recovery | Good | Excellent |
| Payload compatibility | Excellent | Moderate |
| Smooth cinematic movement | Excellent | Good |
| Aggressive acrobatics | Moderate | Excellent |

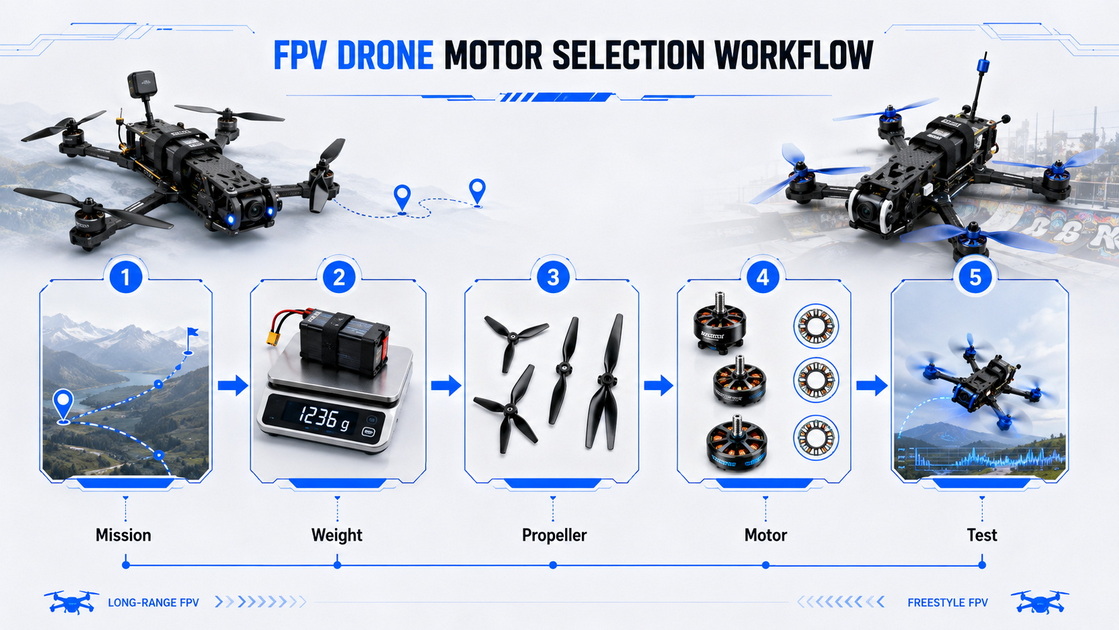

Selecting the correct FPV motor requires a complete system view.
Start with the main operating purpose.
Choose a long-range-oriented motor system for:
- Extended-distance exploration
- GPS-supported cruising
- Inspection and monitoring
- Cinematic flight
- Payload stability
- Larger propeller platforms
Choose a freestyle-oriented motor system for:
- Acrobatic flying
- Fast directional changes
- High-speed maneuvering
- Dive recovery
- Dynamic FPV filming
- Powerful short-duration acceleration
Calculate the total flying weight of the drone, including:
- Frame
- Motors
- ESC
- Flight controller
- Battery
- GPS module
- Receiver
- Camera
- Video transmitter
- Antennas
- Propellers
- Action camera
- Payload or sensor equipment
- Mounting hardware
A heavier drone needs more torque and more thrust reserve. However, adding excessive motor weight can create a cycle of rising power consumption.
The propeller creates the load that the motor must turn.
Select the propeller diameter, pitch, and blade count based on the drone's mission. Then select a motor that can drive that propeller efficiently and safely.
KV and voltage must work together.
A high-KV motor with a large propeller may draw excessive current. A low-KV motor with a small propeller may feel weak and slow.
The correct pairing helps maintain reasonable current demand, motor temperature, battery performance, and flight behavior.
Review the motor's performance under the intended setup.
Key data points include:
- Thrust
- Current draw
- Power consumption
- Motor temperature
- Efficiency
- Maximum recommended propeller size
- Recommended battery voltage
- ESC current requirement
Bench testing should be followed by real flight testing. Monitor motor temperature, ESC temperature, vibration, battery sag, and handling quality before large-scale deployment.
Long-range motors are suitable for more than recreational FPV drones. Their efficient thrust characteristics can support many professional applications.
Common applications include:
- Long-range FPV drones
- Cinematic camera drones
- Inspection drones
- Mapping UAVs
- Security patrol drones
- Environmental monitoring systems
- Agricultural observation platforms
- Lightweight logistics drones
- Search and rescue support systems
- Custom industrial UAVs
For these applications, motor selection often needs to consider weather resistance, vibration control, payload compatibility, operating noise, maintenance cycle, and production consistency.
Freestyle motors are most suitable for aircraft where fast response matters more than maximum endurance.
Common applications include:
- 5-inch FPV freestyle drones
- Action-camera FPV platforms
- Dynamic aerial filming drones
- Proximity flying drones
- FPV training drones
- Racing-freestyle hybrid drones
- Compact performance quadcopters
A well-designed freestyle motor should provide a balance of power, durability, smoothness, and manageable heat output.
Different drone platforms require different motor characteristics. A single motor specification may not be suitable for every type of FPV drone.
A 7-inch inspection drone may need lower KV, high torque, and smooth payload control. A 5-inch freestyle drone may need higher KV and stronger burst output. A 6-inch cinematic platform may need balanced efficiency, controlled response, and low vibration.
For custom FPV drone motor projects, important design variables may include:
- KV rating
- Stator size
- Winding configuration
- Shaft diameter
- Mounting-hole pattern
- Bearing structure
- Motor wire length
- Connector requirements
- Propeller compatibility
- Waterproof design
- Corrosion resistance
- Thermal targets
- Branding and packaging
- Application-specific testing requirements
Zhongshan Yuhang Power Technology Co., Ltd. develops brushless motor solutions for FPV drones, RC vehicles, high-speed fans, camera gimbals, aircraft, robotic vacuum cleaners, underwater robots, and other professional equipment. Motor specifications can be adapted to suit different application requirements, production volumes, and product positioning.
A long range FPV motor is the stronger choice for efficient cruising, longer missions, large propellers, smooth payload handling, and stable flight. A freestyle FPV motor is the stronger choice for fast response, aggressive control, powerful acceleration, and acrobatic flying.
The most reliable result comes from matching the motor with the right propeller, battery voltage, drone weight, ESC capacity, and flight mission. A balanced propulsion system can improve performance, reliability, thermal behavior, and user experience across the entire drone platform.
A long-range motor focuses on efficient cruising and stable thrust with larger propellers. A freestyle motor focuses on rapid throttle response, burst power, and control during aggressive maneuvers.
Yes, but it may not be the most efficient choice. A higher-KV freestyle motor can increase current draw and heat when used with larger propellers. It may work on a hybrid build, but dedicated long-range motor specifications are usually better for endurance-focused drones.
No. Lower KV is often suitable for larger propellers and endurance flight, but it must be matched with motor size, battery voltage, aircraft weight, and propeller load. A KV rating that is too low may reduce available thrust and responsiveness.
Many 7-inch long-range FPV drones use motor sizes such as 2506, 2507, 2806.5, or 2807. The final choice depends on the drone weight, battery type, payload, propeller design, and desired cruise speed.
Freestyle flying involves fast throttle changes, high-RPM propeller loading, sharp braking, dives, and repeated punch-outs. These conditions can create high current draw and heat, especially when using aggressive high-pitch or three-blade propellers.
1. Oscar Liang. [How to Choose FPV Drone Motors]
2. T-Motor. [Drone Motor and Propeller Matching Guide: KV, Size & Efficiency]
3. UAVMODEL. [FPV Drone Motor Guide: KV Ratings, Stator Size, and Prop Matching]
4. LIGPOWER. [The Ultimate FPV Drone Motors Guide]
5. UAVMODEL. [FPV Motor Thrust Testing and Selection Guide]
6. GetFPV Learn. [All About Multirotor Drone FPV Motors]
7. Mepsking. [How to Calculate Drone Motors Thrust]
