The first time I specced motors for an industrial multirotor, I did exactly what many new engineers do—I picked whatever "looked powerful" from a catalogue and hoped it would work. The result was hot bells, short flight times and a payload that never met the client's requirement. Over the last decade, as FPV and commercial UAV markets have grown into multi‑billion‑dollar industries, choosing the right brushless motor has become a critical engineering and business decision. [stellarmr]
Today, brushless motors power everything from FPV racing drones and cinematic rigs to inspection platforms, mapping UAVs and robotic systems. In this guide, I'll explain—in practical terms—why brushless motors are more powerful than brushed designs, how modern engineering raises that performance further, and what procurement managers should look for when selecting OEM and ODM brushless motor partners such as Zhongshan Yuhang Power Technology Co., Ltd. for FPV and multi‑application projects. [idtechex]
Traditional brushed motors rely on physical contact brushes that transfer current to the rotating armature. This design is simple and cheap to drive—but it comes with trade‑offs that make it unsuitable for modern multirotor and FPV applications. [powerelectric]
Typical limitations include: [getfpv]
- Mechanical wear: sacrificial brushes wear out over time, demanding regular maintenance and replacement.
- Poor high‑speed performance: as speed increases, brush friction and arcing rise, wasting energy as heat rather than useful torque.
- Restricted speed range: brush geometry and contact limits practical operating speed. [getfpv]
- Electromagnetic noise: brush arcing generates EMF interference that can disturb nearby electronics, including sensitive flight controllers and sensors. [getfpv]
For small toys or simple actuators, these compromises are acceptable. For FPV drones or industrial UAVs, they quickly become operational risk.
Brushless motors replace mechanical commutation with electronic control via ESCs, using permanent magnets in the rotor and windings in the stator. This seemingly simple architectural change delivers several power and durability advantages: [oscarliang]
- Higher output power in a smaller package – better torque density and efficiency per gram. [oscarliang]
- Improved heat dissipation – stator windings fixed to the outer structure can be cooled more effectively than an internal brushed armature. [oscarliang]
- Wide speed range – electronic commutation allows high RPM operation with precise control.
- Low electrical noise – absence of brush arcing drastically reduces EMF interference. [getfpv]
For FPV and industrial drones, this translates directly into longer flight times, higher payloads and more stable control across the entire throttle range. [blog.uavmodel]
Recent market reports estimate that the FPV drone segment alone is growing above 20% CAGR into the early 2030s, driven by racing, freestyle and cinematic use. Broader drone‑motor markets are projected to more than double between 2026 and 2034 as commercial and industrial UAV deployments scale globally. [fortunebusinessinsights]
In practice, that means:
- More airframes demanding tuned motor‑prop‑ESC combos.
- More OEM brands looking for differentiated performance and durability.
- More B2B buyers needing long‑term motor supply with consistent quality and certification. [neumotors]
Brushless technology sits at the heart of this growth. As control algorithms improve and materials advance, modern motors deliver not only raw power but predictable, repeatable performance across thousands of hours of operation. [neumotors]
Premium motor manufacturers like KDE Direct have shown how deep engineering in materials and construction can push brushless performance further.
Typical differentiators include:

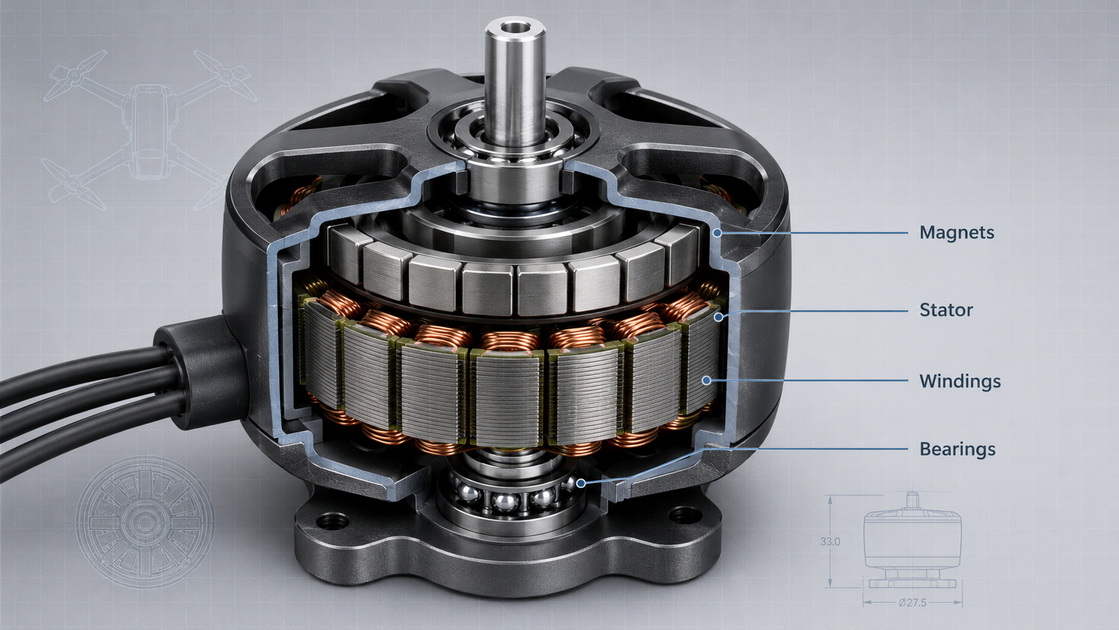

- High‑grade stator laminations – e.g., 0.2 mm Japanese silicon steel to reduce core losses and improve efficiency.
- High‑temperature windings – polyimide‑coated copper rated up to 240°C, sustaining output in demanding environments.
- Robust winding retention – Kevlar tie wraps and vacuum‑pulled epoxy coating to secure windings and reduce failure risk.
- High‑temperature magnets – N45UH neodymium magnets rated around 180°C, maintaining magnetic performance under sustained load.
- Precision bearing systems – triple‑supported ABEC‑7 Japanese bearings rated for hundreds of hours of smooth operation.
- Sealed internals – permanent bonding and sealing to protect against dust, moisture and vibration.
These design choices come straight from field experience in commercial and industrial UAVs, where every failure carries real cost.
From a procurement standpoint, certification and quality systems are as important as raw specifications. [sinospect]
Key signals of a serious brushless motor manufacturer include:
- ISO 9001‑certified manufacturing for consistent quality. [fortunebusinessinsights]
- Environmental and safety initiatives such as RoHS, CE and WEEE for global compliance. [sinospect]
- Documented testing procedures for endurance, high‑temperature operation and vibration. [neumotors]
KDE Direct, for example, emphasizes ISO 9001 and RoHS/CE/WEEE conformity in its manufacturing facilities, reflecting the level of rigor expected in industrial UAV applications. Buyers should expect similar transparency from any motor partner they consider.
In FPV, motors define how a quad "feels" in the air—explosive, smooth, efficient or cinematic. Common 5‑inch builds in 2026 use motors like 2306 or 2207 stators at 6S voltages with KV tuned between ~1850–1950 for all‑round performance. [oscarliang]
FPV pilots care about: [blog.uavmodel]
- Torque and throttle response.
- Efficiency for longer flight times.
- Durability under frequent crashes and hard landings.
Here, brushless motors allow nuanced tuning that brushed designs simply cannot match.
Commercial and industrial UAVs extend the same technology into heavier and more complex missions—mapping, inspection, logistics, agriculture and more. In these settings, procurement managers look beyond KV and size to: [idtechex]
- Payload capacity and thrust curves for heavy‑lift designs.
- Thermal behavior in hot, dusty or high‑altitude environments. [fortunebusinessinsights]
- Certification and documentation for regulatory compliance and customer assurance. [sinospect]
Manufacturers such as KDE Direct and custom‑solution providers like NeuMotors emphasize engineering support and long‑term reliability specifically for these segments. [neumotors]
Chinese OEMs including Zhongshan Yuhang Power Technology Co., Ltd. further broaden options by delivering integrated brushless power systems—motors matched with ESCs and, where needed, propellers—for drones, RC cars, industrial fans, gimbals, aircraft, cleaning robots and underwater robots. This system‑level approach is especially attractive to small and mid‑size brands that need high cost‑performance and deep OEM/ODM customization rather than off‑the‑shelf parts alone. [yuhangmotor]

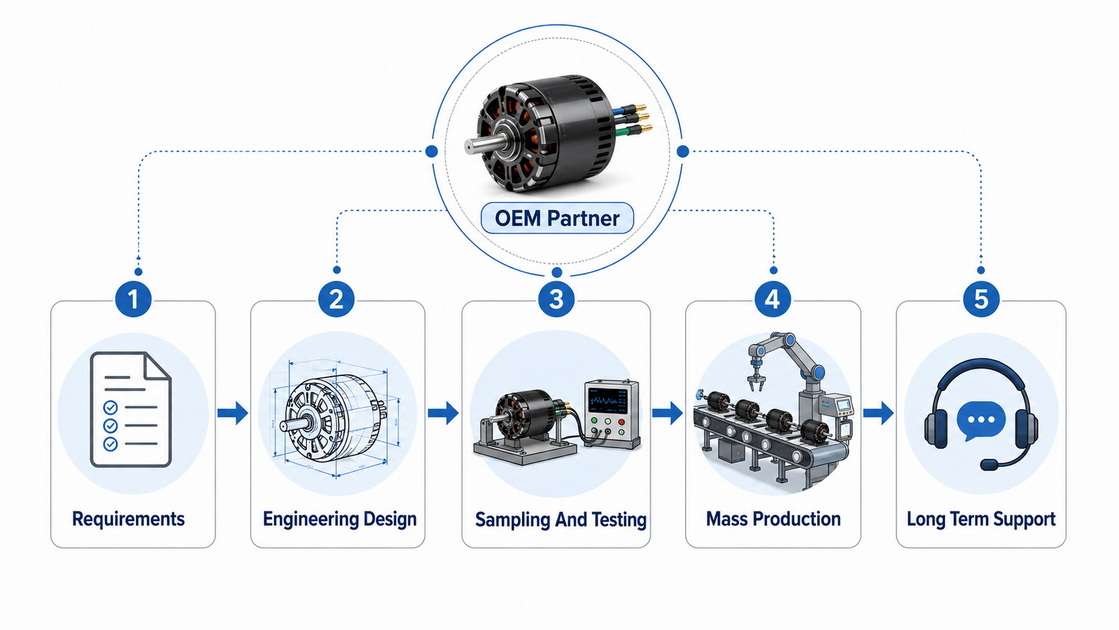

From a B2B sourcing perspective, technical specs are only half the story. The other half is whether the supplier can reliably support your product roadmap.
1. Check business and certification backbone
Verify the company's legal registration, operating status and ISO certificates via issuing body registries. Confirm CE and RoHS documentation for target markets. [metafuro]
2. Assess engineering depth and customization capability
Ask about:
- In‑house design tools (FEM/CFD, electromagnetic simulation). [neumotors]
- Ability to customize KV, stator dimensions, shaft types and mounting patterns. [holrymotor]
- Experience across multiple applications (e.g., FPV drones, industrial fans, underwater thrusters). [evcraft.en.made-in-china]
3. Review QC and testing processes
Request descriptions of:
- Incoming material inspection and batch traceability.
- Endurance tests, thermal cycling, vibration and impact tests.
- Life test results (e.g., hundreds of hours at specified loads). [fortunebusinessinsights]
4. Evaluate communication and project management
Reliable OEM partners respond quickly, support sample iterations and provide clear documentation and change logs for engineering updates. [jkongmotor]
In my experience, suppliers like Zhongshan Yuhang, which emphasize independent control over R D, design, production and testing, tend to be better long‑term partners for evolving product lines. [yuhangmotor]
Choosing a "powerful" motor is not enough; it must be matched to the rest of the powertrain. [oscarliang]
A practical engineer's workflow:
1. Define mission and weight
Start with all‑up weight and mission profile (racing, freestyle, cinematic, industrial payload). [idtechex]
2. Select prop size and type
Choose prop diameter and blade count based on frame size and desired flight characteristics. [insidefpv]
3. Choose motor stator and KV
Use tables or manufacturer recommendations to match KV and stator volume to prop and battery cell count. [blog.uavmodel]
4. Select ESC with headroom
Estimate peak current draw, then choose ESC continuous and burst ratings above that figure to avoid thermal stress. [oscarliang]
5. Validate with tests
Run bench and flight tests, monitoring current, temperature and efficiency; adjust where necessary. [blog.uavmodel]
This process is repeatable across FPV and industrial builds and feeds directly into OEM communication when specifying custom motors.
1. Why do brushless motors stay efficient at high speed while brushed motors do not?
Brushless motors eliminate physical brushes and rely on electronic commutation, which reduces friction and arcing; their stator and rotor geometry is optimized for high‑speed operation, maintaining torque and efficiency across a wide RPM range. [oscarliang]
2. How can I verify that a motor manufacturer's ISO certificate is real and current?
Obtain the certificate copy, identify the issuing body, and search the certificate number in that body's public registry—checking validity dates and the specific plant location covered. [metafuro]
3. What is the most important factor when choosing FPV motors for a 5‑inch quad?
Use motor tables and trusted guides to align stator size and KV with your prop size and battery cells, then prioritize proven reliability and thermal behavior under your typical flying style. [oscarliang]
4. When should a drone brand move from retail motors to OEM custom brushless motors?
Once you need guaranteed long‑term supply, consistent performance, branding, and tuned specifications (KV, shaft, mounting), working with an OEM/ODM partner becomes more efficient than buying off‑the‑shelf motors. [holrymotor]
5. Can the same brushless motor platform be used for drones, robots and underwater thrusters?
Yes, but each application requires tailored sealing, shaft design, bearings and sometimes winding and magnet choices; multi‑application OEMs like Zhongshan Yuhang specialize in adapting core motor technology across FPV drones, RC vehicles, industrial fans and underwater robotics. [evcraft.en.made-in-china]
