As an FPV pilot and motor engineer working with brushless FPV drone motors every day, I have learned that motor size is the single biggest lever you can pull to change how your quad feels in the air. The right FPV motor size can make the difference between a locked‑in racing quad, a buttery freestyle rig, or a cool‑running long‑range cruiser with impressive flight time. [allient]
In this guide, I'll walk you through how I actually choose FPV drone motor size in real projects, using MEPS motors as concrete examples—from Tiny Whoops to 7‑inch long‑range builds. We will cover frame size, flying style, thrust‑to‑weight, KV, prop matching, budget, and upgrade paths, plus real feedback from experienced pilots testing MEPS motors in the field. [mepsking]
Before choosing a motor, you need to clearly understand what motor size and KV mean in the context of FPV. [ligpower]
- Motor size (e.g., 2207, 2306, 2806.5) describes the stator diameter and height in millimeters.
- KV rating (e.g., 1750KV, 1950KV, 2800KV) tells you how many RPM the motor spins per volt with no load.
- Together with prop size and battery voltage, these values determine thrust, torque, efficiency, responsiveness, heat, and durability. [allient]
From a practical pilot's point of view, I think of FPV motors in three dimensions:
- How hard it hits the throttle (torque & response).
- How long it stays in the air (efficiency & heat).
- How much abuse it survives (durability & headroom).
The rest of this guide is about mapping those factors to specific frame sizes and flying styles, and then plugging in MEPS FPV motors that fit those needs.

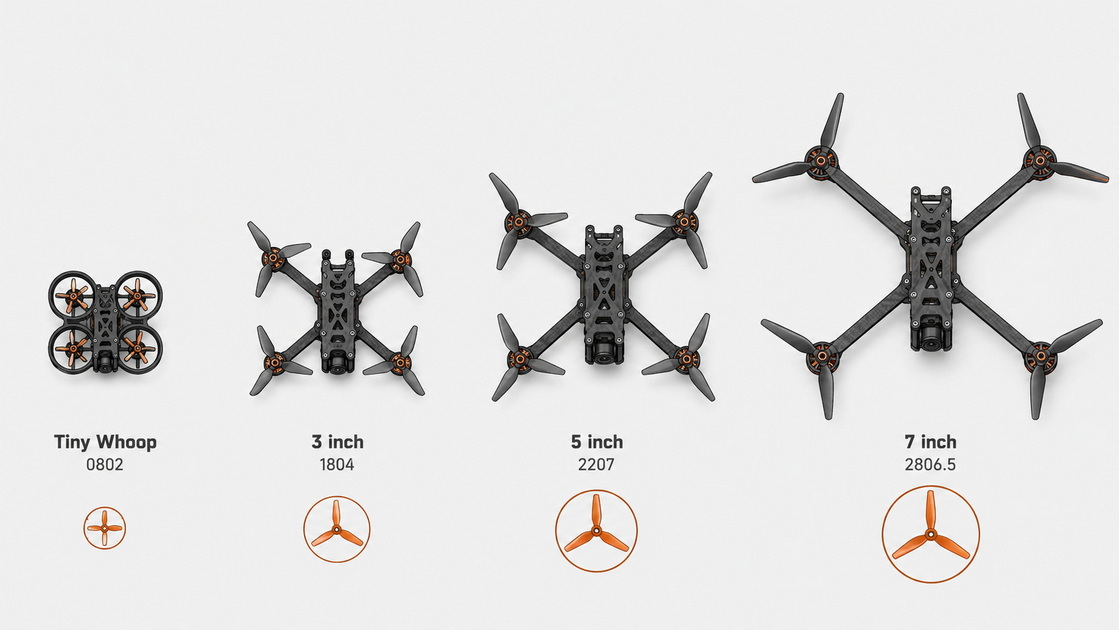

Every serious FPV motor choice starts with frame size and all‑up weight (AUW). [mepsking]
Frame size defines your propeller diameter range, and prop diameter is what really drives how much torque and continuous power your motors must deliver. [ligpower]
Typical FPV mapping looks like this (using MEPS motors as real examples):
| Frame Size / Class | Recommended MEPS Motor | Typical Prop Size | Main Flying Style | Pilot Level |
|---|---|---|---|---|
| 65–75 mm Whoop | MEPS 0802 | 31–40 mm | Indoor whoop / training | Beginner |
| 1.6–2 inch micro | MEPS 1103 | 40–50 mm | Micro outdoor, parks | Beginner / Intermediate |
| 2.5 inch | MEPS 1404 | 55–65 mm | Agile / cinematic micro | Intermediate |
| 3–3.5 inch | MEPS 1804 / 2004 | 65–75 mm | Freestyle / general use | Intermediate |
| 5 inch | MEPS 2207 / 2306 | 5‑inch | Racing / freestyle | Intermediate / Advanced |
| 6 inch | MEPS 2408 | 6‑inch | Mid‑range / cinematic | Advanced |
| 7 inch | MEPS 2806.5 | 7‑inch | Long‑range / endurance | Advanced |

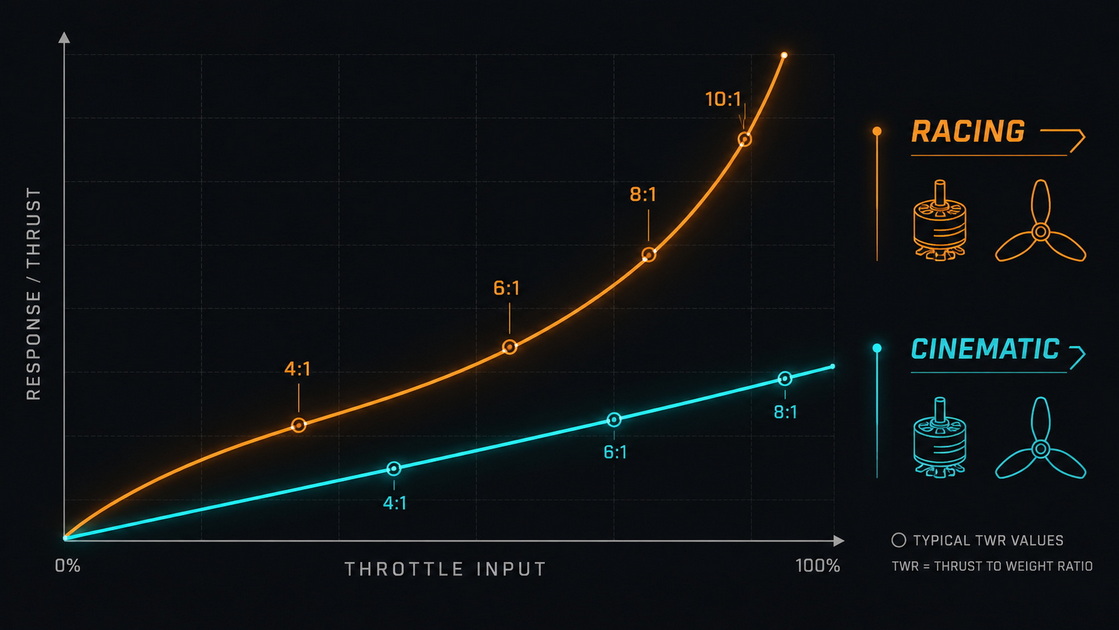

Once frame and target prop are set, I estimate the thrust‑to‑weight ratio (TWR) I want, then pick a motor that can hit that at a reasonable throttle point. [allient]
As a rule of thumb I use (per quad): [ligpower]
- Racing 5‑inch: TWR ≥ 8:1
- Aggressive freestyle: TWR around 6:1
- Cinematic 5–7 inch: TWR 3–4:1 for smoother, more efficient power delivery
In practice, I check manufacturer thrust tables and aim for my target thrust at around mid‑throttle, not at 100% stick. That usually gives you the best balance of control, noise, and motor life. [allient]
Once the frame size is fixed, the real tuning happens when you line up flying style with motor stator geometry and KV. [mepsking]
For 5‑inch quads, I have had the best results pairing:
- MEPS 2207 motors – for pure racing and high‑torque punch‑outs.
- MEPS 2306 motors – for freestyle with smoother throttle feel and more precise control.
Why this works in practice: [ligpower]
- 2207 has a taller stator, which means more torque and current capability—great for high blade‑loading props and instant throttle response.
- 2306 spreads its torque in a way many pilots describe as "buttery" and more predictable for flowy lines, reversals, and technical gaps.
From community feedback and my own flying, I find that:
- Racers prefer a 2207 1750–1960KV on 6S with aggressive tri‑blade or even quad‑blade props.
- Freestyle pilots often choose 2306 1950KV on 6S or 2450KV on 4S to keep power but smooth out throttle feel and current spikes. [mepsking]
On small indoor and micro outdoor builds, weight is everything. [ligpower]
Recommended MEPS motors:
- MEPS 0802 – ultra‑light and high‑KV for Whoop frames (65–75 mm) on 31–40 mm props.
- MEPS 1103 – more torque and efficiency for 1.6–2 inch frames with 40–50 mm props.
In my experience and from pilot reviews, 0802 shines in:
- Indoor tracks and tight spaces, where low inertia and quick direction changes matter more than raw thrust.
- Builds that need to stay extremely light to stay under local regulations or to fly safely around people.
1103 is ideal when you:
- Step outdoors into parks or small bandos.
- Need more authority in wind but still want a compact, quiet setup.
The 2.5–3.5 inch segment is my favorite for high‑performance but budget‑friendly quads. [mepsking]
Recommended MEPS motors for this class:
- MEPS 1404 – perfect for 2.5‑inch cinematic or agile micro builds.
- MEPS 1804 – optimized for ~3‑inch FPV frames with a balance of torque and low weight.
- MEPS 2004 – strong option for 3–3.5‑inch freestyle with heavier HD cameras.
In project work, I use these patterns:
- Lightweight 2.5‑inch cinewhoop with a naked GoPro → 1404 around 3800–4100KV on 4S.
- 3‑inch toothpick or sub‑250 g freestyle quad → 1804 with mid‑KV and bi‑blade props.
- Heavier 3.5‑inch cinematic rig → 2004 with tri‑blade props for better grip and stability in wind. [ligpower]

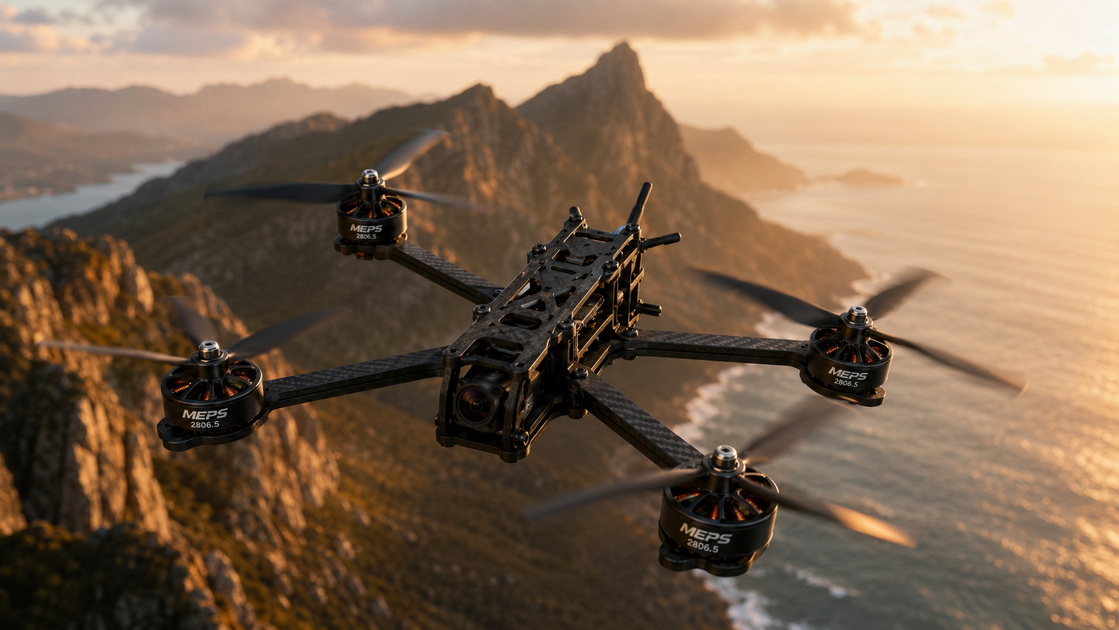

For 6–7 inch quads, my focus shifts from raw punch to efficiency, thermals, and low‑noise operation. [allient]
Recommended MEPS motors:
- MEPS 2408 – for 6‑inch cinematic or mid‑range builds.
- MEPS 2806.5 – for 7‑inch long‑range endurance rigs.
Real‑world patterns I see and use:
- 2408 on 6‑inch: Great for 6S builds that carry HD cameras and want stable, floaty lines with reduced battery sag.
- 2806.5 on 7‑inch: Extra stator volume helps maintain efficiency and torque at lower RPM with larger props, ideal for quiet, long‑range cruising. [allient]
When matching motors for long‑range, I always:
- Aim for TWR in the 3–4:1 range, not racing numbers.
- Choose slow‑fly style props to keep current low and motors cool.
- Keep the AUW tight—every unnecessary gram erodes the benefit of your larger, more efficient motors. [allient]
Many pilots focus heavily on stator size but underestimate how KV changes the character of the quad. [mepsking]
A few field‑tested rules I follow:
- Higher KV → more RPM, more thrust, more current, more heat.
- Lower KV → less current at a given thrust, better efficiency, more forgiving tuning.
For common setups using MEPS FPV motors, I typically recommend:
- 5‑inch 6S racing: 1900–2100KV on MEPS 2207.
- 5‑inch 6S freestyle: 1750–1950KV on MEPS 2306 or 2207.
- 3‑inch 4S: 3500–4100KV on MEPS 1804 / 2004 with light props.
- 7‑inch 6S long‑range: 1300–1600KV on MEPS 2806.5 with slow‑fly 7‑inch props. [ligpower]
If you are unsure, bias slightly lower in KV for your first build. It gives you:
- Cooler motors.
- More relaxed current draw.
- Easier PID tuning and less stress on your ESCs and batteries. [allient]
For quick reference, here is a condensed selection map combining frame size, motor models, and typical use cases:
| Use Case | Frame Size | Motor Model | Prop Size | Typical Battery | Key Benefit |
|---|---|---|---|---|---|
| Indoor Tiny Whoop | 65–75 mm | 0802 | 31–40 mm | 1S | Ultra‑light, high‑KV fun |
| Micro outdoor | 1.6–2 inch | 1103 | 40–50 mm | 2–3S | Efficient & punchy |
| Agile micro cine | 2.5 inch | 1404 | 55–65 mm | 3–4S | Precise, smooth lines |
| 3 inch freestyle | 3 inch | 1804 / 2004 | 65–75 mm | 3–4S | Balanced thrust & control |
| 5 inch racing | 5 inch | 2207 | 5‑inch tri/quad | 4–6S | High torque & response |
| 5 inch freestyle | 5 inch | 2306 / 2207 | 5‑inch tri | 4–6S | Smooth, locked‑in feel |
| 6 inch cinematic | 6 inch | 2408 | 6‑inch | 4–6S | Stable mid‑range power |
| 7 inch long‑range | 7 inch | 2806.5 | 7‑inch slow‑fly | 4–6S | Endurance & efficiency |
To make this table more user‑friendly, I recommend placing it near the top of the article and adding a subtle colored background. A simple line drawing or image of each frame size next to the table would further enhance UX.
Data sheets and thrust curves are essential, but motors only prove themselves in the air. That's why MEPSKING runs the MEPSKING Vine Voice program, where experienced FPV pilots receive motors like 2004, 2207, and 2306 to test on their own builds and report back with real‑world feedback. [allient]
From the feedback I've seen and my own testing, pilots consistently highlight:
- MEPS 2207: noticeable torque for sharp corner exits and confident punch‑outs on 5‑inch racing builds.
- MEPS 2306: smoother throttle curve and better mid‑stick resolution for freestyle and cinematic lines.
- MEPS 2004 / 1804: strong performance on 3–3.5 inch frames without the weight penalty of larger motors.
Featuring a short pilot quote block or overlaying real screenshots of reviews under each product section would greatly increase perceived trust and align well with Google's Experience focus in E‑E‑A‑T. [mtsoln]
When advising new pilots or integrators, I rarely push them straight into top‑end racing setups. Instead, I plan a progression that balances cost, skills, and hardware longevity. [hammermissions]
I usually recommend:
- Start on forgiving, versatile motors such as MEPS 2306 (5‑inch) or 1103 (1.6–2 inch micros).
- Prioritize smoothness and durability over maximum thrust.
This gives beginners:
- Better control in early crashes.
- A stable platform for learning line‑of‑sight and FPV orientation.
Once you can reliably fly through gates, do basic freestyle, and manage battery health, it's time to upgrade: [ligpower]
- Move to MEPS 1804 / 2004 on 3–3.5 inch or continue refining 5‑inch on 2207/2306 with more aggressive props.
- Start optimizing motor KV and prop choice for your personal style, not just copying popular builds.
Advanced pilots benefit from specialized setups: [mepsking]
- Racers: High‑performance MEPS 2207 on tuned 5‑inch frames, focused on track‑specific TWR and throttle feel.
- Long‑range / cinematic: MEPS 2408 or 2806.5 paired with carefully chosen 6–7 inch props and high‑quality packs.
A clear upgrade path graphic (e.g., Beginner → Intermediate → Advanced flowchart) helps users visualize their journey and improves UX and time on page.
To make selection easier, here are practical combo recipes that work well in the field: [ligpower]
1. Tiny Whoop Starter
- Motor: MEPS 0802
- Prop: 31–40 mm 1S whoop props
- Best for: Indoor practice, tight tracks, beginners
2. Micro Outdoor Park Flyer
- Motor: MEPS 1103
- Prop: 40–50 mm
- Best for: Small outdoor spots, light freestyle, learning in parks
3. 3‑inch Freestyle Rig
- Motor: MEPS 2004 (or 1804 for lighter builds)
- Prop: 65–75 mm tri‑blade
- Best for: Sub‑250 g freestylers and compact HD setups
4. 5‑inch Freestyle / Racing Hybrid
- Motor: MEPS 2207
- Prop: 5‑inch tri‑blade or quad‑blade
- Best for: Pilots who want one quad that can both race and freestyle
5. 7‑inch Long‑Range Cinematic
- Motor: MEPS 2806.5
- Prop: 7‑inch slow‑fly style props
- Best for: Long‑range, cruising, and cinematic flights with extended airtime
For UX, each combo section is a great place to insert:
- A photo of a real build using that combo.
- A short one‑sentence pilot impression ("Locked in at mid‑throttle, barely warm after 8‑minute pack").
When I support OEM/ODM customers in drones, gimbals, robots, or underwater platforms, I walk them through a structured motor selection checklist. For FPV drones, you can apply a simplified version: [allient]
1. Define your mission profile
- Racing, freestyle, cinematic, long‑range, or micro indoor use.
2. Lock in frame and prop size
- Choose 65–75 mm, 2.5 inch, 5 inch, 7 inch, etc., then choose realistic prop options.
3. Estimate AUW and target TWR
- Decide if you want 3–4:1 (cinematic), 6:1 (freestyle), or 8:1+ (racing) TWR. [ligpower]
4. Select motor stator size and KV
- Use tables and examples in this guide to choose an FPV motor family that matches your mission. [mepsking]
5. Validate with real data and reviews
- Check manufacturer thrust curves, thermal behavior, and community feedback from programs like MEPSKING Vine Voice before finalizing. [allient]
Presenting this as a numbered checklist in the article helps users scan and follow the process, which boosts UX and E‑E‑A‑T at the same time. [pageoptimizer]
Choosing the right FPV drone motor size is not about chasing the highest KV or copying someone else's build. It is about aligning frame size, flying style, AUW, thrust‑to‑weight, and KV to create a system that feels natural and reliable in the air. [mepsking]
If you are ready to turn this guide into real performance, I recommend:
- Selecting the MEPS FPV motor family that matches your frame and flying style from the tables above.
- Starting with one of the tested motor + prop combos.
- Reaching out to our engineering team for OEM/ODM support if you are designing custom drones, gimbals, robots, or other powered platforms that need a tailored brushless power system.
Explore MEPS FPV motors now and build your next quad with confidence.
1: Can I mix different motor sizes on one frame?
No. Motors should always match in size and KV to keep thrust balanced and avoid unstable flight, overheating, or uncontrollable yaw. [ligpower]
2: Does higher KV always mean a faster drone?
Not necessarily. Higher KV spins faster and can increase top speed, but it also draws more current, runs hotter, and can reduce efficiency if the prop and battery are not matched correctly. [allient]
3: What is the best FPV motor size for beginners?
For a first 5‑inch quad, a MEPS 2306 with moderate KV is an excellent starting point—balanced power, manageable current, and a smoother throttle curve for learning. [mepsking]
4: Do larger motors guarantee longer flight times?
No. Flight time depends on the overall system efficiency—motor, prop, KV, AUW, and battery working together. Oversized motors can actually waste energy if they operate far from their efficient range. [ligpower]
5: How often should I upgrade my FPV motors?
If bell slop, bearing noise, repeated overheating, or visible damage appears, it is time to upgrade. Competitive racers may refresh motors more frequently than casual cinematic pilots due to higher stress and crash rates. [allient]
