Motor Defines the Limit: A Guide to FPV Drone Power Systems

     In the world of FPV drones, there is a truth accepted by countless pilots: the motor defines the upper limit.

The frame determines the attitude, the flight controller decides stability, the VTX sets the view, but the motor defines how powerful, stable, and extreme this drone can be.An excellent power system can turn an ordinary frame into a top performer; a weak motor turns even the most expensive gear into a drone with a chronic airborne problem.



               How violent the acceleration is — depends on the motor.How crisp the braking is — depends on the motor.How stable high-speed flight is — depends on the motor.How long the battery lasts and how much it heats up — still depends on the motor.In short: the motor is the heart of an FPV drone, and also its performance ceiling.If you don’t understand motors, you’ll never truly master FPV drones.

II. Understand All Core Parameters At Once & Don’t Be Fooled By Sellers

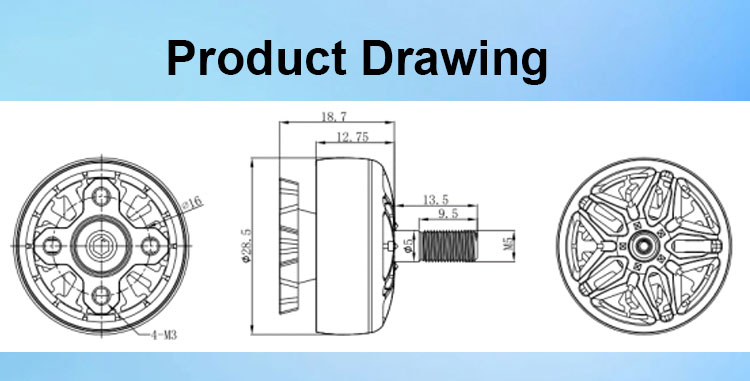

1. Motor Size: What do 2207, 2306, 2807 mean?

Format: AABB

AA: Stator diameter

BB: Stator height

Simple explanation:
22xx: Mainstream for 5-inch drones, general freestyle/racing

23xx/24xx: Stronger torque, more powerful

28xx/3xxx: Large size, for long-range, payload, endurance

2. KV Value: The most critical and easily mischosen parameter

KV = No-load motor RPM under 1V voltage.

Higher KV → faster RPM, less torque, more power consumption

Lower KV → slower RPM, more torque, more efficient

Common combinations:

4S battery: 1900–2400KV

6S battery: 1200–1800KV

3. Stator, winding, magnet: Determine the “power level”

Stator: Core of the motor; larger = higher power potential.

Winding: Turns and wire diameter affect efficiency, heat, linearity.

Magnet: Higher grade = more stable at high speed, stronger output.

III. How to Choose the Right Motor for Yourself

1. For 5-inch freestyle (the most common):

  Recommended: 2207 / 2306, 1700–1900KV (6S)

  Features: balanced performance, strong punch, good heat dissipation, long battery life.

2. For competitive racing:

  Recommended: 2207–2407, high KV (1900–2500KV)

  Features: extreme acceleration, instant response, ultimate speed.

3. For long-range / cinematic FPV:

  Recommended: 2807 / 3008, low KV (1000–1500KV)

  Features: high torque, low heat, efficient, stable flight.

4. For small drones (2–3.5 inch):

  Recommended: 1104 / 1207 / 1404

  Features: lightweight, compact, suitable for indoor and portable flying.

---

IV. Three Common Mistakes That Will Ruin Your Motor

1. Blindly chasing high KV

  Higher KV is NOT always better.

  Too high KV = easy overheating, short flight time, poor stability, and even burnt motor/ESC.

2. Mismatched propellers

  The propeller is the motor’s “output arm”.

  Too big → motor overloads and overheats.

  Too small → power is wasted, efficiency is low.

3. Ignoring wiring and current

  Loose wiring, unbalanced motor, excessive vibration

  → higher heat, lower efficiency, shorter lifespan.

---

V. Final Buying Guide: One Set of Rules to Follow

- Beginners: start with 5-inch, 2207, 1800–1900KV (6S), universal for freestyle and racing.

- Pursue speed: choose high KV, small propellers, focus on acceleration and top speed.

- Pursue endurance: choose low KV, large stator, focus on efficiency and torque.

- Reliability first: choose well-known brands, stable quality, consistent performance.

In the end:

The motor does not need to be the most expensive,

but it **must match your flying style**.

Only then can you truly unlock your drone’s full potential.
