For FPV drone buyers, open bell vs closed bell FPV motor is not simply a styling choice. Bell architecture influences cooling, weight, dirt exposure, crash behavior, maintenance time, and the likelihood that a motor will remain smooth and efficient after repeated flights.
From a motor-manufacturing perspective, neither design wins in every use case. Closed bell FPV motors usually have an advantage in dusty, sandy, wet, and high-duty environments, while open bell FPV motors can offer stronger cooling, lower weight, and easier inspection for performance-oriented builds. The motor that lasts longer is ultimately the one whose bell design, bearing protection, materials, QC process, and maintenance routine match the application.
At Zhongshan Yuhang Power Technology Co., Ltd., we develop brushless power solutions for FPV drones, RC vehicles, high-speed fans, gimbals, aircraft, cleaning robots, underwater robots, and specialized equipment. In real product development, motor longevity is never determined by one visible design feature. It comes from the complete system: bell structure, bearing selection, shaft strength, magnet bonding, stator quality, winding process, dynamic balance, propeller match, ESC settings, and operating environment.

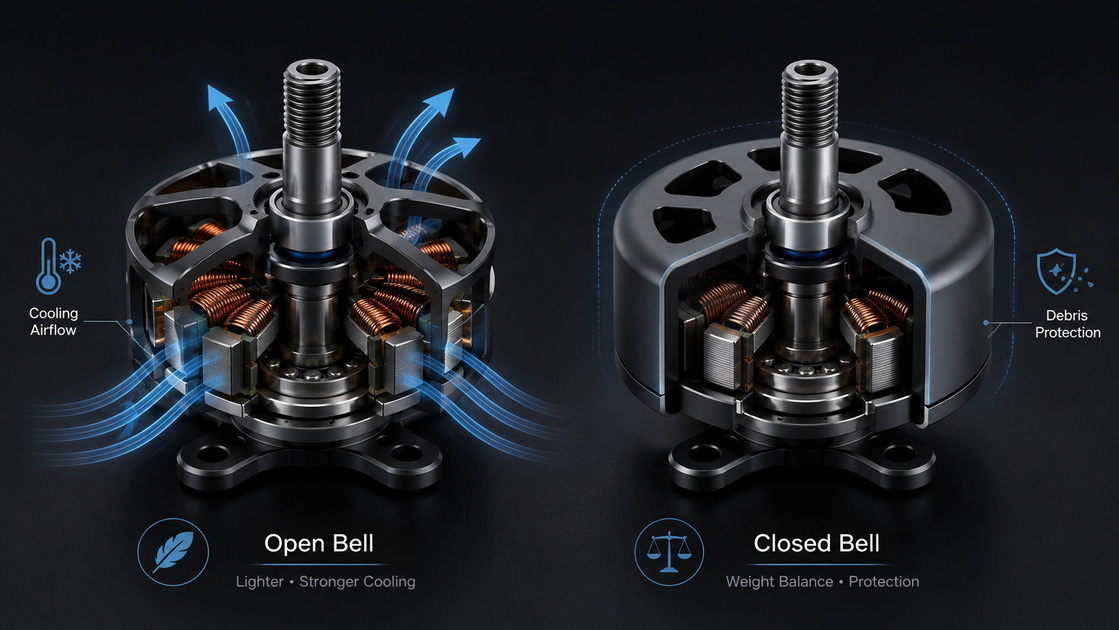

An open bell FPV motor has visible openings, cutouts, or reduced sidewall coverage in the rotating aluminum bell. These openings reduce material weight and allow more airflow around the stator, windings, and magnets.
This structure is common in performance-oriented FPV motors because every gram matters on a racing, freestyle, or lightweight long-range build.
An open bell design typically offers:
- Lower rotating mass, which can improve throttle response.
- Better airflow, helping heat escape during high-current operation.
- Easier visual inspection of dirt, grass, metal particles, and damaged magnets.
- Aggressive visual styling that appeals to retail FPV brands.
- Potentially lower aluminum consumption depending on bell geometry.
However, openings also create direct paths for dust, sand, moisture, and debris to enter the motor cavity. The risk is not only cosmetic. Fine particles can reach the bearings, stator area, magnet surfaces, and gap between the bell and stator.
For clean racing tracks, dry freestyle locations, and well-maintained FPV setups, this trade-off can be acceptable. For repeated operation near loose soil, beach sand, wet grass, or industrial dust, it requires a stronger maintenance plan.
A closed bell FPV motor uses a more enclosed outer-bell structure. It may not be fully sealed or waterproof, but it provides greater physical shielding around the stator and internal rotating components than an open bell configuration.
This design is frequently chosen for applications where contamination resistance, structural protection, and long-term operating stability matter more than achieving the absolute lowest motor weight.
A closed bell design can provide:
- Improved resistance to dust and splash exposure.
- Better shielding of magnets and windings from physical debris.
- Reduced direct exposure to grass, soil, and metal particles.
- A more protected appearance for industrial or utility-oriented drone platforms.
- Potentially improved bell rigidity when the design uses adequate wall thickness and precise machining.
The trade-off is that closed bell designs may retain more heat if airflow is restricted. They may also weigh more than highly optimized open bell designs. A good closed bell motor therefore needs a carefully designed thermal path, appropriate stator geometry, reliable copper winding, and controlled operating current.
A recent drone motor guide similarly notes that open-bell motors tend to be lightweight with stronger cooling but greater dust exposure, while closed-bell designs offer stronger protection from dust and moisture with potentially less heat dissipation.
| Factor | Open Bell FPV Motor | Closed Bell FPV Motor | Better Choice |
|---|---|---|---|
| Cooling airflow | Usually stronger | May be more restricted | Open bell |
| Weight potential | Usually lower | Often higher | Open bell |
| Dust resistance | Lower without extra protection | Generally higher | Closed bell |
| Sand and grass resistance | More exposed | More protected | Closed bell |
| Visual inspection | Easy to inspect internally | May require disassembly | Open bell |
| Internal debris removal | Easier to blow out | Can be more difficult | Open bell |
| Bearing contamination risk | Higher in dirty environments | Lower, but not eliminated | Closed bell |
| Crash protection | Depends on bell thickness and shaft design | Depends on bell rigidity and shaft design | Application-specific |
| High-current freestyle use | Strong option with proper cooling | Suitable if thermal design is robust | Application-specific |
| Industrial or outdoor use | Requires regular maintenance | Often more practical | Closed bell |
| Cinematic and long-endurance use | Suitable in clean conditions | Often preferable in harsh conditions | Closed bell |
The key point is simple: open bell is not automatically less durable, and closed bell is not automatically stronger. Manufacturing quality determines the real outcome.
A poorly balanced closed bell with weak bearings can fail sooner than a well-made open bell motor using high-quality bearings, a precision shaft, strong magnet bonding, and regular cleaning.
For most users operating in unpredictable outdoor conditions, closed bell FPV motors are more likely to achieve a longer service life because they reduce direct contamination exposure.
But this conclusion needs context.
Closed bell motor designs are often the better long-life choice for:
- Long-range FPV drones flying over dirt roads, fields, and vegetation.
- Cinematic drones operating near grass, sand, construction zones, or low-altitude environments.
- Industrial UAVs used for inspection, mapping, patrol, or specialized tasks.
- RC vehicles and high-speed fans working in dusty environments.
- Underwater or splash-prone applications, when combined with application-specific corrosion protection.
- Fleet operators who want to reduce maintenance frequency and unexpected bearing failures.
Dirt and sand are major enemies of FPV motor bearings. They can enter the motor, contaminate lubricant, create rough rotation, increase vibration, and eventually reduce flight stability.
An open bell design can still deliver excellent working life when:
- The aircraft operates mainly in clean, dry locations.
- The pilot performs routine cleaning and bearing inspection.
- The motor uses high-quality shielded or sealed bearings.
- The bell is dynamically balanced and the propellers are properly balanced.
- The shaft is resistant to bending after crashes.
- The manufacturer controls magnet adhesion, air gap, winding quality, and final inspection.
- The operator avoids overloading the motor with an unsuitable propeller or excessive throttle duty cycle.
For racing or freestyle pilots who prioritize low weight and sharp throttle response, a properly maintained open bell motor can be the more practical choice.

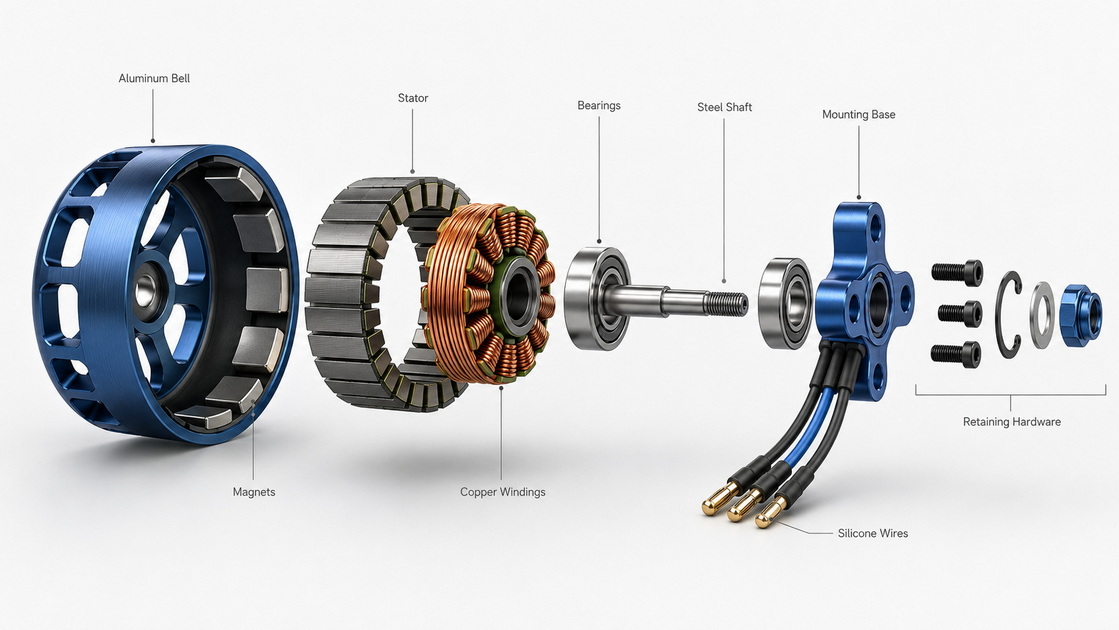

Many buyers focus on visible bell geometry because it is easy to compare in photos. In factory testing, the less visible details often have a bigger influence on motor lifespan.
The bearing is one of the first parts affected by dirt, moisture, vibration, and crash loads.
A contaminated bearing may feel gritty when the bell is rotated by hand. It can produce clicking, grinding, side-to-side play, additional heat, and unwanted vibration. That vibration can affect gyro filtering, HD footage, flight-controller tuning, and motor efficiency.
High-quality bearings should be selected based on:
- Bearing material and manufacturing grade
- Shielded or sealed construction
- Lubricant quality
- Radial and axial load requirements
- RPM capability
- Fit accuracy with the shaft and bell
- Consistency across production batches
Industry guidance commonly identifies sealed or shielded bearings as an important durability feature, especially when flying near dirt or sand.
A bent shaft can cause vibration even when the motor still spins. A lightweight bell that is not adequately supported may deform after repeated crashes.
For a durable FPV motor, buyers should evaluate:
- Shaft diameter
- Shaft material
- Heat treatment, where applicable
- Shaft-to-bell integration
- Bell wall thickness
- Bearing-seat accuracy
- Prop-mounting structure
- Rotor runout after impact testing
A unibell design, where the shaft and bell are made as an integrated structure, can reduce the risk of movement between separate pieces. However, actual durability still depends on machining tolerances, aluminum alloy choice, design geometry, and crash conditions.
Magnets must remain securely bonded under high RPM, vibration, temperature cycles, and crash impacts.
A supplier should not only claim "N52 magnets." The buyer should ask:
- What magnet grade and coating are used?
- What adhesive system is applied?
- What curing process is used?
- Is there a pull-strength or retention test?
- How are magnet gaps controlled?
- Is every rotor dynamically balanced after assembly?
Magnet detachment can severely damage a motor, ESC, or airframe. It is a high-risk failure mode that is often caused by insufficient adhesive control, poor surface preparation, or inadequate curing—not only by magnet grade.
Heat is one of the most important enemies of brushless motor life. Excessive temperature can damage winding insulation, weaken adhesive, degrade bearing grease, and reduce magnet performance.
A reliable FPV motor should use:
- Consistent stator laminations
- Appropriate coating and insulation
- High-quality copper wire
- Controlled winding tension
- Stable winding resistance
- High-temperature insulation materials
- Clear soldering and wire-strain-relief design
For buyers developing private-label motors, it is useful to request phase-to-phase resistance checks and no-load current records as part of batch QC.
This is one of the most overlooked factors in motor life.
A motor can look perfect at rest but become unstable at operating RPM. Dynamic imbalance increases bearing load, causes video jello, raises noise, accelerates fatigue, and can damage the shaft or bell over time.

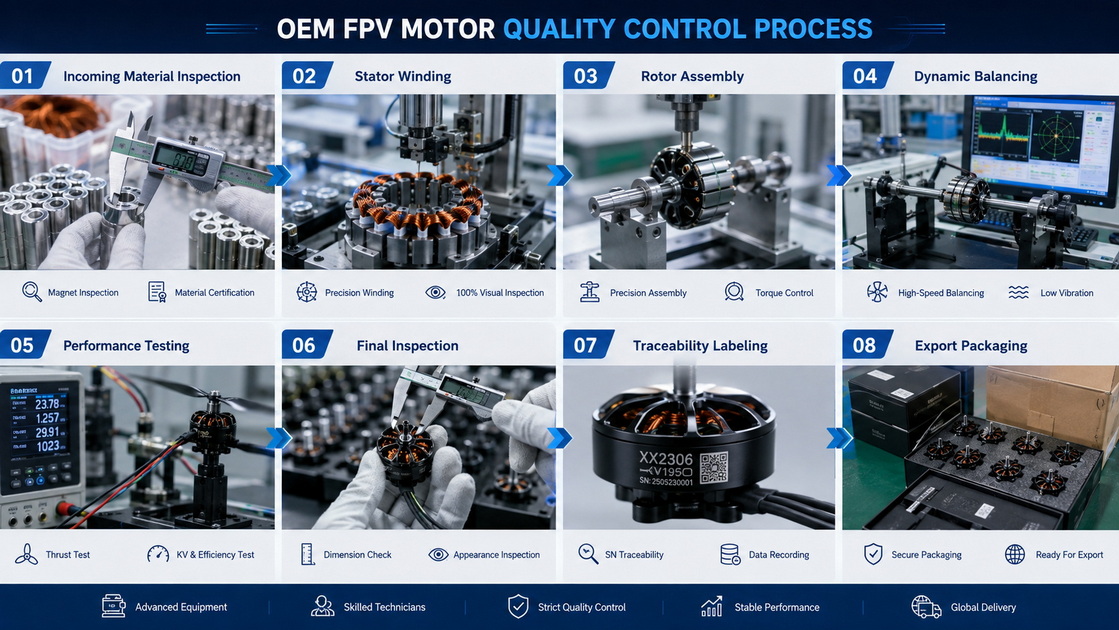

Motor quality control should include:
1. Rotor dynamic balancing.
2. Bell runout measurement.
3. Smooth rotation inspection.
4. No-load current testing.
5. Noise and vibration screening.
6. Final visual inspection.
7. Batch traceability.
Pilots and fleet operators should also check propeller balance. A high-quality motor cannot compensate for a badly damaged or unbalanced propeller.
When comparing open bell vs closed bell FPV motors, do not rely only on catalog claims. Test both designs under the same realistic conditions.
Before ordering samples, define:
- Drone type and frame size
- Battery voltage, such as 4S or 6S
- Propeller size and pitch
- Target thrust range
- Expected flight duration
- Ambient temperature
- Crash exposure
- Dust, grass, sand, or moisture exposure
- Maintenance capability
- Target market and retail positioning
A racing motor and an inspection-drone motor may use similar stator sizes but require very different durability priorities.
Request open bell and closed bell samples with comparable:
- Stator size
- KV rating
- Shaft diameter
- Wire length
- Motor weight range
- Propeller type
- ESC configuration
Test the motors on the same thrust stand and airframe.
Record:
- Thrust
- Current draw
- Efficiency
- Motor temperature
- No-load current
- Vibration level
- Bearing noise
- Bell runout
- Performance after dust exposure
- Performance after controlled impact or crash simulation

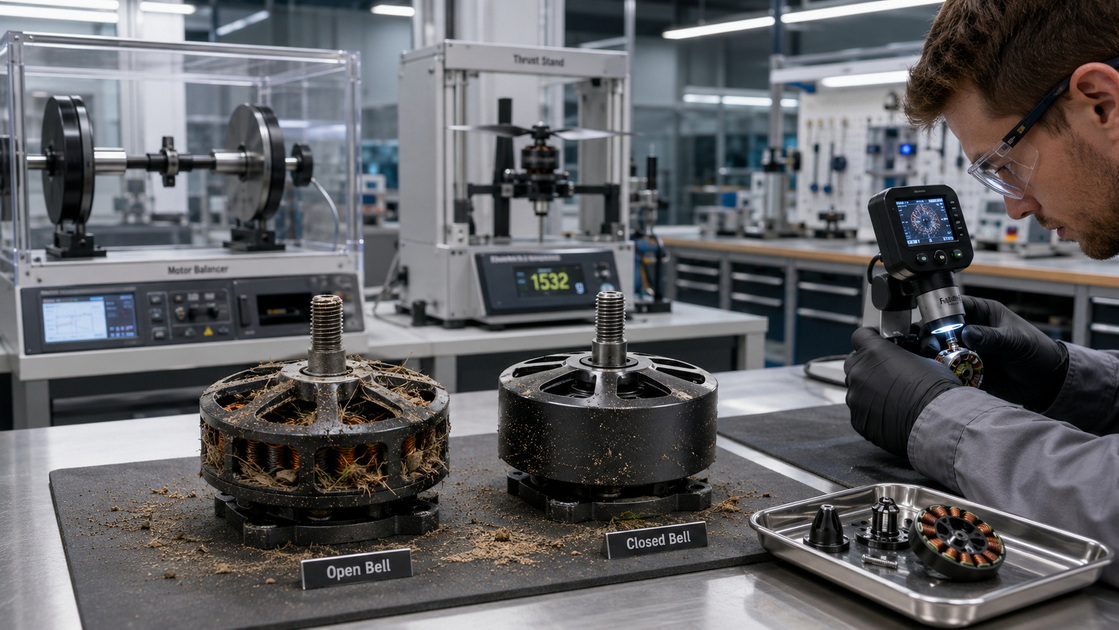

For a meaningful comparison, carry out a controlled environmental test.
For example:
- Run each motor for a defined number of cycles.
- Expose the airframe to dry soil or fine dust.
- Clean only according to the intended field-maintenance procedure.
- Recheck bearing smoothness, current draw, temperature, and vibration.
- Disassemble selected samples to inspect contamination, wear, and magnet condition.
This does not replace a formal reliability laboratory program, but it provides much stronger sourcing evidence than a single bench test.
A common hidden risk is the difference between a polished prototype and the actual mass-production motor.
The first sample may receive extra balancing time, a premium bearing lot, closer assembly attention, and more careful material selection. Later production batches may not always receive identical process control unless the buyer defines the requirements in writing.
For OEM and ODM procurement, do not approve only the appearance of the sample. Approve the production process.
Ask the supplier to define:
- Approved bearing brand or grade
- Magnet grade and adhesive process
- Bell aluminum material
- Shaft material and tolerance
- Stator lamination specification
- Copper wire insulation class
- Dynamic balancing method
- No-load current tolerance
- KV tolerance
- Final inspection procedure
- AQL sampling requirements
- Batch and date-code traceability
This is especially important for buyers selling under their own brand. Your customers will judge the motor by reliability after dozens of flights—not by the first unboxing experience.
| Application | Recommended Bell Direction | Why |
|---|---|---|
| FPV racing | Open bell often suitable | Low rotating weight and cooling can support fast response |
| Freestyle FPV | Application-dependent | Open bell for agility; stronger closed or protected designs for harsh locations |
| Long-range FPV | Closed bell often preferred | Greater debris protection during outdoor operation |
| Cinematic FPV | Closed bell or protected design | Helps reduce contamination risk during low-altitude shooting |
| Industrial UAV | Closed bell generally preferred | Supports lower maintenance and better environmental resistance |
| RC vehicles | Closed bell often preferred | Wheels throw dust, sand, and debris directly toward the motor |
| Gimbals | Specialized enclosed designs | Precision, low vibration, and contamination control are critical |
| High-speed fans | Closed or protected designs | Continuous duty requires stable cooling and debris management |
| Underwater robotics | Purpose-built protected design | Requires corrosion protection beyond a standard FPV bell structure |
No bell design is maintenance-free. A simple inspection routine can prevent premature failure.
- Remove the propellers before handling the motors.
- Rotate each bell by hand.
- Listen for grinding, clicking, or scraping.
- Check for lateral wobble.
- Blow out loose debris with clean compressed air.
- Inspect for grass, sand, metal particles, or damaged wires.
- Check that mounting screws have not contacted the stator windings.
The correct interval depends on environment and flight intensity, but regular users should:
- Inspect bearing smoothness.
- Check shaft play.
- Verify bell alignment.
- Inspect propellers for damage or imbalance.
- Confirm motor-screw length.
- Apply minimal suitable bearing oil only when appropriate.
- Replace bearings when roughness, noise, excessive heat, or play appears.
Maintenance recommendations from FPV repair guidance emphasize manual spin tests, debris removal, careful lubrication, and avoiding products such as WD-40 that can attract dirt or degrade the intended lubrication condition.
A durable FPV motor is a product-engineering decision, not simply a bell-design decision.
For brands focused on competitive racing, lightweight freestyle, or visual product differentiation, an open bell motor can provide strong value when paired with precise balancing, protected bearings, strong shafts, and a practical maintenance message.
For long-range, cinematic, industrial, RC, and outdoor-specialist equipment, a more enclosed bell architecture may better support longer operational life by reducing exposure to contaminants.
Zhongshan Yuhang Power Technology Co., Ltd. supports OEM and ODM brushless motor development for FPV drones and broader professional equipment. Whether your project needs an open bell FPV motor optimized for cooling and responsiveness, or a more protected closed bell design for durability-focused use, the right starting point is a defined application profile and a documented validation plan.
Share your target motor size, KV range, battery voltage, propeller specification, operating environment, branding requirement, and annual demand forecast to begin a technical evaluation and sample-development discussion.
No. A closed bell motor is usually more protected than an open bell motor, but it is not automatically waterproof or suitable for submersion. Water can still enter through bearings, wire exits, mounting interfaces, and other gaps. Underwater or wet-environment applications require purpose-built sealing, corrosion-resistant materials, and dedicated validation.
Open bell motors often have better airflow around internal components, which can help cooling. But overheating depends on the entire design: stator size, KV, winding, copper fill, propeller, battery voltage, ESC settings, throttle load, airflow, and ambient temperature. A well-engineered closed bell motor can also maintain safe operating temperatures.
Either can work. Open bell motors are common for pilots prioritizing low weight, airflow, and responsiveness. Closed or more protected designs can be a better fit for pilots who regularly fly in dirt, grass, sand, or wet conditions. Compare tested performance, bearing quality, crash resistance, and motor temperature—not only the bell opening.
Remove the propeller and rotate the bell slowly by hand. Warning signs include roughness, grinding, clicking, uneven resistance, unusual noise, excess heat, vibration, or side-to-side play. A damaged bearing should be cleaned, lubricated only if suitable, or replaced before it creates larger vibration and flight-control problems.
No. Additional weight may improve rigidity in some designs, but strength depends on the aluminum alloy, wall geometry, shaft design, bearing-seat precision, machining quality, and impact direction. A poorly designed thick bell can still deform, while a well-engineered lightweight bell can be highly durable.
1. [Drone Motor Complete Guide 2025 — LIGPOWER]
2. [FPV Drone Motor Bearing Maintenance and Replacement Guide — UAVMODEL]
3. [How to Choose an FPV Freestyle Motor — Deep Space FPV]
4. [FPV Drone Motor Selection Guide — UAVMODEL]
5. [FPV Motor Bearing Maintenance, Oil Selection, and Replacement Signs — UAVMODEL]
6. [FPV Motor Bearings: Damage Checks and Replacement — MEPSKING]
